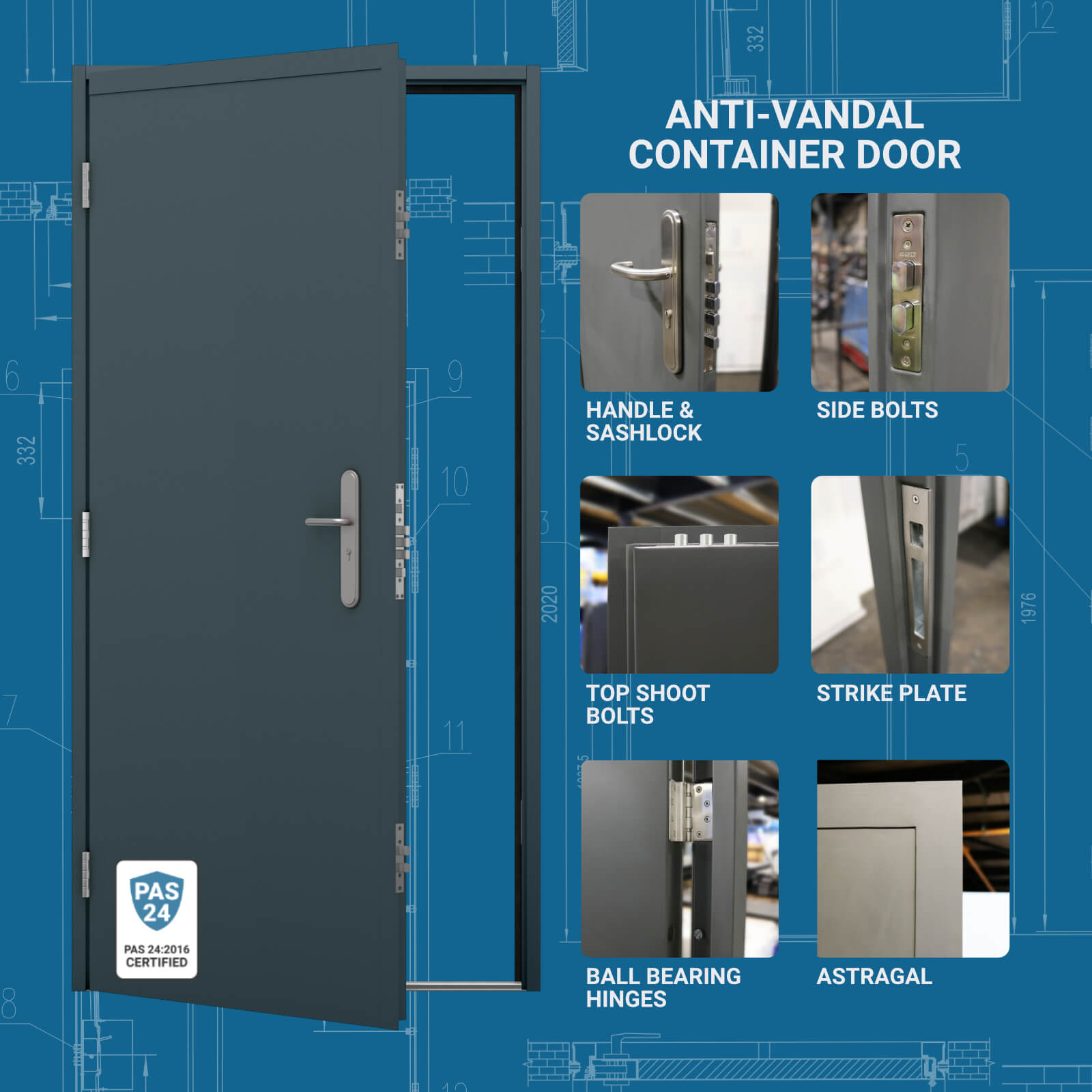

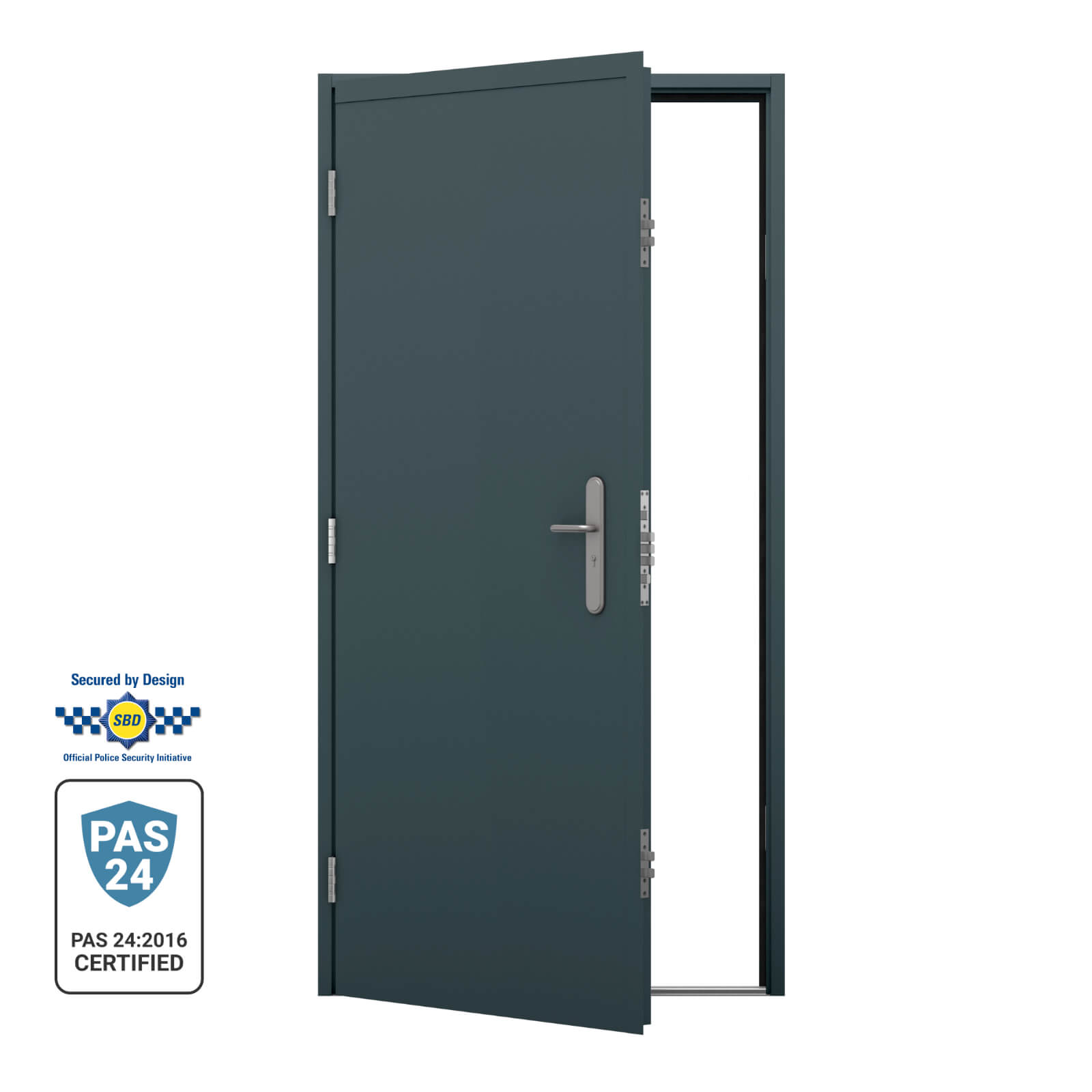

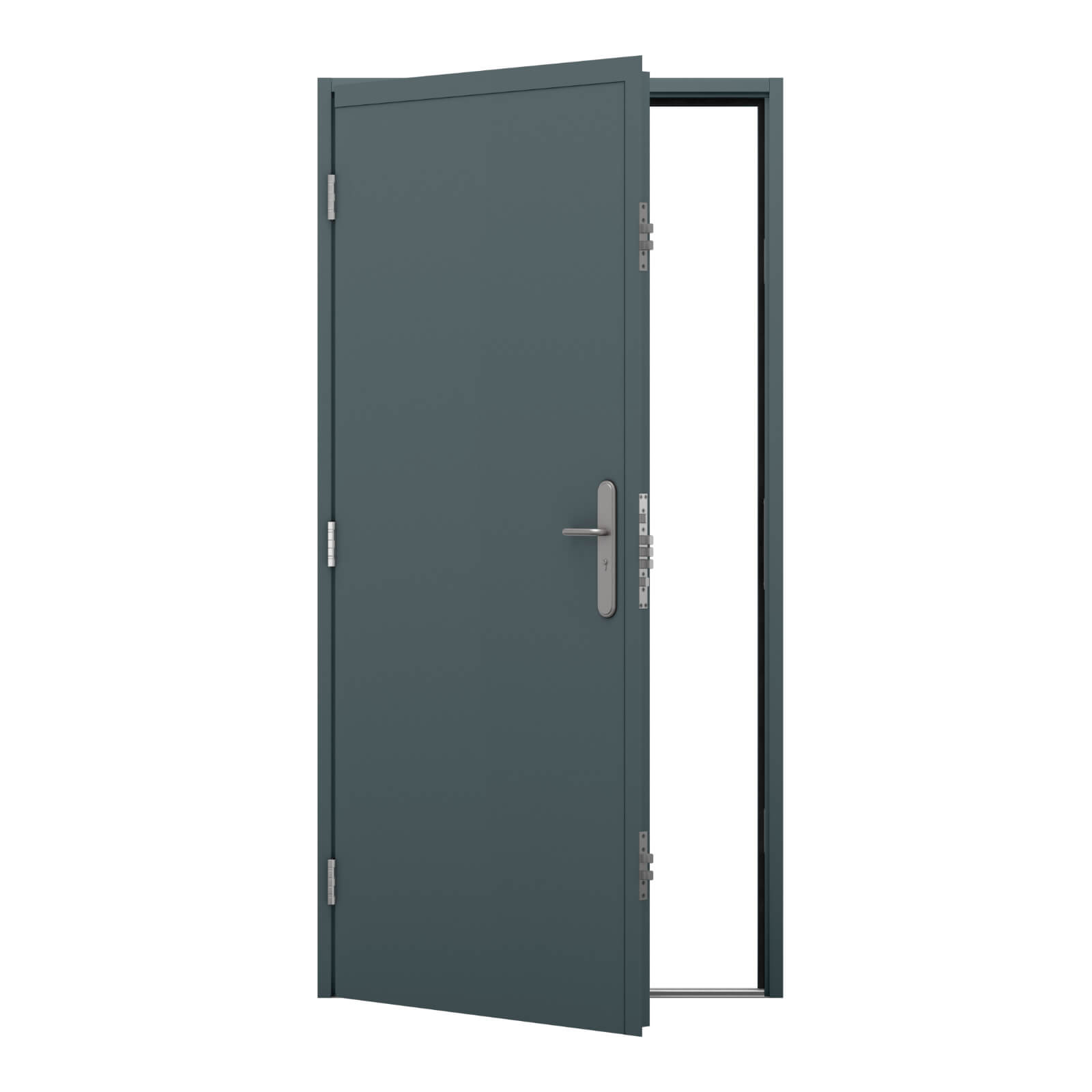

Anti-Vandal Container Door with Astragal

From £245.00 + VAT (£294.00 inc. VAT)

  • 3mm welded astragal*
  • Galvanised steel construction
  • PU foam insulated door & frame
  • Genuine HOOPLY® locks & handle
  • 4mm weld mesh reinforcement

Description

Not your standard security door

Our anti vandal container doors have been engineered purposely for this industry, making it unique and very different to other doors in our other ranges. PU foam insulation, a fully welded frame and sealed joints make for a stiff, rigid door set for easy installation when welding into a shipping container. Compared to our standard ranges, an increased tolerance has been factored in to allow for movement in the shipping container when in transit, or for when it is positioned on an uneven surface.

Finish

Wet sprayed with a grey primer finish, the paint has been designed to take your final paint coat on-site. We recommend painting within 24 hours of install.

Construction

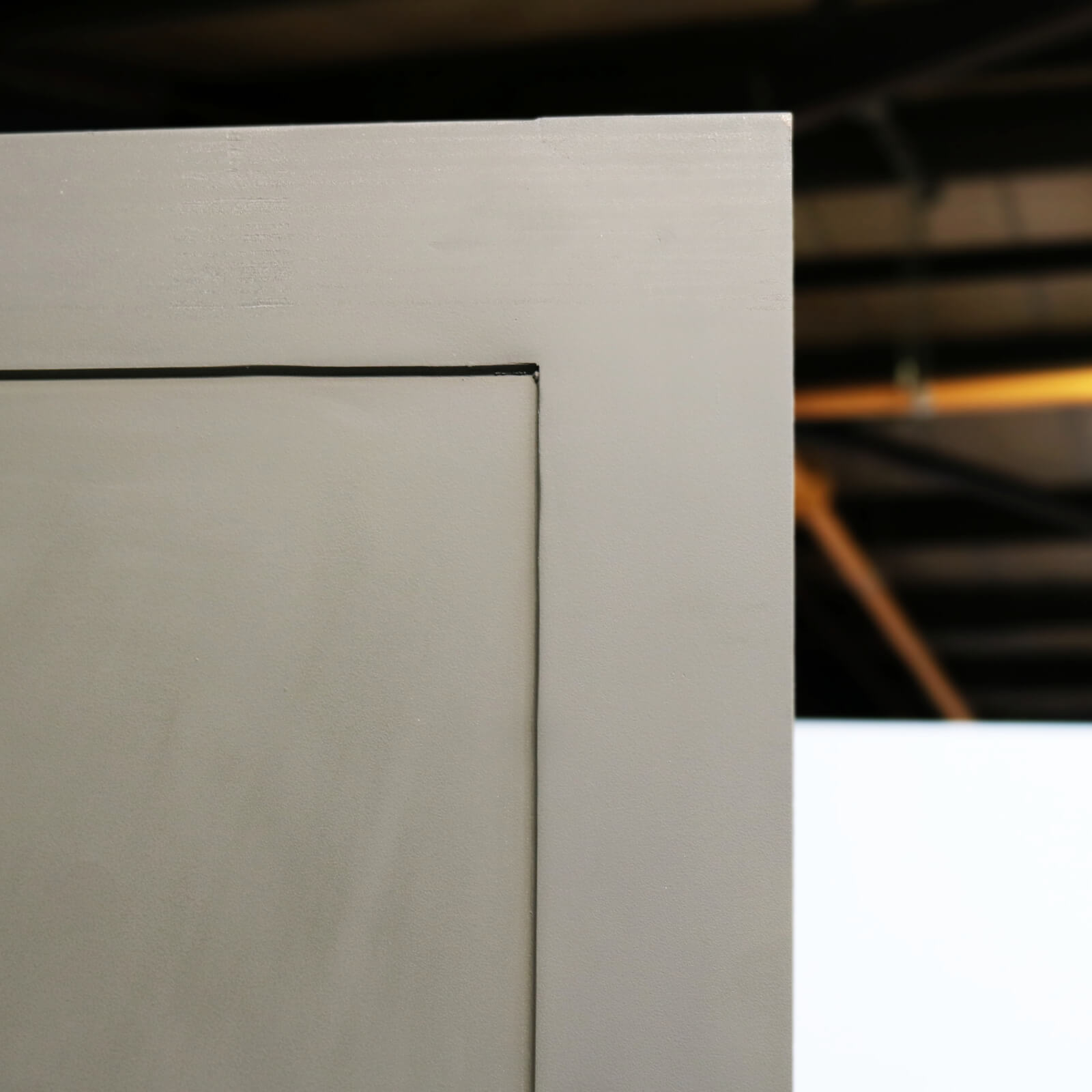

Manufactured with 1mm galvanised steel door skins and 2mm galvanised frames, this particular door has a 3mm thick astragal* welded to the latching side and top of the door for additional security.

*Astragal is mild steel

Insulation

Insulated with polyurethane foam (also known as PU foam), the door leaf AND frame are injected with PU foam for superior insulation values and improved strength and rigidity.

Internal reinforcements

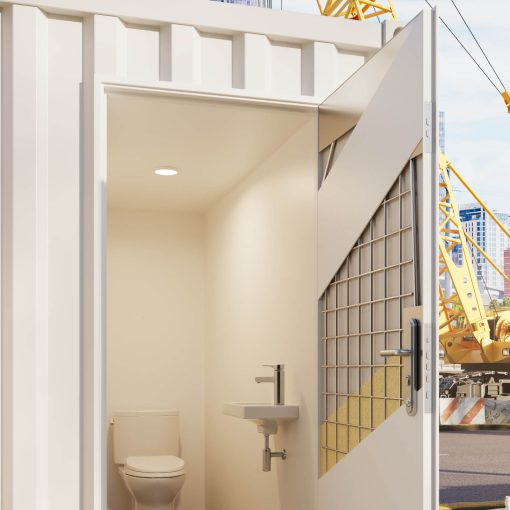

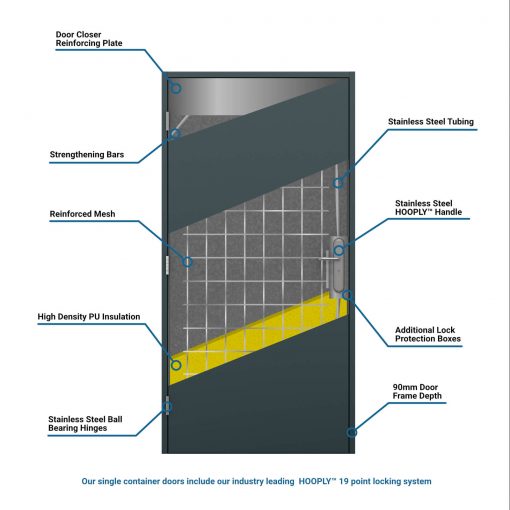

A full subframe, weld mesh, door closer reinforcing plate and additional corner struts are welded inside the door for additional strength and integrity.

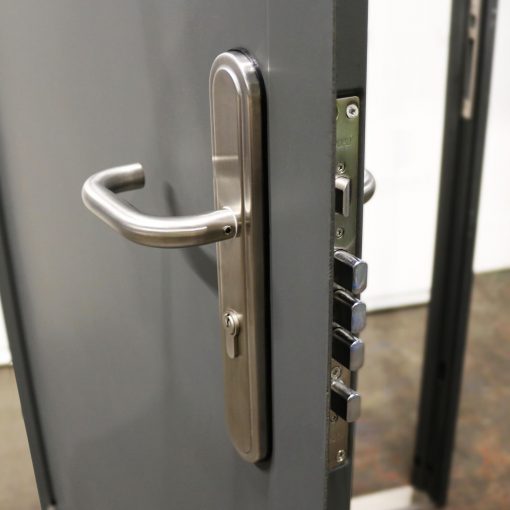

Locking System

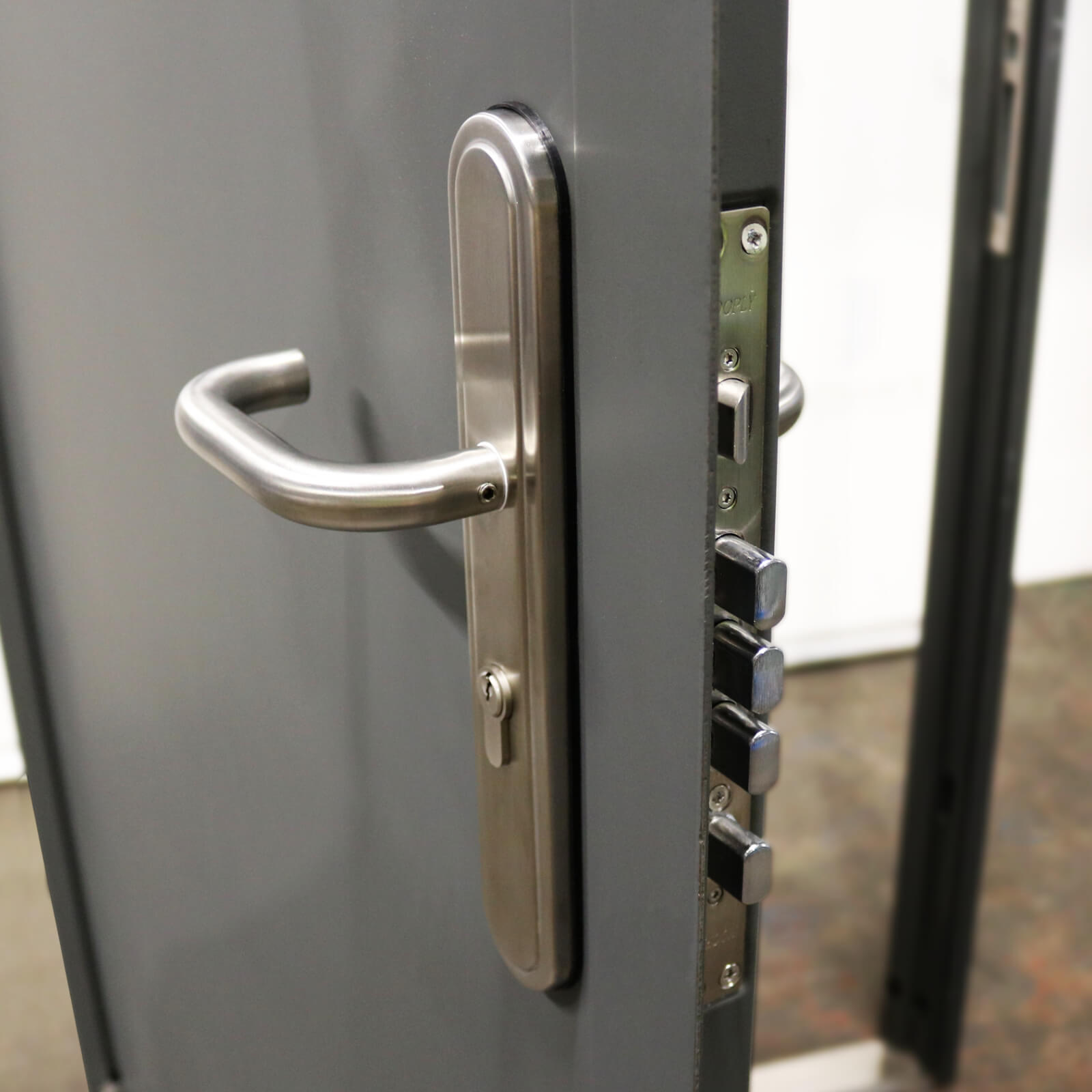

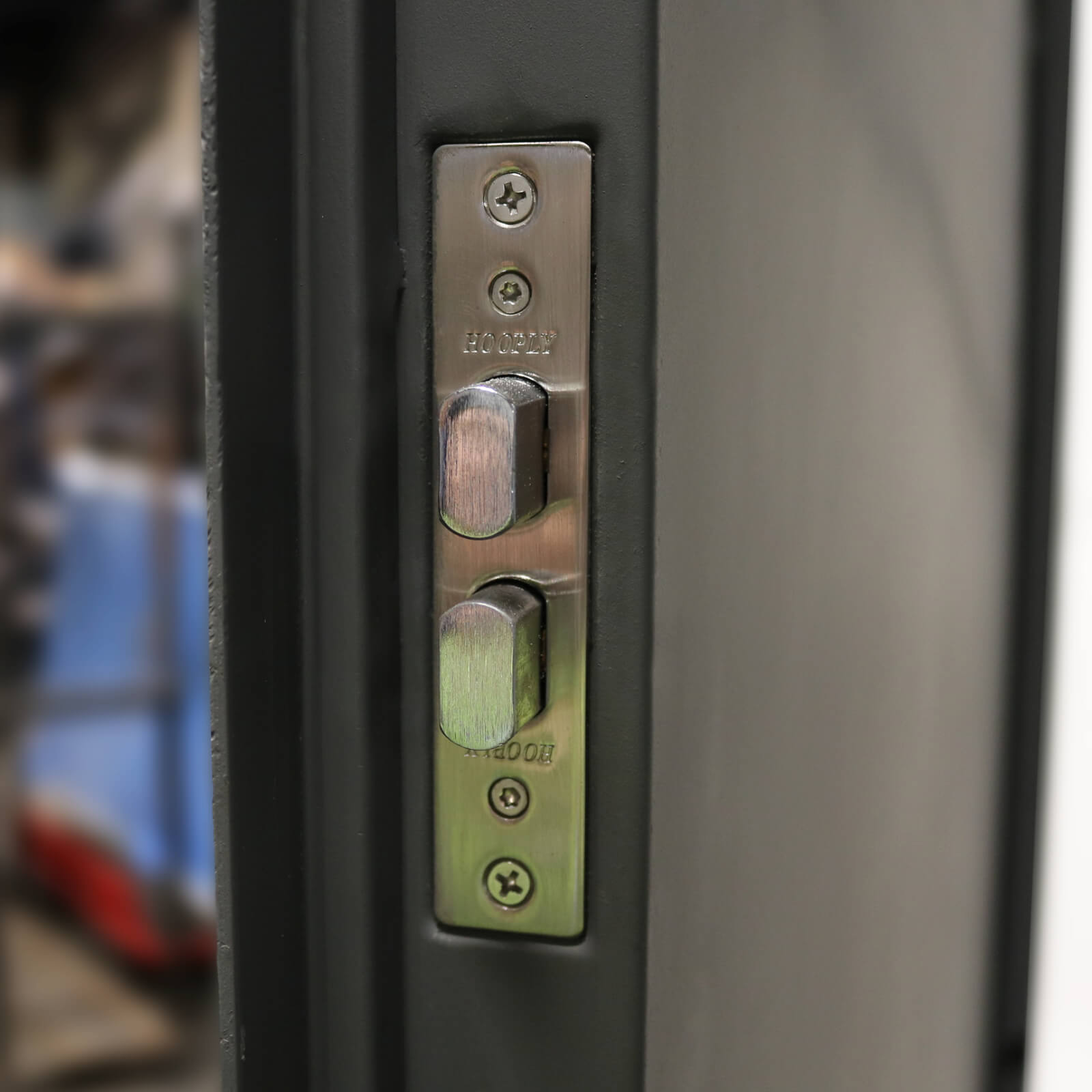

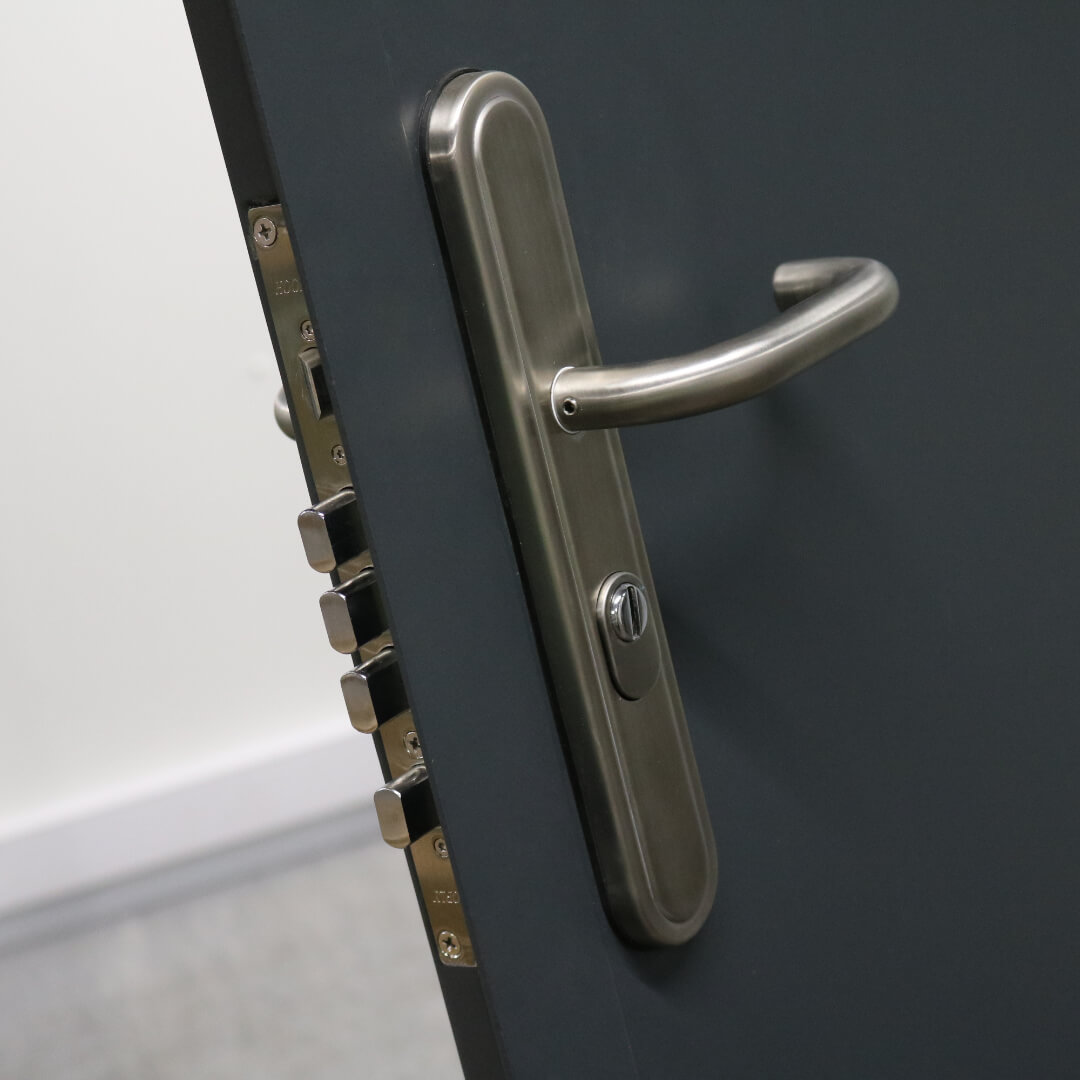

Our trademark Genuine HOOPLY® multi point locking system is integrated into our container personnel doors. The locking system is protected with 2mm lock boxes and stainless steel tubes to protect the connecting rods. An adjustable latch keep is integrated to the strike plate and lock box, to allow for on-site adjustments.

DDA Compliant Threshold

This door complies with the Disability Discrimination Act by having a level threshold with a maximum upstand of only 12mm with chamfered edges. The threshold is manufactured from stainless steel.

Need it in a Hurry?

All our doors are carried in stock and available for collection or next day delivery via our own logistics team or dedicated haulier.

Specification

Door Type

Shipping Container Door

Available Sizes (mm)

910×2065, 1110×2065, 1210×2065

Finish

Grey primer ready for painting

Door Frame Material

2.0mm Galvanised steel

Door Frame Depth

90mm

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

45mm

Door Leaf Core

High Density Polyurethane Foam Insulation

Hinges

3 Stainless steel ball bearing hinges

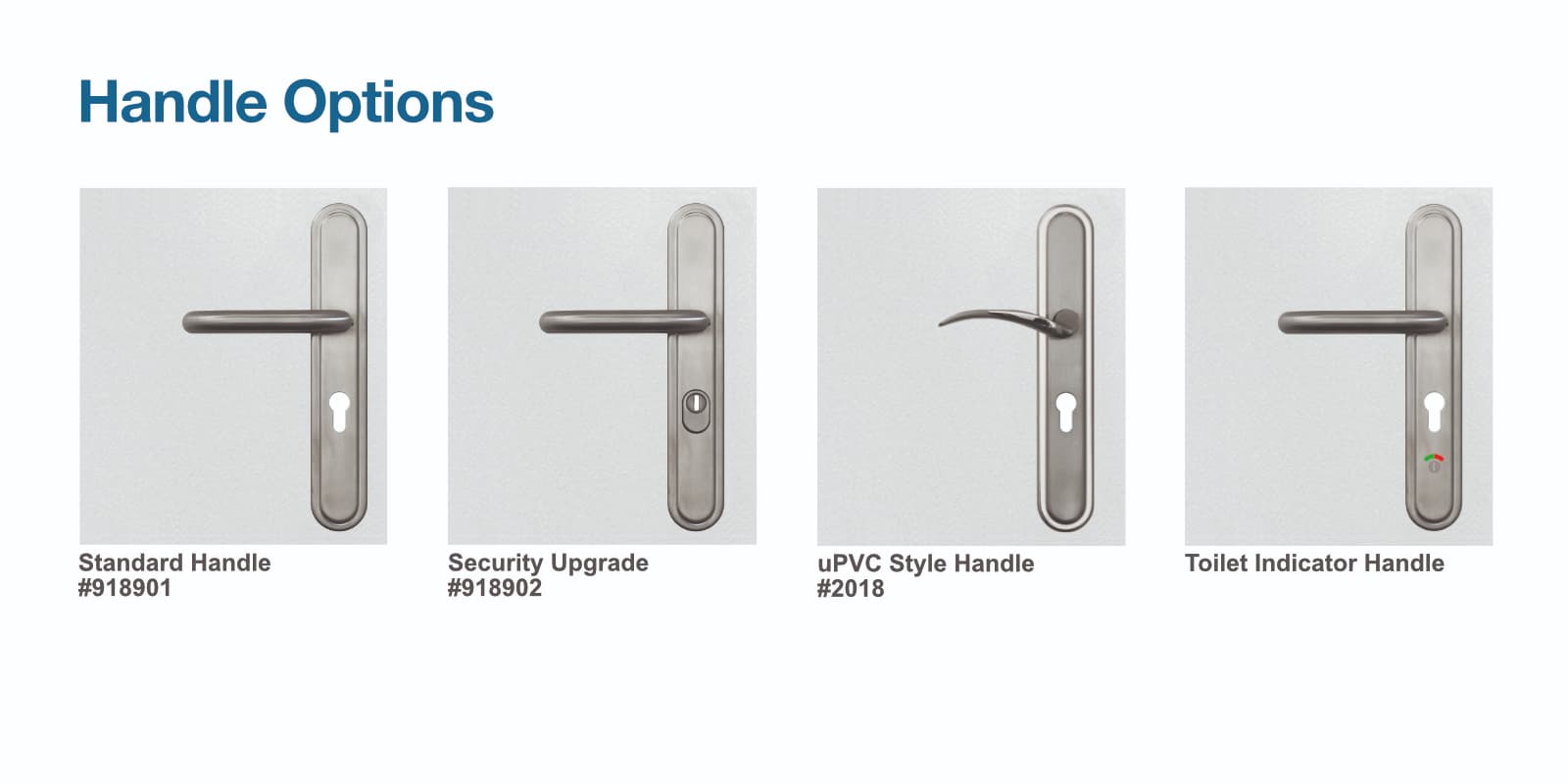

Handles

Genuine HOOPLY® stainless steel handles

Cylinder

Thumb turn euro cylinder lock

Locks or Door Furniture

Genuine HOOPLY® multi-point locking system

Seal

Weather / draught proof seals

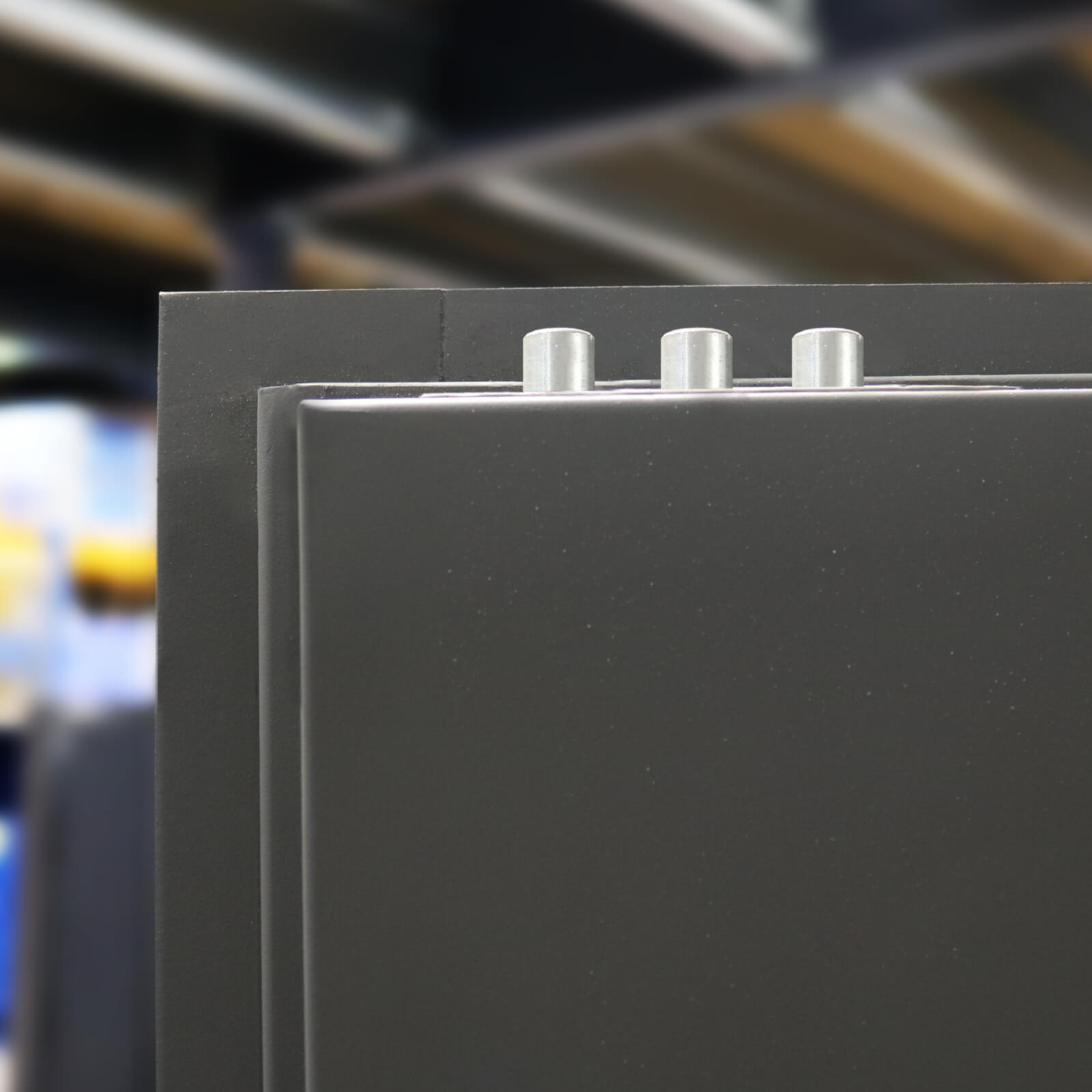

Dog Bolts

4 Dog bolts

Threshold

DDA (Disability Discrimination Act) compliant threshold

Astragal

3.0mm thick security flange

Construction

Fully welded construction

Security Type

Standard

CE Certification

Yes

Security Certification

Pending

Fire Rating Certification

None

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external use

Example Door Purposes

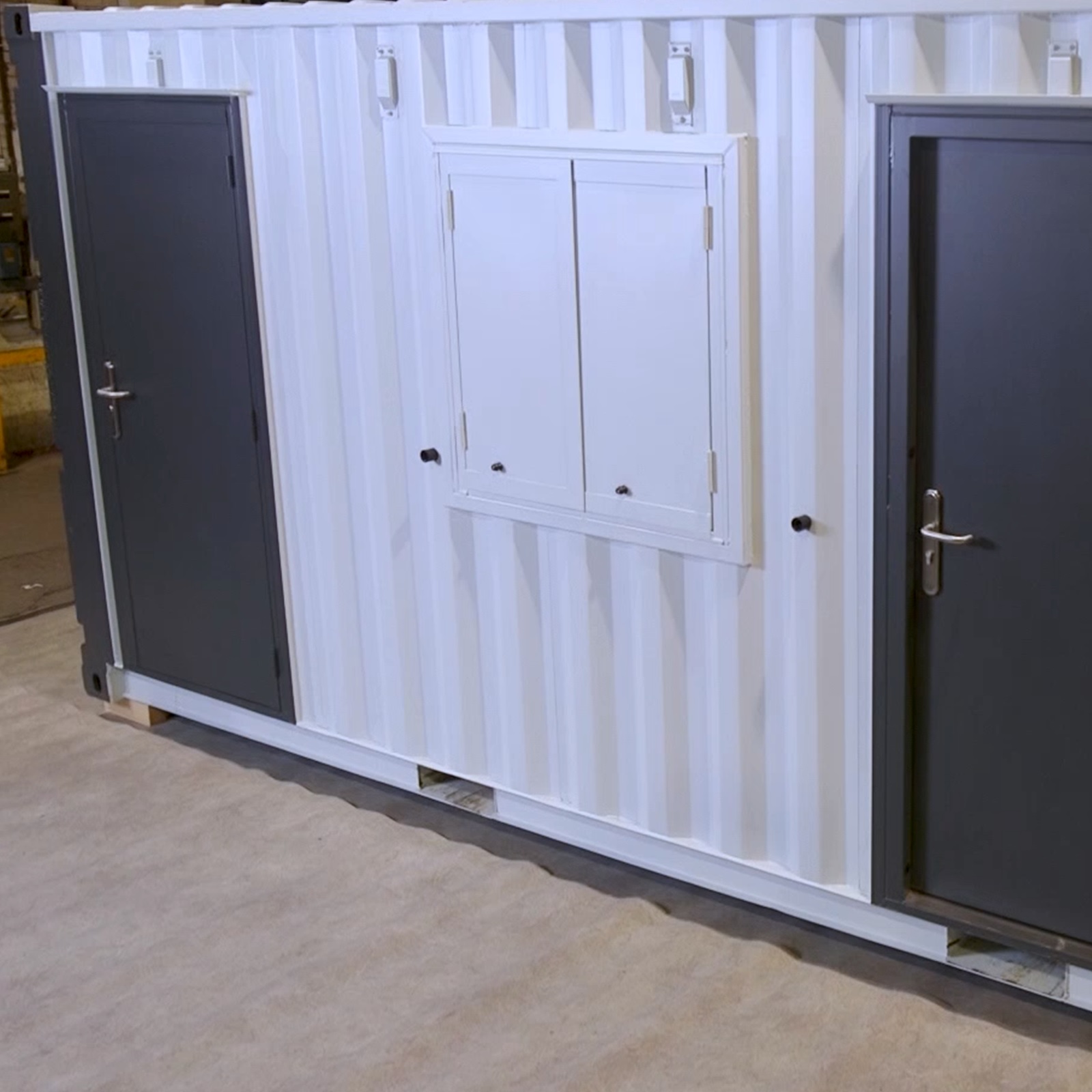

Shipping container doors, container conversions, site offices, modular buildings

Videos

Downloads

Brochure

Download the brochure for our modular building industry products

Spec Sheet (PDF)

Download the spec sheet for our container door range

CAD Drawing (PDF)

Download the CAD drawing for our Anti-Vandal Container Door
