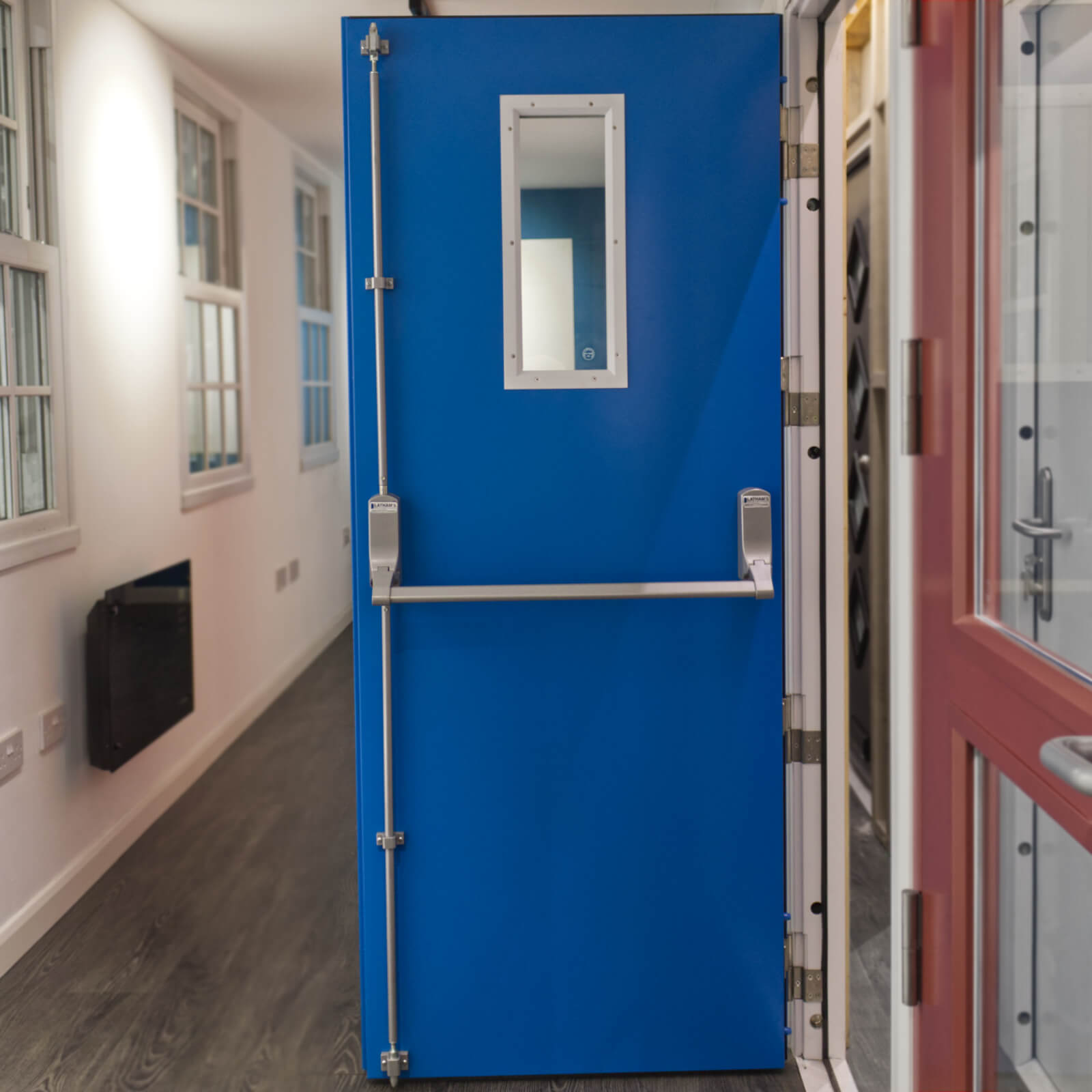

Glazed fire exit door with security Exidor panic bar

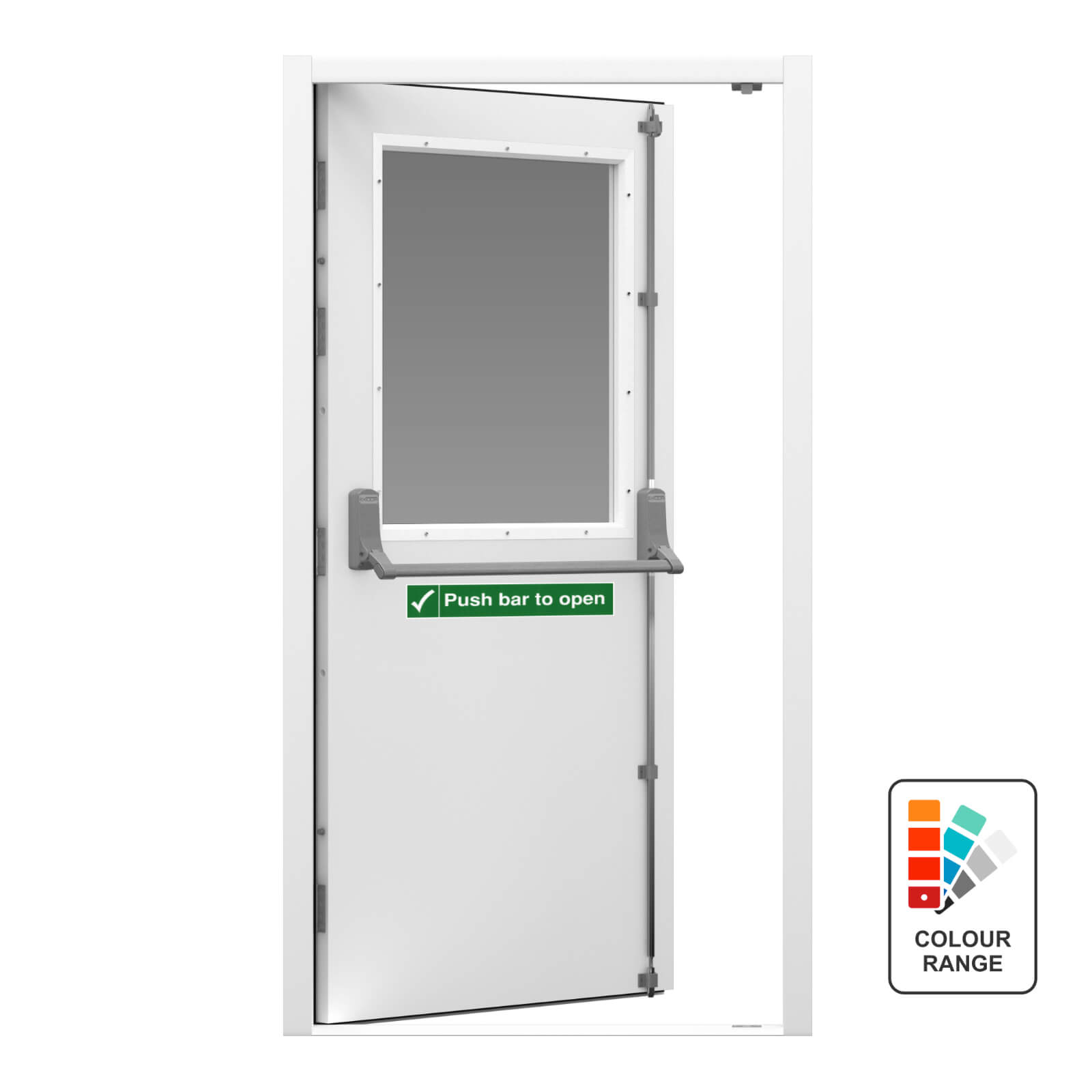

Glazed Fire Exit Door (Security)

from £374.98 + VAT (£449.98 inc. VAT)

Our single glazed fire exit doors are manufactured using our security fire exit door, which features a security Exidor 294 adjustable 2 point panic bar system, pre-fitted from stock. Available in sizes from 795mm – 1145mm wide.

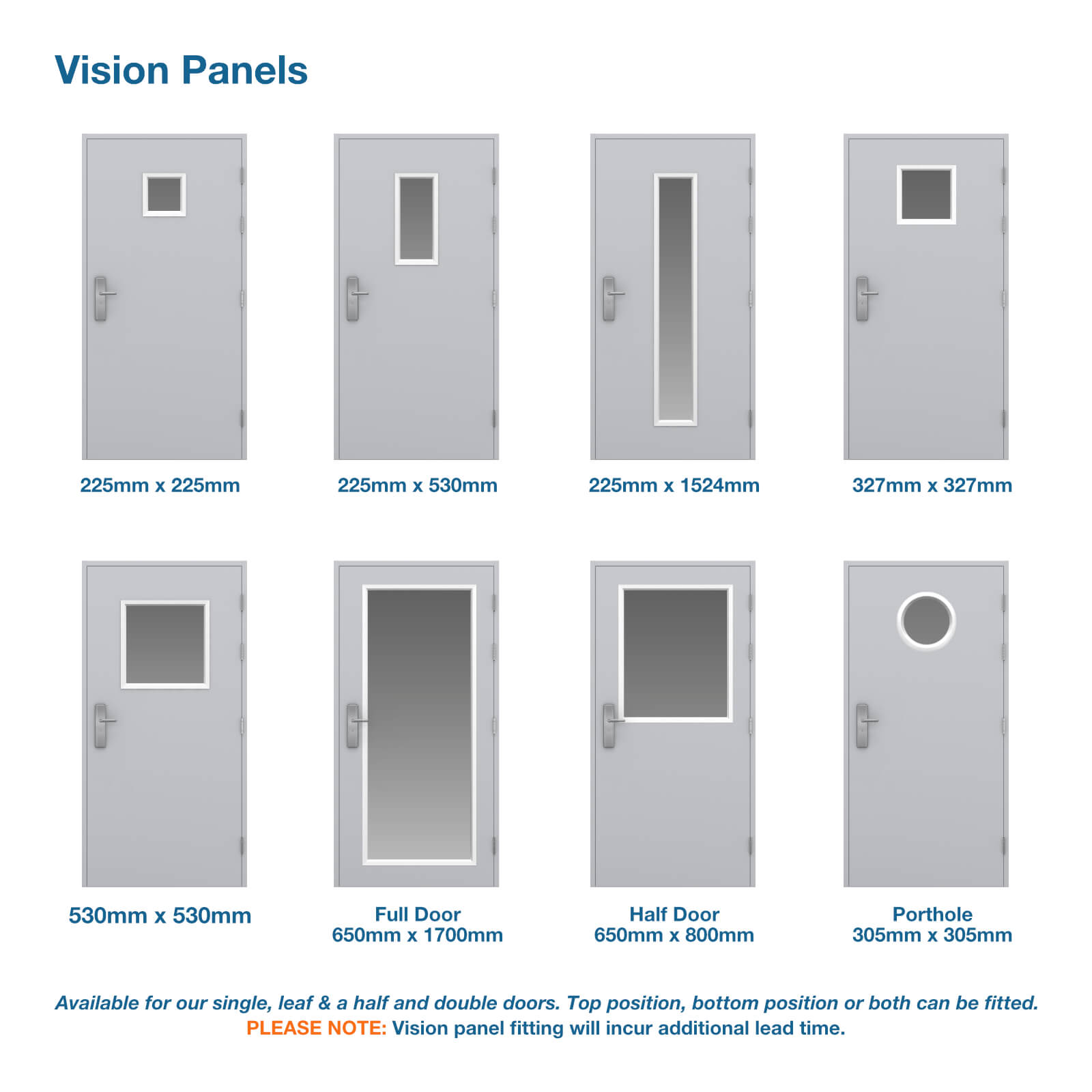

Glazed with security anti-bandit glass, choose from a small glazed window to a fully glazed panel, to allow as much light through as required, without compromising security.

Also available as Glazed Double Fire Exit Doors.

DOWNLOAD BROCHURE

Compare Product
Category: GTIN: 5060479950485

Description

Style and Safety, Hand in Hand

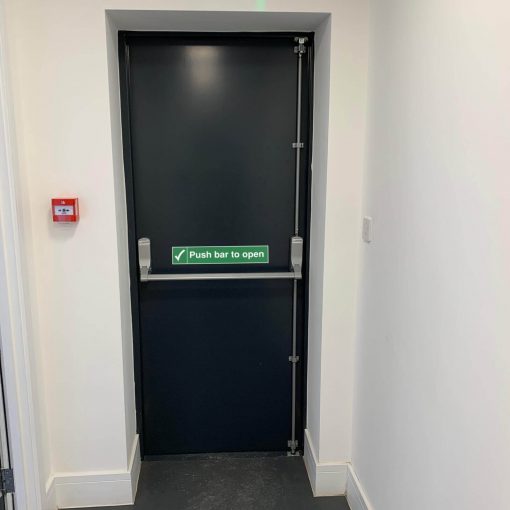

Manufactured from thicker gauge steel, featuring an extra hinge and a 2-point British made Exidor security push bar mechanism, our glazed security fire exit door is a great option for a more secure fire exit.

Powder Coating

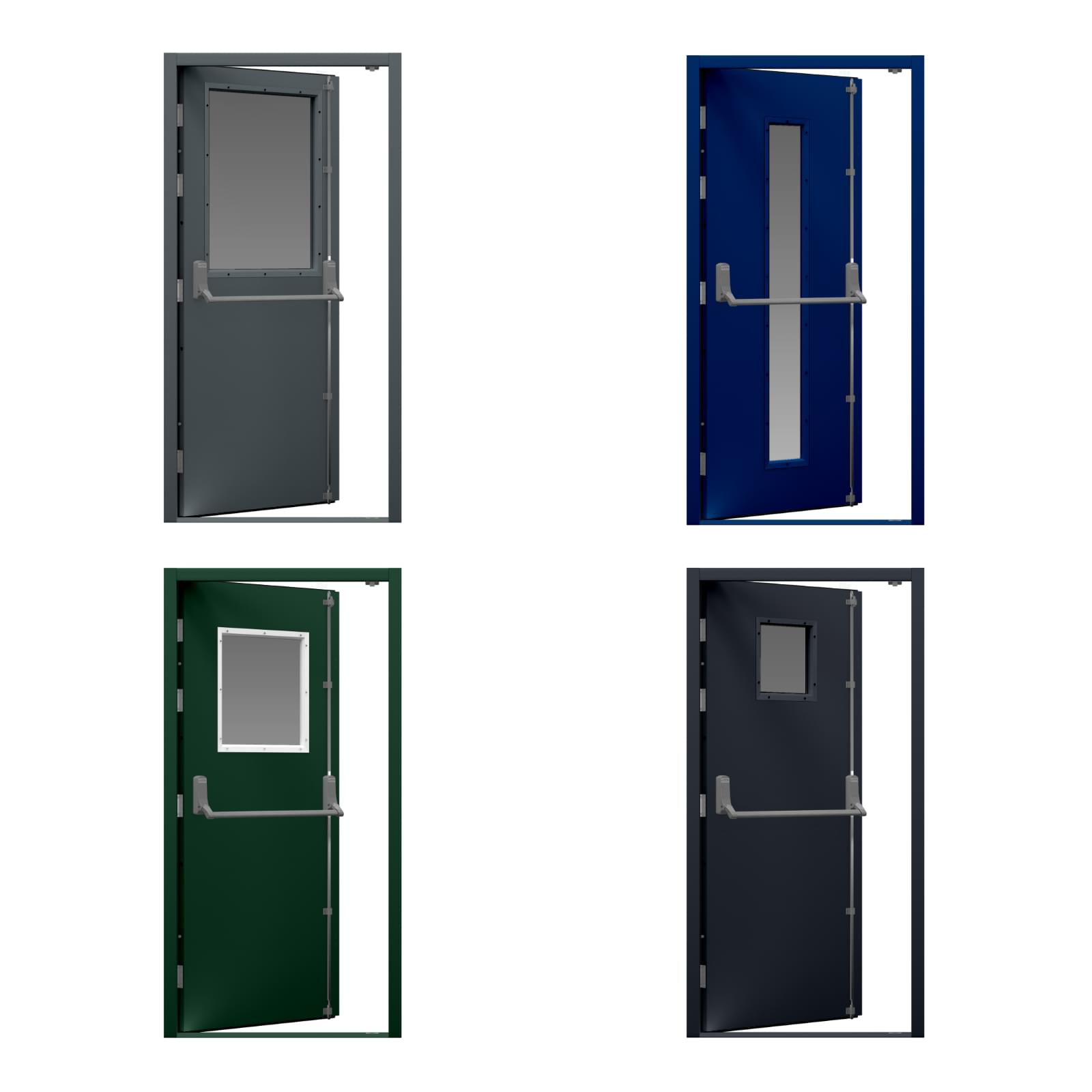

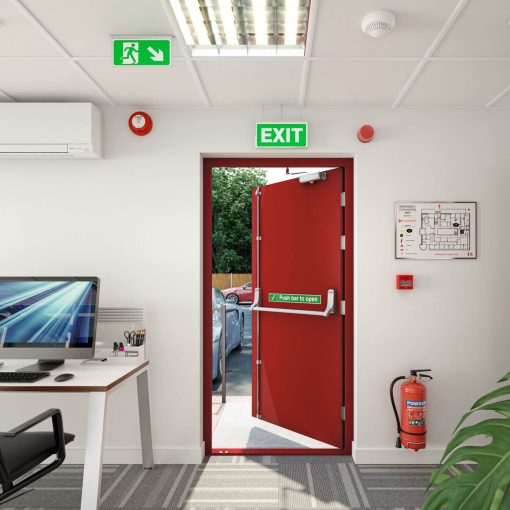

As with all Latham’s steel doors, this door comes powder coated in white (RAL 9003) but can be customised to almost any colour to provide a bold fire exit door, ensuring maximum awareness.

Safe and Secure

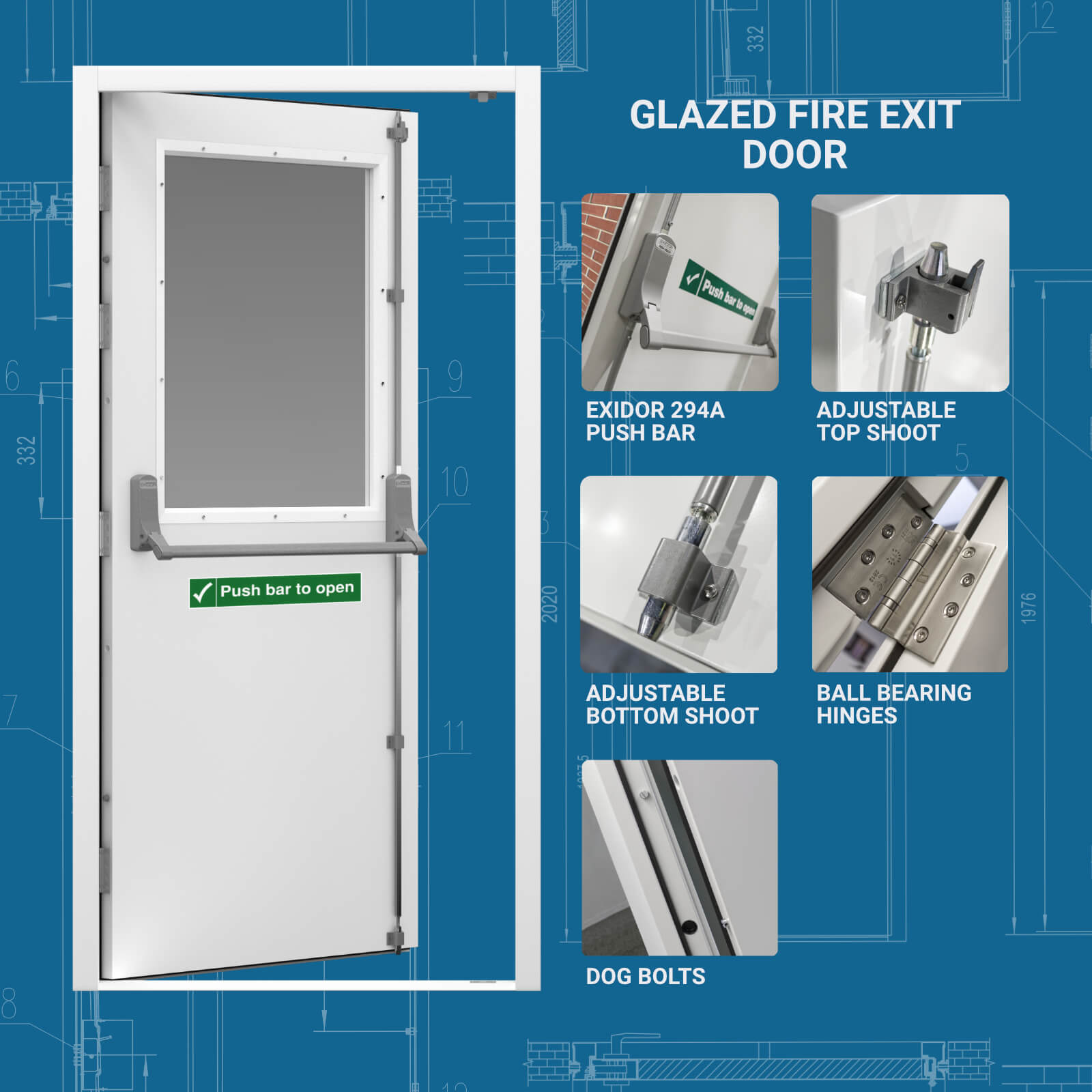

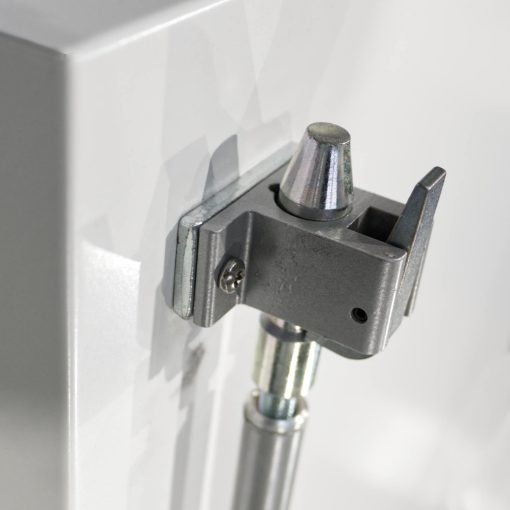

This glazed fire exit door is secured with 4 stainless steel heavy duty lift-off hinges and 4 dog bolts and an Exidor 294 2-point security push bar with adjustable shoot bolts.

Built to Last

Our doors are fitted with Weather and Draught proof seals as standard, ensuring our doors last a long time, even when exposed to the elements.

Tougher Than It Looks

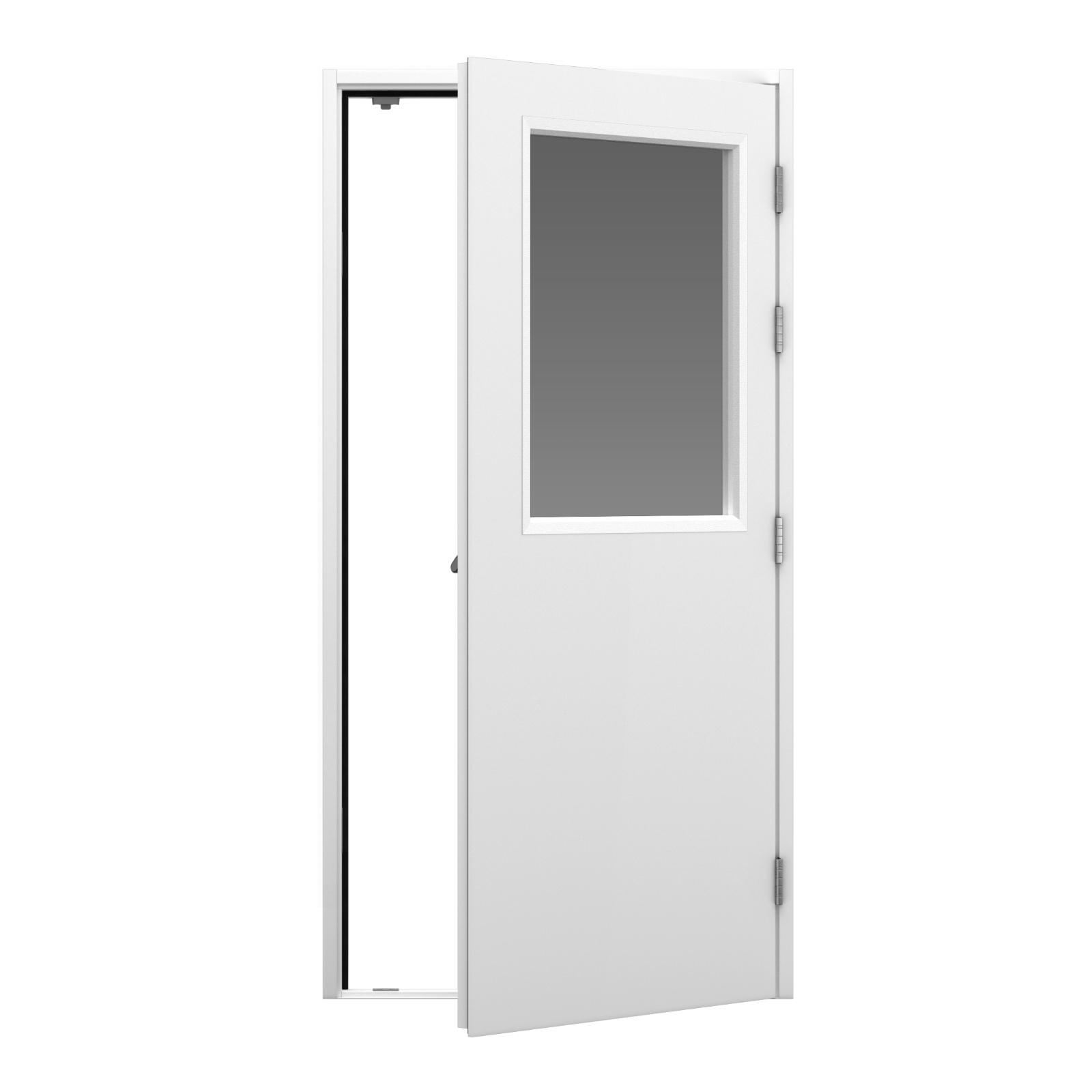

We fit our glazed panels with anti-tamper vision frames and the glass itself is high security anti-bandit glass. Our vision panels are designed to let in as much light as possible.

Outer Access

If you need to use your fire exit as both an exit an entrance, we have a range of OAD handles and knobs available for outer access, including an Exidor code lock for maximum security. These are available from stock.

Specification

Weight10 kg
Door Type

Fire Exit

Available Sizes (mm)

695×2020, 795×2020, 845×2020, 895×2020, 945×2020, 995×2020, 1145×2020

Finish

White powder coat from stock, choice of colours available

Design

Plain door with flush panel

Door Frame Material

2.0mm Galvanised steel

Door Frame Depth

93mm

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

50mm

Door Leaf Core

Honeycomb core

U Value

3.46

Acoustic Value

26dB

Hinges

4 Stainless steel lift-off hinges

Handles

Exidor OAD (outer access devices) available

Locks or Door Furniture

Exidor 294A – security 2 point push bar with adjustable shoot bolts

Seal

Weather / draught proof seals

Dog Bolts

4 Dog bolts

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top

Construction

Fully welded construction

Security Type

Medium

CE Certification

Yes

Security Certification

None

Fire Rating Certification

None

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external use

Example Door Purposes

Industrial Emergency Exit, Security Factory Panic Escape door, Industrial Fire Exit Door, commercial, warehouse Emergency Exit, Security Fire Escape

Videos

FAQs

What glass is installed in the panels?

For security doors, we use 11.5mm anti-bandit security glass.
For high security (Ultra) doors, we use a double glazed unit, compromising of 11.5mm anti-bandit security glass and a 6.4mm laminate.

What can the glazed steel doors be used for?

Our customers frequently use our glazed doors for residential and commercial applications, for example secure office interior doors.

Can I order this door opening inwards?

Fire exit doors cannot open inwards. In the event of emergency, the door is made to open fast, by rapidly pushing the push bar down and door outwards

What is the lead time?

Stock Door (white, with glazing panels installed) – 4 working days
Re-Powder Coated Stock Door (not white) – 10 working days
Lead times stated above are plus delivery.

How many keys come with the glazed doors?

Fire exit doors ordered with an OAD come with 2 keys
Additional keys are available – we have a key cutting machine on-site

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.
We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door
To calculate the clear opening (when the door is open), subtract 135mm from the width dimension. E.G. 895mm-135mm=760mm clear opening
See the video on how to measure here

What is Security Trim?

The security trim kit fits around the perimeter of the door frame, preventing any packing from being seen externally and making the door as a whole more secure.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
See the security trim video here

To see all FAQs, click here

Brochure

Download

Download the brochure for our Security Fire Exit door

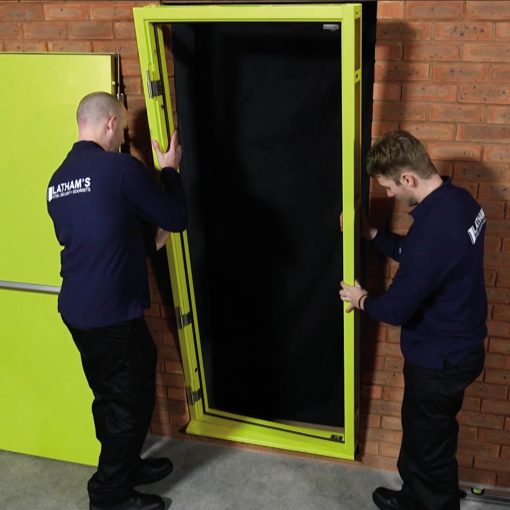

Fitting Instructions

Download

Download the fitting instructions for our doors

CAD Drawing (PDF)

Download

Download the CAD drawing for our Security Fire Exit Door in PDF

CAD Drawing (DWG)

Download

Download the CAD drawing for our Security Fire Exit Door in DWG
