Glazed double steel door

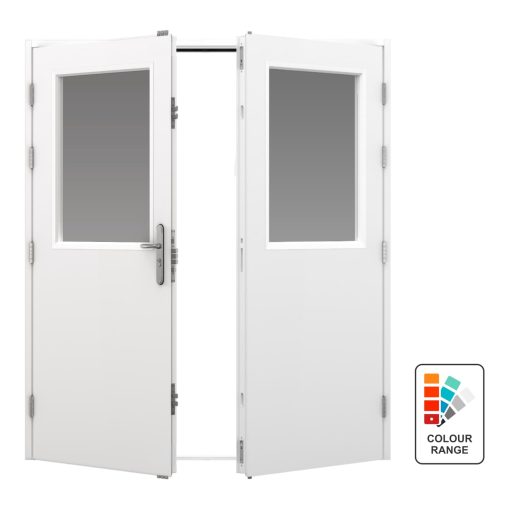

Glazed Steel Double Door (Security)

From £524.98 +VAT (£629.98 inc. VAT)

Available in sizes from 1295mm up to 2195mm wide with a range of glazing options our security double door is suitable for multiple purposes whatever your requirement. As with all of our glazed door range, anti-bandit glass is fitted as standard for optimum security. Combined with the 21 locking points and the heavy duty door construction, this door is very secure.

If your opening is too big for a single door, but too small for a double door, our glazed leaf and a half door is ideal. Essentially a door and a half, you can fully glaze the active leaf and add panels into the half leaf for optimum light transmittance.

Also available as a Single Glazed Door for smaller openings.

Compare Product

Lead Times
White door: 5 working days + delivery
Powder coated door: 10-15 working days + delivery
Fast track options: Contact us for availability

SKU: GLA-DD-01 Category:

Glazed Security Fire Exit

Manufactured from thicker gauge steel, featuring an extra hinge and a 2-point British made Exidor security push bar mechanism, our glazed security fire exit door is a great option for a more secure fire exit.

Colour Options for your Fire Escape Door

As with all Latham’s Steel Doors, this door is powder coated in Latham’s Stock White as standard but can be customised to almost any colour if required

Glazing Panel Sizing to Suit

A range of glazing panel sizes are available from a small window 225mm x 225mm up to a fully glazed panel depending on your requirements.

Outside Access to External Entry

If you also need your door to provide external access, we have a range of Exidor Outside Access Devices (OAD’s) that can be fitted including knobs, handles and a code lock for maximum security.

Door Type

Personnel Door

Available Sizes (mm)

1295×2020, 1395×2020, 1495×2020, 1595×2020, 1695×2020, 1795×2020, 1895×2020, 1995×2020, 2095×2020, 2195×2020

Finish

White powder coat from stock, choice of colours available

Design

Plain door with flush panel

Door Frame Material

1.8mm Galvanised Steel

Door Frame Depth

90mm

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

50mm

Door Leaf Core

Mineral wool insulation

Internal Strengthening

2 x horizontal & 1 x vertical reinforced bars per door leaf

U Value

3.96

Acoustic Value

35dB

Hinges

8 Stainless steel ball bearing hinges

Handles

Hooply handles (5586)

Locks or Door Furniture

Active leaf: 10 point locking system | Passive leaf: Flush bolts top and bottom

Cylinder

UAP Tradelock Euro Cylinder

Seal

Nylon self adhesive V-seal

Dog Bolts

4 Dog bolts on each door leaf (8 in total)

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top

Construction

Fully welded construction

Security Type

Medium

CE Certification

Yes

Fire Rating Certification

None

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external and internal use

Example Door Purposes

Shop front door, glazed office doors

Videos



FAQs

What glass is installed in the panels?

For Security doors, we use 11.5mm anti-bandit security glass.
For High Security (Ultra) doors, we use a double glazed unit, compromising of 11.5mm anti-bandit security glass and a 6.4mm laminate.

What can the glazed steel doors be used for?

Our customers frequently use our glazed doors for residential and commercial applications, for example secure office interior doors.

How do I choose the hinge side and opening? (Handing)

Hinge side and opening is determined viewed from outside.
Example 1: LH hinge open out: hinges are on the LH side, handle is on the right and you pull the door towards you.
Example 2: RH hinge open in: hinges are on the RH side, handle is on the left and you push the door away from you.
See our handy illustration here

What is the lead time?

Stock Door (white, with glazing panels installed) – 4 working days
Re-Powder Coated Stock Door (not white) – 10 working days
Lead times stated above are plus delivery.

How many keys come with the louvred doors?

Personnel doors come with 3 usable keys
Additional keys are available – we have a key cutting machine on-site
See our cylinder options video here

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.
We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door
To calculate the clear opening (when the door is open), subtract 135mm from the width dimension. E.G. 895mm-135mm=760mm clear opening
See the video on how to measure here

What is Security Trim?

The security trim kit fits around the perimeter of the door frame, preventing any packing from being seen externally and making the door as a whole more secure.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
See the security trim video here

To see all FAQs, click here

Downloads

Fitting Instructions

Download fitting instructions

Operation & Maintenance Manual

Download operation & maintenance manual
