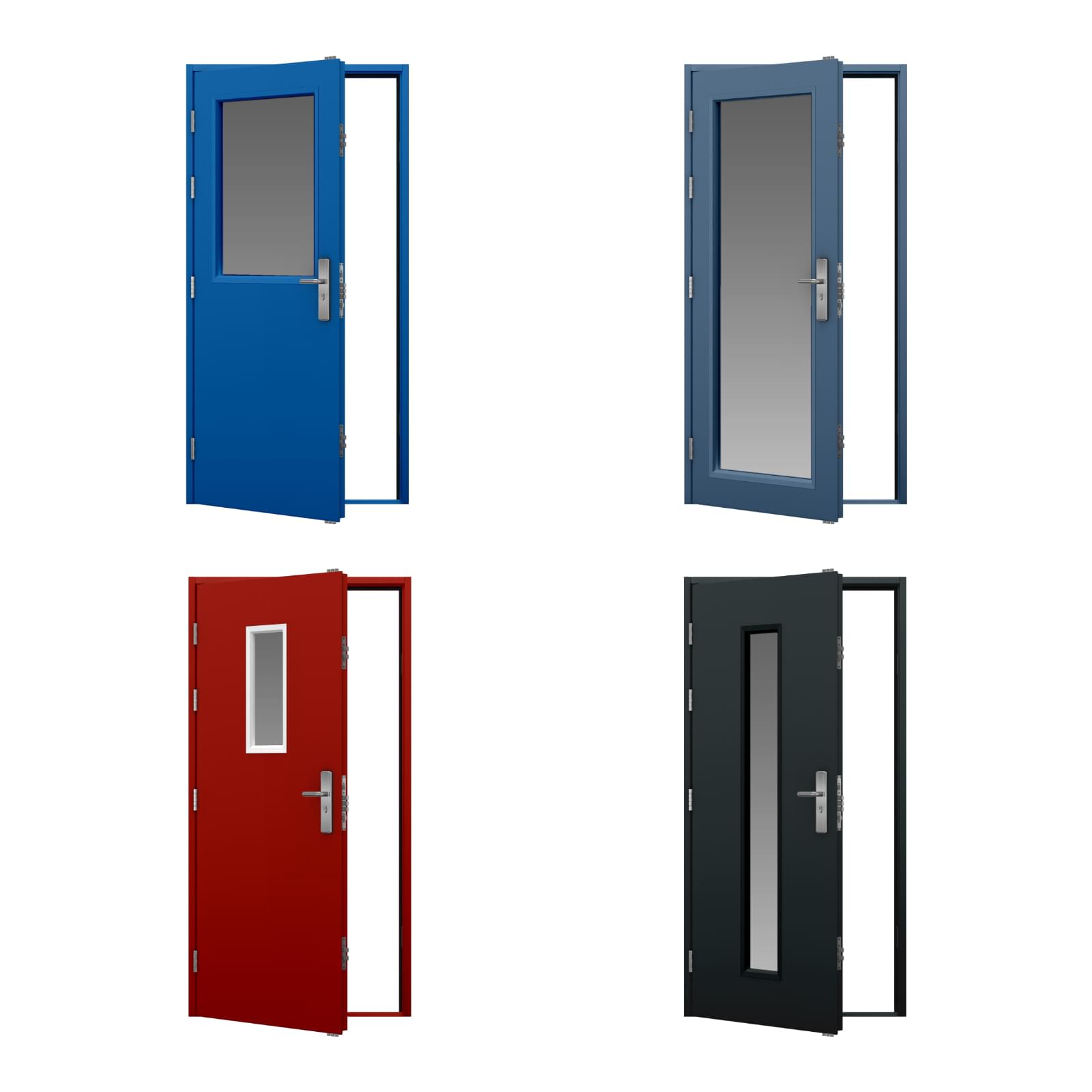

Glazed steel door in white with smaller versions showing some colour options

Glazed Steel Door (Security)

From £324.98 + VAT (£389.98 inc. VAT)

Our glazed steel doors are manufactured using our most popular security steel door, which features our trademark 19 point locking system from stock. It is available in sizes from 795mm – 1145mm wide.

Choose from small glazed windows to a fully glazed panel, to allow as much light through, without compromising security.

Also available as Glazed Steel Double Doors.

Compare Product
SKU: GLA-SD-01 Category:

Description

Don’t Sacrifice Safety for Style

Although our glazed steel doors look great, they also feature 4 secure lift off hinges and feature our secure 19 point locking system as standard. Proving you can have both style and safety.

Customise Your Colour

As with all Latham’s steel doors, this door and its panels come powder coated in white (RAL 9003), we also offer a powder coating service so you can match your door and frame to your surroundings.

Limitless Panel Options

Why not add more glazed panels for a more unique design, the sizes of our glazed panels range from the smaller 225 x 225mm panel, all the way up to fully glazed.

Need it Next Day?

All our doors are carried in stock and available for next day delivery via dedicated courier. Perfect for last minute projects or replacement after damage to existing doors.

Versatile Doors

The strength and style of our glazed steel security doors can be used within a variety of different settings, however, popular uses include personnel doors, main office doors and shop entrances.

Tougher Than We Look

The glass used within our glazed steel security doors is anti-bandit security glass, this is fitted using an anti-tamper vision frame and are designed to let in as much light as possible.

Specification

Door Type

Personnel Door

Available Sizes (mm)

695×2020, 745×2020, 795×2020, 845×2020, 895×2020, 945×2020, 995×2020, 1145×2020

Finish

White powder coat from stock, choice of colours available

Design

Plain door with flush panel

Door Frame Material

2.0mm Galvanised steel

Door Frame Depth

93mm

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

50mm

Door Leaf Core

Fire board core

U Value

2.20

Acoustic Value

32dB

Hinges

4 Stainless steel lift-off hinges

Handles

Hooply handles (5586)

Locks or Door Furniture

Latham's trademark 19 point locking system

Cylinder

Euro profile cylinder (ABC key system). Security cylinder upgrade available.

Seal

Weather / draught proof seals

Dog Bolts

4 Dog bolts

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top

Construction

Fully welded construction

Security Type

Medium

CE Certification

Yes

Security Certification

STS202 BR1

Fire Rating Certification

None

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external and internal use

Example Door Purposes

Office door, shop front door, glazed door

FAQs

What glass is installed in the panels?

For Security doors, we use 11.5mm anti-bandit security glass.
For High Security (Ultra) doors, we use a double glazed unit, compromising of 11.5mm anti-bandit security glass and a 6.4mm laminate.

What can the glazed steel doors be used for?

Our customers frequently use our glazed doors for residential and commercial applications, for example secure office interior doors.

How do I choose the hinge side and opening? (Handing)

Hinge side and opening is determined viewed from outside.
Example 1: LH hinge open out: hinges are on the LH side, handle is on the right and you pull the door towards you.
Example 2: RH hinge open in: hinges are on the RH side, handle is on the left and you push the door away from you.
See our handy illustration here

What is the lead time?

Stock Door (white, with glazing panels installed) – 4 working days
Re-Powder Coated Stock Door (not white) – 10 working days
Lead times stated above are plus delivery.

How many keys come with the louvred doors?

Personnel doors come with 5 usable keys, unless you order a security upgraded cylinder. Upgraded cylinders come with 3 keys.
Additional keys are available – we have a key cutting machine on-site

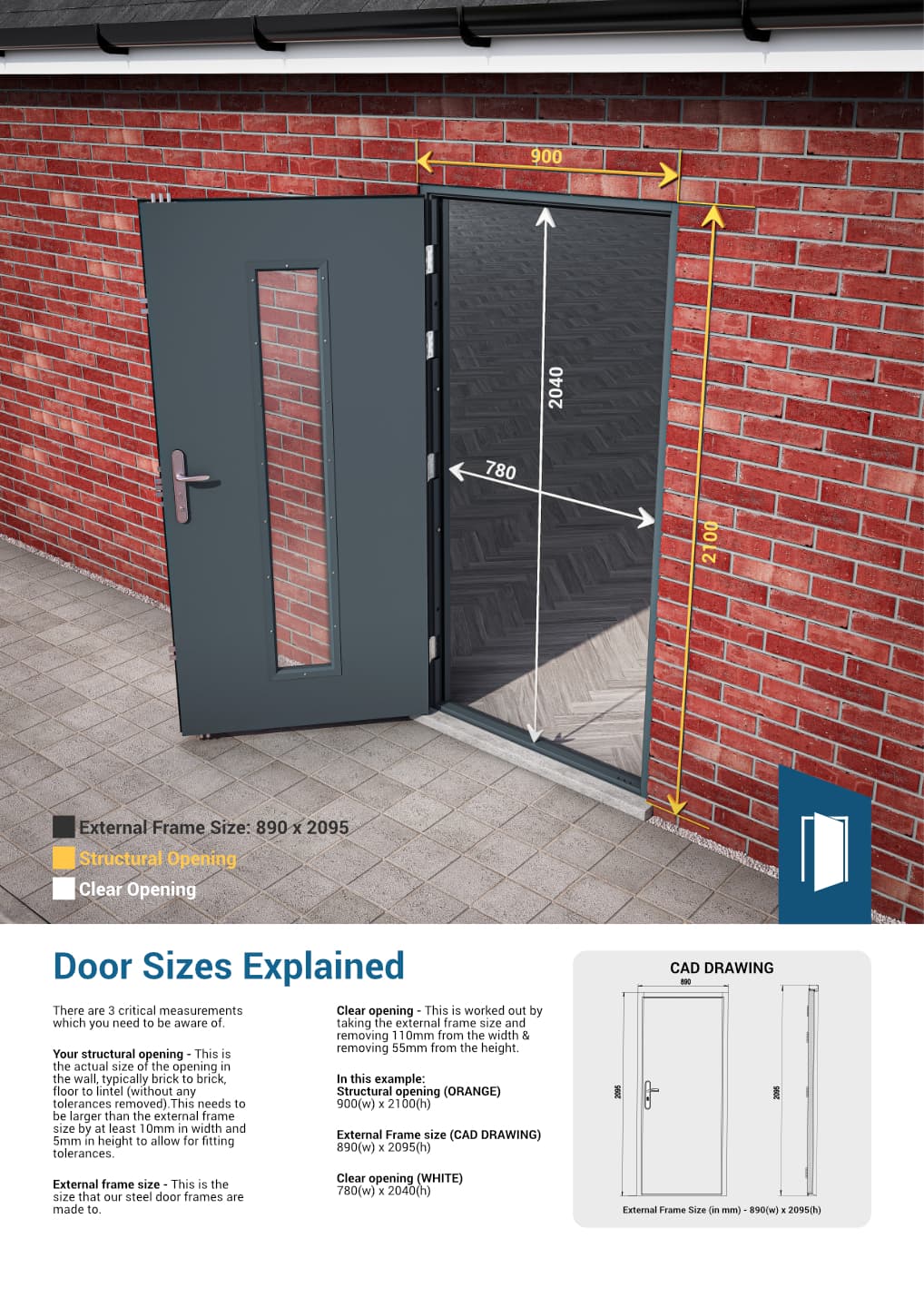

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.
We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door
To calculate the clear opening (when the door is open), subtract 135mm from the width dimension. E.G. 895mm-135mm=760mm clear opening
See the video on how to measure here

What is Security Trim?

The security trim kit fits around the perimeter of the door frame, preventing any packing from being seen externally and making the door as a whole more secure.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
See the security trim video here

To see all FAQs, click here

Downloads

Brochure

Download the brochure for our Glazed Security Steel Door

Fitting Instruction

Download the fitting instructions for our doors

Operation & Maintenance Manual

Download the operation & maintenance manual for our doors

CAD Drawing (PDF)

Download the CAD drawing for our Glazed Security Steel Door in PDF

CAD Drawing (DWG)

Download the CAD drawing for our Glazed Security Steel Door in DWG
