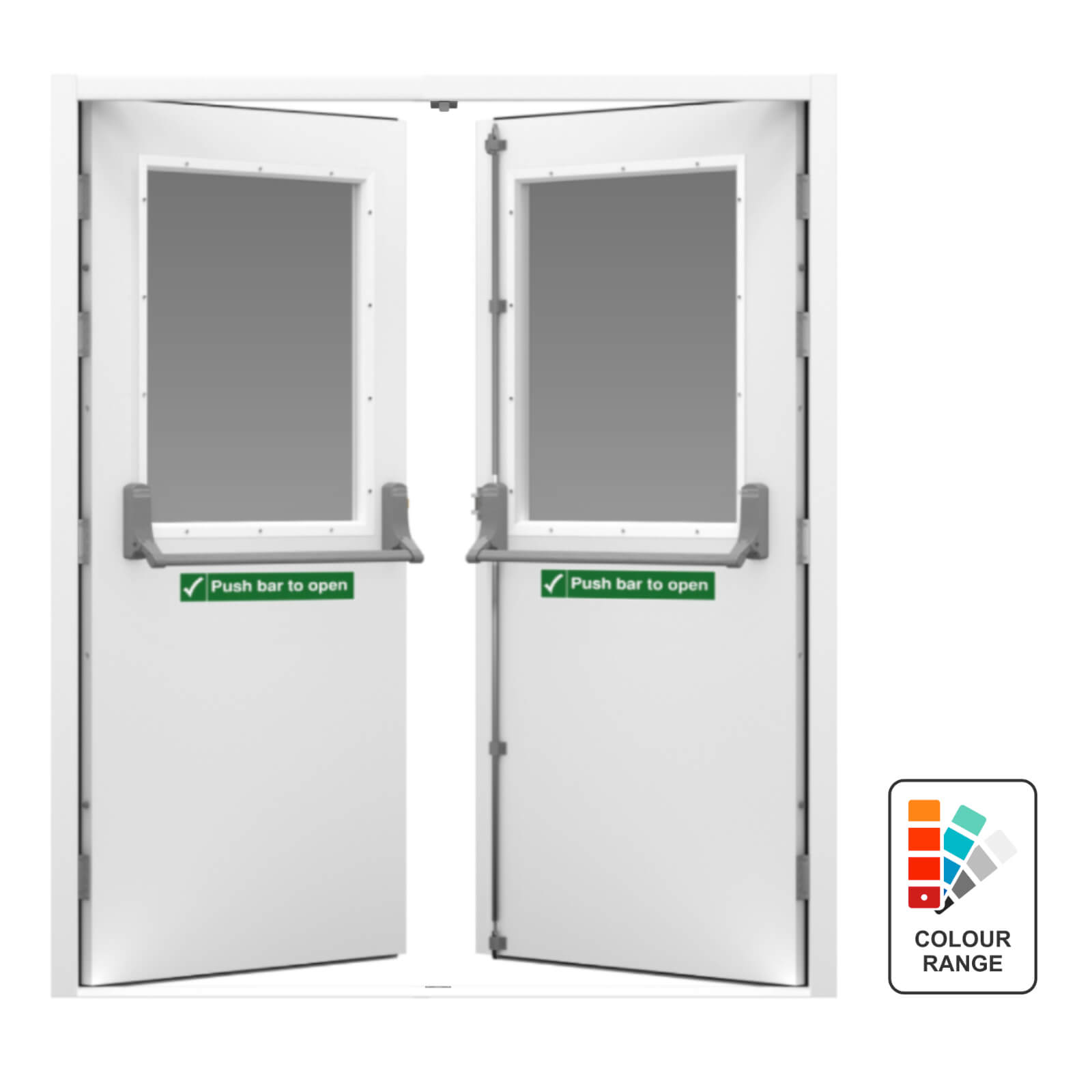

Glazed Double Fire Exit Door

From £624.98 +VAT (£749.98 inc. VAT)

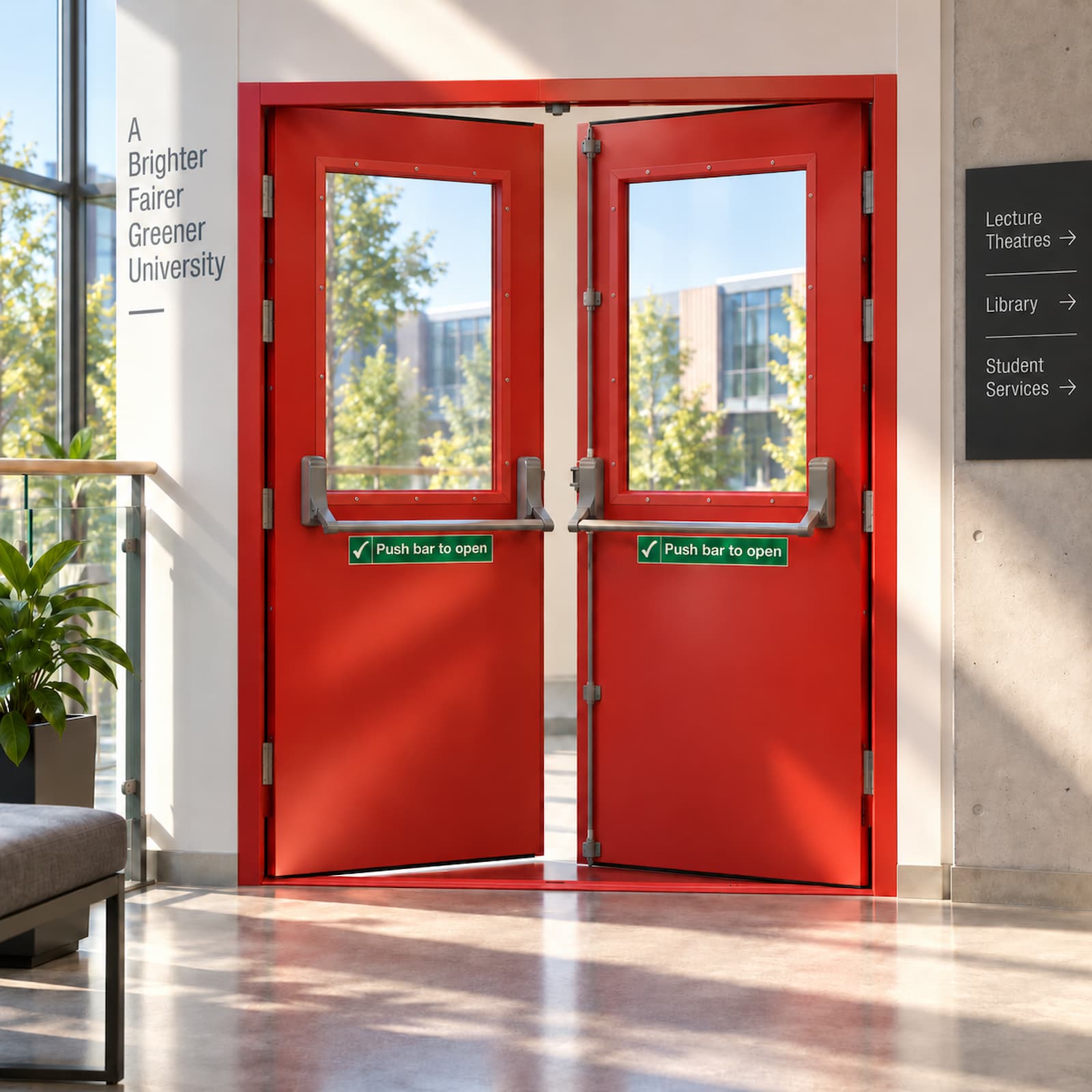

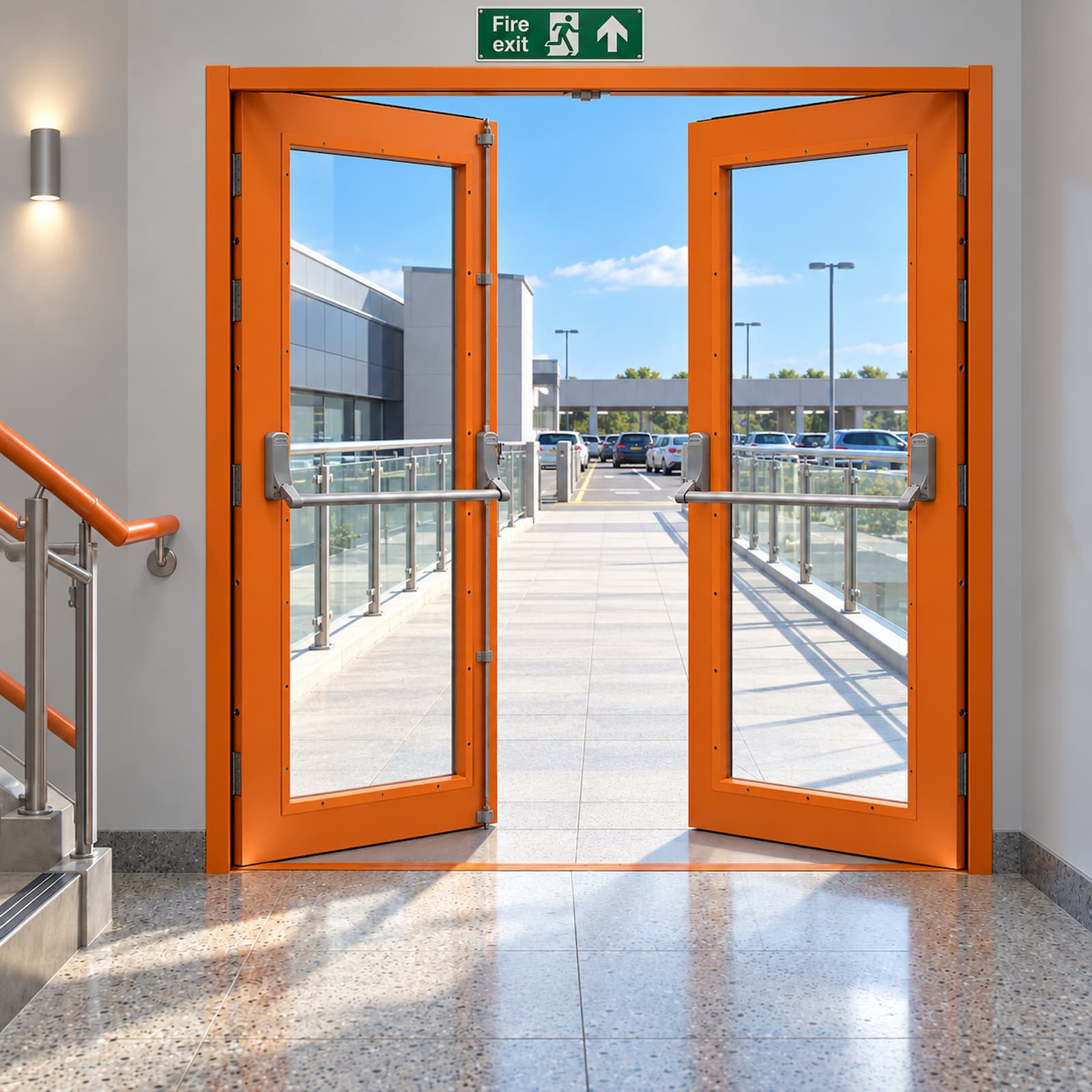

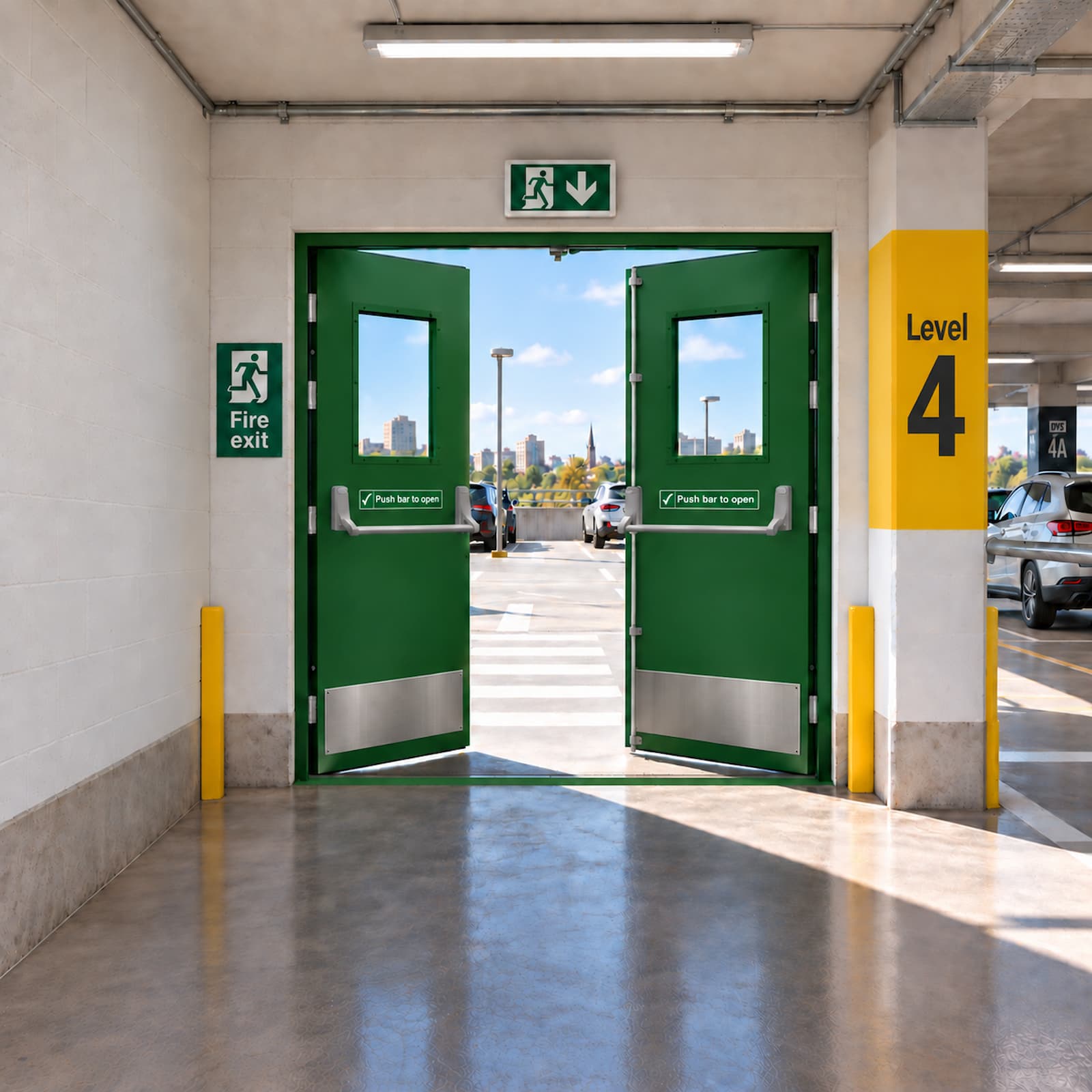

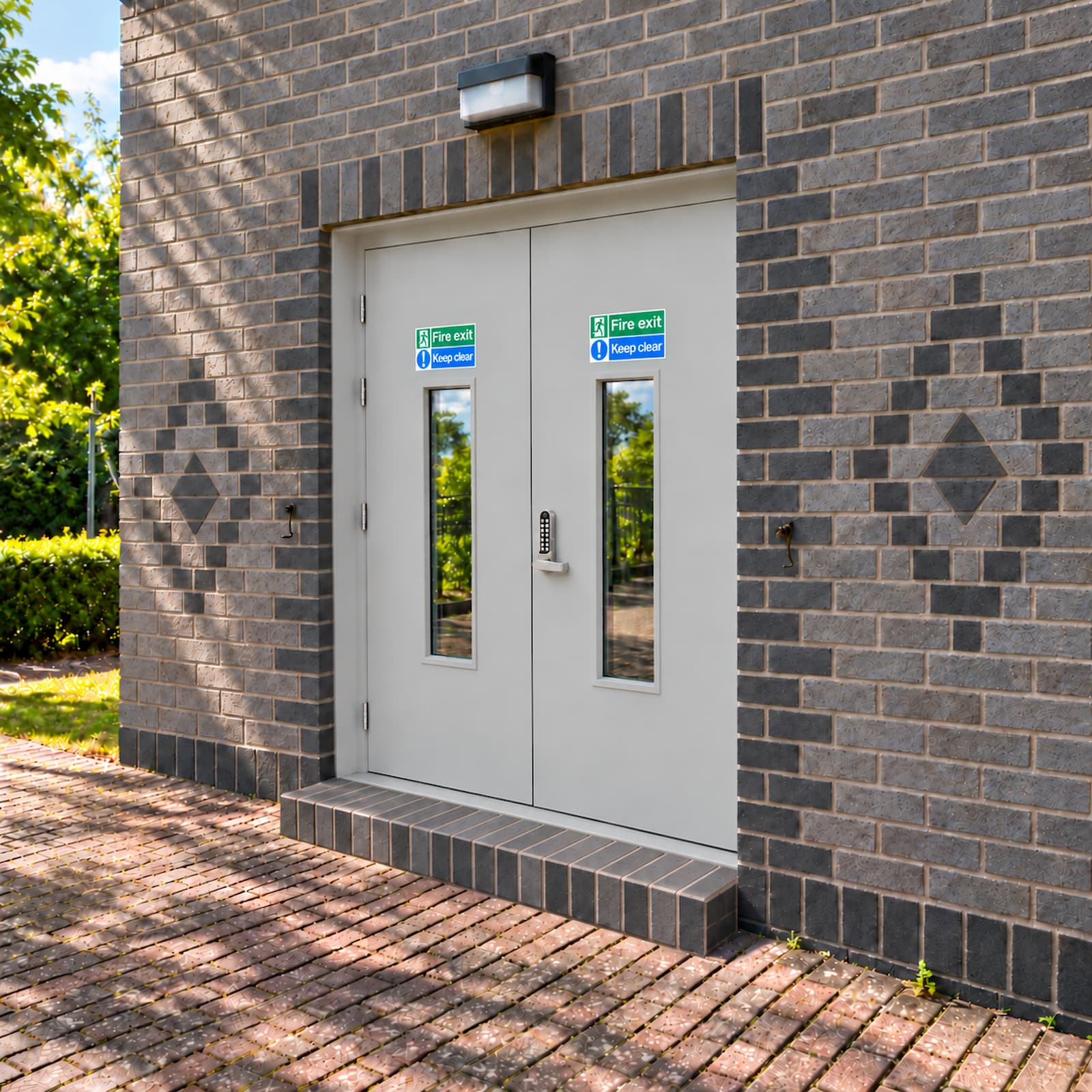

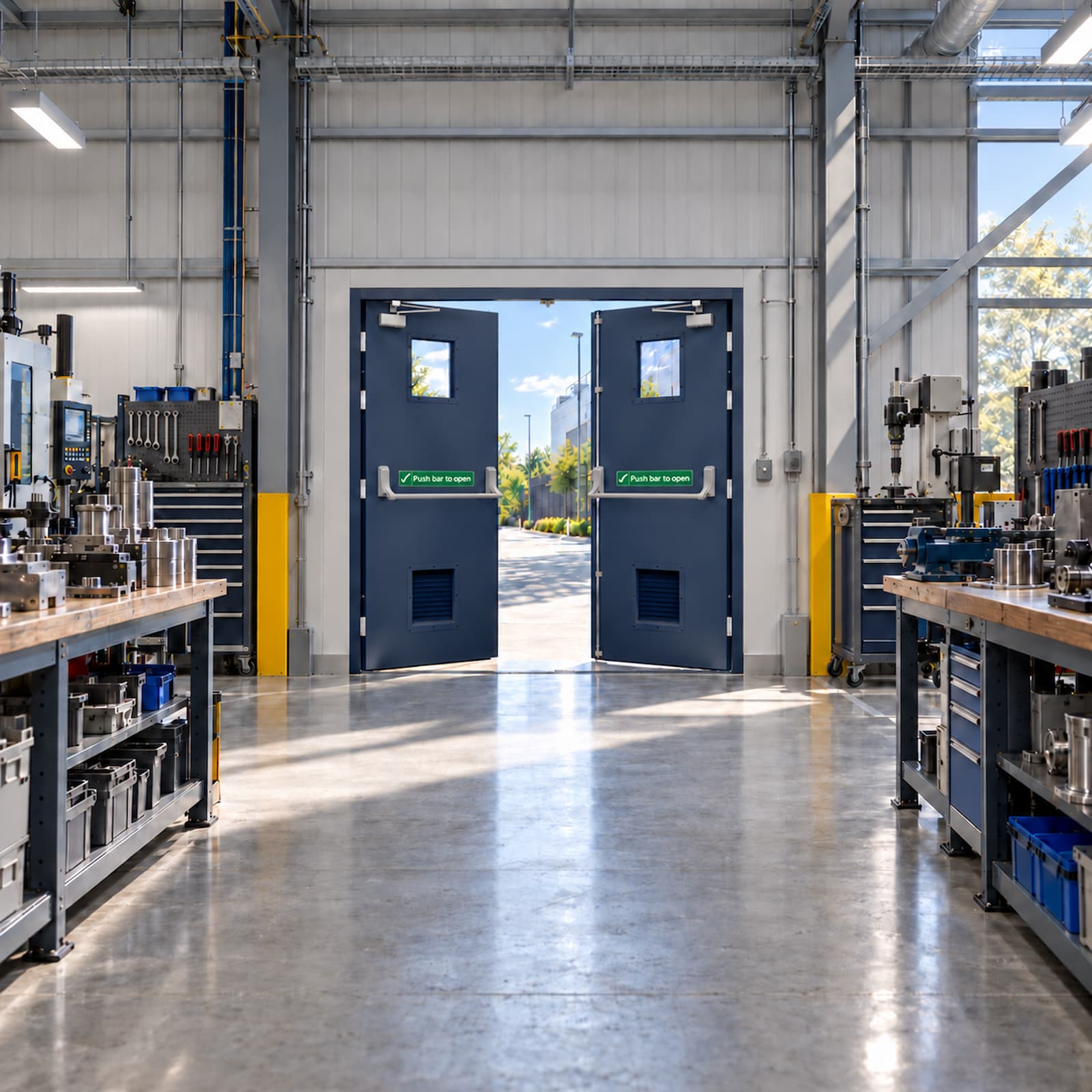

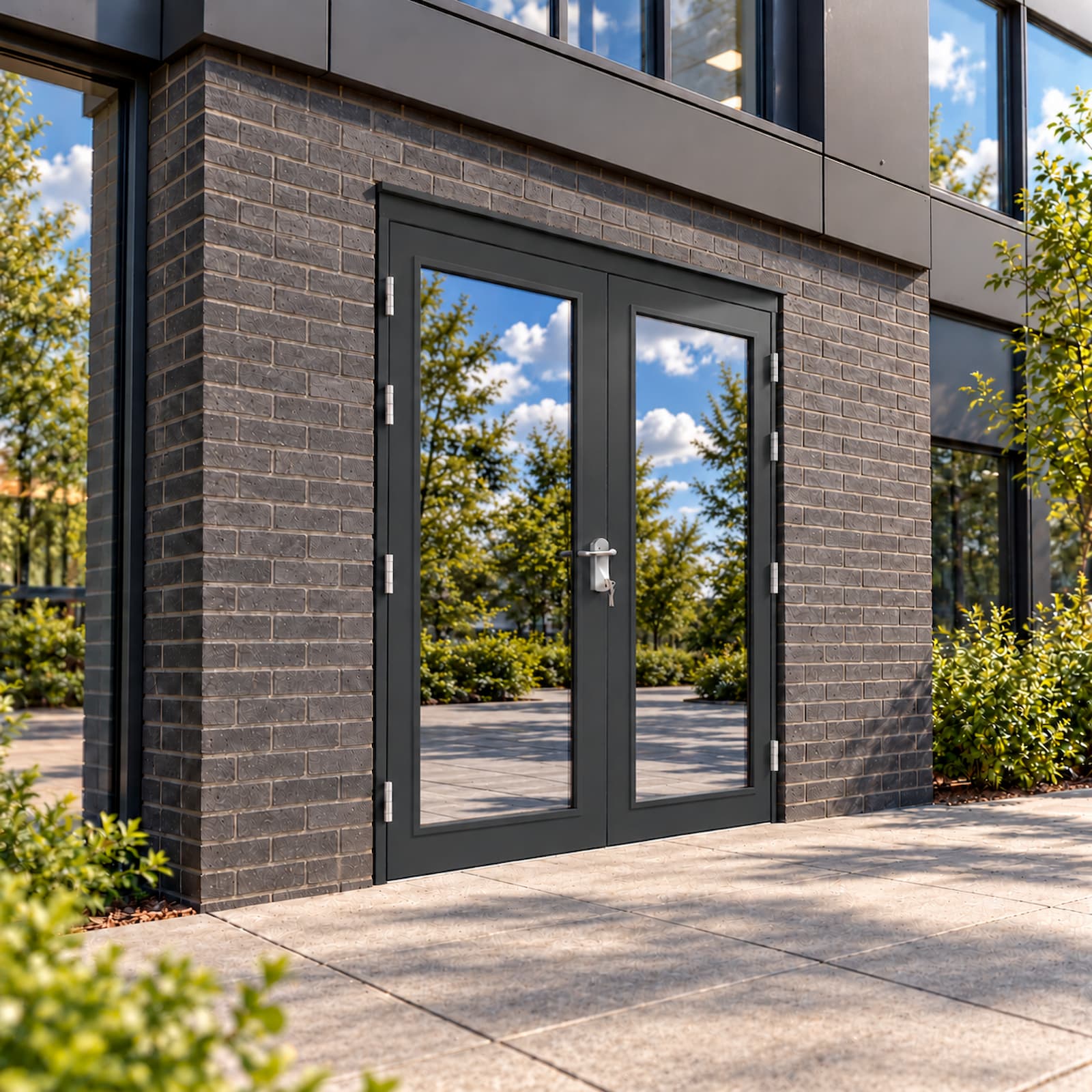

Our glazed double fire exit doors combine fire safety, security and vision. They are designed to transmit as much light as possible, through the anti-bandit security glass, which is fitted using anti-tamper vision frames. Choose from small window panels or fully glazed panels.

The doors are fitted with an Exidor 285 adjustable panic bar and are also available as a Single Glazed Fire Exit Door for smaller openings.

Compare Product

Lead Times
White door: 5 working days + delivery
Powder coated door: 10-15 working days + delivery
Fast track options: Contact us for availability

Category: GTIN: 5060479950553

Safe and Secure Double Fire Exit Doors

Featuring Latham’s trademark 19 point locking system, and 2.0mm galvanised steel, this glazed double steel door is a great option for ensuring security as well as easy and efficient escape in an emergency situation.

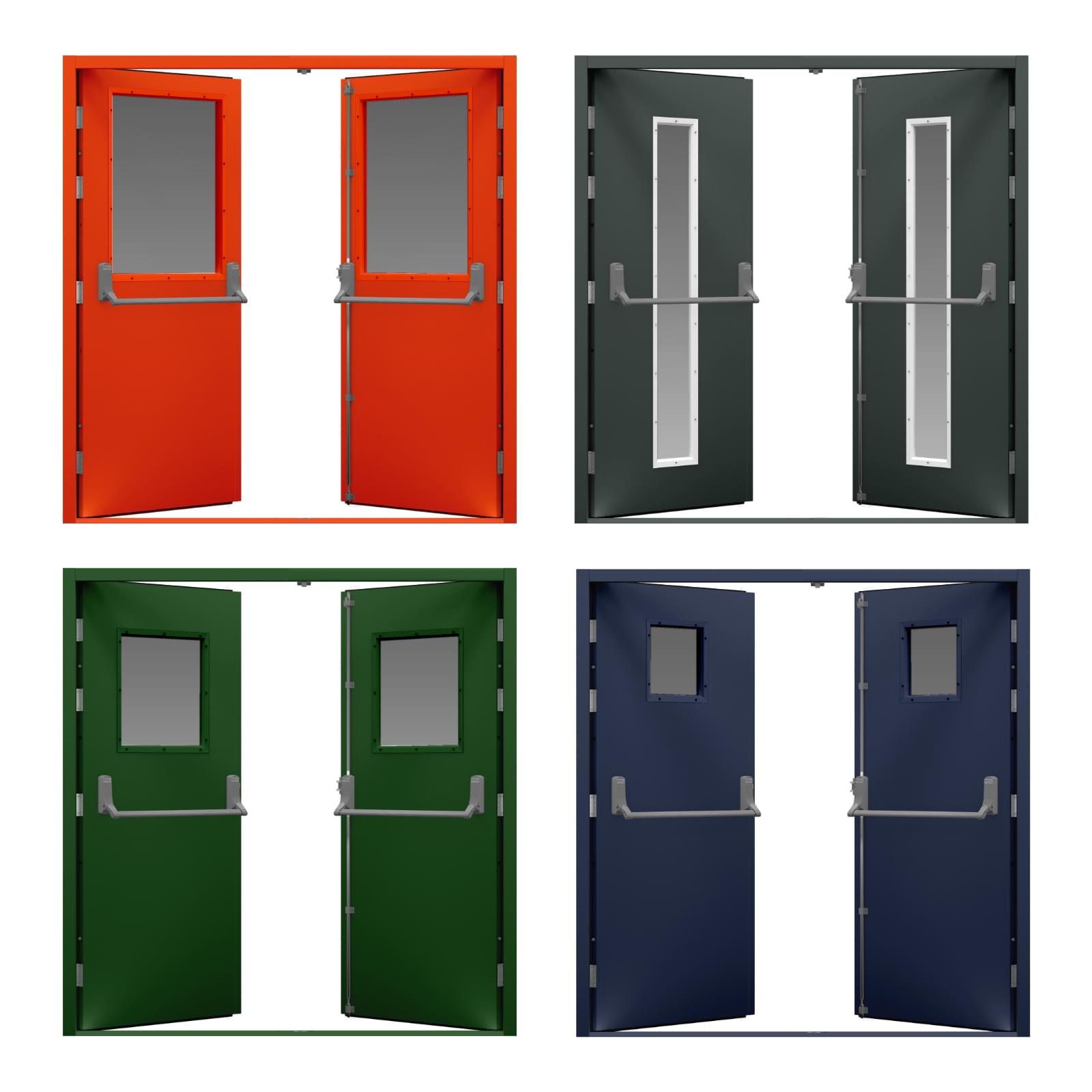

Glazing Panel options for your fire escape

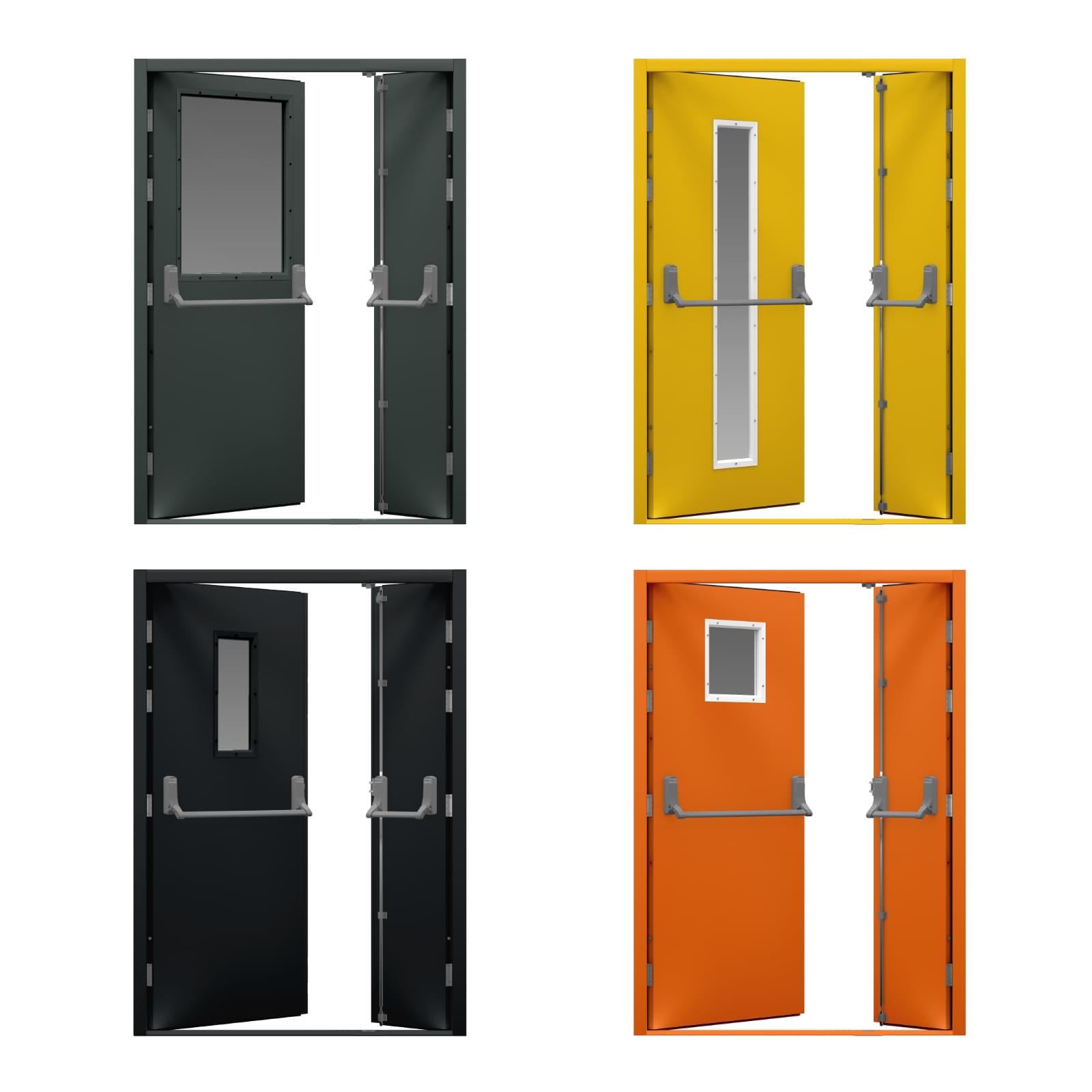

A variety of glazing panel options are available for this personnel door. From a small window at 225mm x 225mm up to a fully glazed door. Also available as a leaf and a half, we have glazing panels available for for the active and half door leaf.

Colour Customisation

Your fire escape can be customised in almost any colour using our on site powder coating service. Supplied in Latham’s Stock White, you can choose an alternative colour if required during the purchasing process.

Disability Discrimination Act Compliant

This fire escape door is compliant with the Disability Discrimination Act as it has a level threshold with an upstand of 12mm with chamfered edges.

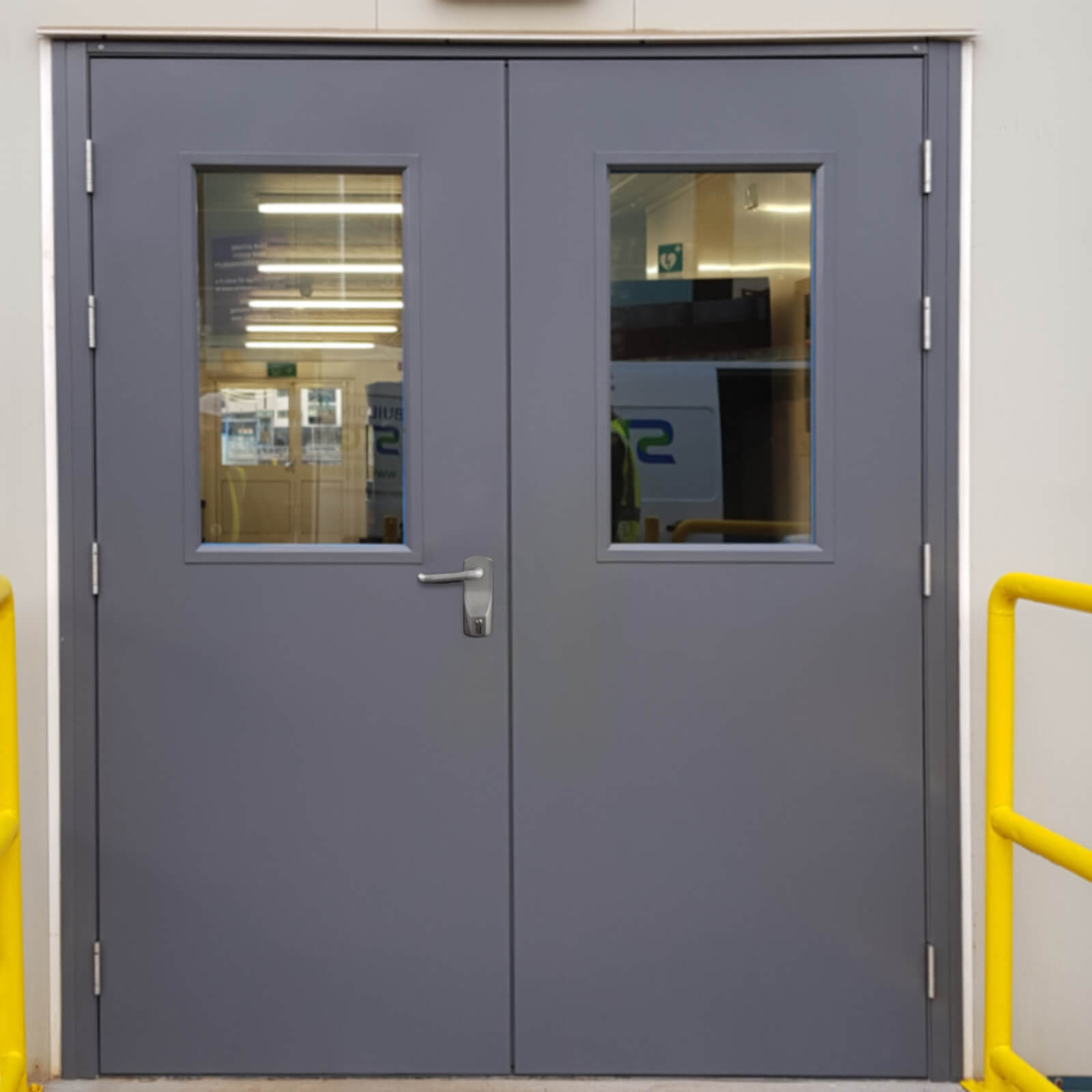

External Access for your Emergency Exit

Outside Access Devices (OAD’s) are also available if you need your double fire exit door to provide external access. Carried in stock and UK manufactured, we have a range of Exidor OAD’s available for fitting.

Door Type

Fire Exit

Available Sizes (mm)

1295×2020, 1395×2020, 1495×2020, 1595×2020, 1695×2020, 1795×2020, 1895×2020, 1995×2020

Finish

White powder coat from stock, choice of colours available

Design

Plain door with flush panel

Door Frame Material

1.8mm Galvanised Steel

Door Frame Depth

90mm

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

50mm

Door Leaf Core

Mineral wool insulation

Internal Strengthening

2 x horizontal & 1 x vertical reinforced bars per door leaf

U Value

3.96

Acoustic Value

35dB

Hinges

8 Stainless steel ball bearing hinges

Handles

Exidor OAD (outer access devices) available

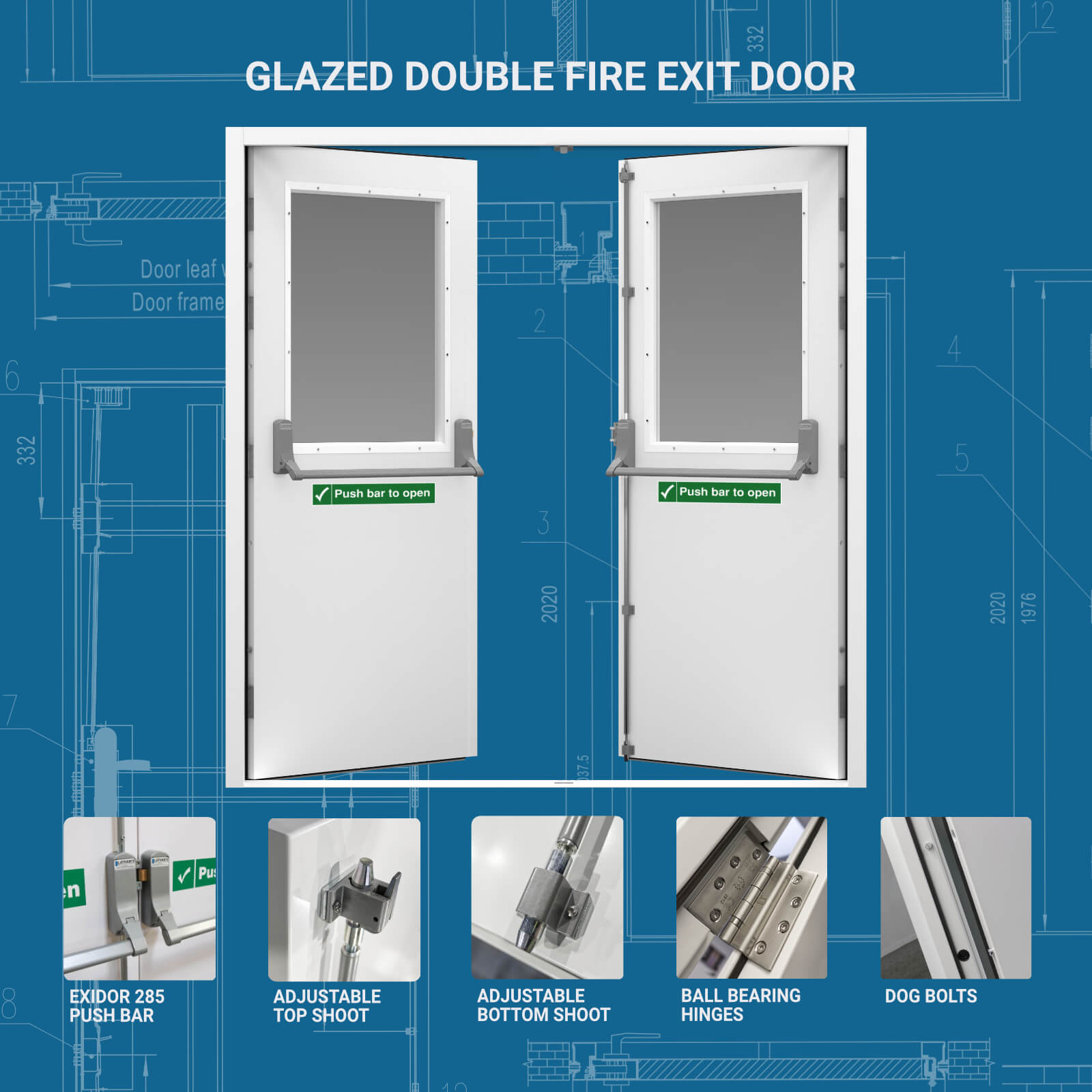

Locks or Door Furniture

Active Door Leaf: Exidor 285 single point push bar | Passive Door Leaf: Exidor 294A 2 point push bar with adjustable shoot bolts

Seal

Nylon self adhesive V-seal

Dog Bolts

4 Dog bolts on each door leaf (8 in total)

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top

Construction

Fully welded construction

Security Type

Medium

CE Certification

Yes

Security Certification

None

Fire Rating Certification

None

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external use

Example Door Purposes

Industrial double emergency exit, factory panic escape double door, large occupancy escape door, retail / shop fire exit

Videos




FAQs

What glass is installed in the glazing panels?

For Security doors, we use a glazed unit, 10.8mm laminate anti-bandit security glass.
For High Security (Ultra) doors, we use a double-glazed unit, compromising of 6.8mm laminate anti-bandit security glass.

What can the glazed steel doors be used for?

Our customers frequently use our glazed doors for residential and commercial applications, for example secure office interior doors.

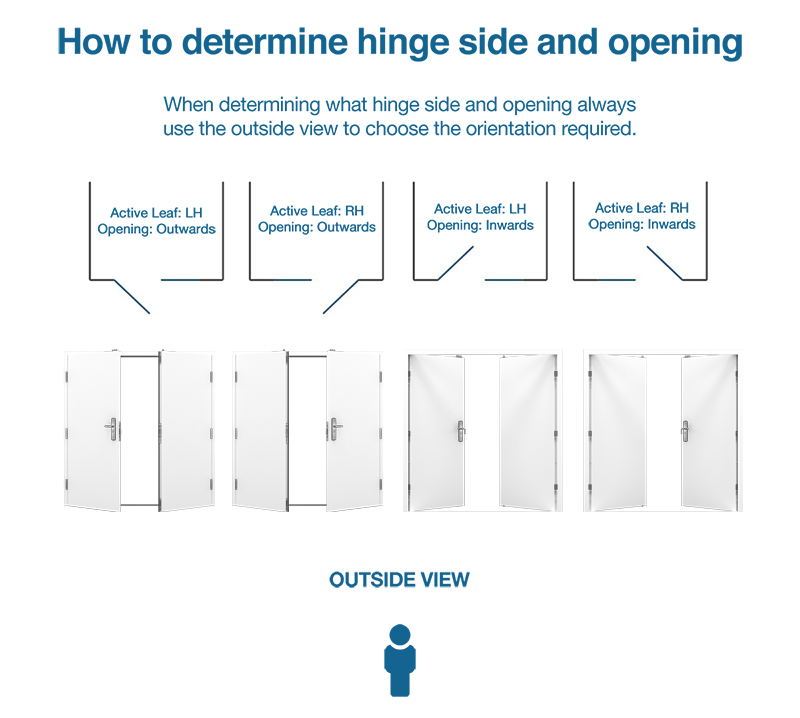

Can I order this door opening inwards?

Fire exit doors cannot open inwards. In the event of emergency, the door is made to open fast, by rapidly pushing the push bar down and door outwards

How do double doors get delivered?

Your steel double door will be delivered in a minimum of 4 boxes:

2 x door leaves packaged individually
1 x box containing the hinge posts
1 x box containing the head of the frame and the bottom threshold

By delivering your steel double door frame in self-assembly pieces, it reduces the amount of handling of the doors. This in turn reduces associated health and safety risks as the door and frame are delivered in separate, manageable boxes meaning they’re less likely to be dropped causing unnecessary damage to the door.

Please note, delivery is kerbside only. We request that another party is present to help unload.

How do I put together a double door knockdown frame?

For specific advice regarding building the self-assembly knockdown frame for your steel double door, see our blog post

What is the lead time?

Stock Door (white, no modifications) – in stock – 0 days
Stock Door (white, modified e.g. installed accessories, vision panel e.t.c) – 4 working days
Re-Powder Coated Stock Door, with or without accessories installed (not white) – 10 working days
Fast track options are also available

How many keys come with the door?

Fire exit doors ordered with an OAD (outside access device) come with 2 keys
Additional keys are available – we have a key cutting machine on-site

How much do the steel doors weigh?

Double doors weigh on average 110kg*
*size dependant

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.
We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door
To calculate the clear opening (when the door is open), subtract 135mm from the width dimension. E.G. 895mm-135mm=760mm clear opening
See the video on how to measure here

What is Security Trim?

The security trim kit fits around the perimeter of the door frame, preventing any packing from being seen externally and making the door as a whole more secure.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
See the security trim video here

To see all FAQs, click here

Downloads

Fitting Instructions

Download fitting instructions

Operation & Maintenance Manual

Download operation & maintenance manual
