Steel Hinged Personnel Door -Anthracite Grey (Main)

Steel Hinged Personnel Door

From £371.99 inc. VAT (£309.99 + VAT)

Our Steel Hinged Personnel Doors are built to the same spec as our Budget Steel Door, available in 2 new sizes to suit 900×2100 and 1000×2100 openings.

They also include stainless steel handles, a thumb turn cylinder and our HOOPLY multi-point locking system as standard. A perfect alternative to our Budget Steel Door with an overhead panel when fitting into a taller opening.

Available in 6 colours from stock:

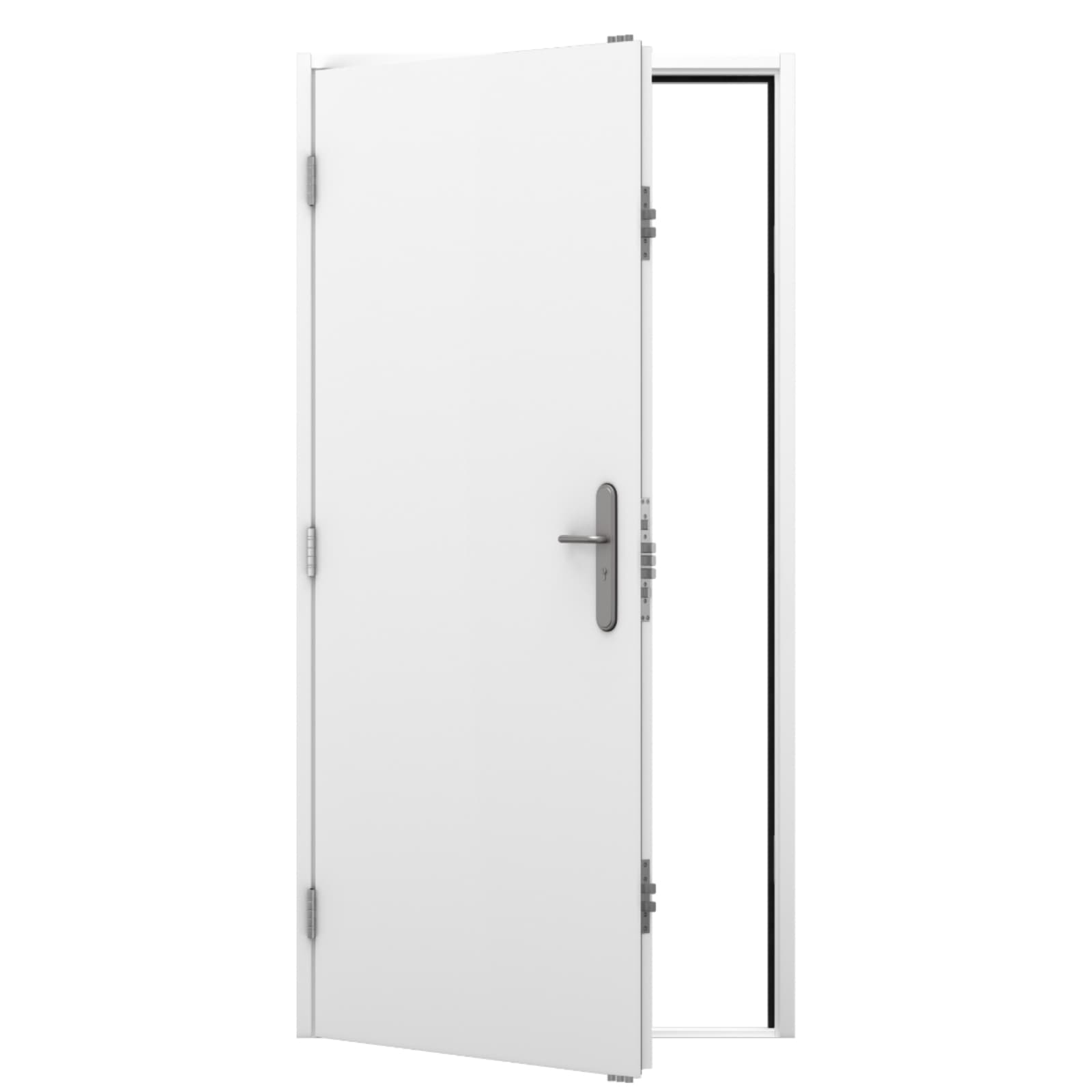

Latham’s White

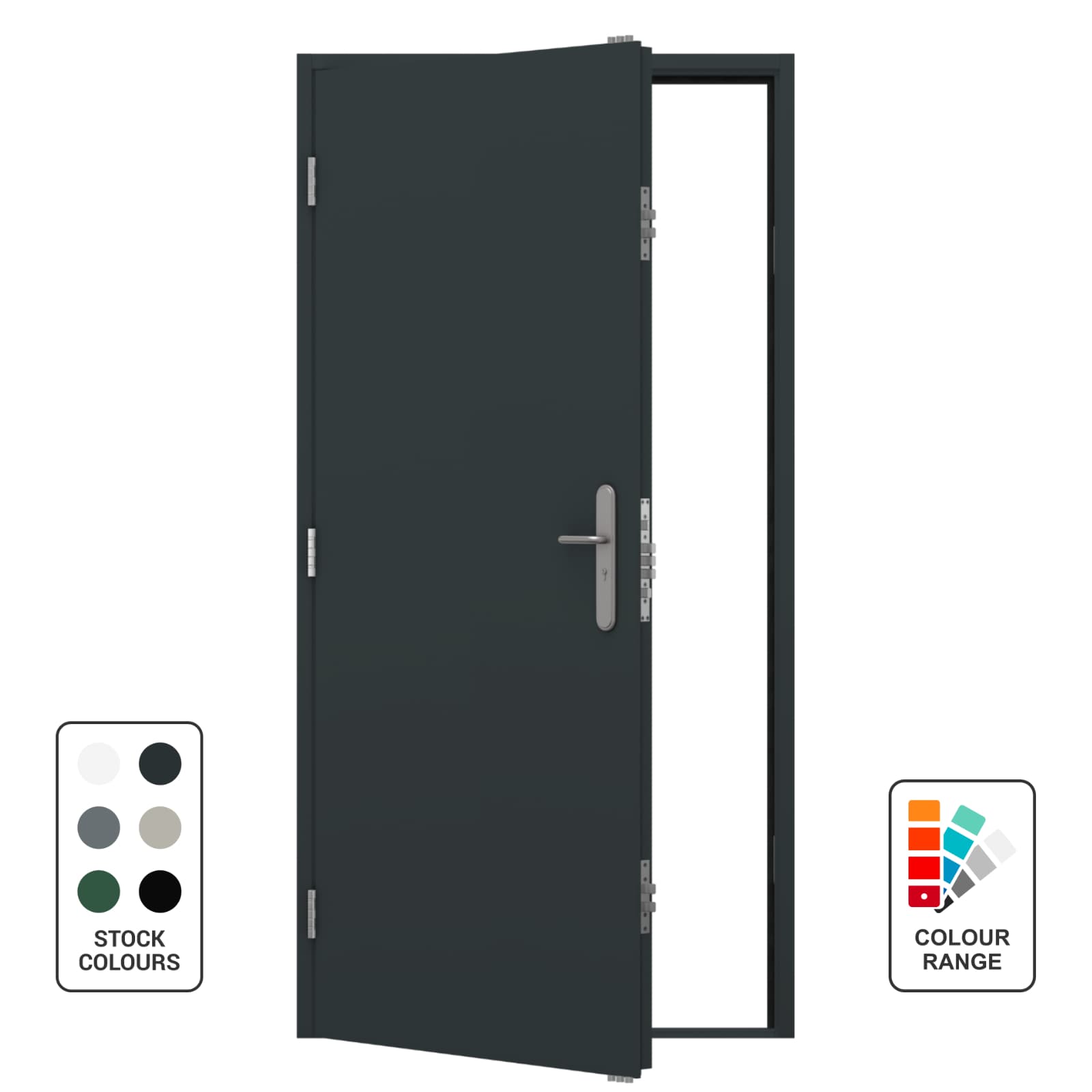

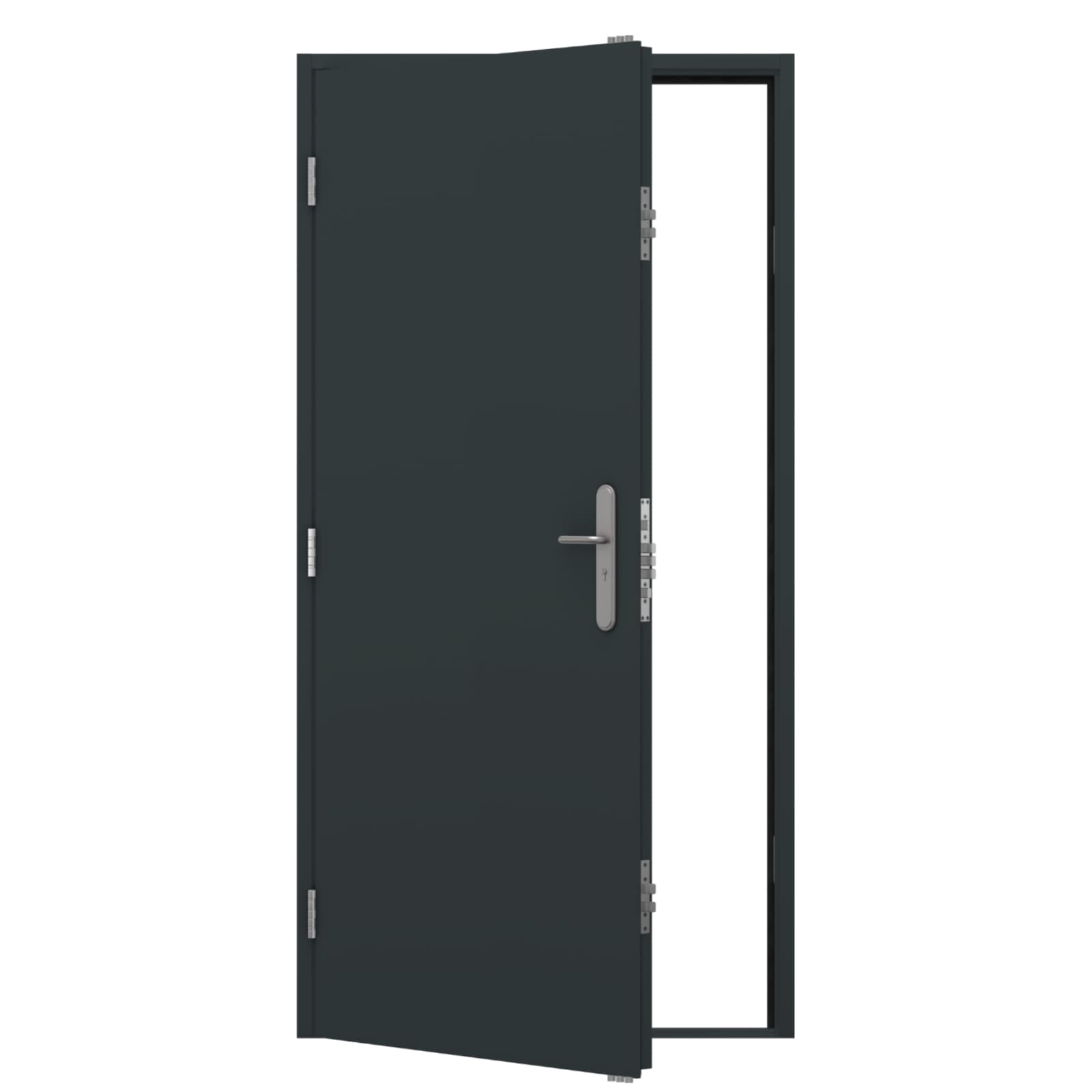

RAL 7016 – Anthracite Grey

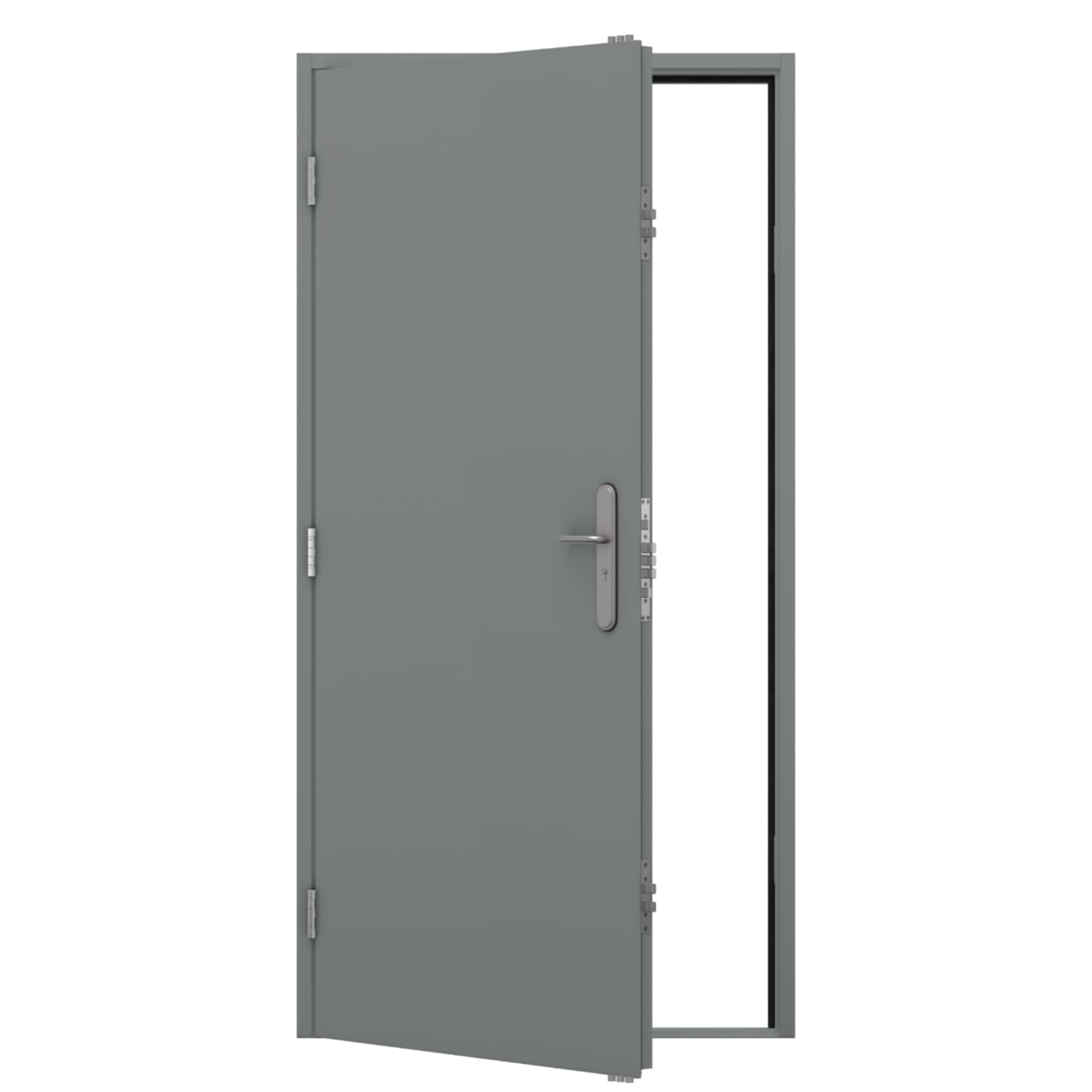

BS 10 A05 – Goosewing Grey

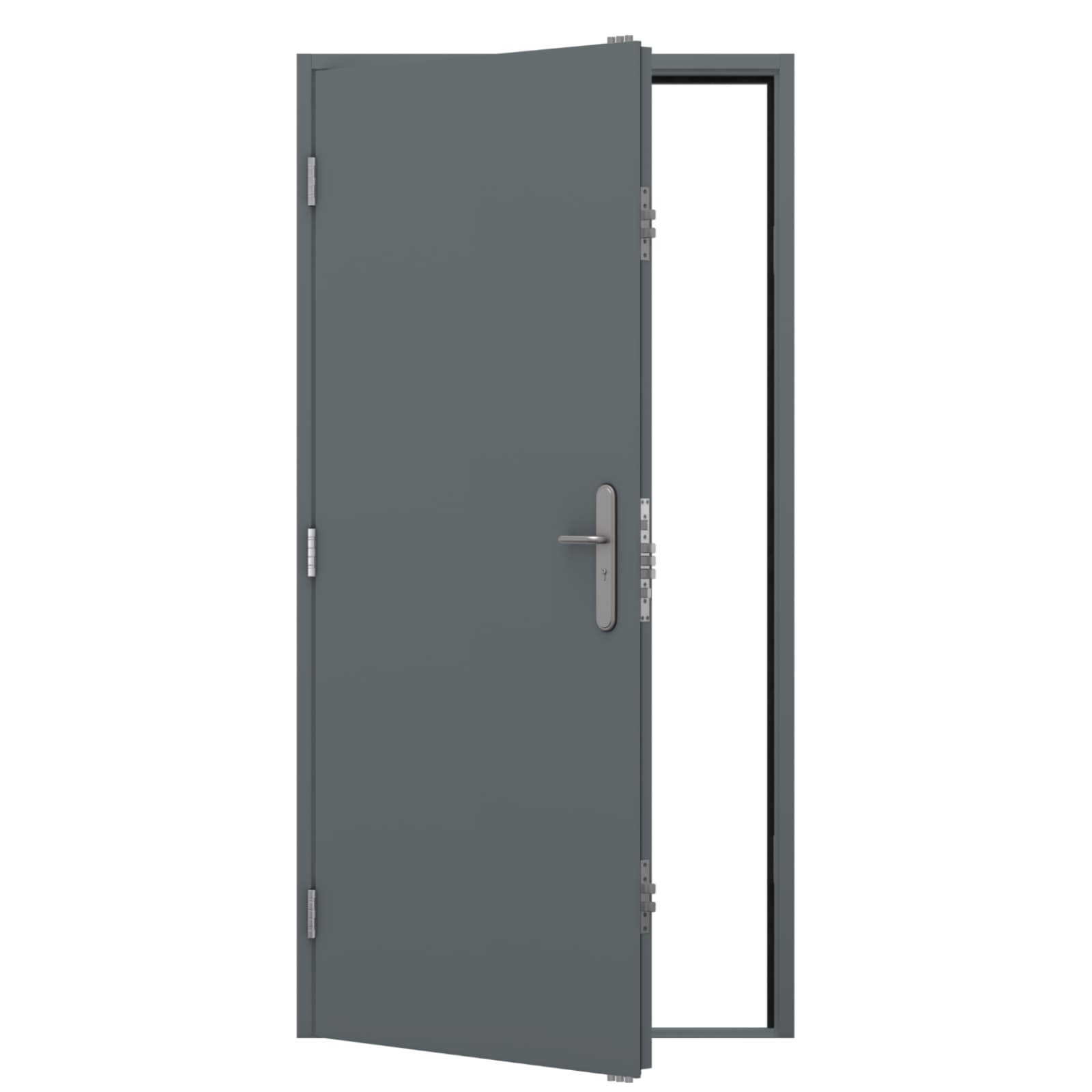

BS 18 B25 – Merlin Grey
BS 12 B29 – Juniper Green

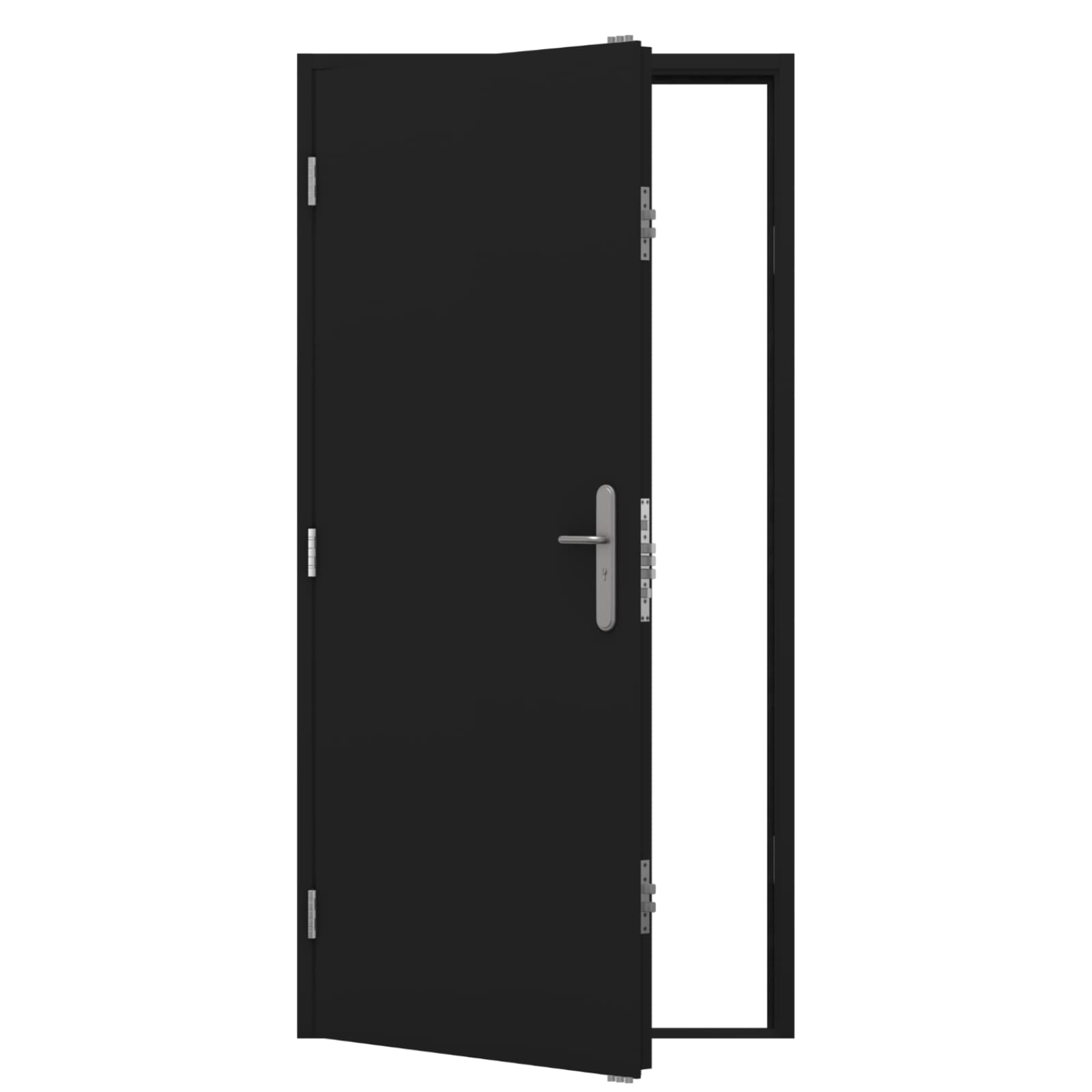

RAL 9005 – Jet Black
  • Total

SKU: SDPA-DOOR Category:

What is a PA Door?

PA stands for:  ‘personal access’ door or ‘pedestrian access’ door, intended to allow entry to enclosed spaces for authorised people.

Security Assurance

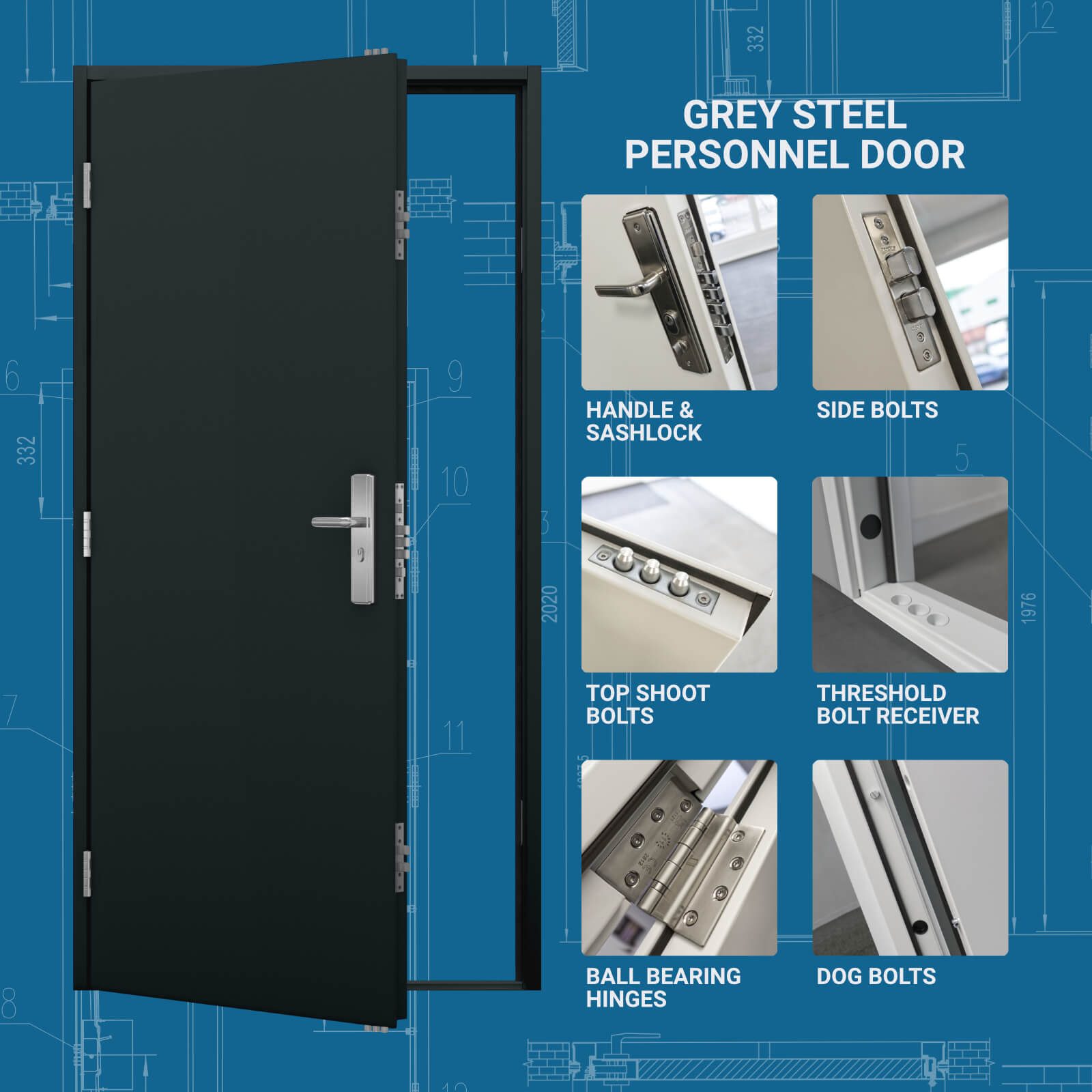

Our steel-hinged personnel doors are fitted with a genuine HOOPLY 19-point locking system, for an entry-level security door. For higher security applications, choose our Security Personnel Door which features thicker steel, an additional hinge and internal reinforcements.

Fast Delivery or Collection

As we hold our steel-hinged doors in stock, there are fast-track options available for same-day collection or next-day despatch.

Also available as an Emergency Exit Door, featuring a push bar.

Door Type

Personnel Door

Available Sizes (mm)

890×2095, 990×2095

Finish

Heavy Duty Polyester Powdercoat

Design

Plain door with flush panel

Door Frame Material

1.4mm Galvanised Steel

Door Frame Depth

90mm

Door Leaf Material

Double skinned 0.8mm galvanised steel

Door Leaf Depth

45mm

Door Leaf Core

Honeycomb core

Internal Strengthening

None

U Value

2.88

Acoustic Value

30dB

Hinges

3 Stainless steel ball bearing hinges

Handles

HOOPLYâ„¢ 201208 handles

Locks or Door Furniture

Latham's trademark 19 point locking system

Cylinder

Security cylinder upgrade available, UAP Tradelock Euro Cylinder

Seal

Nylon self adhesive V-seal

Dog Bolts

4 Dog bolts

Threshold

DDA (Disability Discrimination Act) compliant threshold

Construction

Fully welded construction

Jemmy Bar Lip

At door jam, hinge side & top

Security Type

Low

CE Certification

Yes

Fire Rating Certification

FD30 Rated version available

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external and internal use

Example Door Purposes

Warehouse door, office security door, security personnel door, site container door, portakabin door, industrial unit security door

Videos

[vryn_layout_shortcode id=”219615″]

FAQs

How do I choose the hinge side and opening? (Handing)

Hinge side and opening is determined viewed from outside.
Example 1: LH hinge open out: hinges are on the LH side, handle is on the right and you pull the door towards you.
Example 2: RH hinge open in: hinges are on the RH side, handle is on the left and you push the door away from you.
See our handy illustration here

What is the lead time?

Stock Door (white, no modifications) – in stock – 0 days
Stock Door (white, modified e.g. installed accessories, vision panel e.t.c) – 4 working days
Re-Powder Coated Stock Door, with or without accessories installed (not white) – 10 working days
Fast track options are also available

How many keys come with the door?

Personnel doors come with 3 usable keys
Additional keys are available – we have a key cutting machine on-site
See our cylinder options video here

How much do the steel doors weigh?

Budget doors weigh on average 40kg*
Security doors weigh on average 85kg*
High Security (Ultra) doors weigh on average 100kg*
Double doors weigh on average 110kg*
*size dependant

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.
We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door
To calculate the clear opening (when the door is open), subtract 110mm from the width dimension. E.G. 895mm-110mm=760mm clear opening
See the video on how to measure here

What is Security Trim?

The security trim kit fits around the perimeter of the door frame, preventing any packing from being seen externally and making the door as a whole more secure.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
See the security trim video here

To see all FAQs, click here

Downloads

Fitting Instructions

Download fitting instructions

Operation & Maintenance Manual

Download operation & maintenance manual
