Security Steel Hinged Personnel Door -Anthracite Grey (Main)

Security Steel Hinged Personnel Door Sets

From £443.99 inc. VAT (£369.99 + VAT)

Our Security Steel Hinged Personnel Doors are built to the same spec as our Security Steel Doors, available in 2 new sizes to suit 900×2100 and 1000×2100 openings.

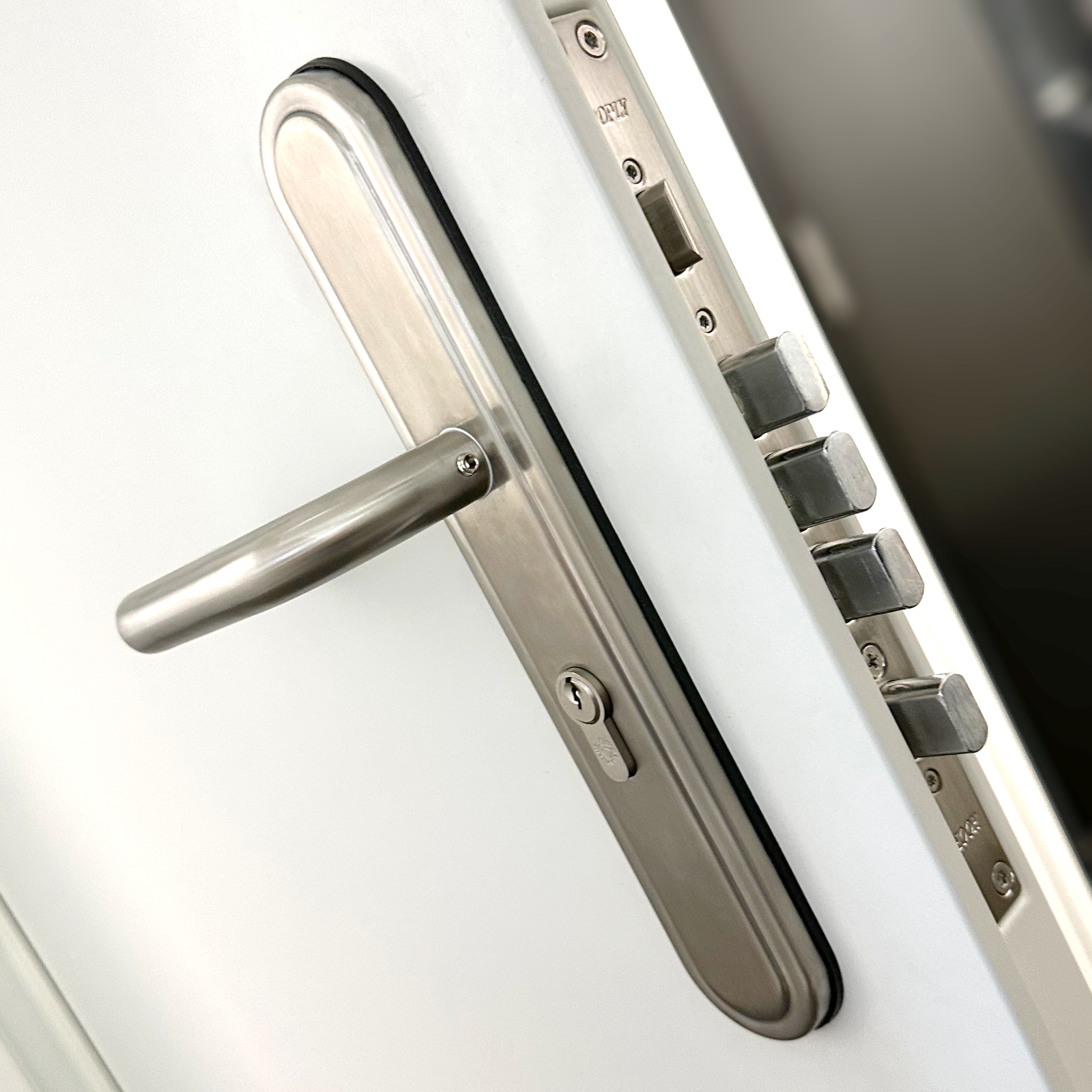

They also include stainless steel handles, a thumb turn cylinder and our HOOPLY multi-point locking system as standard. A perfect alternative to our Security Steel Door with an overhead panel when fitting into a taller opening. An optional Secured By Design certified PAS24 security upgrade is also available.

Available in 6 colours from stock:

Latham’s White
RAL 7016 – Anthracite Grey
BS 10 A05 – Goosewing Grey
BS 18 B25 – Merlin Grey

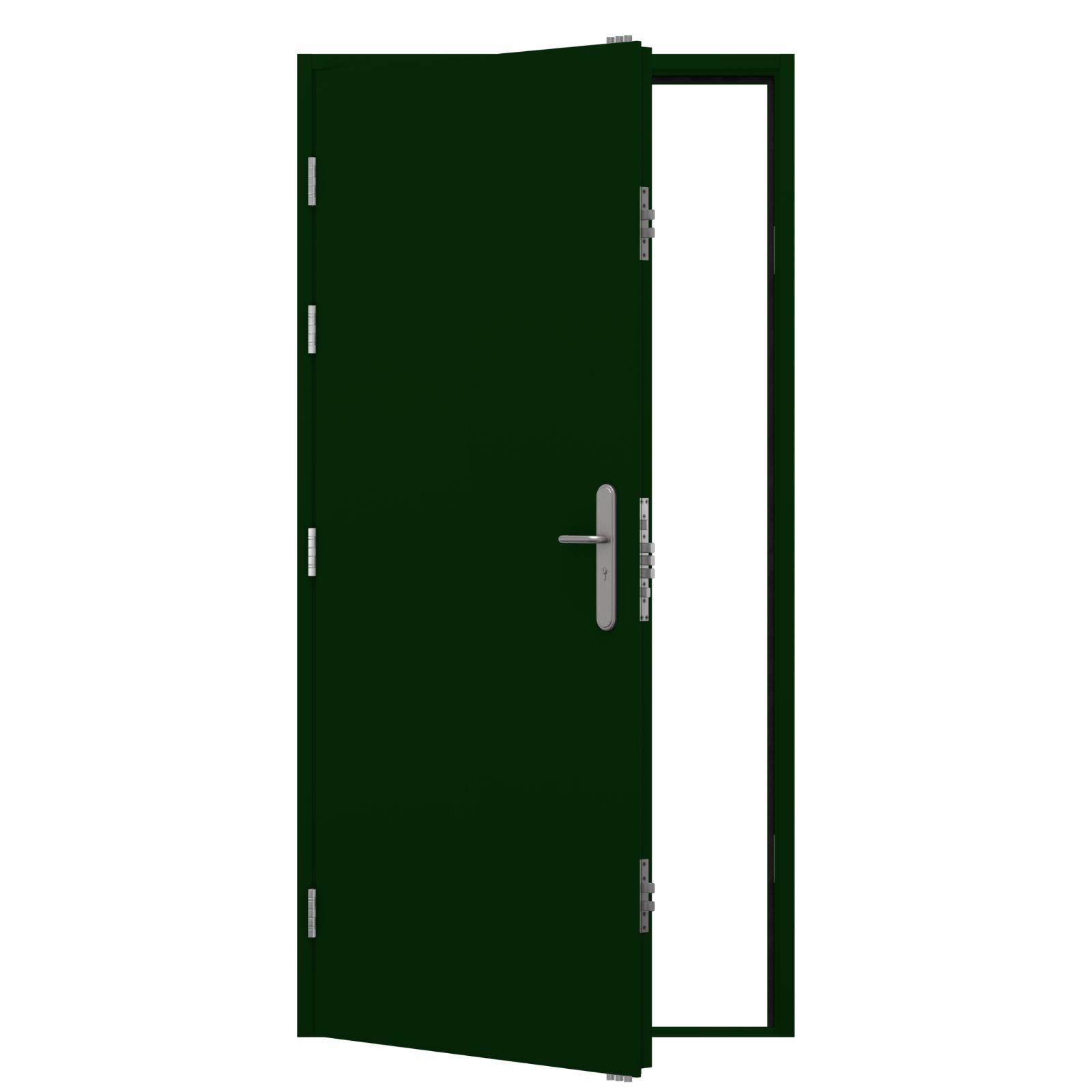

BS 12 B29 – Juniper Green
RAL 9005 – Jet Black

Lead Times
Stock grey door: Same day despatch available
Modified grey door: 5 working days + delivery
Powder coated door: 10 working days + delivery
Fast track options: Contact us for availability

SKU: HDPA-DOOR Category:

Optional Secured By Design Certified Upgrade

An optional PAS24 certified upgrade is also available. Being PAS24 rated means you can be assured this door has been taken through a rigorous testing process in order to gain certification, and is backed by the police security initiative, Secured By Design (SBD).

What is a PA Door?

There are a couple of definitions for what is a PA door, they are known as either a personal access door or a pedestrian access door. They are purely intended to allow access to enclosed spaces for authorised people.

Security Assurance

Our Grey Security Personnel Door is fitted with a genuine HOOPLY 19-point locking system so you can make security for your property a priority.

Fast and Efficient Delivery

As we hold our steel-hinged doors in stock, there are fast-track options available for same-day collection or next-day despatch.

Also available as a Security Steel Hinged Emergency Exit Door

Door Type

Personnel Door

Available Sizes (mm)

890×2095, 990×2095


RAL 7016 – Anthracite Grey as standard


Plain door with flush panel

Door Frame Material

1.8mm Galvanised Steel

Door Frame Depth


Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth


Door Leaf Core

Mineral wool insulation

Internal Strengthening

2 x horizontal & 1 x vertical reinforced bars

U Value


Acoustic Value



4 Stainless steel ball bearing hinges


HOOPLY™ 201208 handles

Locks or Door Furniture

Latham's trademark 19 point locking system


Security cylinder upgrade available, UAP Tradelock Euro Cylinder


Nylon self adhesive V-seal

Dog Bolts

4 Dog bolts


DDA (Disability Discrimination Act) compliant threshold


Fully welded construction

Jemmy Bar Lip

At door jam, hinge side & top

Security Type


CE Certification


Security Certification

PAS24 Certified

Fire Rating Certification

FD30 Rated version available

Stock Product


Made to Measure Product


External or Internal Use

Suitable for external and internal use

Example Door Purposes

Warehouse door, office security door, security personnel door, site container door, portakabin door, industrial unit security door


[vryn_layout_shortcode id=”219615″]


How do I choose the hinge side and opening? (Handing)

Hinge side and opening is determined viewed from outside.
Example 1: LH hinge open out: hinges are on the LH side, handle is on the right and you pull the door towards you.
Example 2: RH hinge open in: hinges are on the RH side, handle is on the left and you push the door away from you.
See our handy illustration here

What is the lead time?

Stock Door (white, no modifications) – in stock – 0 days
Stock Door (white, modified e.g. installed accessories, vision panel e.t.c) – 4 working days
Re-Powder Coated Stock Door, with or without accessories installed (not white) – 10 working days
Fast track options are also available

How many keys come with the door?

Personnel doors come with 3 usable keys
Additional keys are available – we have a key cutting machine on-site
See our cylinder options video here

How much do the steel doors weigh?

Budget doors weigh on average 40kg*
Security doors weigh on average 85kg*
High Security (Ultra) doors weigh on average 100kg*
Double doors weigh on average 110kg*
*size dependant

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.
We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door
To calculate the clear opening (when the door is open), subtract 110mm from the width dimension. E.G. 895mm-110mm=760mm clear opening
See the video on how to measure here

What is Security Trim?

The security trim kit fits around the perimeter of the door frame, preventing any packing from being seen externally and making the door as a whole more secure.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
See the security trim video here

To see all FAQs, click here


Fitting Instructions

Download fitting instructions

Operation & Maintenance Manual

Download operation & maintenance manual
