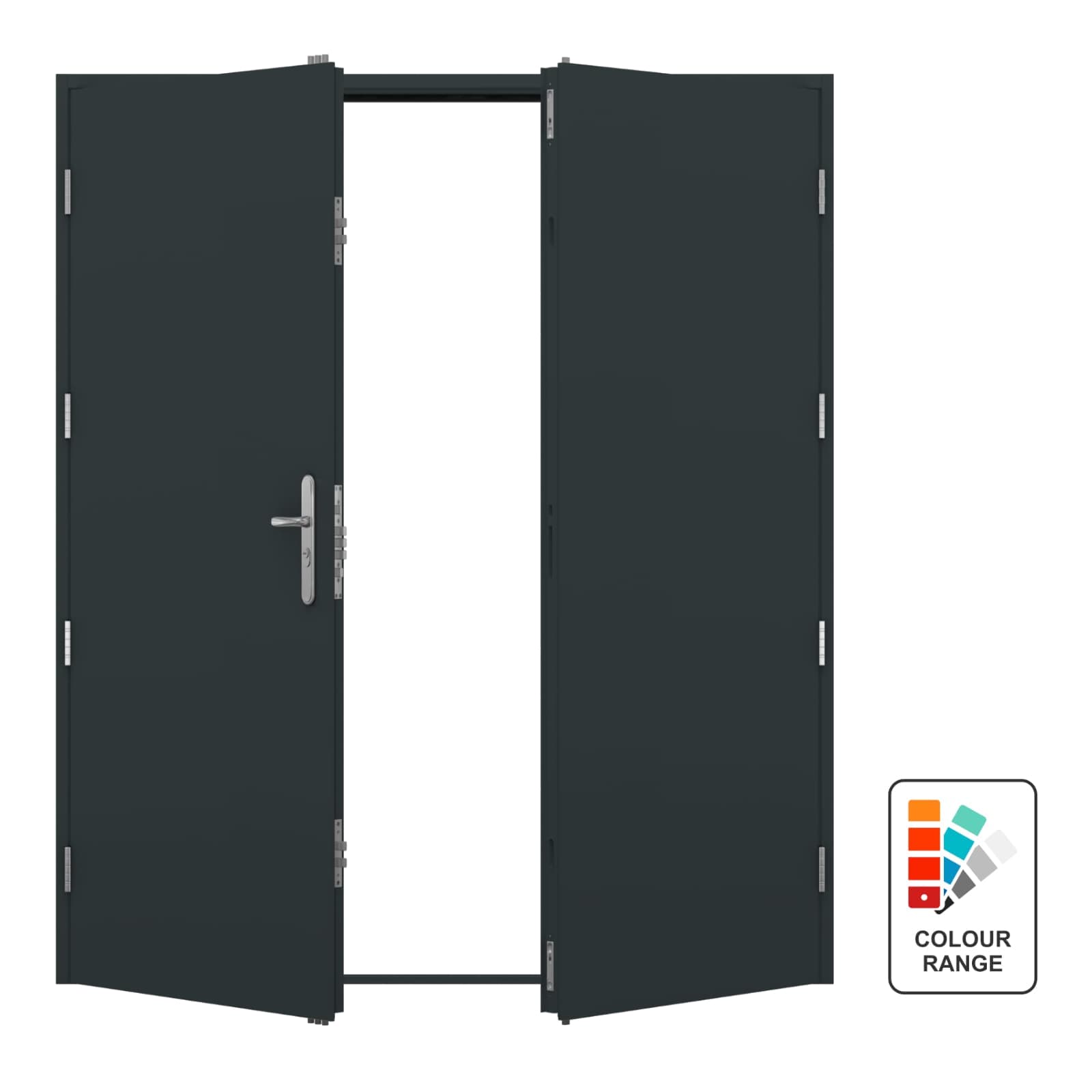

Univerally handed double PA door in grey

Steel Double PA Door (Grey)

From From £749.99 inc. VAT (£749.99 + VAT)

Our new Grey Double Personnel Access Door has been added to our PA door range to suit an 1800×2100mm (6′ x 7′) structural opening size.

  • 1790mm x 2095mm external frame size
  • Universal handing to suit both LH or RH orientations
  • Built to same spec as our Double Steel Doors
  • RAL 7016 Anthracite Grey from stock
  • Frame extensions and reductions available
  • Full range of add-ons, upgrades & colour options
  • Total

SKU: UDPA-DOOR Category:

What is a PA Door?

PA stands for:  ‘personal access’ door or ‘pedestrian access’ door, intended to allow entry to enclosed spaces for authorised people.

How does the universal handing work on the Double Personnel Door?

The active leaf comes set up as a left-hinged active opening outwards as standard. The process to reverse the handing of the door is simple, rotate the door leaves 180 degrees and fit on the opposite sides, remove the sash lock, flip the latch around, and refit. The passive leaf is already universally handed by design, as are the side and top frames.

Security Assurance

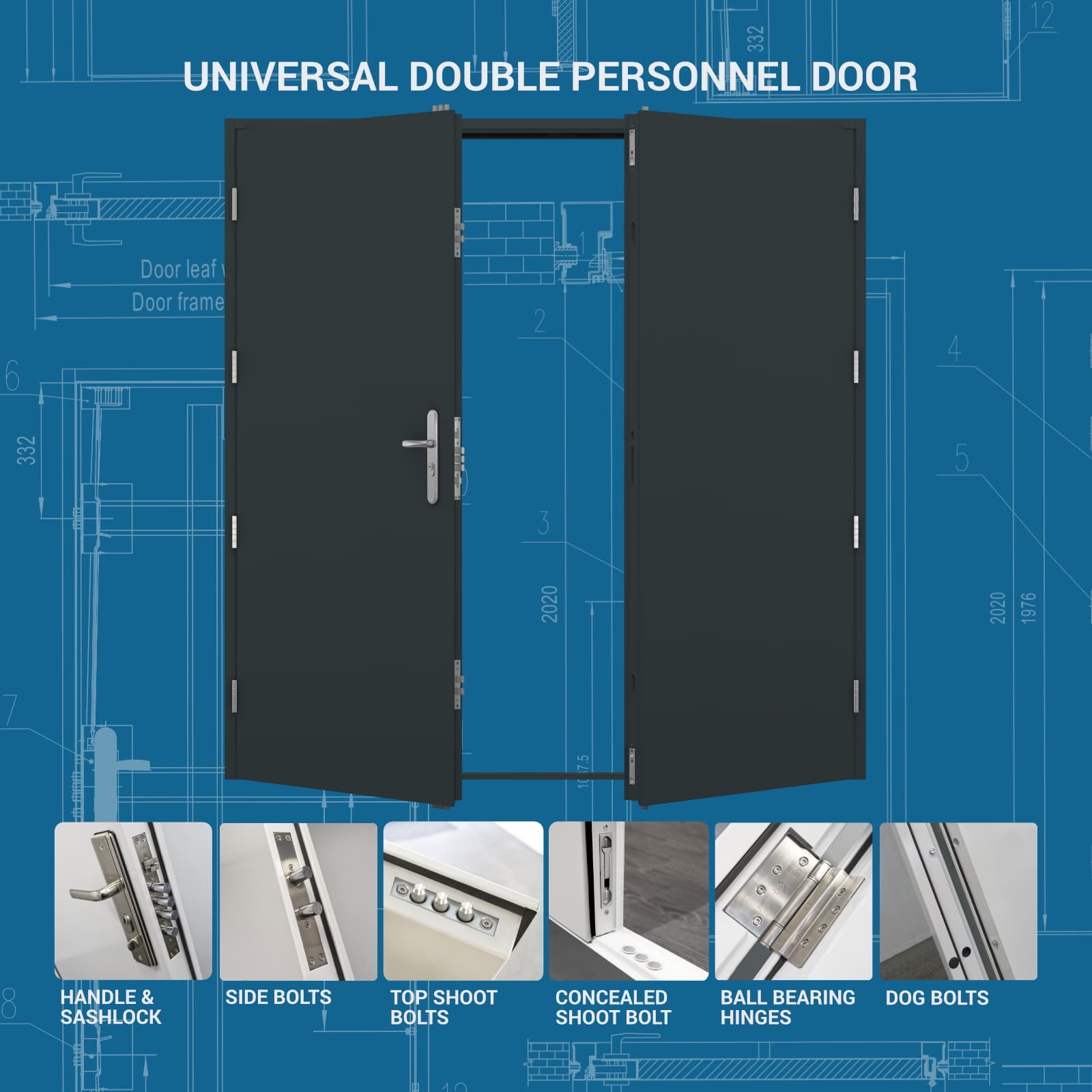

Our personnel access door range is all fitted with our genuine HOOPLY locking system as standard. These universally handed double doors also feature additional internal reinforcements and a huge choice of security upgrades.

Fast Delivery or Collection

As we hold our steel-hinged doors in stock, there are fast-track options available for same-day collection or next-day despatch.

Available Sizes (mm)

1790×2095

Finish

RAL 7016 – Anthracite Grey as standard

Design

Plain door with flush panel

Door Frame Material

1.8mm Galvanised Steel

Door Frame Depth

90mm

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

50mm

Door Leaf Core

Mineral wool insulation

Internal Strengthening

2 x horizontal & 1 x vertical reinforced bars per door leaf

U Value

2.20

Acoustic Value

35dB

Hinges

8 Stainless steel ball bearing hinges

Handles

HOOPLYâ„¢ 201208 handles

Locks or Door Furniture

Active leaf: 10 point locking system | Passive leaf: Flush bolts top and bottom

Cylinder

UAP Tradelock Euro Cylinder, security upgrade available

Seal

Nylon self adhesive V-seal

Dog Bolts

4 Dog bolts on each door leaf (8 in total)

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top + astragal

Construction

Fully welded construction

Security Type

Medium

CE Certification

Yes

Security Certification

None

Fire Rating Certification

None

Stock Product

Yes

Made to Measure Product

No

Internal or External Use

Suitable for external and internal use

Example Door Purposes

Double garage door, rear shop door, loading bay door, warehouse double door, office security door

Videos

FAQs

How do I choose the hinge side and opening? (Handing)

Hinge side and opening is always determined viewed from outside. The active leaf (the door which opens first) can be determined as follows:

Example 1: LH active leaf opening out. The handle is on the left door and you would pull the door towards you.
Example 2: RH active leaf opening in: handle is on the door to the right-hand side and you push the door away from you.

See our handy illustration here

How do double doors get delivered?

Your steel double door will be delivered in a minimum of 4 boxes:

2 x door leaves packaged individually
1 x box containing the hinge posts
1 x box containing the head of the frame and the bottom threshold

By delivering your steel double door frame in self-assembly pieces, it reduces the amount of handling of the doors. This in turn reduces associated health and safety risks as the door and frame are delivered in separate, manageable boxes meaning they’re less likely to be dropped causing unnecessary damage to the door.

Please note, delivery is kerbside only. We request that another party is present to help unload.

How do I put together a double door knockdown frame?

For specific advice regarding building the self-assembly knockdown frame for your steel double door, see our blog post

What is the lead time?

Stock Door (white, no modifications) – in stock – 0 days
Stock Door (white, modified e.g. installed accessories, vision panel e.t.c) – 4 working days
Re-Powder Coated Stock Door, with or without accessories installed (not white) – 10 working days
Fast track options are also available

How many keys come with the door?

Personnel doors come with 5 usable keys. Upgraded cylinders come with 3 keys.
Additional keys are available – we have a key cutting machine on-site
See our cylinder options video here

How much do the steel doors weigh?

Double doors weigh on average 110kg*
*size dependant

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.
We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door
To calculate the clear opening (when the door is open), subtract 110mm from the width dimension. E.G. 895mm-110mm=760mm clear opening
See the video on how to measure here

What is Security Trim?

The security trim kit fits around the perimeter of the door frame, preventing any packing from being seen externally and making the door as a whole more secure.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
See the security trim video here

To see all FAQs, click here

Downloads

Fitting Instructions

Download fitting instructions
Fixing point measurements

Operation & Maintenance Manual

Download operation & maintenance manual

CAD Drawings

Double Steel Door CAD drawing – PDF
Double Steel Door CAD drawing – DWG

CE DoP

Double Steel Door CE Declaration of Performance – PDF
