Double Fire Exit Doors, available in sizes from 1.3m to 2m wide

Double Fire Exit Door

From £499.99 + VAT (£599.99 inc. VAT)

Our Double Fire Exit Door features a security Exidor 285 adjustable panic bar set and is available in stock from 1295mm right up to 1995mm wide. For sizes of 1295mm & 1395mm, wide we offer our leaf & a half emergency exit doors; which were introduced to bridge the gap between our single and double fire exit doors.

Ideal for larger openings and buildings with high occupancy, our double fire exit doors are fully compliant to satisfy fire regulations and building control.

For advice on occupancy vs fire escape door size, see this article here.

DOWNLOAD BROCHURE

Compare Product
Category: GTIN: 5060479950553

Specification

Door Type

Fire Exit

Available Sizes (mm)

1295, 1395, 1495×2020, 1595×2020, 1695×2020, 1795×2020, 1895×2020, 1995×2020

Finish

White powder coat from stock, choice of colours available

Design

Plain door with flush panel

Door Frame Material

2.0mm Galvanised steel

Door Frame Depth

93mm

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

50mm

Door Leaf Core

Honeycomb core

U Value

3.96

Acoustic Value

35dB

Hinges

8 Stainless steel lift-off hinges

Handles

Exidor OAD (outer access devices) available

Locks or Door Furniture

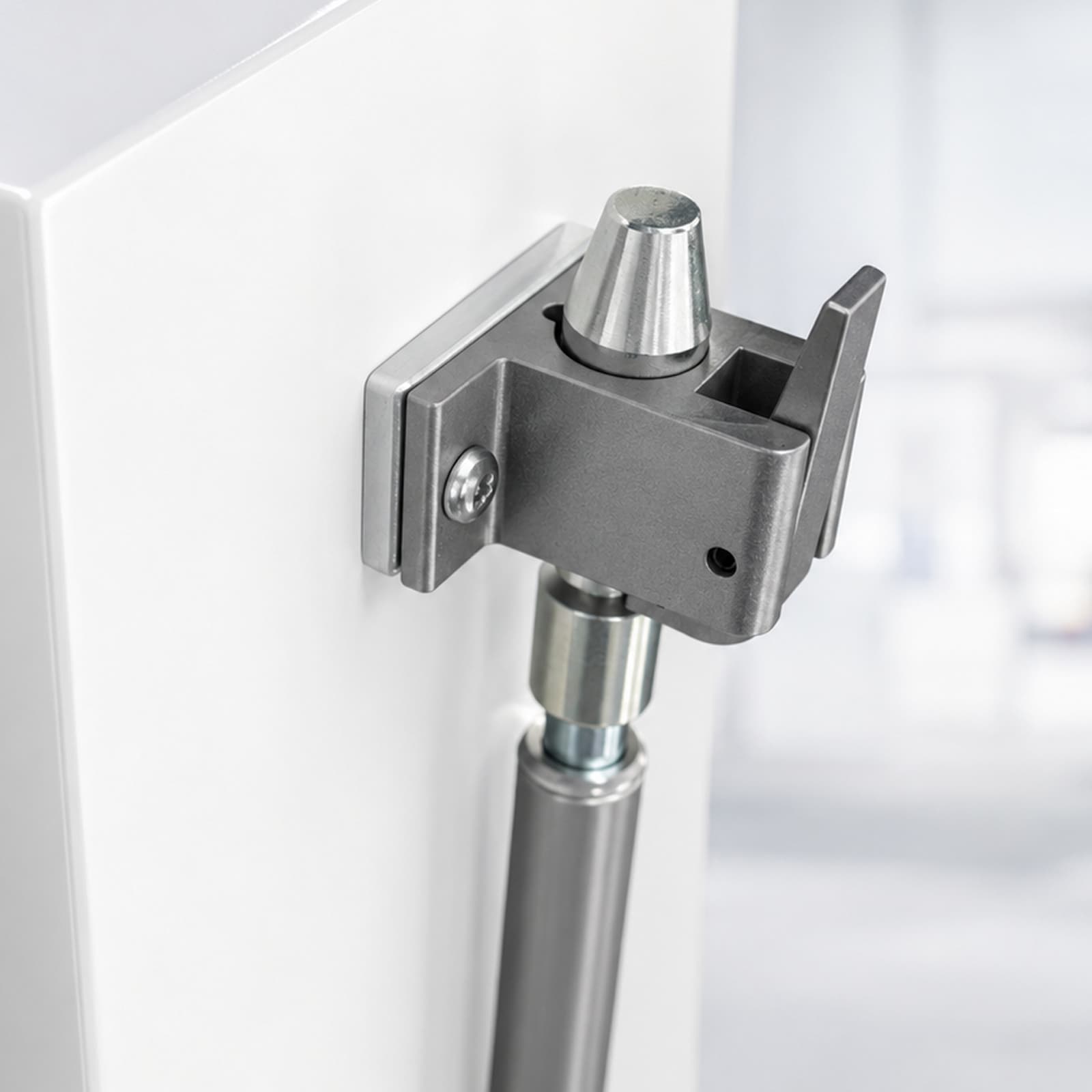

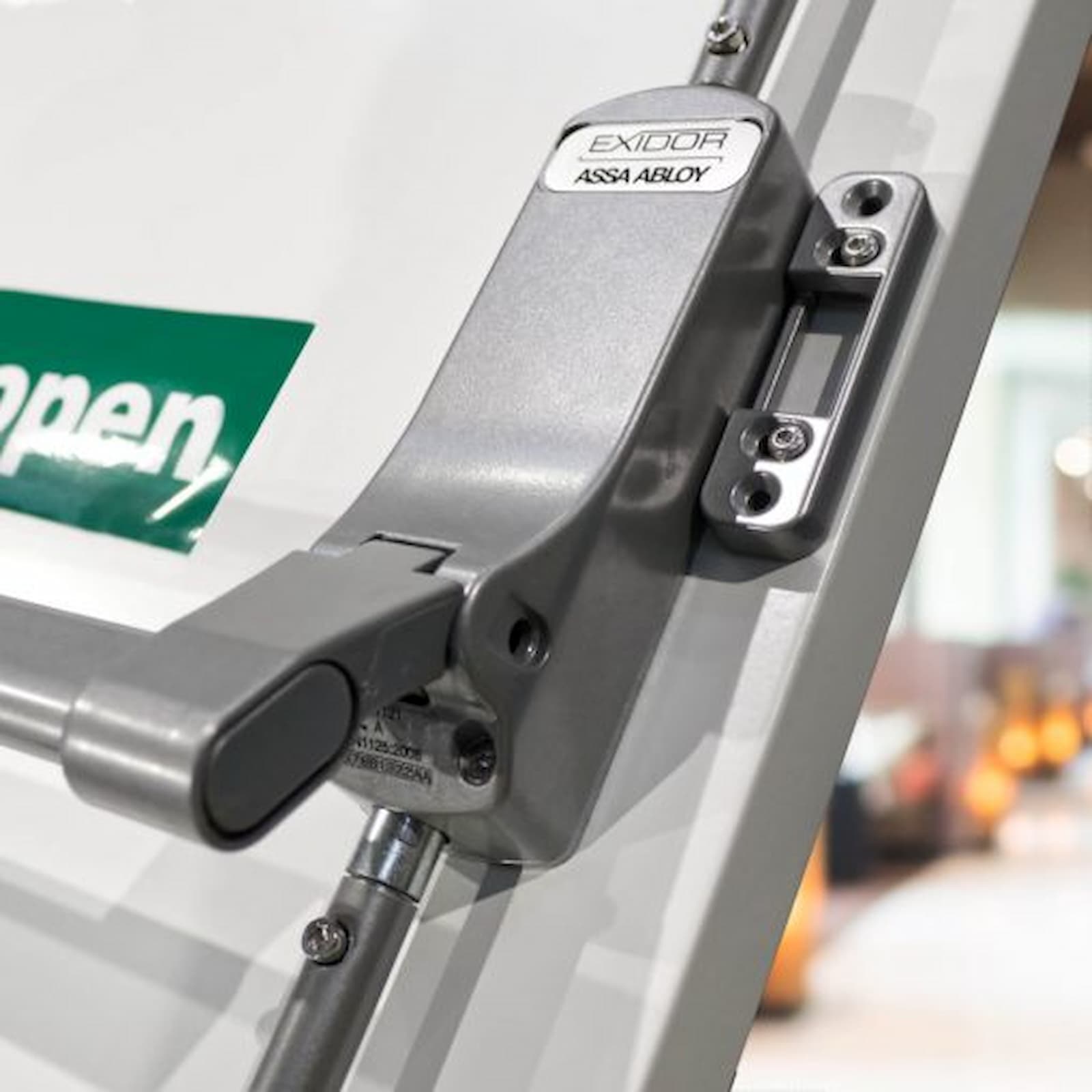

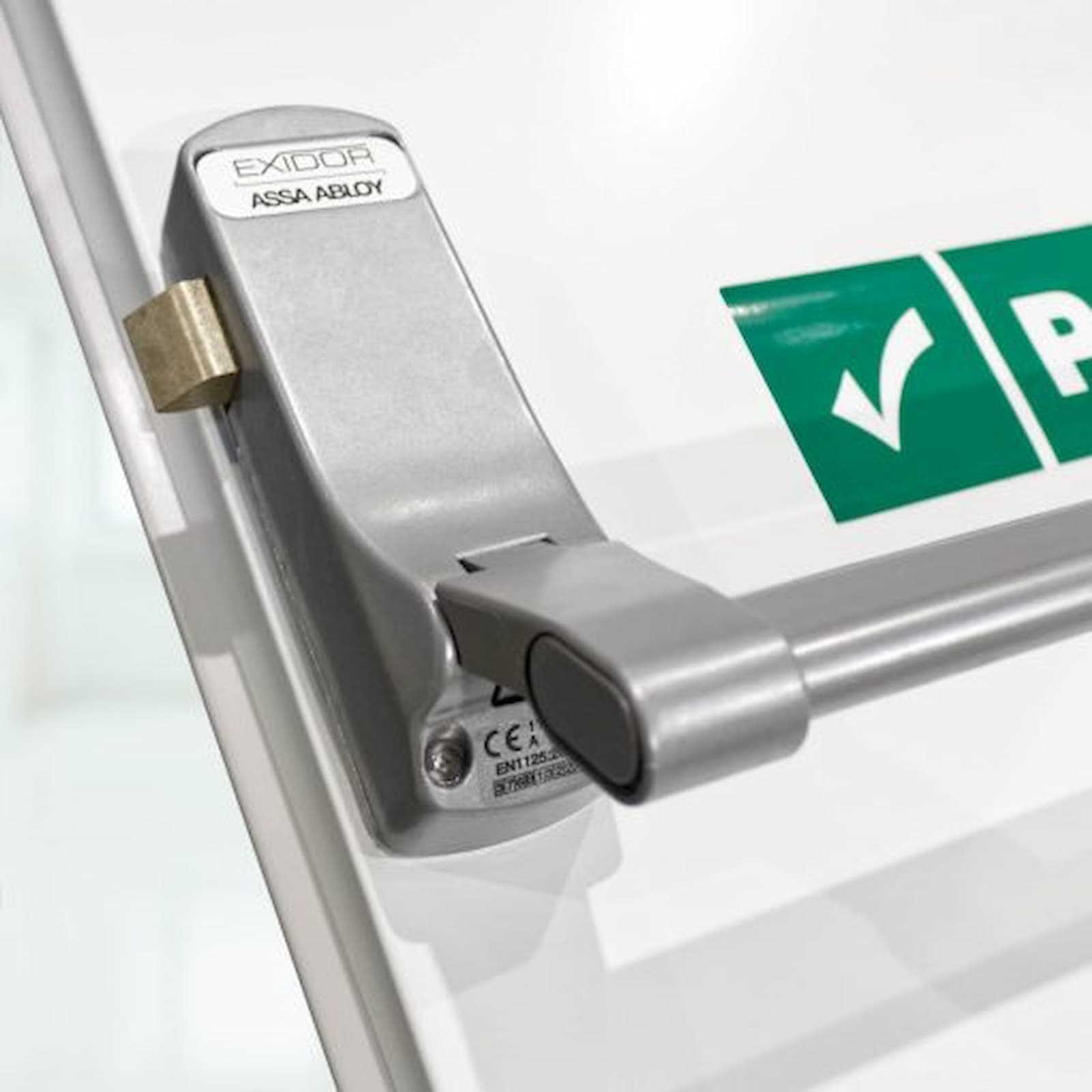

Active Door Leaf: Exidor 285 single point push bar | Passive Door Leaf: Exidor 294A 2 point push bar with adjustable shoot bolts

Seal

Weather / draught proof seals

Dog Bolts

4 Dog bolts on each door leaf (8 in total)

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top

Construction

Fully welded construction

Security Type

Medium

CE Certification

Yes

Security Certification

None

Fire Rating Certification

None

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external use

Example Door Purposes

Industrial double emergency exit, factory panic escape double door, large occupancy escape door, retail / shop fire exit

Videos

FAQs

How many keys come with the emergency exit doors?

Fire exit doors ordered with an OAD come with 2 keys
Additional keys are available – we have a key cutting machine on-site

How much do the emergency exit doors weigh?

Budget doors weigh on average 40kg*
Security doors weigh on average 85kg*
Double doors weigh on average 110kg*
*size dependant

Can I order this door opening inwards?

Fire exit doors cannot open inwards. In the event of emergency, the door is made to open fast, by rapidly pushing the push bar down and door outwards

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.
We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door
To calculate the clear opening (when the door is open), subtract 135mm from the width dimension. E.G. 895mm-135mm=760mm clear opening
See the video on how to measure here

What is Security Trim?

The security trim kit fits around the perimeter of the door frame, preventing any packing from being seen externally and making the door as a whole more secure.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
See the security trim video here

To see all FAQs, click here

Downloads

Brochure

Download the brochure for our Double Fire Exit Door

Fitting Instruction

Download the fitting instructions for our doors

CAD Drawing (PDF)

Download the CAD drawing for our Leaf and a Half Fire Exit Door in PDF

CAD Drawing (PDF)

Download the CAD drawing for our Double Fire Exit Door in PDF

CAD Drawing (DWG)

Download the CAD drawing for our Double Fire Exit Door in DWG

CAD Drawing (DWG)

Download the CAD drawing for our Leaf and a Half Fire Exit Door in DWG
