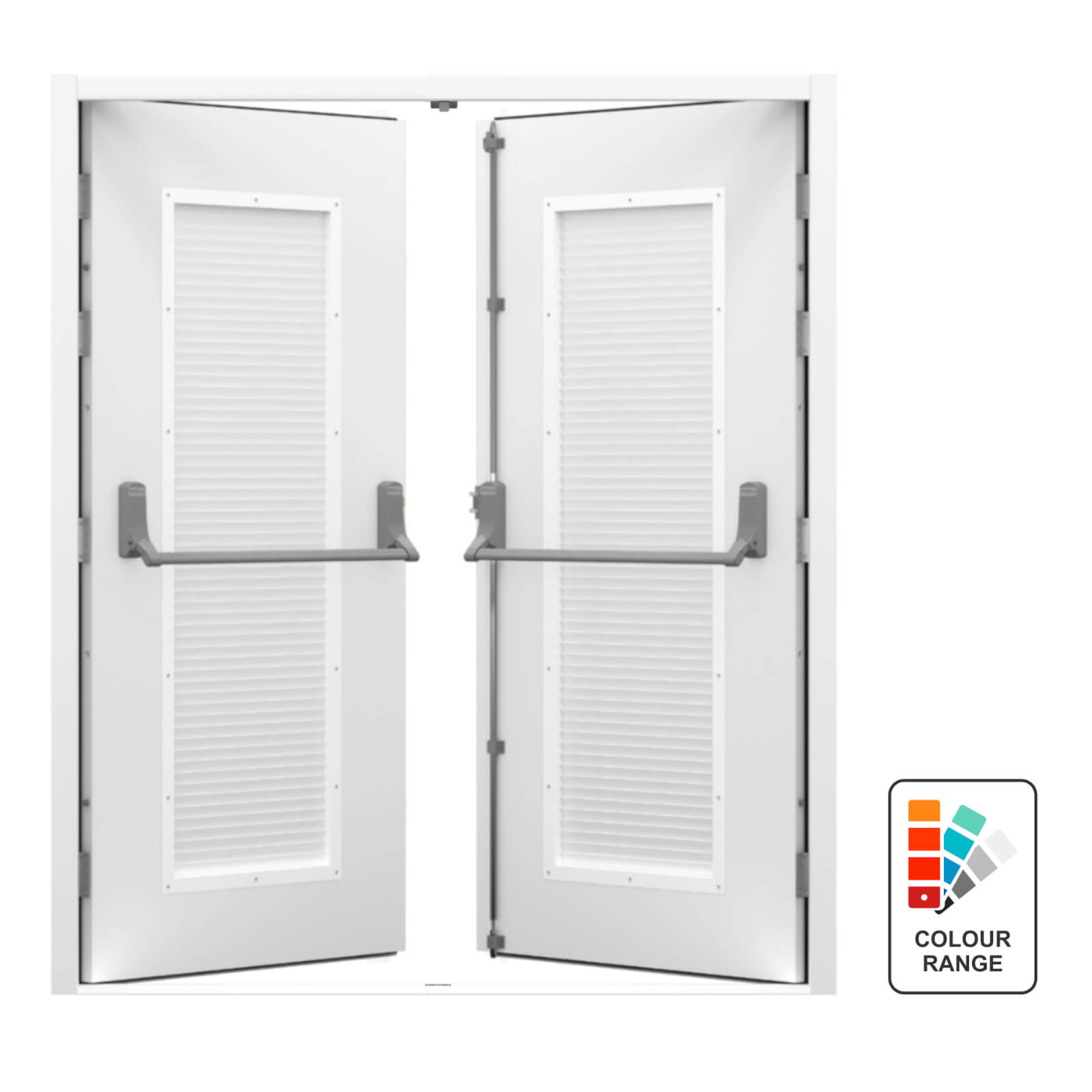

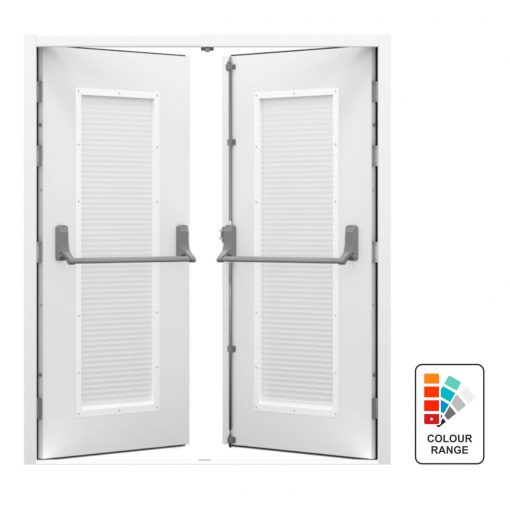

Double louvred steel fire exit door

Louvred Double Fire Exit Door

From £704.98 +VAT (£845.98 inc. VAT)

Our Security Louvred Double Fire Exit Doors are manufactured using our double fire exit door range, featuring a security Exidor 285A adjustable panic bar set.

Combining security, fire safety and ventilation, they are available in sizes 1295mm-1995mm wide. For smaller openings, see our Single Louvred Fire Exit Door.

Compare Product

Lead Times
White door: 5 working days + delivery
Powder coated door: 10-15 working days + delivery
Fast track options: Contact us for availability

SKU: DDFE-LOU-DOOR Categories: , GTIN: 5060479950553

Functional Fire Escape

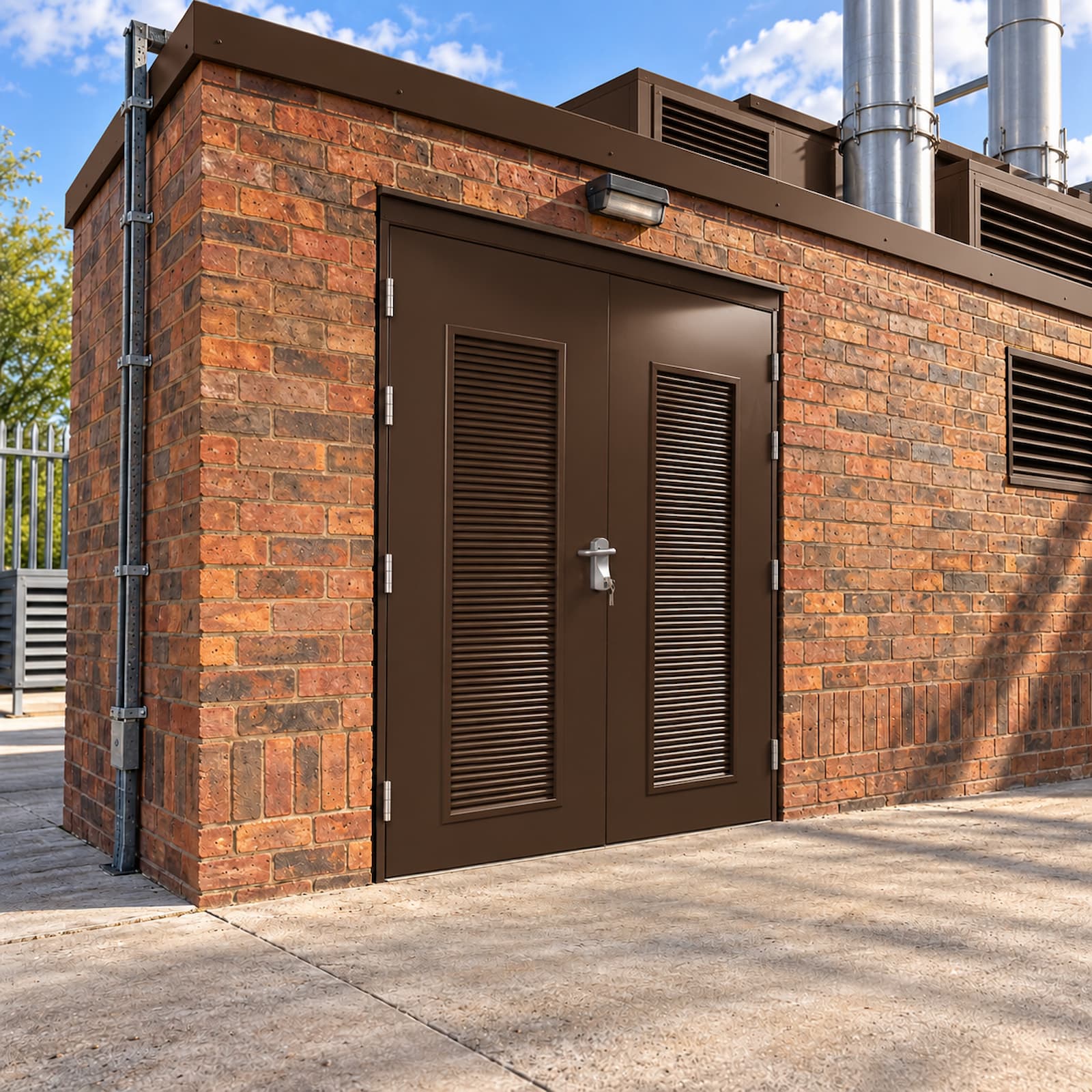

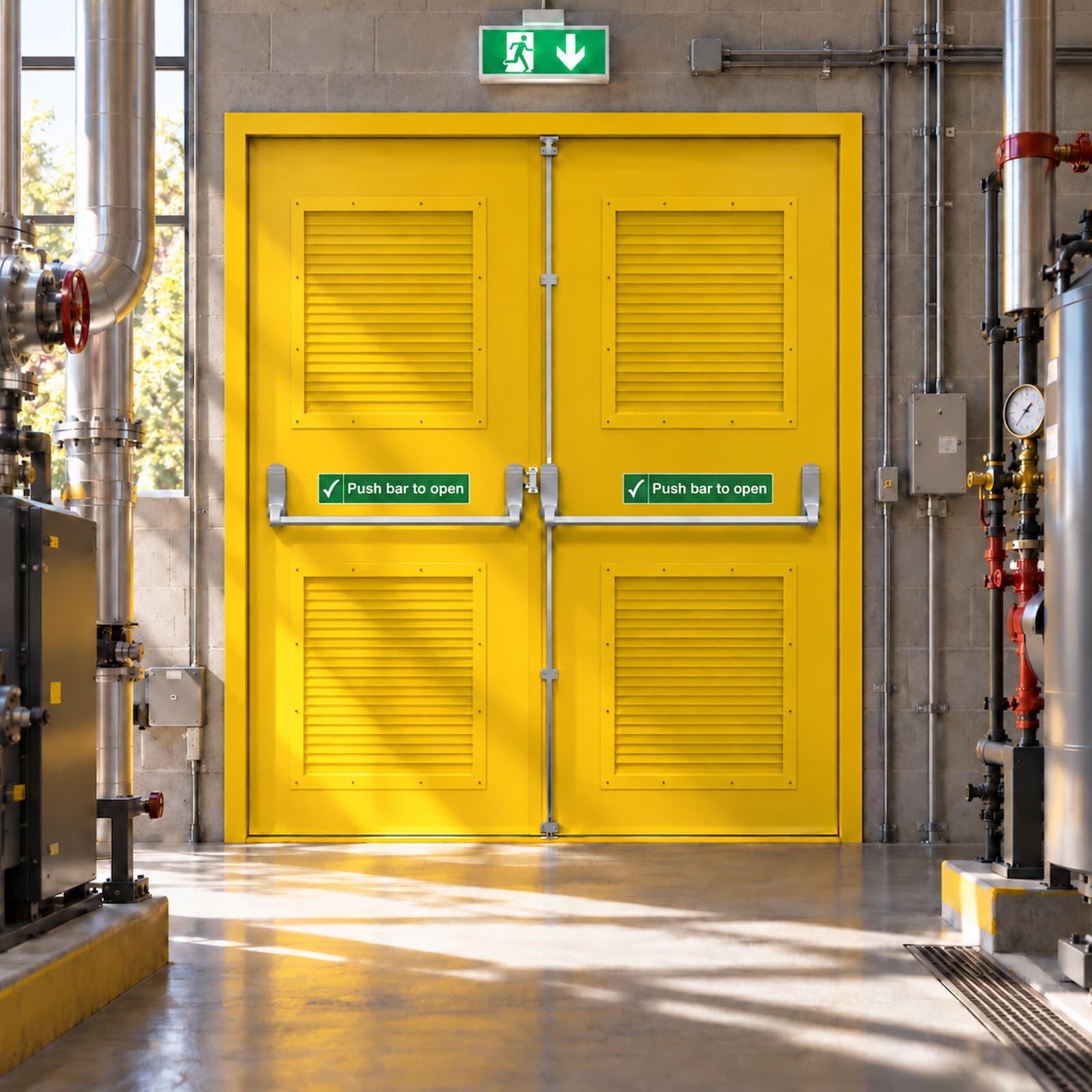

Our louvred double fire exit doors not only improve airflow, they also ensure a high level of security for rooms with restricted access. They have a wide variety of uses such as for server rooms, boiler rooms and electricity cupboards for your business premises.

Compliant with the Disability Discrimination Act

This door is fully compliant with the Disability Discrimination Act as it has a level threshold with a maximum upstand of 12mm, with chamfered edges.

Sizing up your Steel Door

This louvred double emergency exit door is available in sizes from 1295mm to 1995mm wide and are all fitted with a security Exidor 285A adjustable panic bar set

Outside Access if Required

If you need your lourvred fire exit door to also provide outside access we have a range of Exidor Outside Access Devices available to purchase and fit prior to delivery.

Door Type

Fire Exit

Available Sizes (mm)

1295, 1395, 1495×2020, 1595×2020, 1695×2020, 1795×2020, 1895×2020, 1995×2020

Finish

White powder coat from stock, choice of colours available

Design

Plain door with flush panel

Door Frame Material

1.8mm Galvanised Steel

Door Frame Depth

90mm

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

50mm

Door Leaf Core

Mineral wool insulation

Internal Strengthening

2 x horizontal & 1 x vertical reinforced bars per door leaf

U Value

2.20

Acoustic Value

35dB

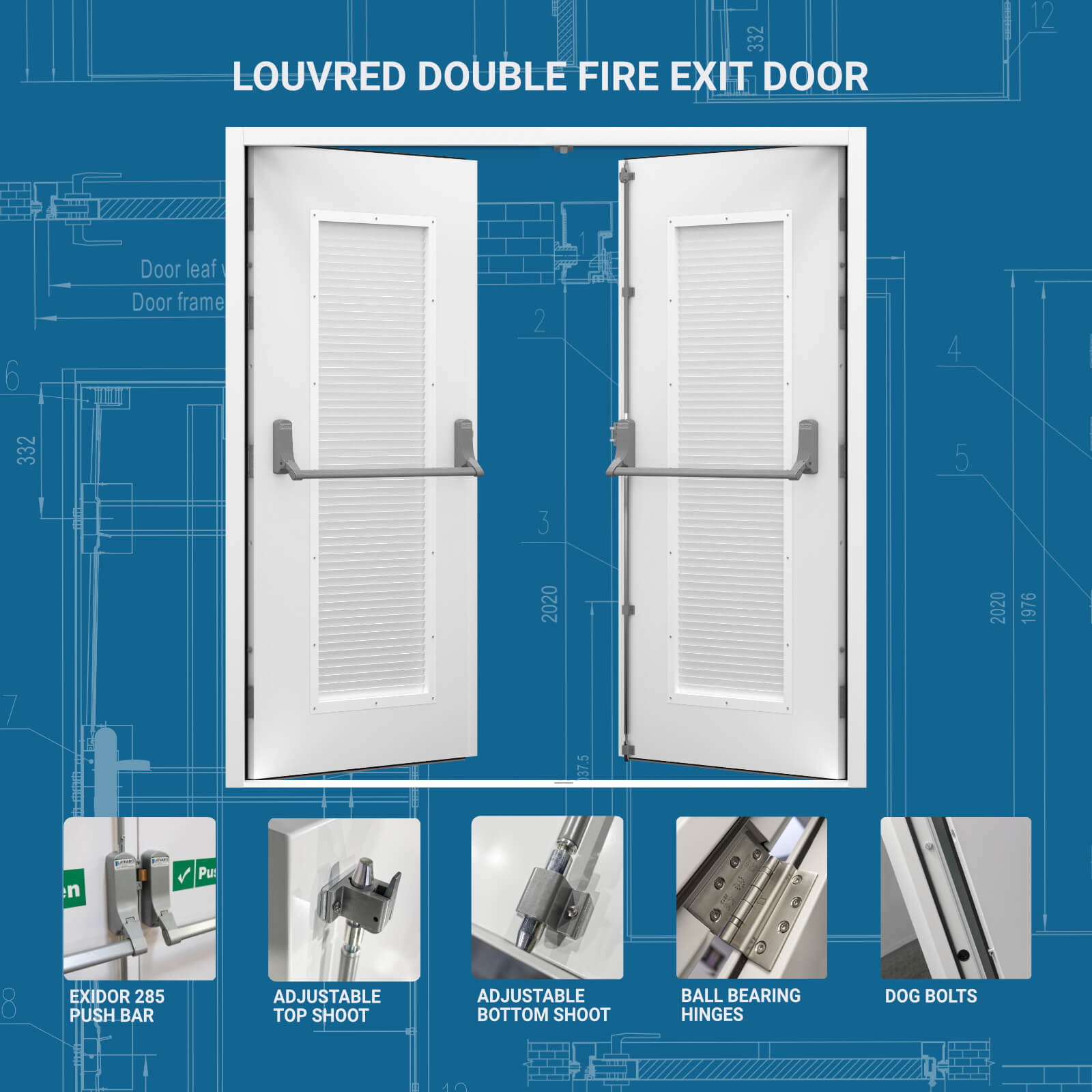

Hinges

8 Stainless steel ball bearing hinges

Handles

Exidor OAD (outer access devices) available

Locks or Door Furniture

Active Door Leaf: Exidor 285 single point push bar | Passive Door Leaf: Exidor 294A 2 point push bar with adjustable shoot bolts

Seal

Nylon self adhesive V-seal

Dog Bolts

4 Dog bolts on each door leaf (8 in total)

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top

Construction

Fully welded construction

Security Type

Medium

CE Certification

Yes

Security Certification

None

Fire Rating Certification

None

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external use

Example Door Purposes

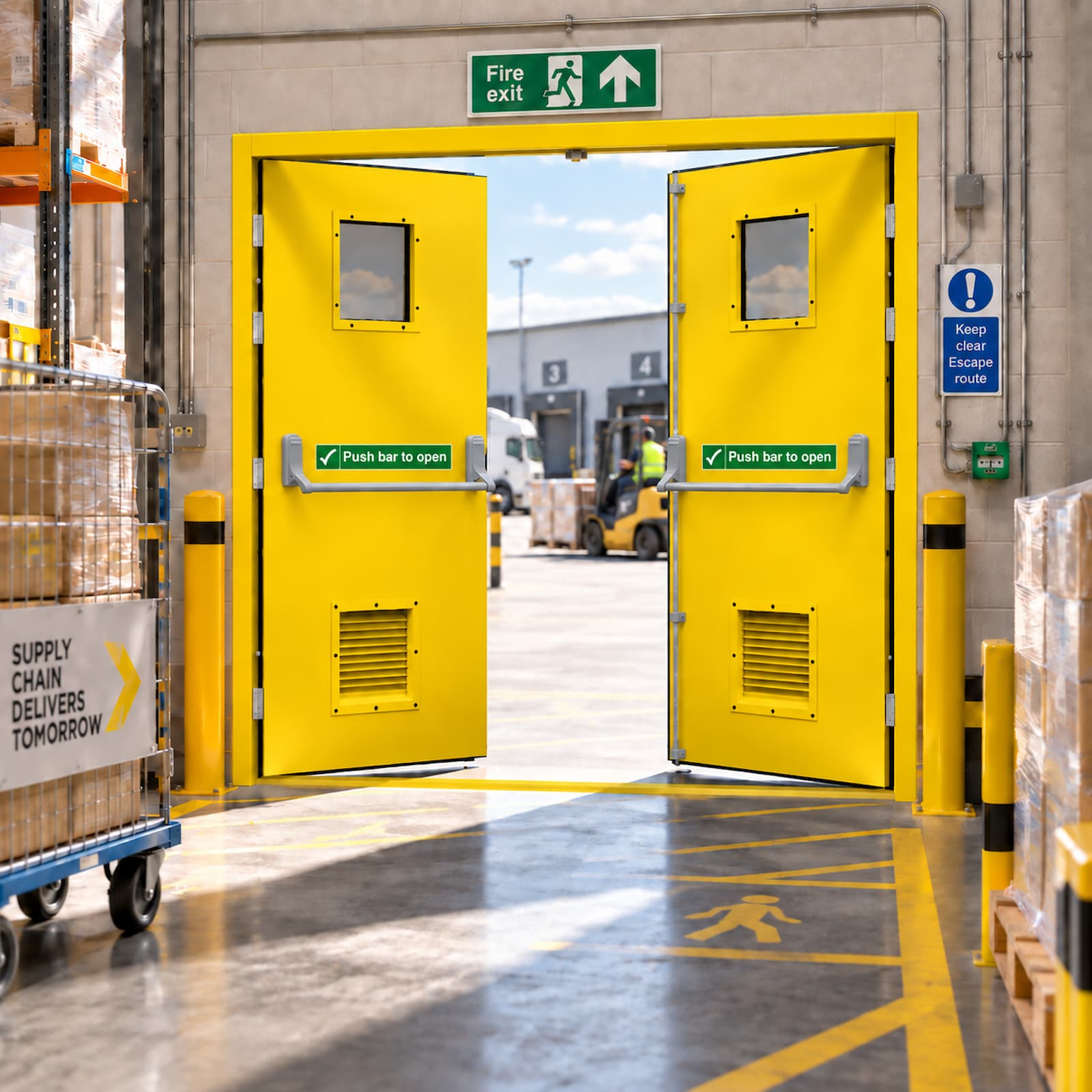

Industrial double emergency exit, factory panic escape double door, large occupancy escape door, retail / shop fire exit

Videos




FAQs

What can the louvred steel doors be used for?

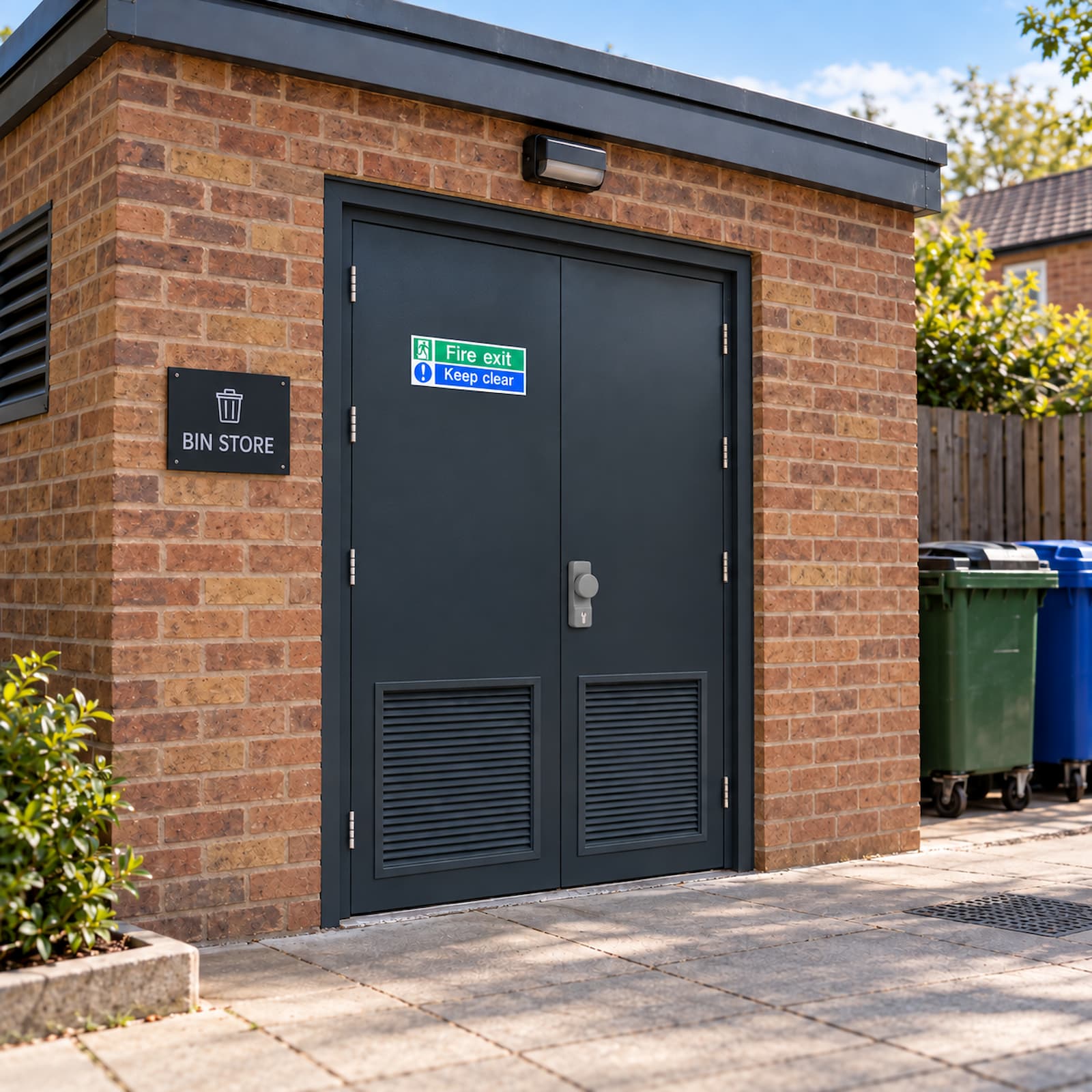

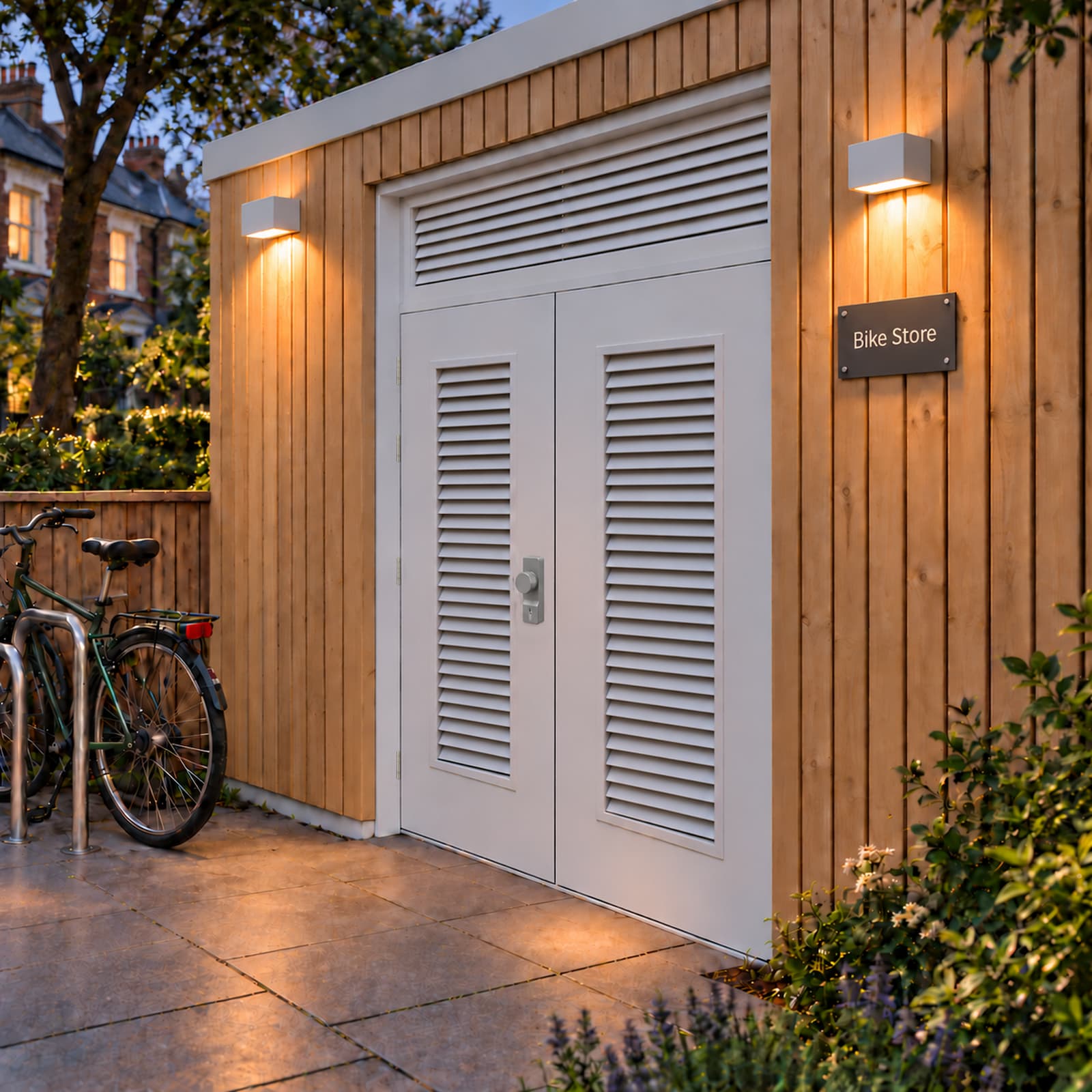

Our customers frequently use our louvred doors for plant rooms, server rooms and bin stores, just to name a few uses!

What is the air flow rating through the louvre?

Our louvres offer approximately 50% free airflow. You may need a larger panel depending on the usage and required air flow.

Can I order this door opening inwards?

Fire exit doors cannot open inwards. In the event of emergency, the door is made to open fast, by rapidly pushing the push bar down and door outwards

How do double doors get delivered?

 Your steel double door will be delivered in a minimum of 4 boxes:

2 x door leaves packaged individually
1 x box containing the hinge posts
1 x box containing the head of the frame and the bottom threshold

By delivering your steel double door frame in self-assembly pieces, it reduces the amount of handling of the doors. This in turn reduces associated health and safety risks as the door and frame are delivered in separate, manageable boxes meaning they’re less likely to be dropped causing unnecessary damage to the door.

Please note, delivery is kerbside only. We request that another party is present to help unload.

How do I put together a double door knockdown frame?

For specific advice regarding building the self-assembly knockdown frame for your steel double door, see our blog post

What is the lead time?

Stock Door (white, no modifications) – in stock – 0 days
Stock Door (white, modified e.g. installed accessories, vision panel e.t.c) – 4 working days
Re-Powder Coated Stock Door, with or without accessories installed (not white) – 10 working days
Fast track options are also available

How many keys come with the door?

Fire exit doors ordered with an OAD (outside access device) come with 2 keys
Additional keys are available – we have a key cutting machine on-site

How much do the steel doors weigh?

Double doors weigh on average 110kg*
*size dependant

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.
We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door
To calculate the clear opening (when the door is open), subtract 135mm from the width dimension. E.G. 895mm-135mm=760mm clear opening
See the video on how to measure here

What is Security Trim?

The security trim kit fits around the perimeter of the door frame, preventing any packing from being seen externally and making the door as a whole more secure.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
See the security trim video here
