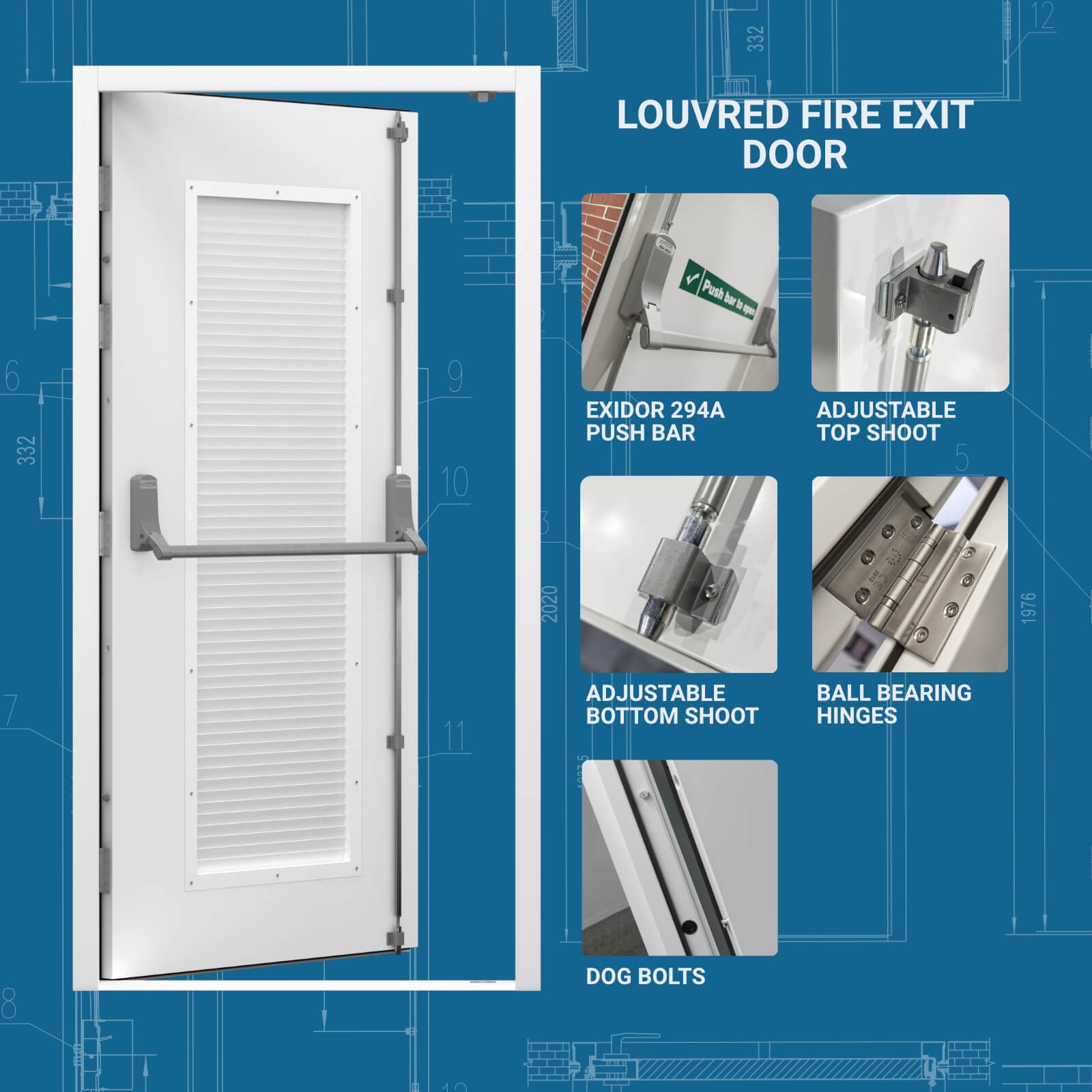

Louvred security fire exit door with Exidor panic bar

Louvred Fire Exit Door (Security)

from £414.98 +VAT (£414.98 inc. VAT)

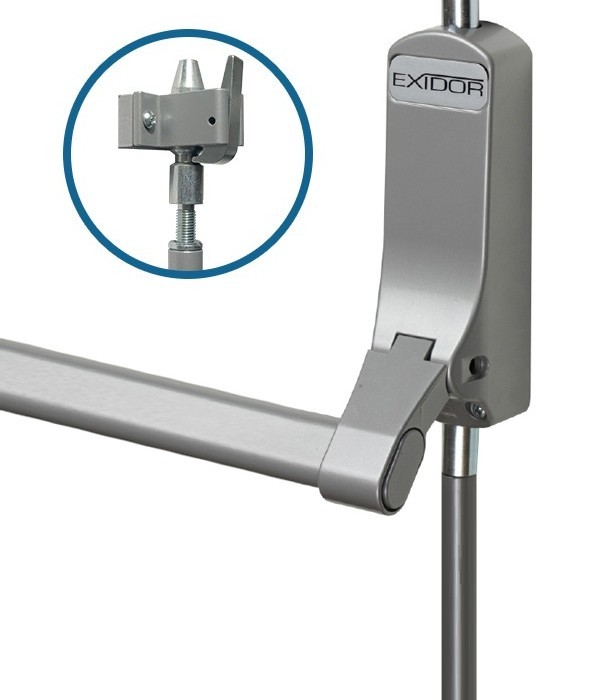

Our Security Louvred Fire Exit Doors are manufactured using our heavy duty security fire exit door range, featuring a security Exidor 294 adjustable 2 point panic bar system, pre-fitted from stock.

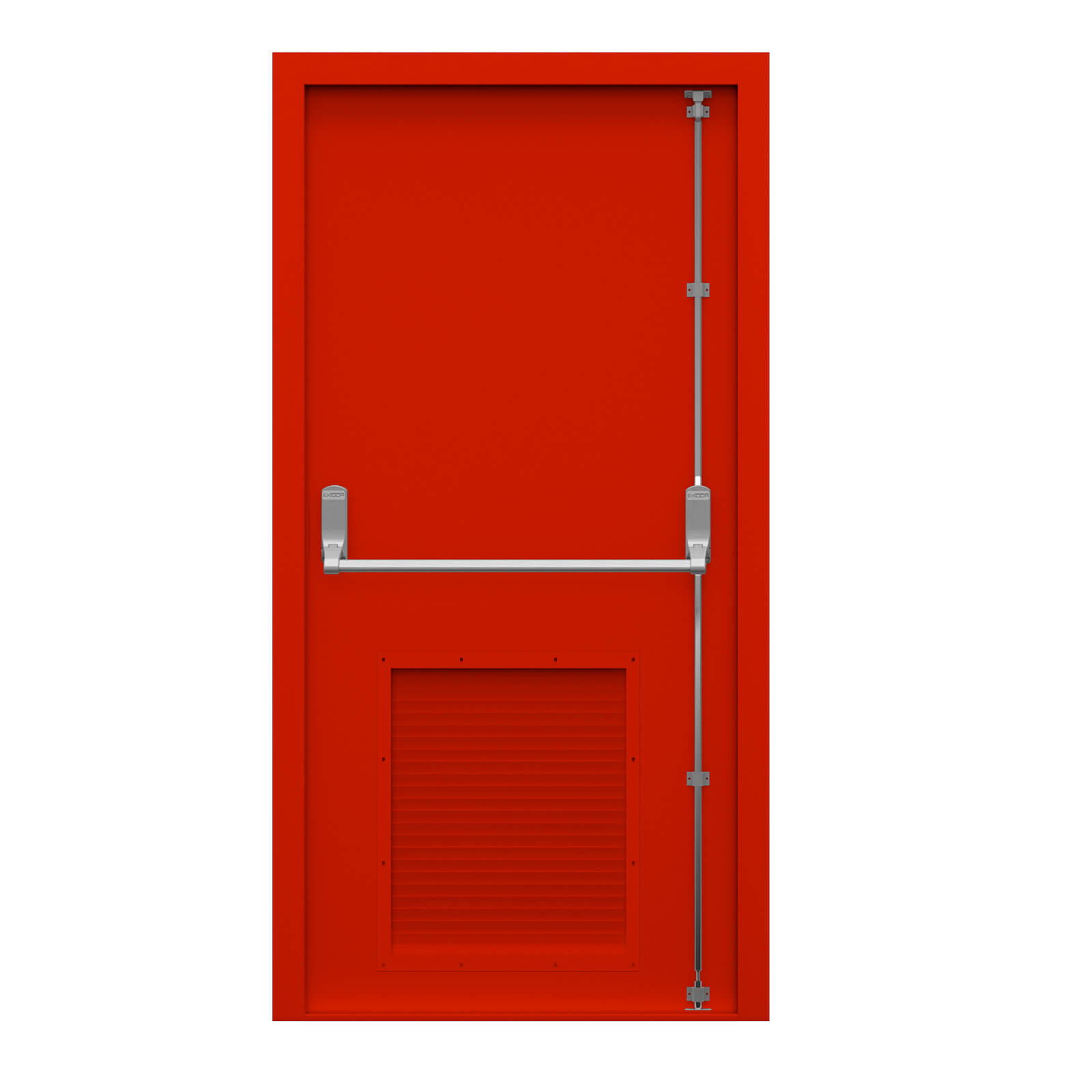

Combine fire safety and ventilation, with fitted louvre panels offering up to 50% air flow. Security Double Louvre Fire Exit Doors are also available.

Compare Product

Lead Times
White door: 5 working days + delivery
Powder coated door: 10-15 working days + delivery
Fast track options: Contact us for availability

SKU: HDFE-LOU-DOOR Categories: , GTIN: 5060479950485

Functional Safety and Security

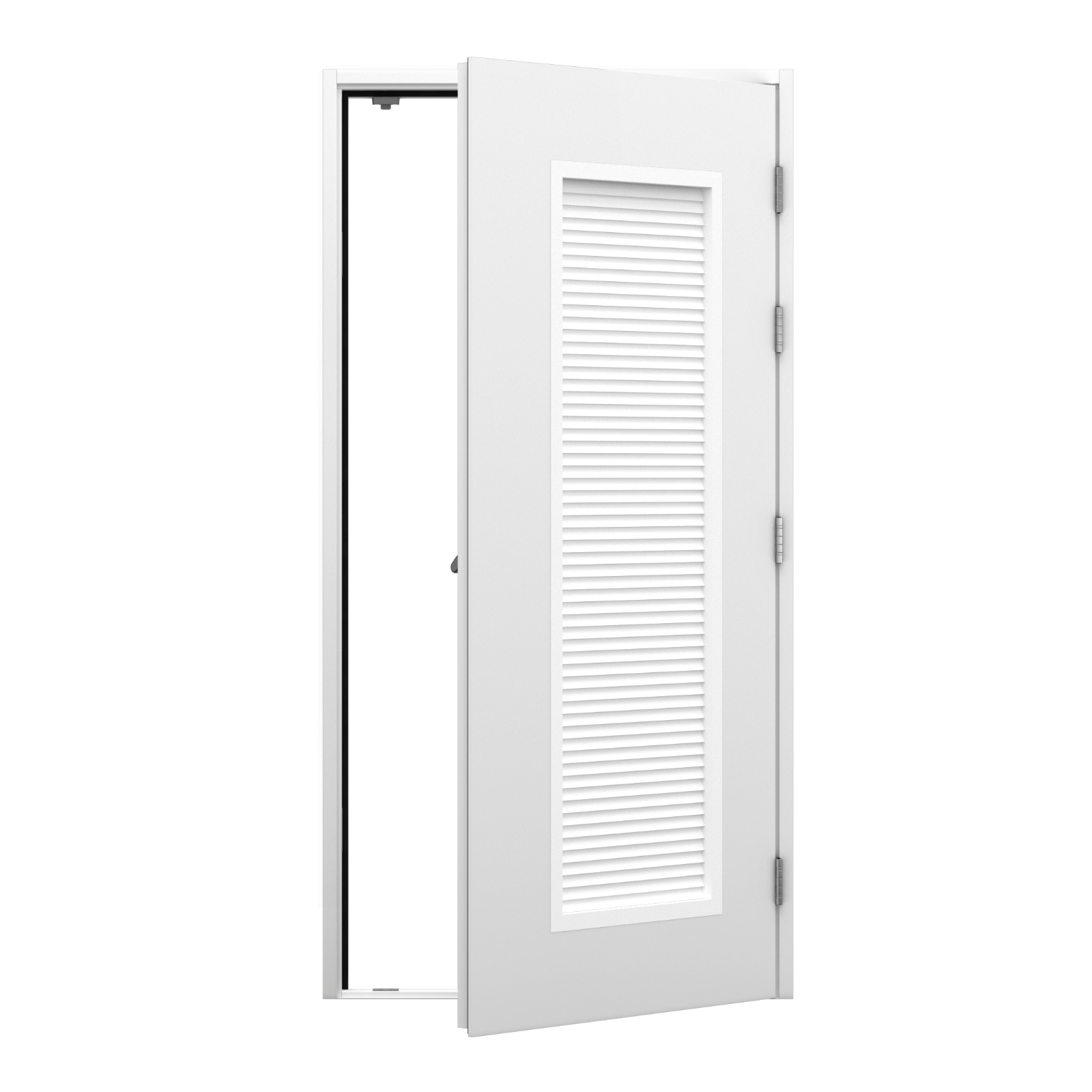

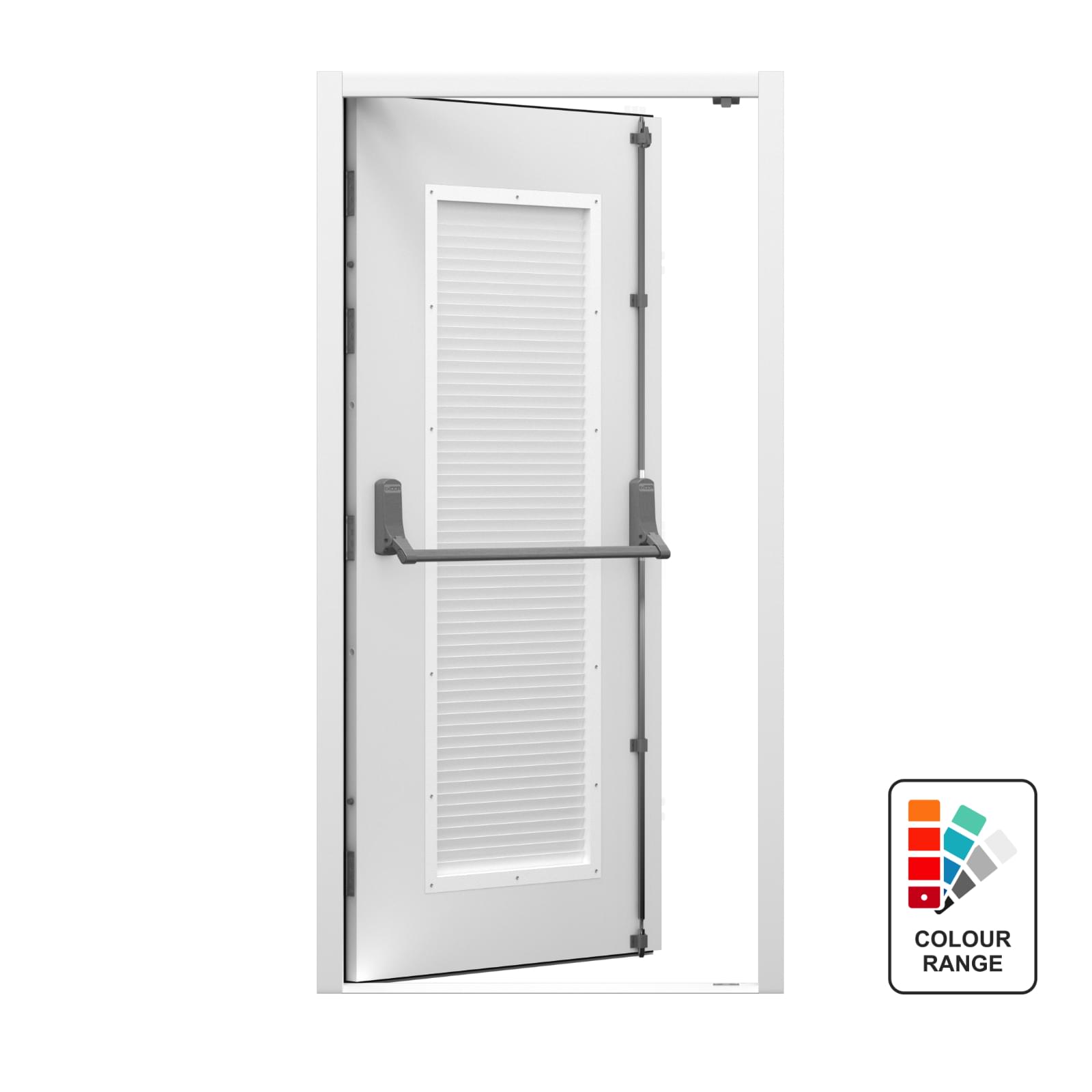

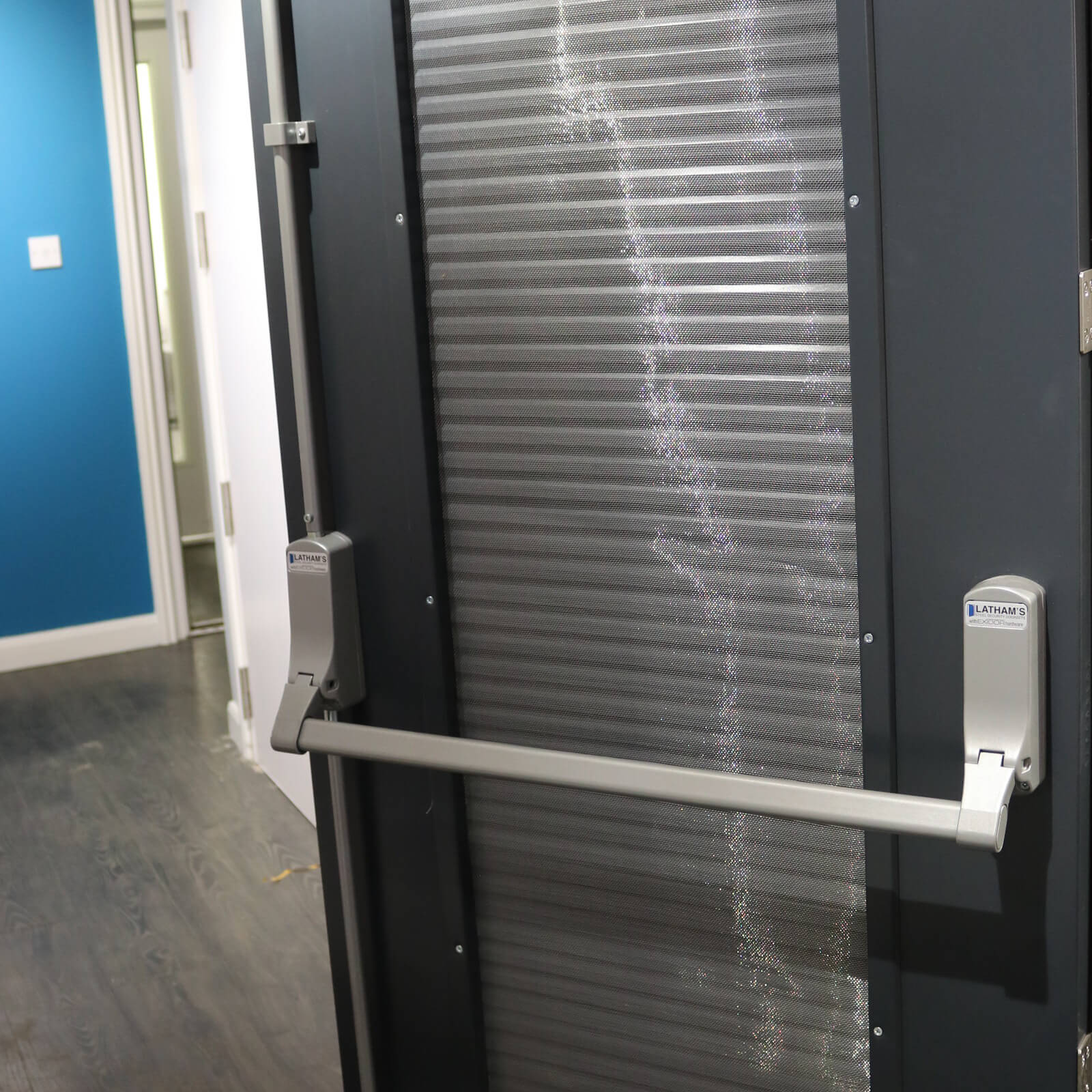

Our security louvred fire exit door combines fire safety and ventilation with an air flow of up to 50%. These doors are manufactured from our security fire escape range using a thicker gauge steel and an extra hinge for increased security.

Colour your Louvred Steel Door

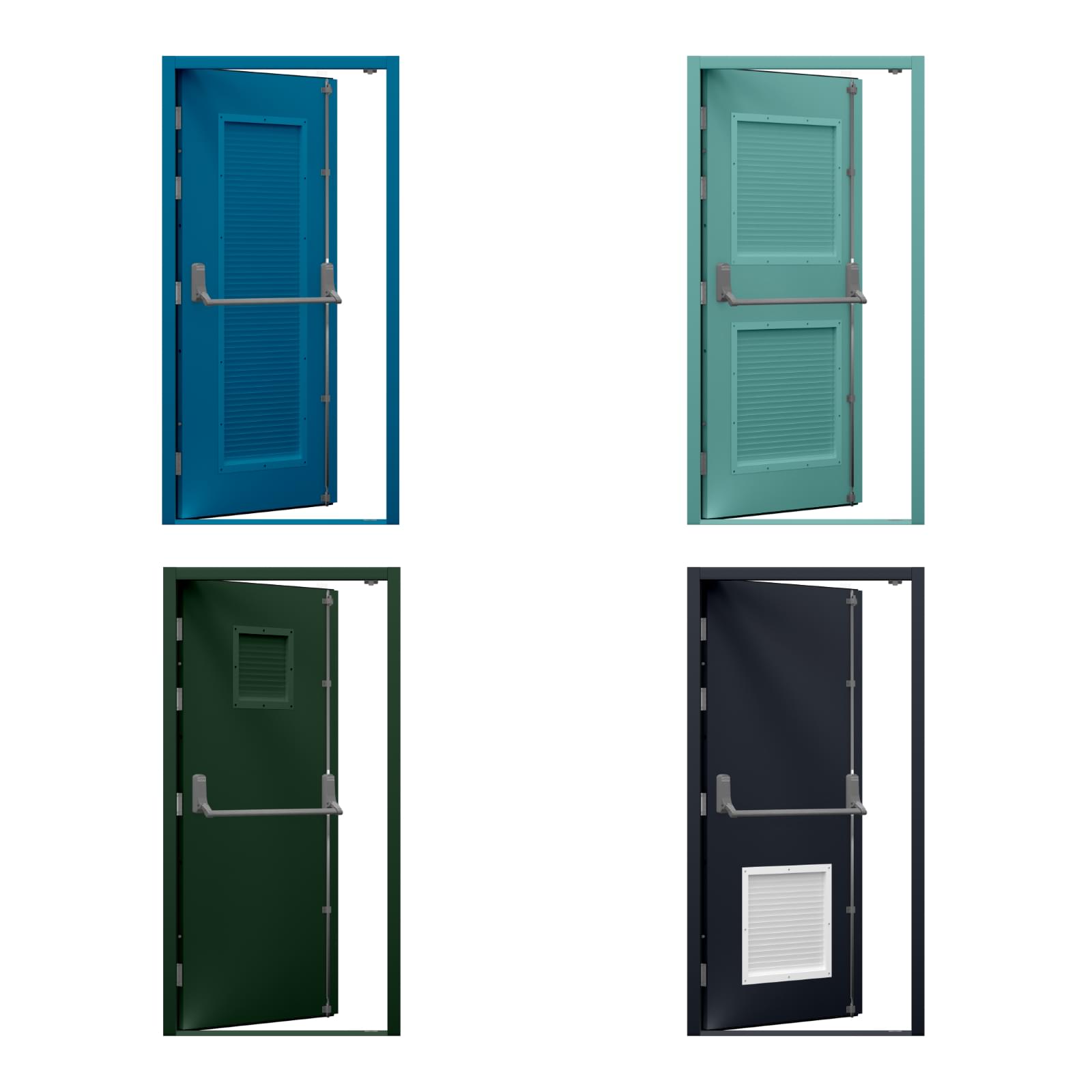

As standard our security louvred fire exit door is powder coated in Latham’s Stock White but is available to be customised to your required colour using our on site powder coating service

Outside Access Available

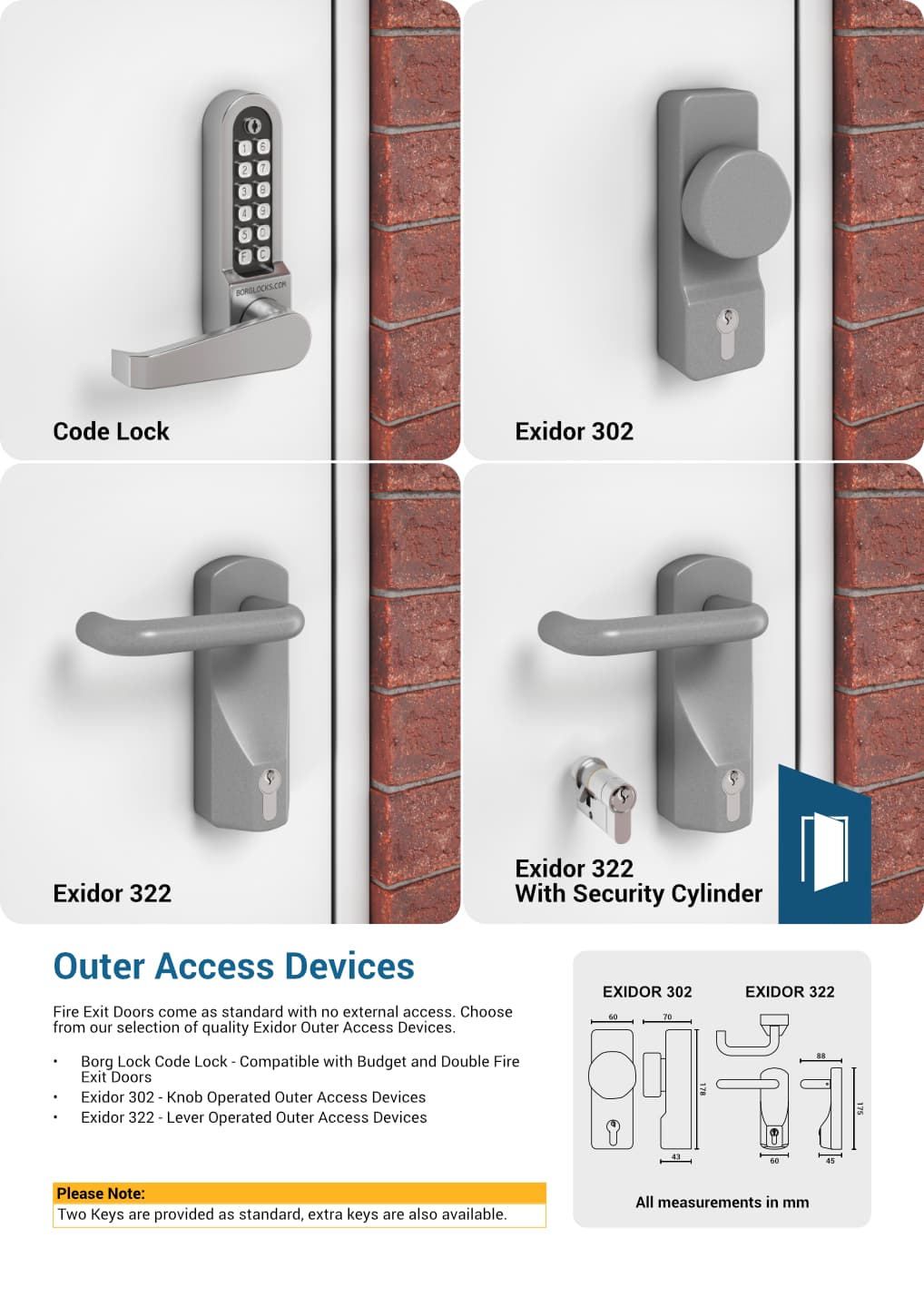

If you also need external access for your louvred fire exit door, we have a range of Exidor outside access devices that can be purchased and fitted prior to delivery.

Multipurpose Uses

Our louvred emergency exit doors can be used for a variety of purposes such as server rooms, boiler rooms, electricity cupboards and bin storage rooms.

Weight10 kg
Door Type

Fire Exit

Available Sizes (mm)

795×2020, 845×2020, 795×2020, 995×2020, 1095×2020, 1195×2020

Finish

White powder coat from stock, choice of colours available

Design

Plain door with flush panel

Door Frame Material

1.8mm Galvanised Steel

Door Frame Depth

90mm

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

50mm

Door Leaf Core

Mineral wool insulation

Internal Strengthening

2 x horizontal & 1 x vertical reinforced bar

U Value

2.20

Acoustic Value

35dB

Hinges

4 Stainless steel ball bearing hinges

Handles

Exidor OAD (outer access devices) available

Locks or Door Furniture

Exidor 294A – security 2 point push bar with adjustable shoot bolts

Seal

Nylon self adhesive V-seal

Dog Bolts

4 Dog bolts

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top

Construction

Fully welded construction

Security Type

Medium

CE Certification

Yes

Security Certification

None

Fire Rating Certification

None

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external use

Example Door Purposes

Industrial Emergency Exit, Security Factory Panic Escape door, Industrial Fire Exit Door, commercial, warehouse Emergency Exit, Security Fire Escape

Videos



FAQs

What can the louvred steel doors be used for?

Our customers frequently use our louvred doors for plant rooms, server rooms and bin stores, just to name a few uses!

What is the air flow rating through the louvre?

Our louvres offer approximately 50% free airflow. You may need a larger panel depending on the usage and required air flow.

Can I order this door opening inwards?

Fire exit doors cannot open inwards. In the event of emergency, the door is made to open fast, by rapidly pushing the push bar down and door outwards

What is the lead time?

Stock Door (white, with louvres installed) – 4 working days
Re-Powder Coated Stock Door, (not white) – 10 working days
Lead times stated above are plus delivery.

How many keys come with the louvred doors?

Fire exit doors ordered with an OAD come with 2 keys
Additional keys are available – we have a key cutting machine on-site

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.

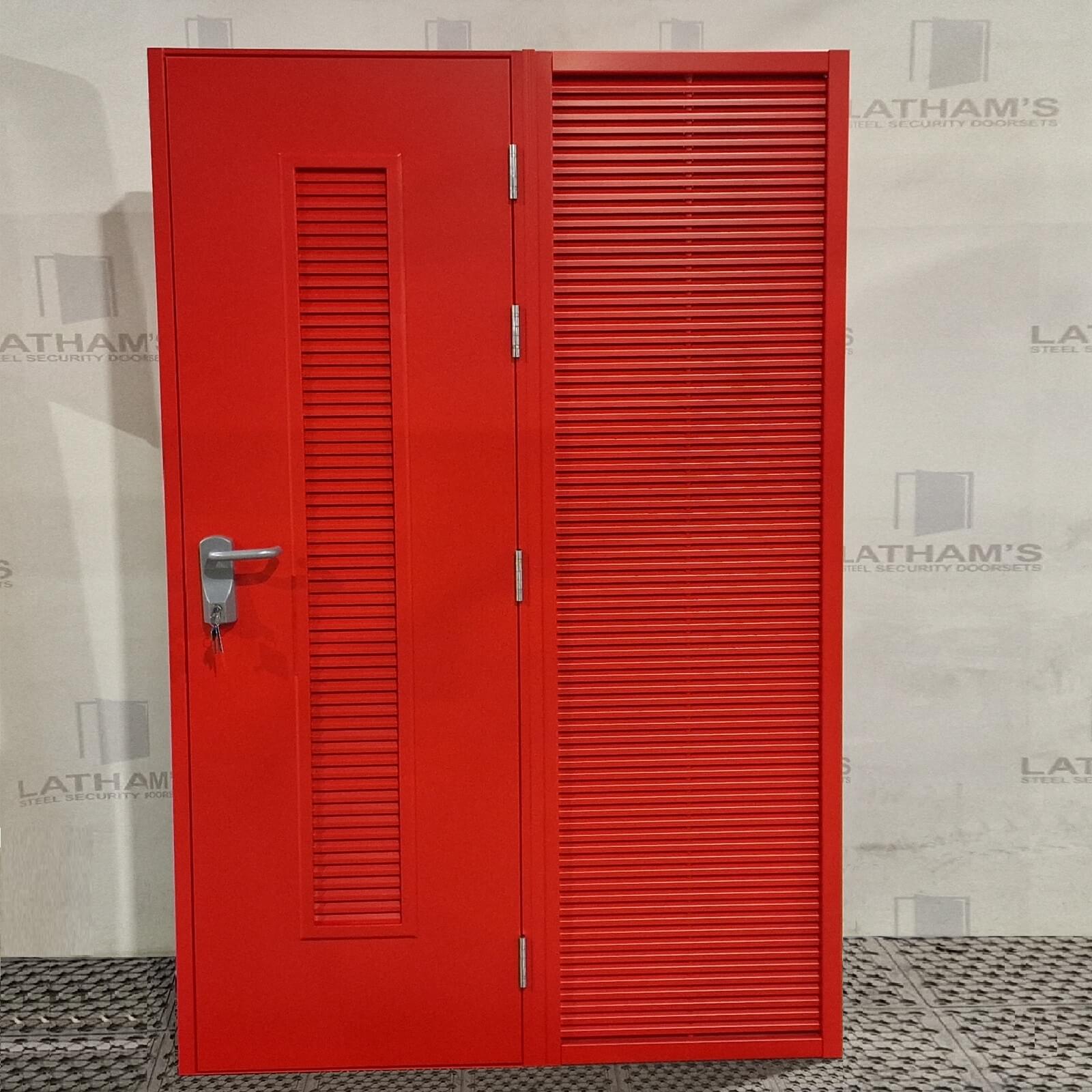

We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door
To calculate the clear opening (when the door is open), subtract 135mm from the width dimension. E.G. 895mm-135mm=760mm clear opening
See the video on how to measure here

What is Security Trim?

The security trim kit fits around the perimeter of the door frame, preventing any packing from being seen externally and making the door as a whole more secure.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
See the security trim video here

To see all FAQs, click here

Downloads

Fitting Instructions

Download fitting instructions

Operation & Maintenance Manual

Download operation & maintenance manual
