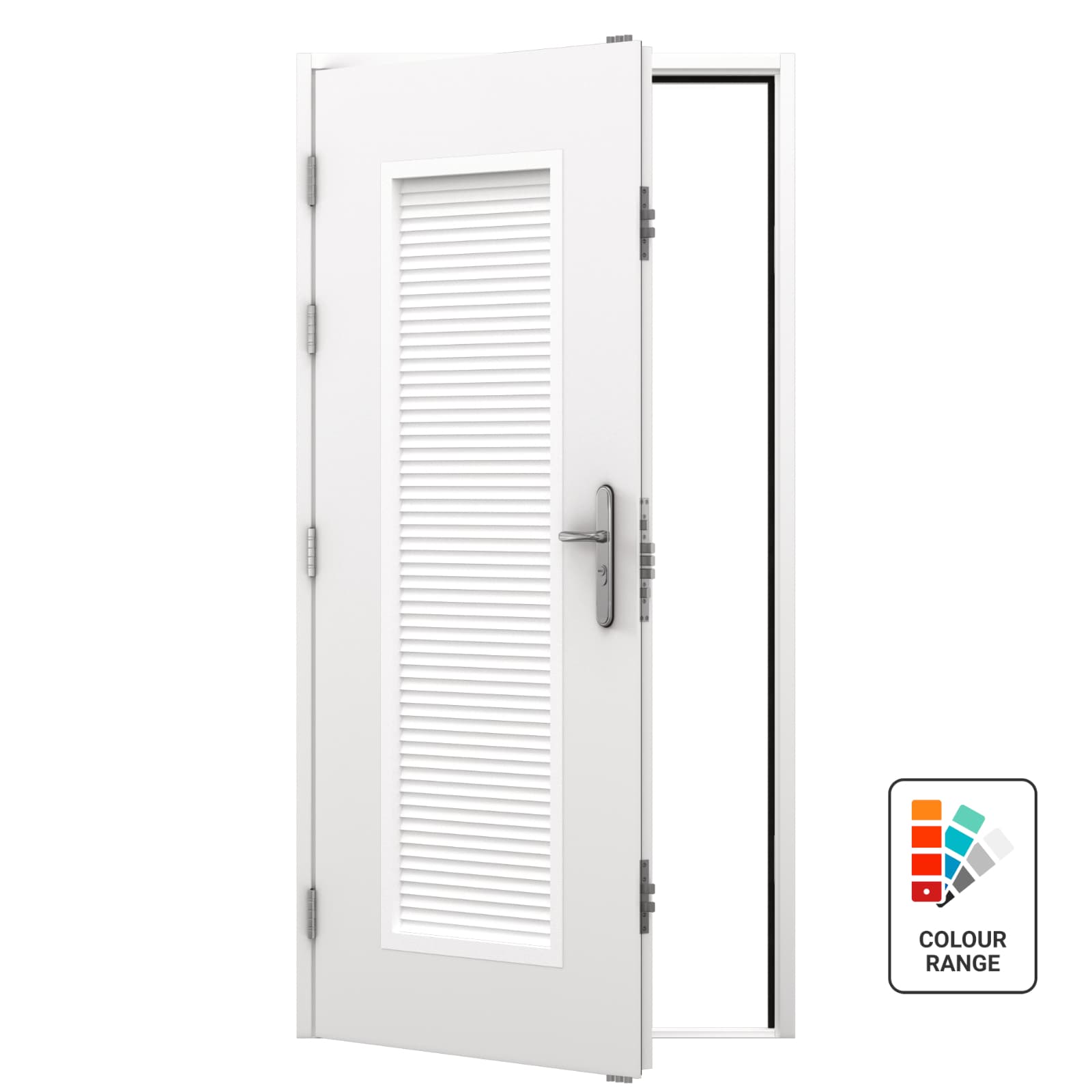

Steel Louvred Door (Security)

From £314.98 + VAT (£377.98 inc. VAT)

Our Security Louvred Steel Doors are manufactured using our heavy duty steel door range, featuring our trademark 19 point locking mechanism (the most locking points in the market).

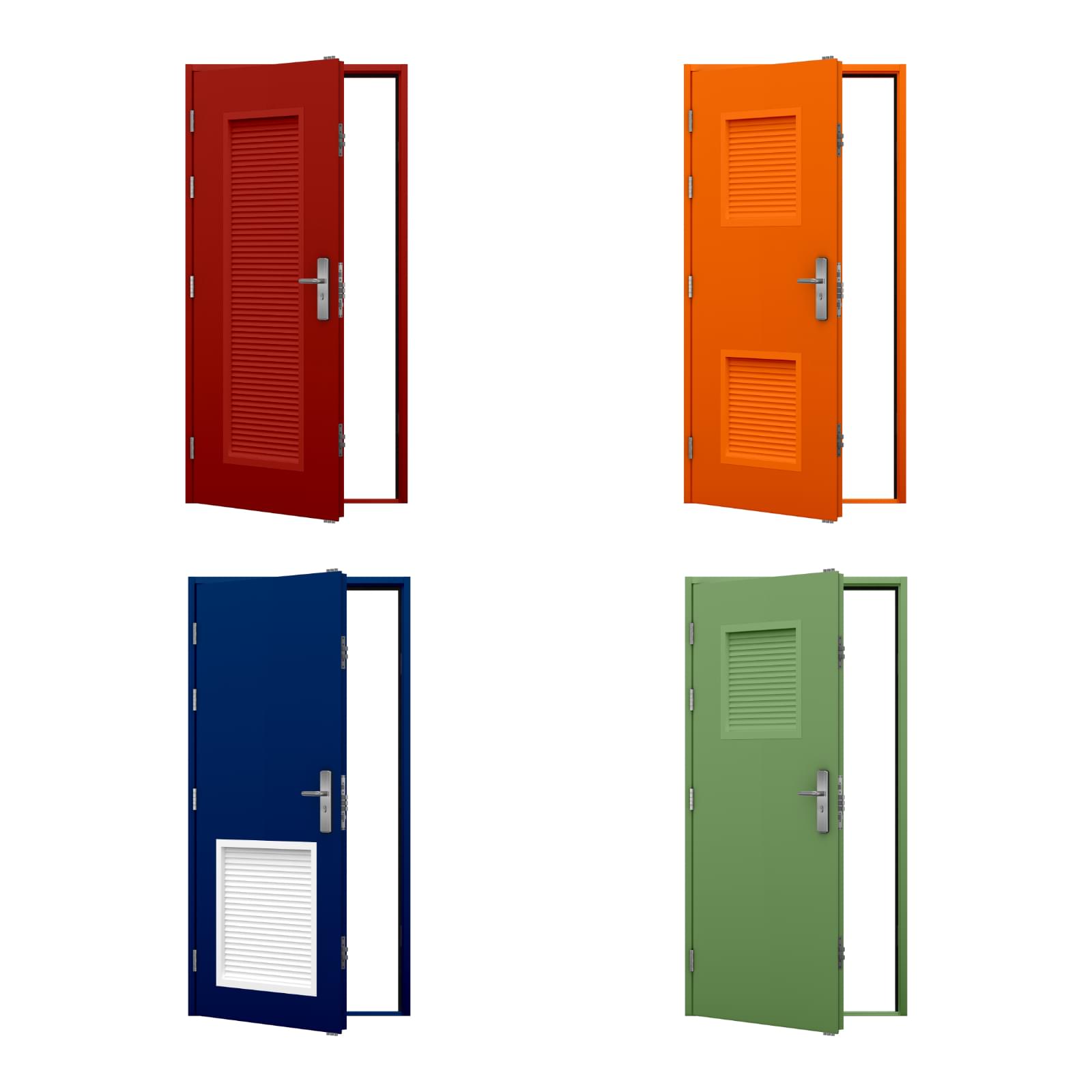

Offering 50% air flow our steel louvred doors are perfect for plant rooms, boiler rooms, bin stores and other applications needing a combination of airflow, ventilation & security. Security Double Louvre Doors also available.

Compare Product

Description

Heavy duty white textured polyester powder coated finish from stock (RAL 9003)

We also offer a powder coating service to change the colour of your louvred steel door and frame.

Heavy Duty Door Spec:

Louvred Door Frame: 2.0mm galvanised steel.

Louvred Door Leaf: Double skinned 1.0mm galvanised steel, 50mm in depth.

4 Stainless steel heavy duty lift-off hinges per door leaf BS EN 1935:2002

 Dog bolts (fixed locking points) on hinge side of door leaf.

Multi point locking shoot bolt mechanism

Locking points shoot into the top of the frame, into the latching side of the frame & through the bottom threshold into the structure below. 19 points hold the security steel louvre door in place.

A security upgraded sashlock is also available for added security (level 3).

Standard handles included as standard (#5586) with integral privacy lock

Stainless steel handles upgrade (level 2 & 3) available to increase security (#6198).

Weather & draught proof seals fitted as standard

Our louvred steel doors are fully weather proof and can be used externally.

DDA compliant threshold

Disability Discrimination Act specifies a level threshold with a maximum upstand of 15mm with chamfered edges.

Anti jemmy bar lip integrated into the door & frame, including the hinge side

Internal shielding to protect shoot bolts from falling debris inside of the frame

Euro profile cylinder with unique ABC key system

Heavy duty kite marked cylinder upgrade is available, and highly recommended (level 1). The upgraded cylinder has anti-pick, anti-bump, anti-snap, anti-drill and anti-pull features.

Included in level 1, 2 & 3 security upgrades. Thumb turn and keyed alike configurations are also available.

Additional information

Door Type

Louvred Personnel Door

Available Sizes (mm)

695×2020, 745×2020, 795×2020, 845×2020, 895×2020, 945×2020, 995×2020, 1145×2020

Finish

White powder coat from stock, choice of colours available

Design

Plain door with flush panel

Door Frame Material

2.0mm Galvanised steel

Door Frame Depth

93mm

Security Upgrade

, , , ,

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

50mm

Door Leaf Core

Fire board core

Hinges

4 Stainless steel lift-off hinges

Handles

Hooply handles (5586)

Locks or Door Furniture

Latham's trademark 19 point locking system

Cylinder

Euro profile cylinder (ABC key system). Security cylinder upgrade available.

Seal

Weather / draught proof seals

Dog Bolts

4 Dog bolts

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top

Construction

Fully welded construction

Security Type

Medium

CE Certification

Yes

Security Certification

None

Fire Rating Certification

None

Stock Product

Yes

Made to Measure Product

No

Internal or External Use

Suitable for external and internal use

Example Door Purposes

Plant room door, server room door, store room door, commercial, industrial, warehouse

Fitting Instructions

Download

Download the fitting instructions for our doors

CAD Drawing (PDF)

Download

Download the CAD drawing for our Security Louvred door in PDF

CAD Drawing (DWG)

Download

Download the CAD drawing for our Security Louvred door in DWG
