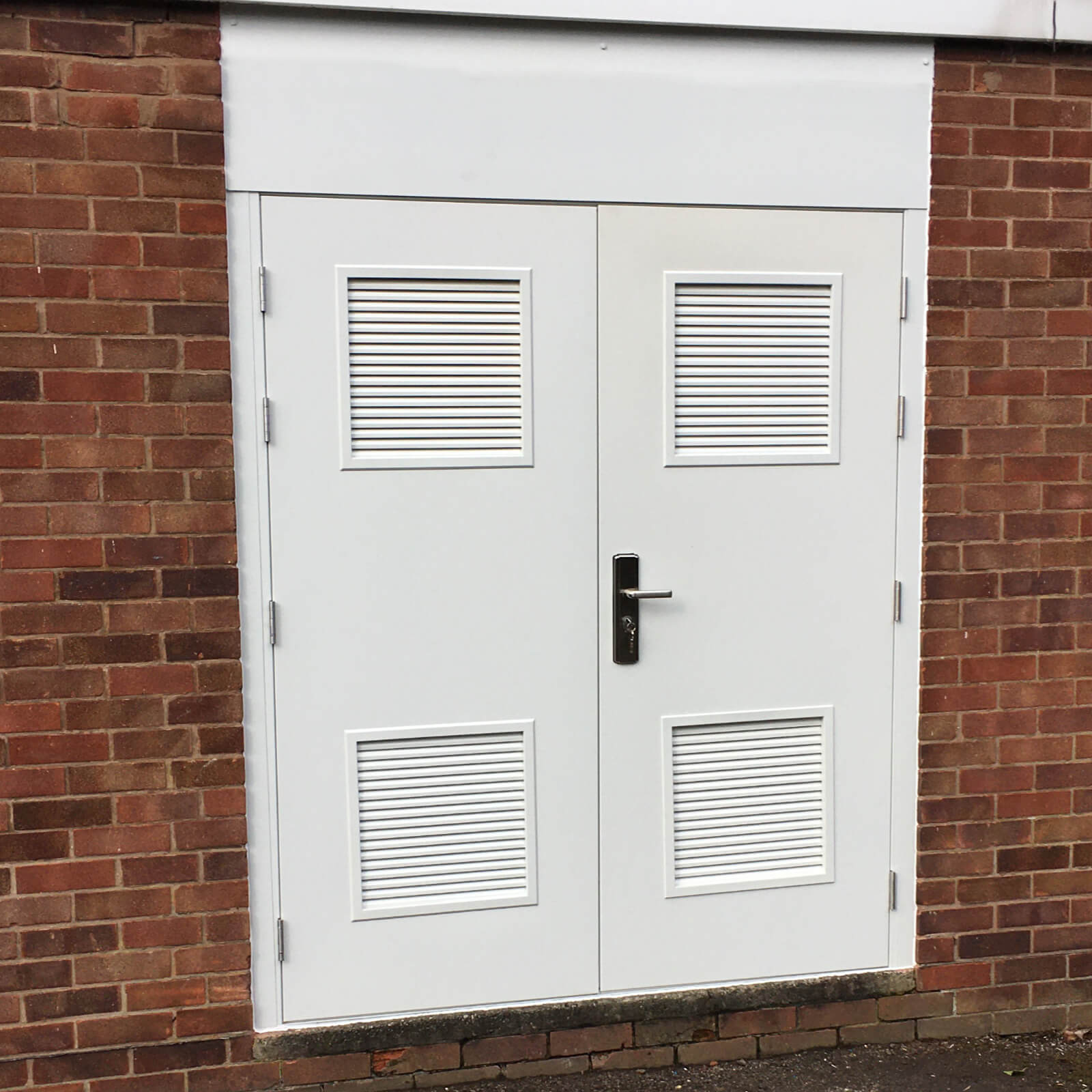

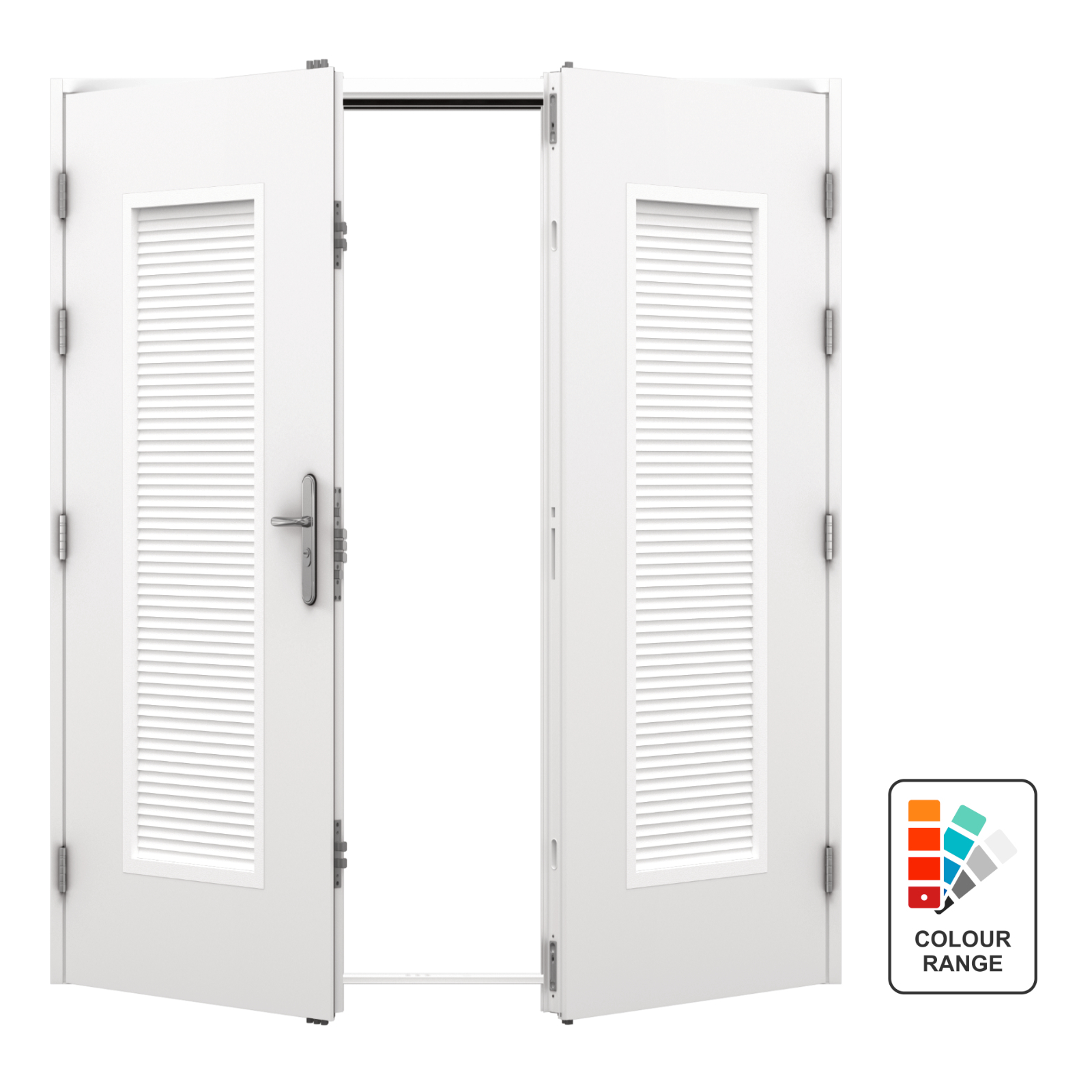

Double Louvred Steel Door (Security)

From £514.98 + VAT (£617.98 inc. VAT)

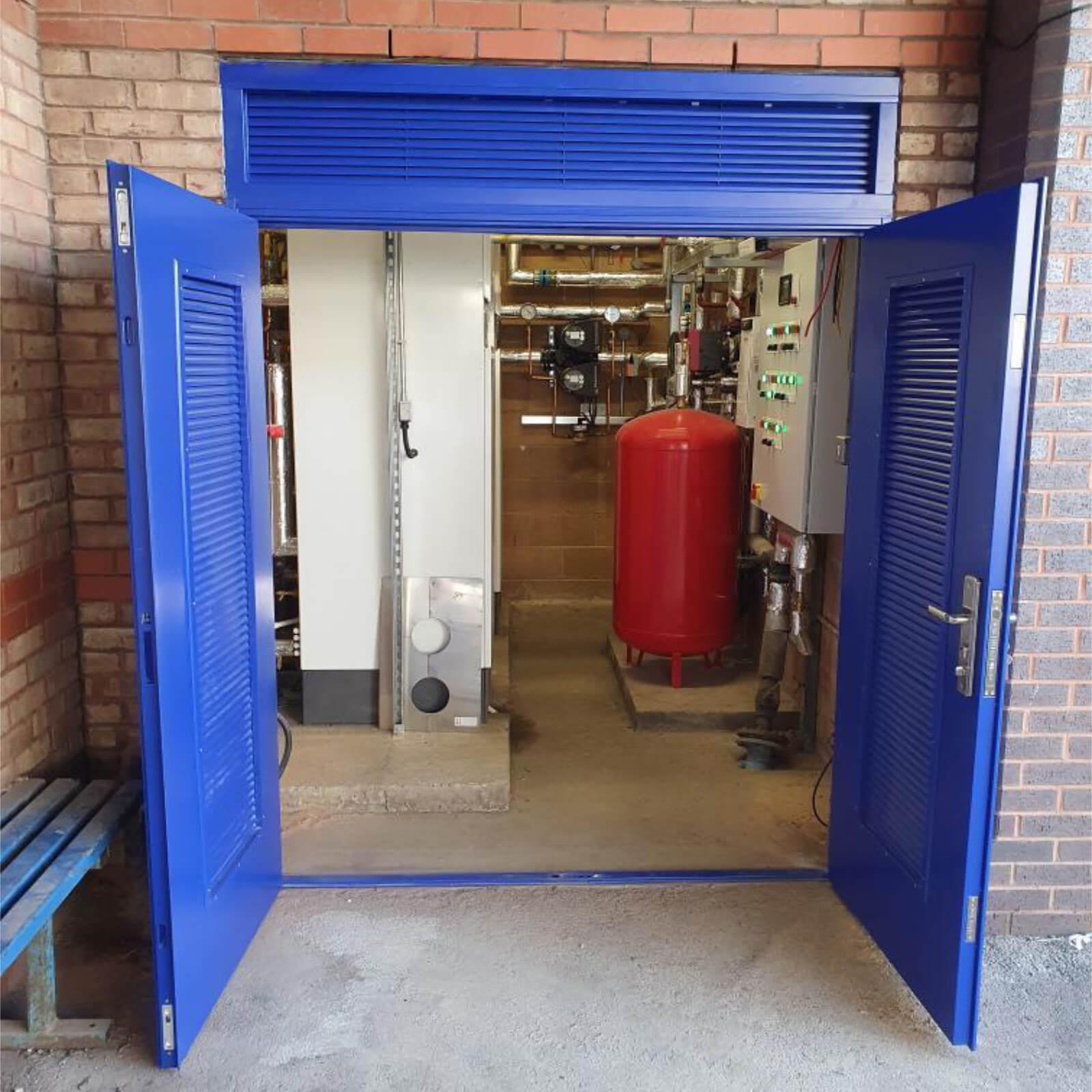

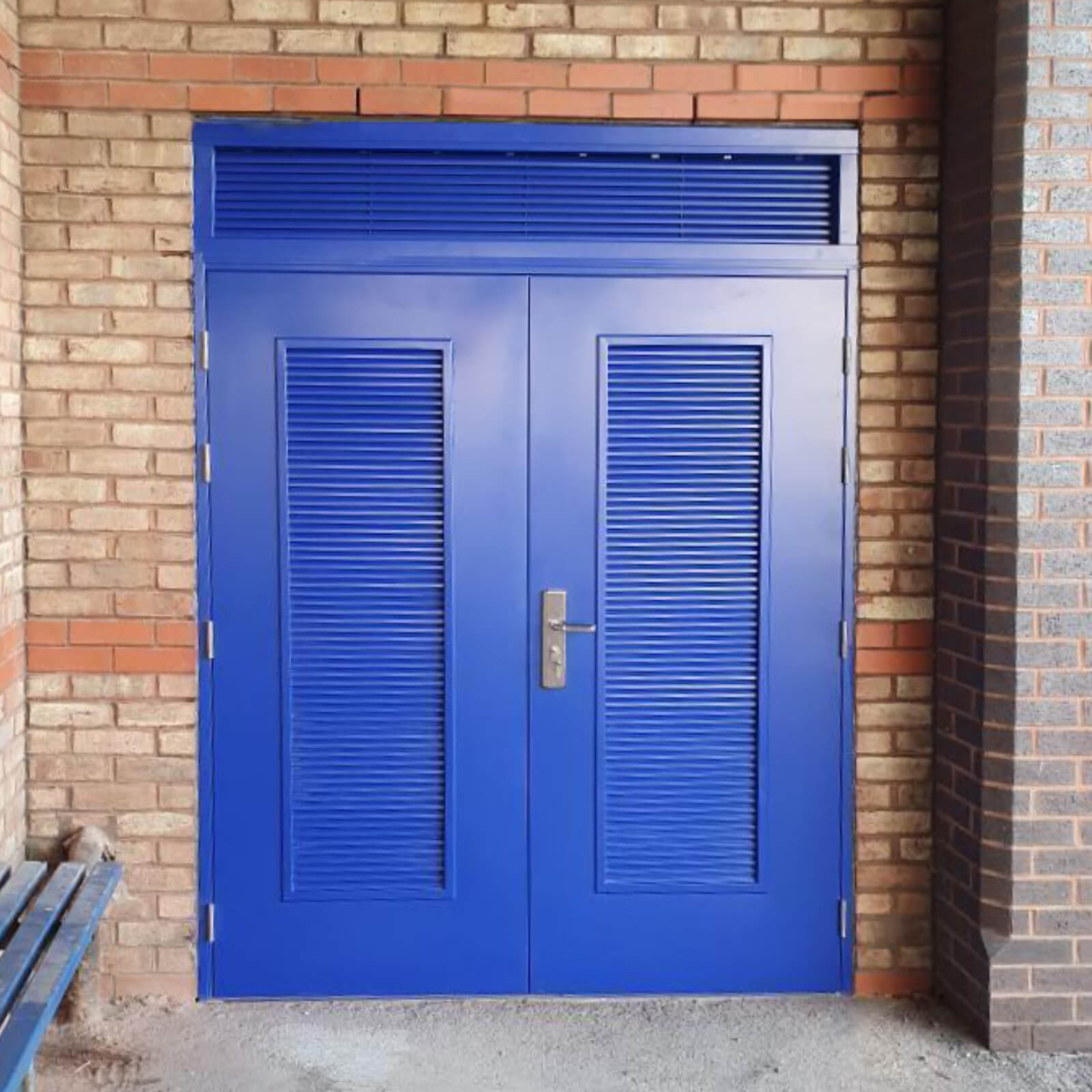

Our Security Louvred Double Doors are manufactured using our heavy duty steel door range. Featuring our trademark multi point locking mechanism, they’re ideal for plant rooms, boiler rooms & other applications needing a combination of airflow, ventilation and security.

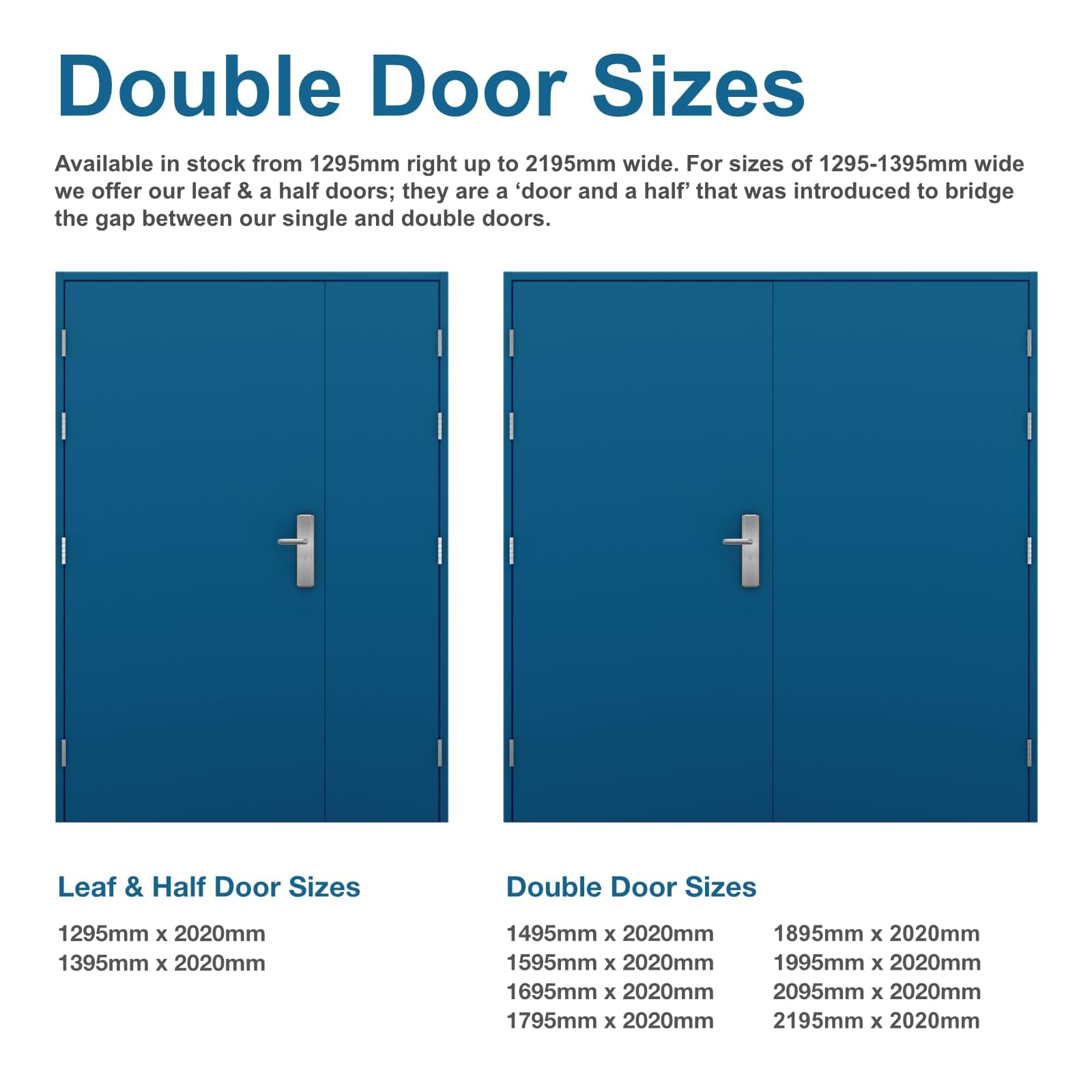

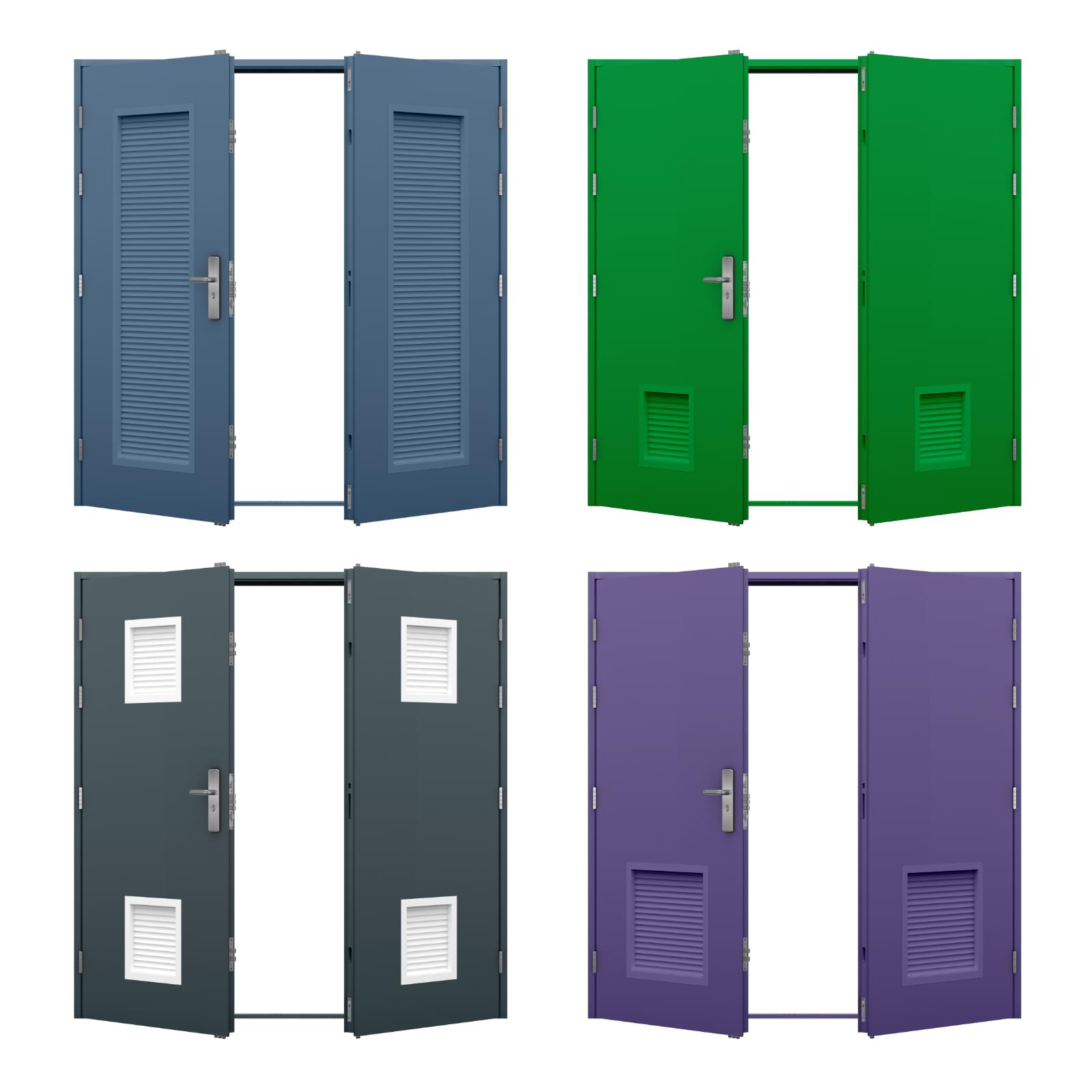

They are available 1295mm-1995mm wide from stock, with a range of upgrades and additions to tailor it to your specific needs. For sizes of 1295-1395mm wide we offer our leaf & a half doors; they are a ‘door and a half’ that was introduced to bridge the gap between our single and double doors.

Compare Product

Description

Heavy duty white textured polyester powder coated finish from stock (RAL 9003)

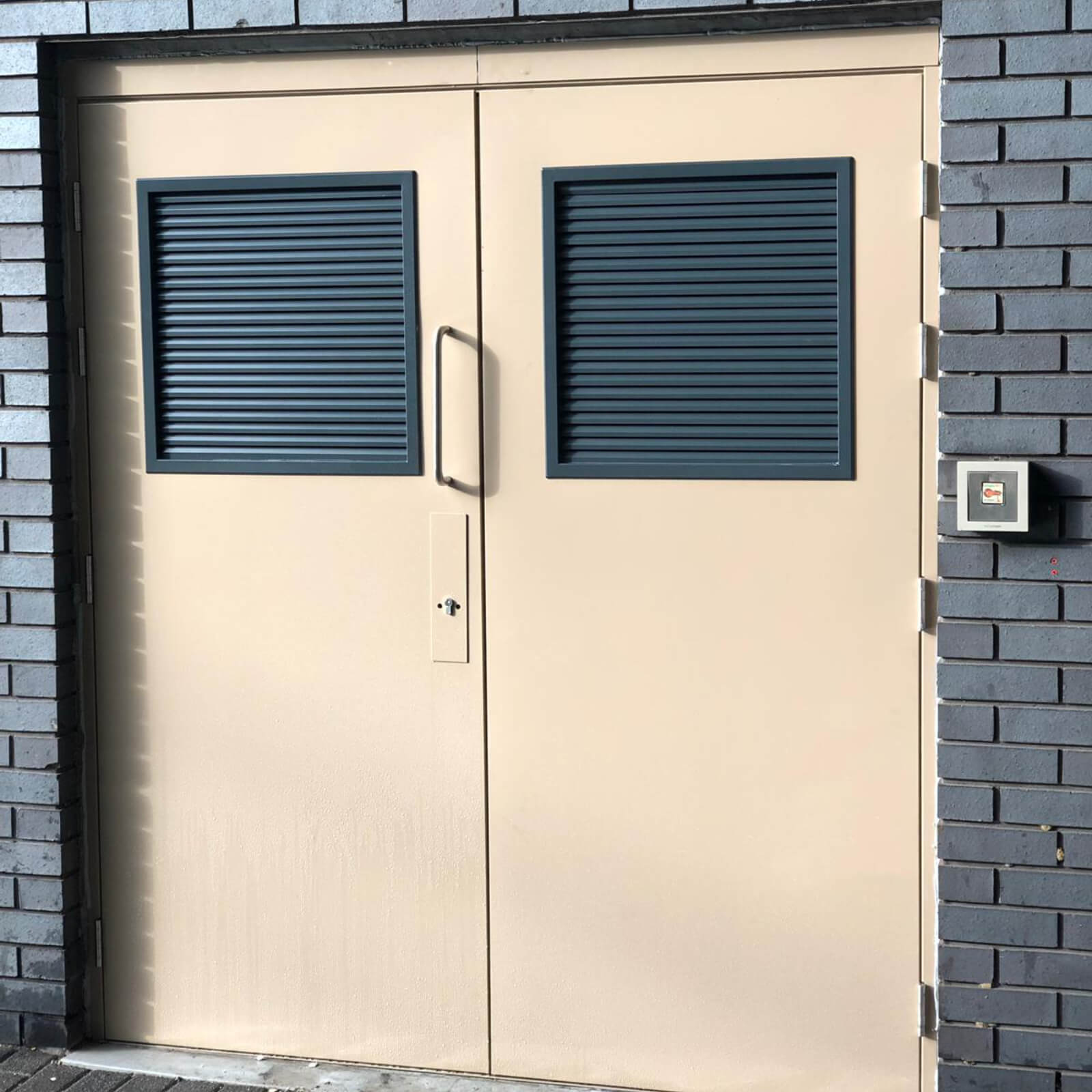

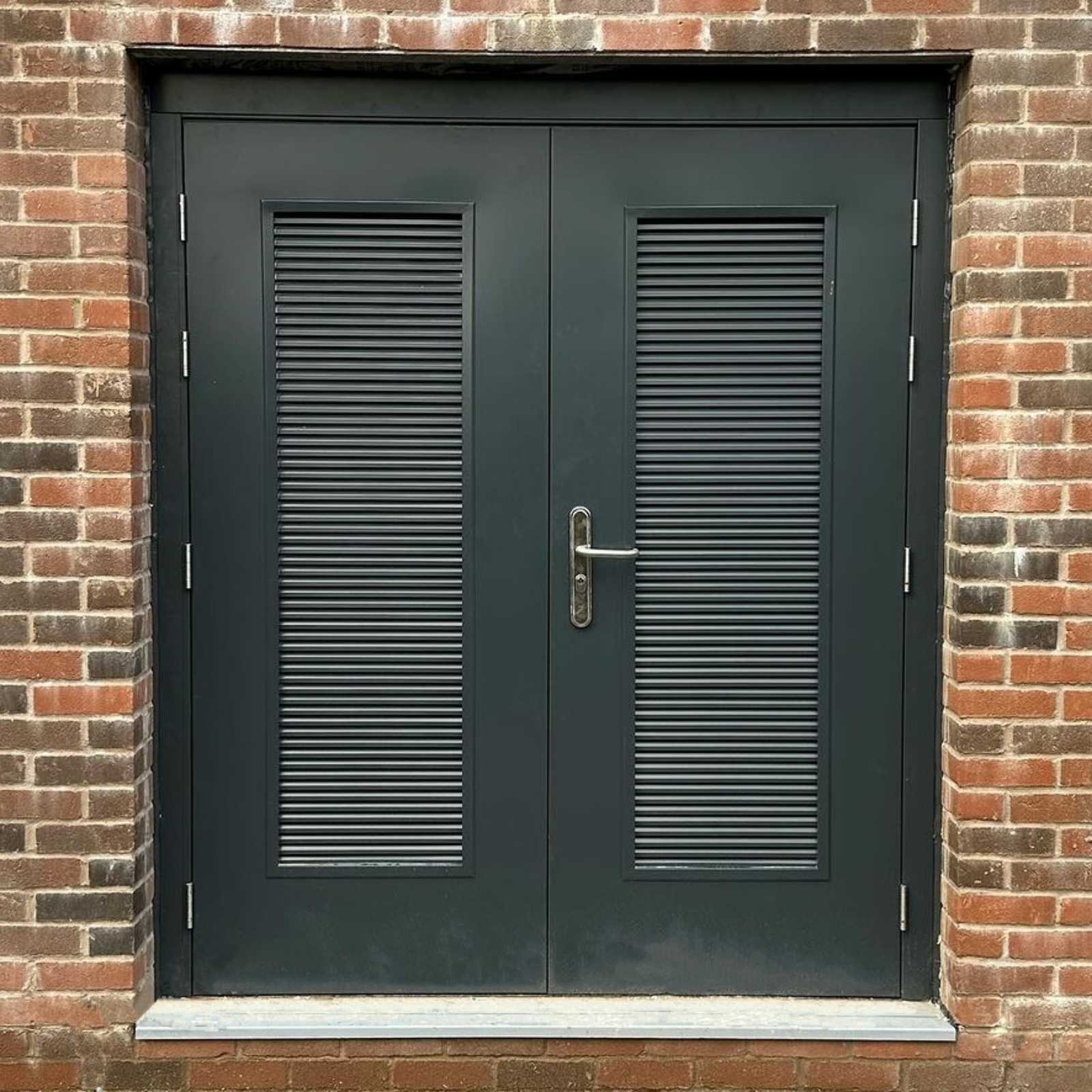

We also offer a powder coating service to change the colour of your louvred double steel door and frame.

Fully welded construction for optimum strength

Door Frame: 2.0mm galvanised steel.

Door Leaf: Double skinned 1.0mm galvanised steel, 50mm depth.

Door Leaf Core: Honeycomb core, used for its high impact properties.

8 Stainless steel heavy duty lift-off hinges BS EN 1935:2002

8 Dog bolts (fixed locking points) on hinge side of steel louvred double door leaf.

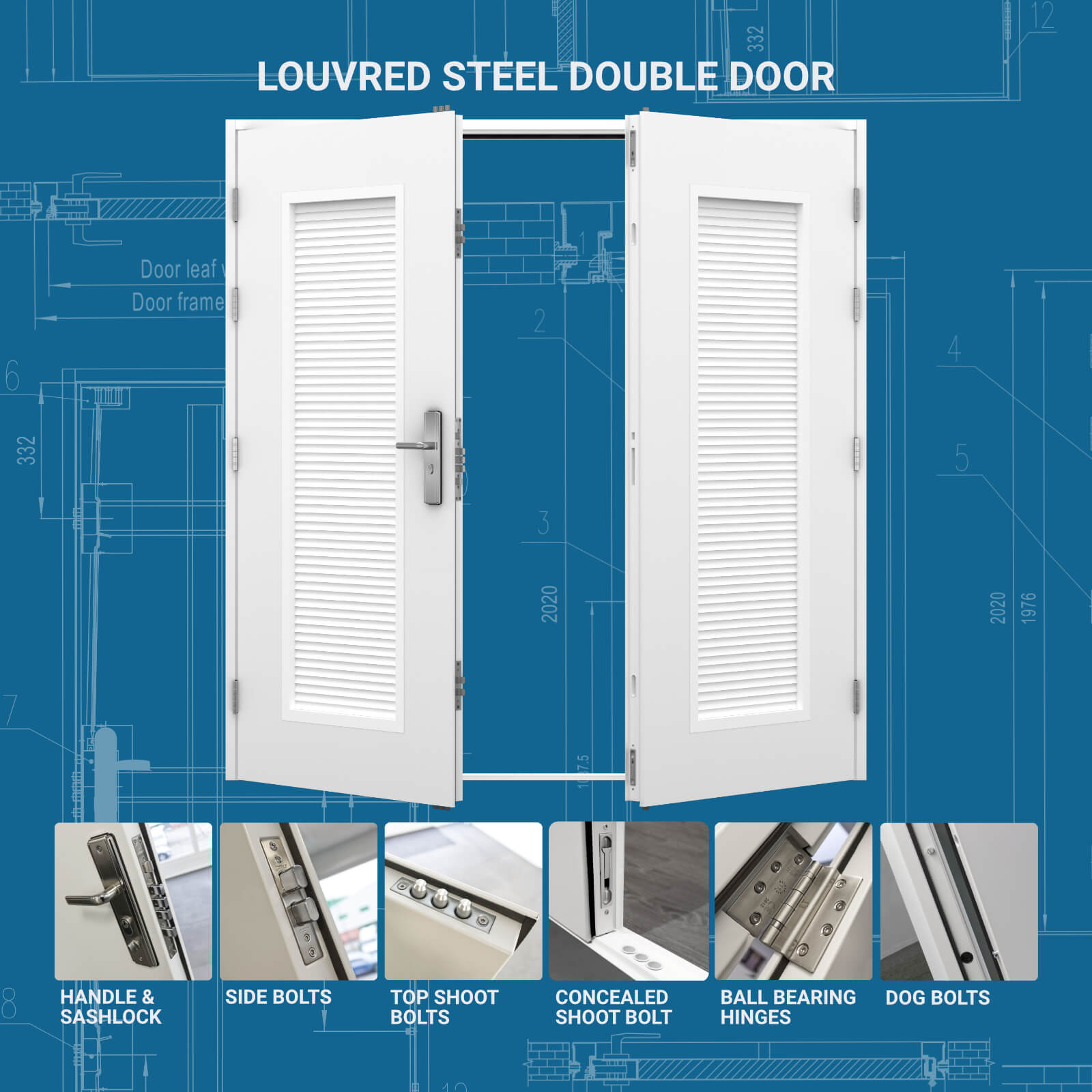

Multi point locking shoot bolt mechanism

Active Louvred Door Leaf:

3 shoot bolts into the top of the frame, 4 shoot bolts into the passive leaf & 3 shoot bolts through the bottom threshold into the structure below. Including the 4 dog bolts and latch, 15 points secure the steel louvred door leaf in the frame.  A security upgraded sashlock is also available (level 3).

Passive Louvred Door Leaf:

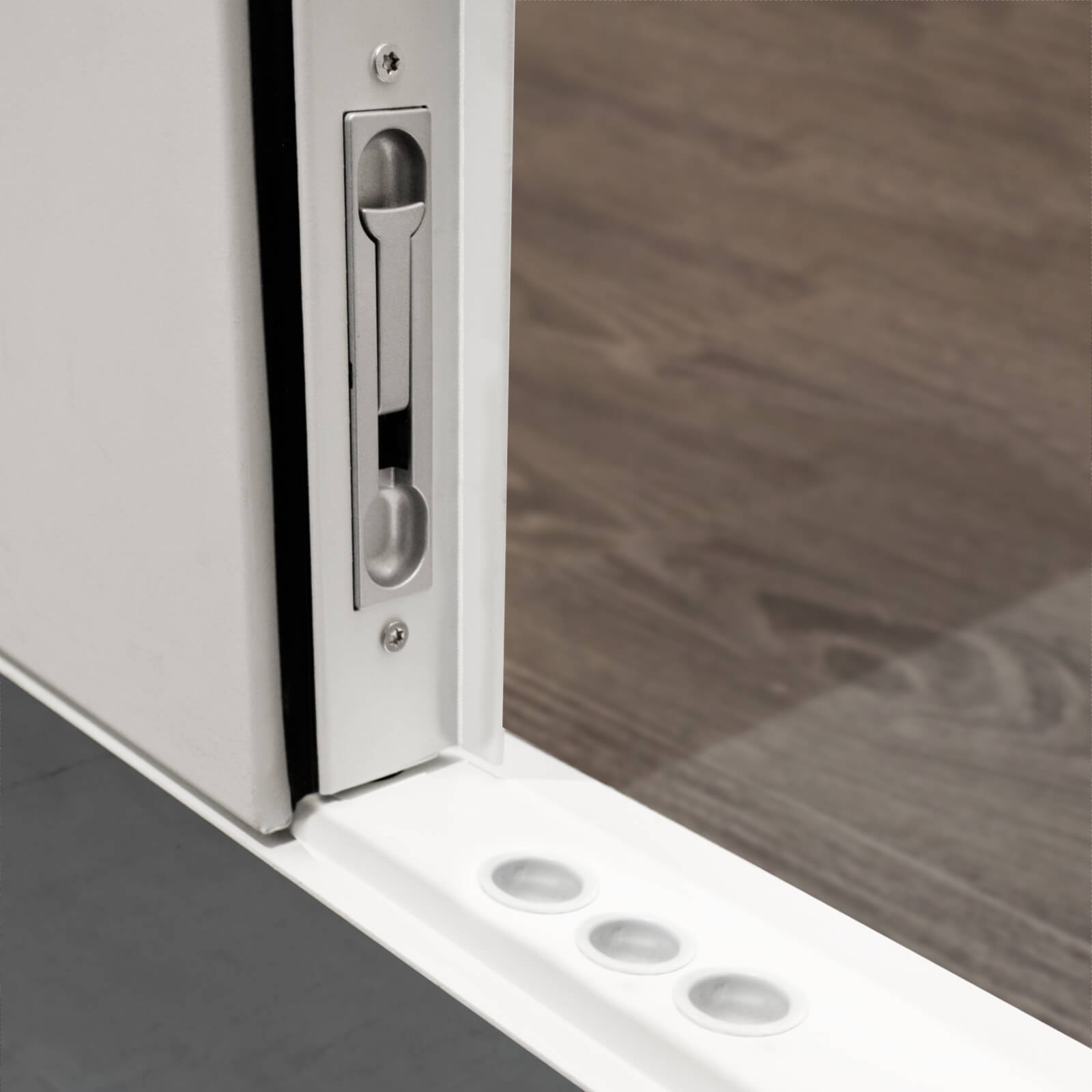

Concealed flush bolt top and bottom

Chrome plated steel handles included as standard (#5586) with integral privacy lock

Heavy duty stainless steel handles upgrade (level 2 & 3) available to increase security (#6198).

Weather & draught proof seals fitted as standard

Our double louvre steel doors are fully weather proof and manufactured to be used externally.

DDA compliant threshold

Disability Discrimination Act specifies a level threshold with a maximum upstand of 15mm with chamfered edges.

Anti jemmy bar lip integrated into the door & frame, including the hinge side with additional astragal in door jam

Internal shielding to protect shoot bolts from falling debris inside of the frame

Euro profile cylinder with unique ABC key system

Heavy duty kite marked cylinder upgrade is available, and highly recommended (level 1). The upgraded cylinder has anti-pick, anti-bump, anti-snap, anti-drill and anti-pull features.

Included in level 1, 2 & 3 security upgrades. Thumb turn and keyed alike configurations are also available.

Additional information

Door Type

Louvred Personnel Door

Available Sizes (mm)

1295×2020, 1395×2020, 1495×2020, 1595×2020, 1695×2020, 1795×2020, 1895×2020, 1995×2020,

Finish

White powder coat from stock, choice of colours available

Design

Plain door with flush panel

Door Frame Material

2.0mm Galvanised steel

Door Frame Depth

93mm

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

50mm

Door Leaf Core

Honeycomb core

Hinges

8 Stainless steel lift-off hinges

Handles

Hooply handles (5586)

Locks or Door Furniture

Active leaf: 10 point locking system | Passive leaf: Flush bolts top and bottom

Cylinder

Euro profile cylinder (ABC key system). Security cylinder upgrade available.

Seal

Weather / draught proof seals

Dog Bolts

4 Dog bolts on each door leaf (8 in total)

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top + astragal

Construction

Fully welded construction

Security Type

Medium

CE Certification

Yes

Security Certification

None

Fire Rating Certification

None

Stock Product

Yes

Made to Measure Product

No

Internal or External Use

Suitable for external and internal use

Fitting Instructions

Download

Download the fitting instructions for our doors

CAD Drawing (PDF) - Double Louvred Door

Download

Download the CAD drawing for our Double Louvred door in PDF

CAD Drawing (DWG) - Double Louvred Door

Download

Download the CAD drawing for our Double Louvred door in DWG

CAD Drawing (PDF) - Leaf & Half Louvred Door

Download

Download the CAD drawing for our Leaf & Half Louvred door in PDF

CAD Drawing (DWG) - Leaf & Half Louvred Door

Download

Download the CAD drawing for our Leaf & Half Louvred door in DWG
