Shipping Container Louvre Vent

Name: Shipping Container Louvre Vent for Side Wall | Lathams
SKU: CONTAINER-LOUVRE-PANEL
Price: 420.00 GBP
Availability: InStock

From: From £420.00 inc. VAT

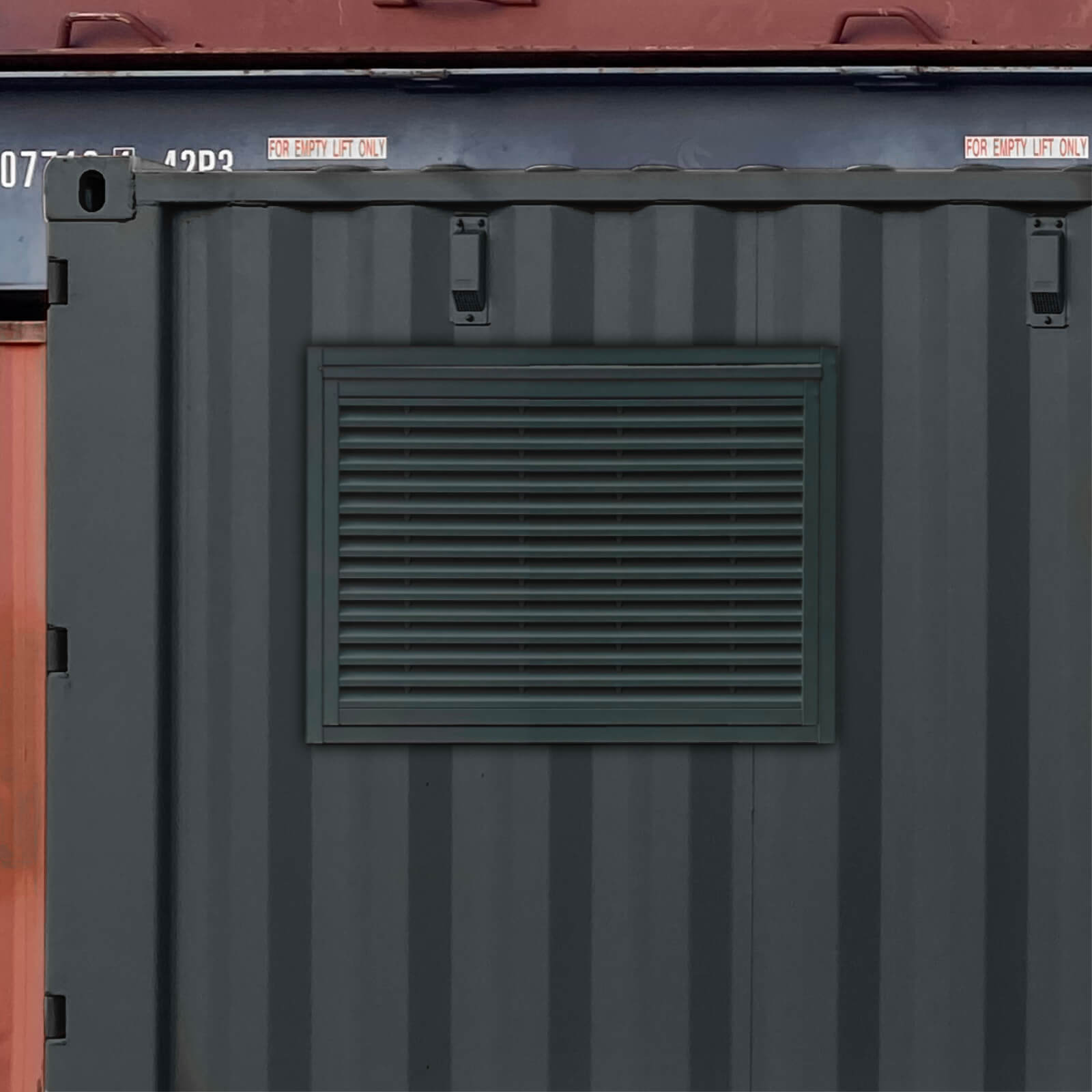

Louvred steel wall panels designed to be fixed or welded into the side of your converted shipping container.

Typically used for ventilation of portable plant containers, boiler houses, shipping container welfare and toilets blocks. Steel welded box section frames are also available and required to weld the louvre within.

Installation involves welding the box section frame into the container wall, then the louvre panel fixed or welded within this.

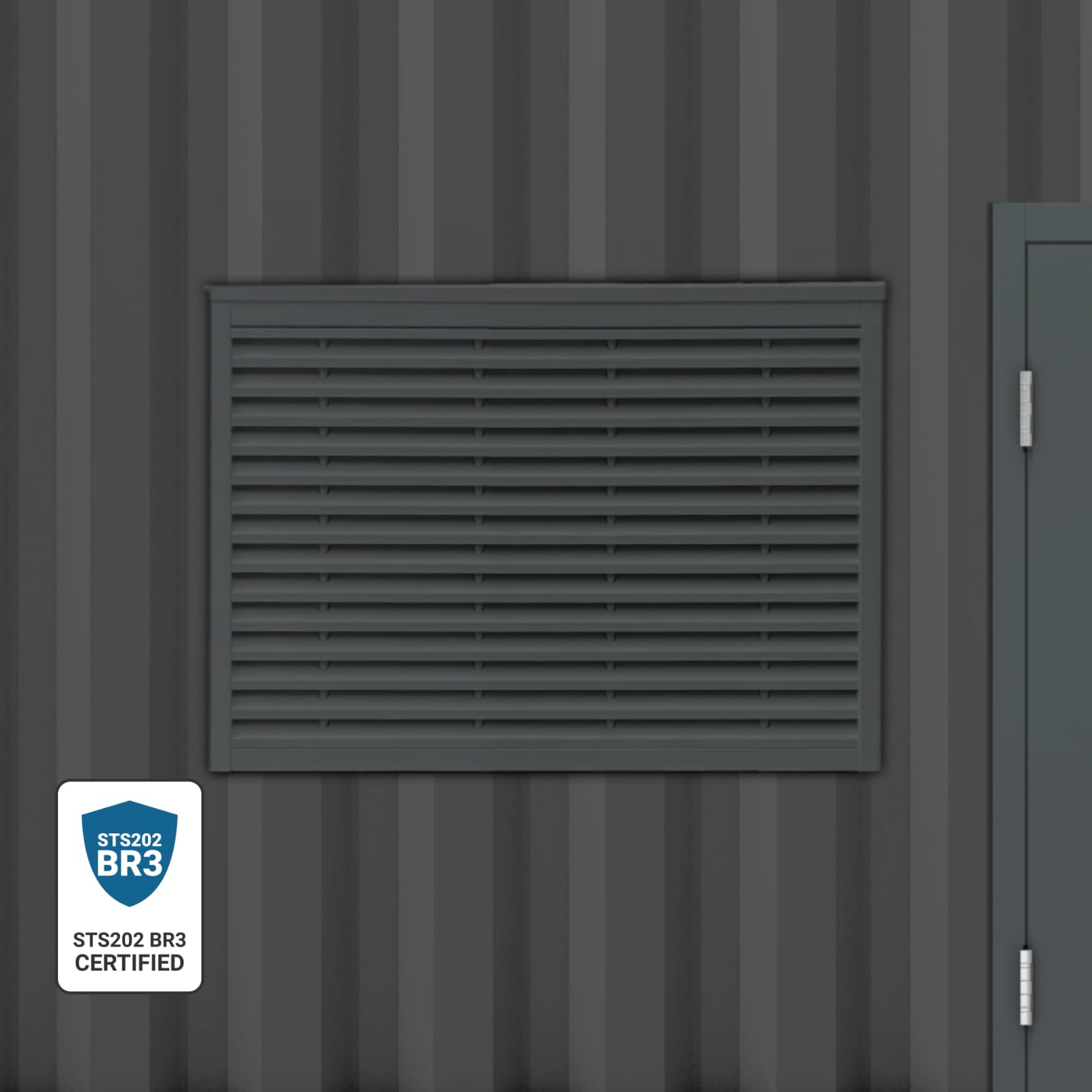

This product comes STS202 BR3 Certified as standard.

Louvre Width (mm)*
Please enter a number from 150 to 2195.
Louvre Height (mm)*
This field is hidden when viewing the form
150mm-1199mm
This field is hidden when viewing the form
150mm-2195mm
Custom Height (mm)*
Colour*
RAL/BS Colour Code
Box Section Frame (50mmx100mm Box)
- Yes
The inner dimension of the box section frame will be 5mm more than the louvre panel size. The external dimension is 55mm bigger.
Box Section Frame (50mmx100mm Box)
- Yes
The inner dimension of the box section frame will be 5mm more than the louvre panel size. The external dimension is 55mm bigger.
Box Section Frame (50mmx100mm Box)
- Yes
The inner dimension of the box section frame will be 5mm more than the louvre panel size. The external dimension is 55mm bigger.
Box Section Frame (50mmx100mm Box)
- Yes
The inner dimension of the box section frame will be 5mm more than the louvre panel size. The external dimension is 55mm bigger.
Security/Rodent Mesh
- No
- Yes
Product Name
Additional Options Total
£ 0.00

Subtotal
Options
Total

Lead Times
Standard: 10 working days + delivery
Fast track options: Contact us for availability

SKU: CONTAINER-LOUVRE-PANEL Category: Shipping Container Doors

Steel Louvre Sizes:

Max Width: 2195mm
Max Height: 2195mm

Specification:

Constructed from a minimum of 1.5mm galvanised steel louvre blades
16mm solid steel bars running through the blades for security
Frame constructed from a minimum of 1.5mm galvanised steel
Available in raw finish or powder coat to standard RAL & BS colour
STS202 BR3 Certified as standard

Height (mm)	Custom
Width (mm)	Custom
Steel Gauge	1.5mm galvanised steel
