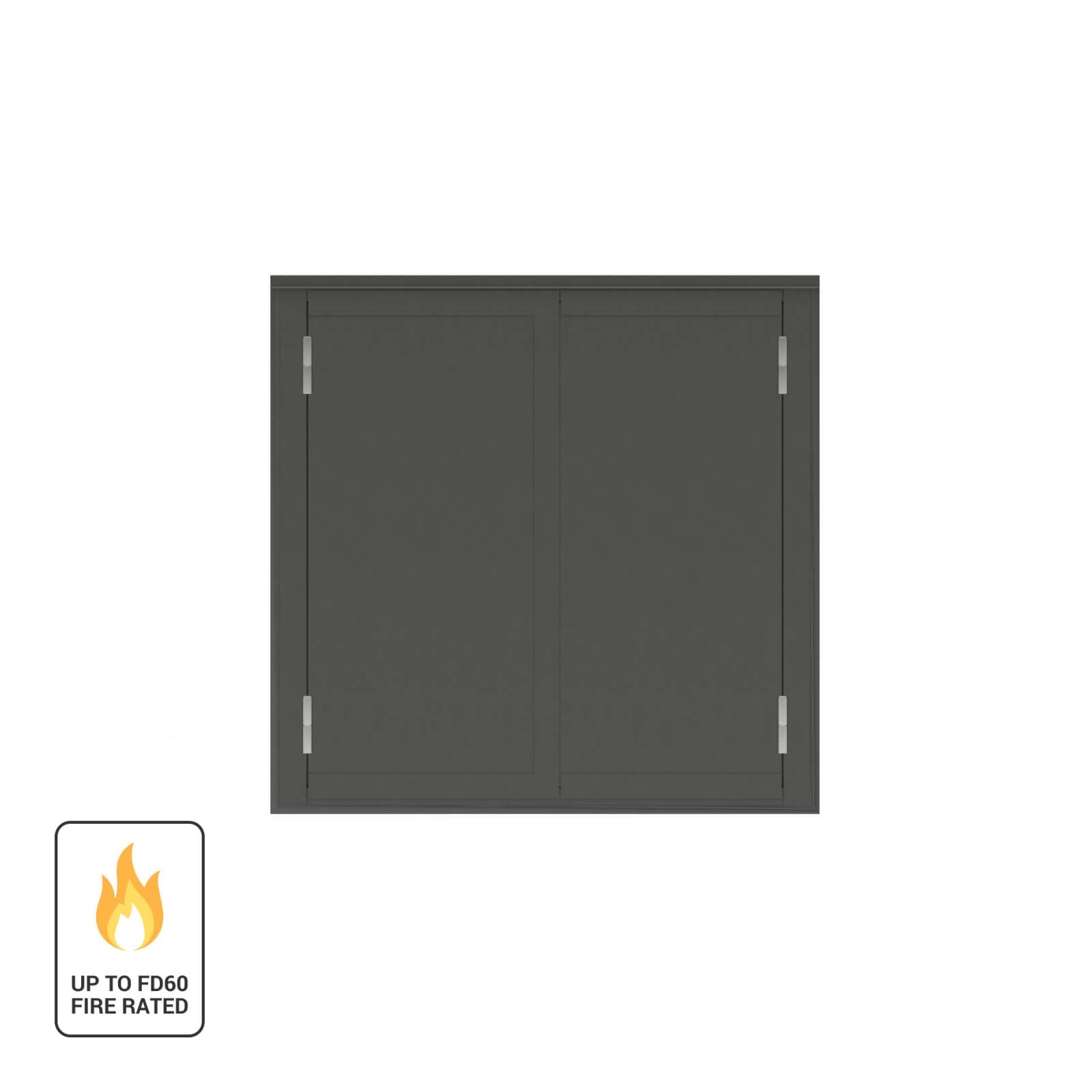

Fire Rated Anti-Vandal Window Shutter showing fire rating

Fire Rated Anti-Vandal Window Shutters

From £0.00 inc. VAT (£0.00 + VAT)

COMING SOON – please get in touch to discuss your fire rated window shutter requirements.

Our fire-rated window shutters have been tested to BS EN 1634-1:2014+A1:2018, with Warringtonfire, with a test report to evidence the performance.

Since they were tested with the installed glazing units, they are only available with our double-glazed aluminium sliding unit or our UPVC unit to comply with the test report.

  • Aluminium glazing tested to 60 minutes fire rating
  • uPVC glazing tested to 30 minutes fire rating
  • Anti-vandal design
  • Rockwool Insulation
  • S/Steel flag hinges
  • 4 internal flush bolts

Contact us directly for bulk trade discounts

  • Aluminium + From £0.00 inc. VAT (£0.00 + VAT)
    uPVC + From £168.00 inc. VAT (£140.00 + VAT)
  • Yes + From £144.00 inc. VAT (£120.00 + VAT)

SKU: C023-RW Category:

What are anti-vandal container shutters?

They are installed to protect against attacks aimed at the windows in shipping containers or modular buildings. Our container window shutters have been engineered purposely for the shipping container manufacturing and conversion industry. They are traditionally installed alongside an anti-vandal personnel door, now also available in our container door range.

Fire-Rated Testing

Our shutters are rigorously tested for durability and safety, providing 30 minutes of protection with the UPVC unit and 60 minutes with the double-glazed aluminium unit. Available exclusively with either the UPVC or double-glazed aluminium unit. Please note: these products are tested but not certified.

Finish

Wet-sprayed with a grey primer finish, the paint has been designed to take your final paint coat on-site. We recommend painting within 24 hours of installation. To aid installation, we mask an area of the perimeter of the frame before primer painting. This allows you to weld straight to the bare galvanised steel material and reduce the need to finish back before welding.

Construction

Manufactured with 1mm galvanised steel door skins and 2mm galvanised steel frames, an additional 3mm welded astragal is welded to the edges of the leaves for additional security.

Available Sizes

1060mm x 1035mm

Door Frame Depth

90mm

Door Leaf Depth

45mm

Finish

Grey primer ready for painting

Hinges

4 Stainless steel lift-off hinges

Handle

Finger pull handles

Astragal

3.0mm thick security flange

Locks

4 finger bolts

Construction

Fully welded construction

CE Certification

Yes

Security Certification

None

Stock Product

Yes

Videos


Downloads

CAD Drawings

Anti-Vandal Shipping Container Window Shutters CAD drawing – PDF

Fire Test Report

TBC – PDF
