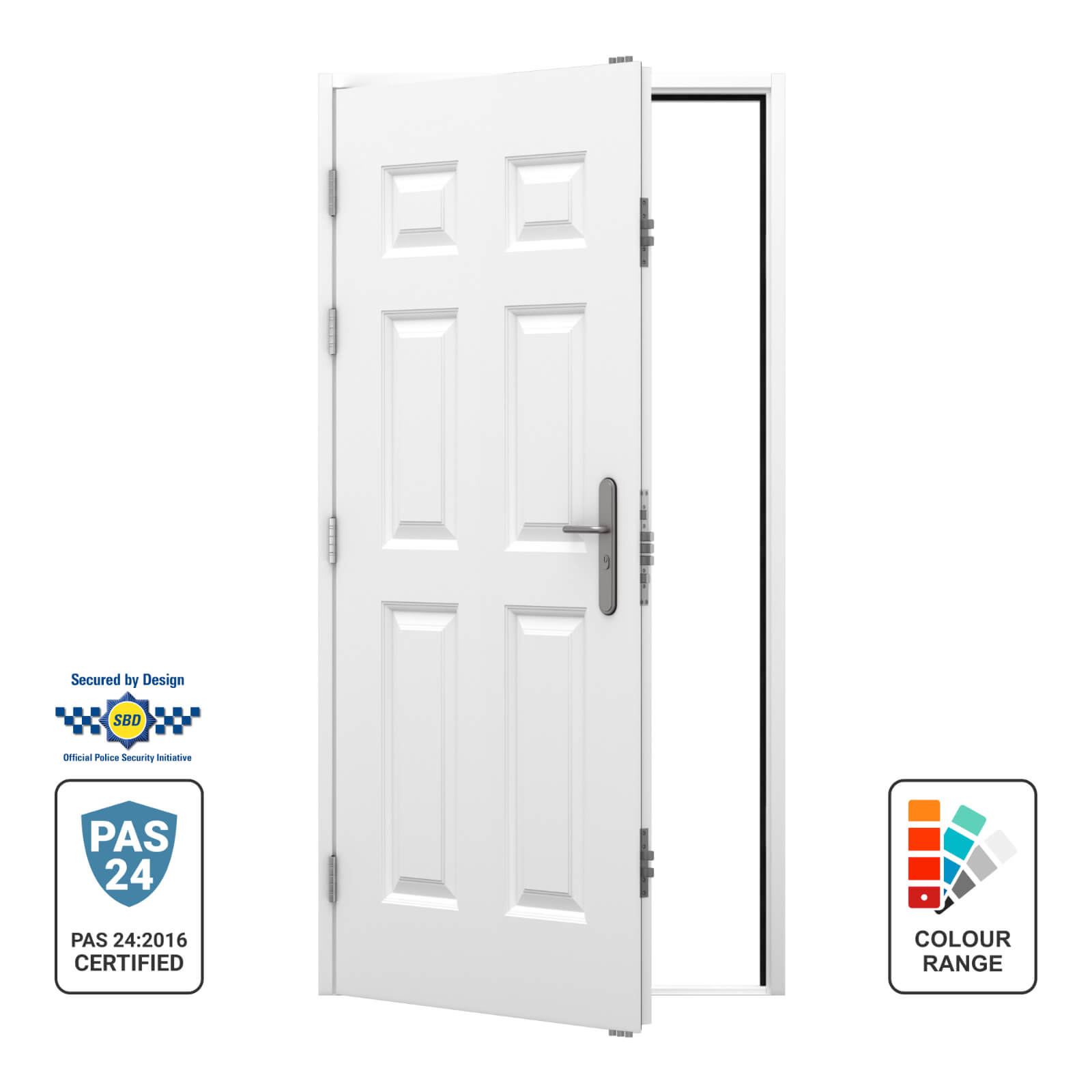

Left hinged opening out panelled door

PAS 24 Panelled Door

From £499.99 +VAT (£599.99 inc. VAT)

For traditional style with contemporary security measures, our PAS 24 Panelled Steel Door is certified Secured By Design (SBD). Available in a range of sizes, all optional extras are also certified to the same standard.

Also available in flush and cottage styles.

Clear

PLEASE NOTE: These doors are manufactured to order for certification.

Lead Times
Standard White door: 5 working days + delivery
Powder coated door: 10 working days + delivery
Fast track options: Contact us for availability

SKU: PAS24-6PAN-DOOR Category: GTIN: 5060479950164

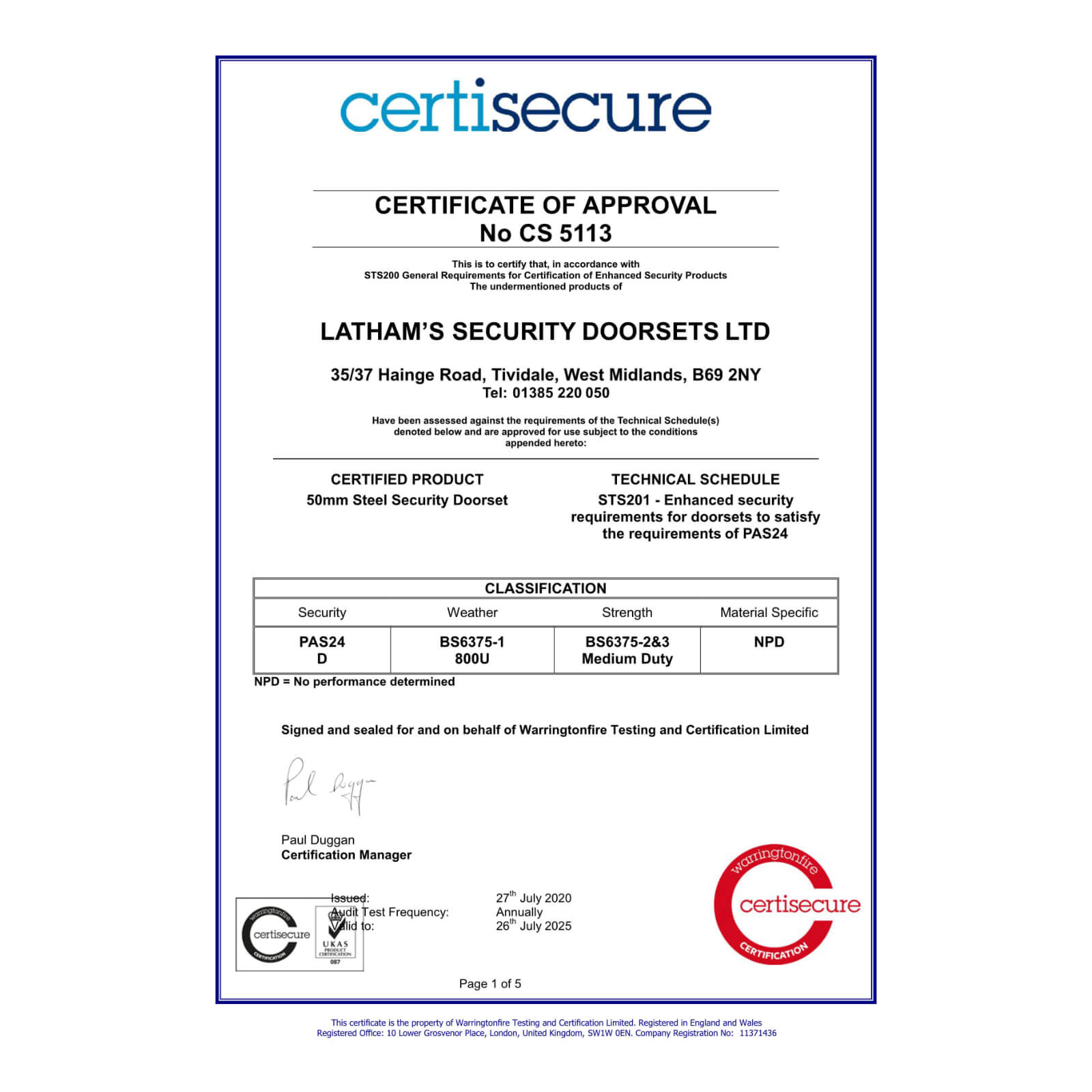

Click here to view our Warrington certifications

High Security, Secured By Design

Thanks to its PAS 24:2016 certification, this secure steel door is also a registered product in the Police security initiative, Secured By Design (SBD), so you can be assured of its high quality and security properties.

Security Rated Features

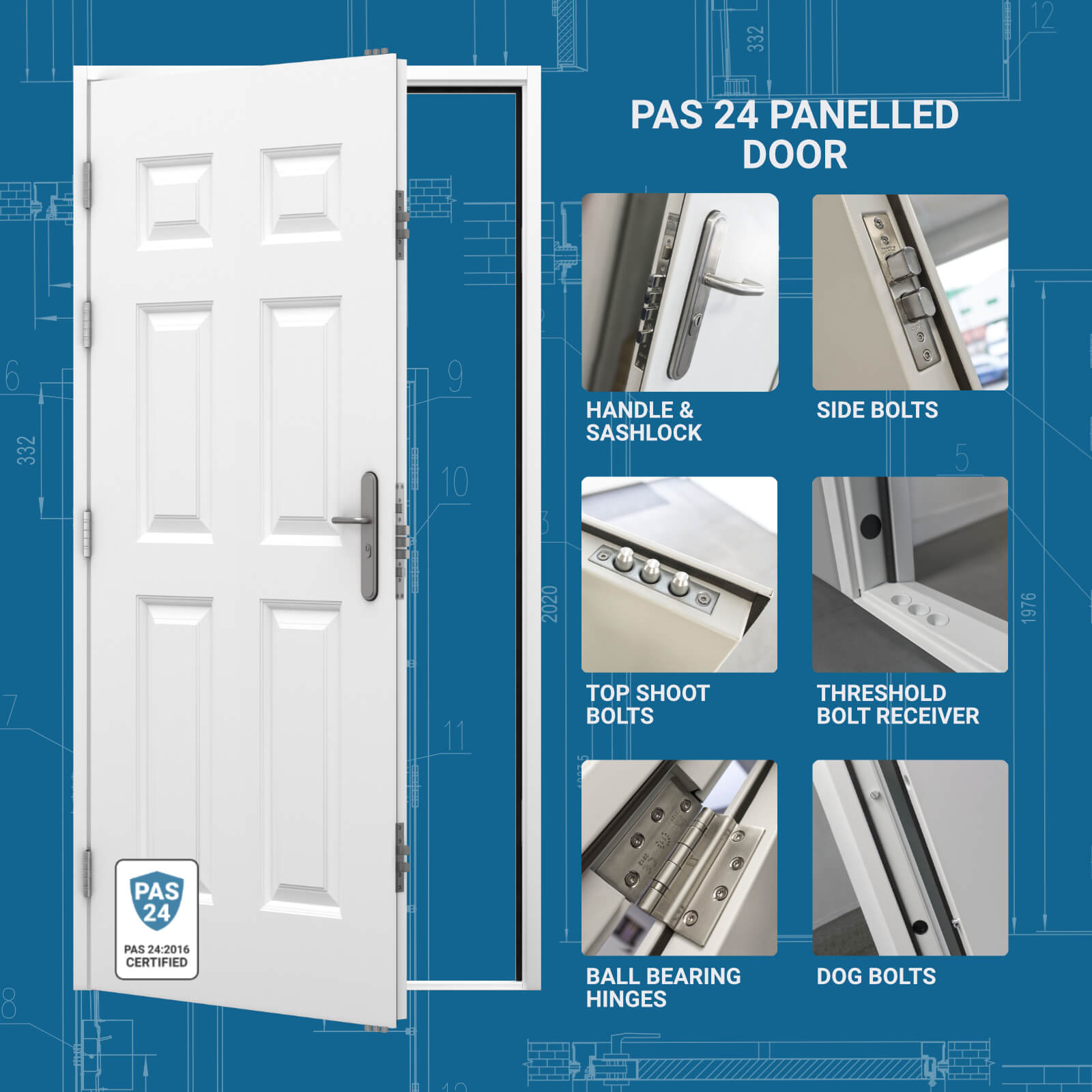

Featuring our trademark HOOPLY™ multi-point locking system, our doors offer a number of security enhanced optional extras such as our TS008 Letter Plate and TS002 Door Viewer.

Traditional Style Modern Security

With Georgian styling, this 6 Panel Security Steel Door will add a traditional class to your property, whilst maintaining the functionality of a security rated steel door.

PLEASE NOTE: Certification is not valid if additional accessories or frame extensions are installed. Only the selected options available with certified doors can be used.

Door Type

Personnel

Available Sizes (mm)

845×2020, 895×2020, 995×2020

Finish

White powder coat from stock, choice of colours available

Design

Georgian 6 Panel

Door Frame Material

1.8mm Galvanised Steel

Door Frame Depth

90mm

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

50mm

Door Leaf Core

Mineral wool insulation

Internal Strengthening

2 x horizontal & 1 x vertical reinforced bar

U Value

2.20

Acoustic Value

35dB

Hinges

4 Stainless steel ball bearing hinges

Handles

918902 Stainless Steel Security Handle

Locks or Door Furniture

Latham's trademark 19 point locking system

Cylinder

UAP 3* Kitemark cylinder

Seal

Nylon self adhesive V-seal

Dog Bolts

4 Dog bolts

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top

Construction

Fully welded construction

Security Type

High

Security Certification

PAS 24:2016 Certified

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external and internal use

Example Door Purposes

Security garage side door, high security office door, high security interior door, safe room door, external 6 panel security door

Videos


FAQs

Can you tell the door is made from steel?

Quite simply, no. Unless you hit the door with force, you cannot tell it is made from steel.
A misconception is that steel doors are only for industrial use, but once powder coated and fitted with our highest quality ironmongery, you cannot distinguish the difference between our door and a traditional uPVC or composite door.

How do I choose the hinge side and opening? (Handing)

Hinge side and opening is determined viewed from outside.
Example 1: LH hinge open out: hinges are on the LH side, handle is on the right and you pull the door towards you.
Example 2: RH hinge open in: hinges are on the RH side, handle is on the left and you push the door away from you.
See our handy illustration here

What is the lead time?

Stock Door (white, no modifications) – in stock – 0 days
Stock Door (white, modified e.g. installed accessories, vision panel e.t.c) – 4 working days
Re-Powder Coated Stock Door, with or without accessories installed (not white) – 10 working days
Fast track options are also available.

How many keys come with the door?

Front doors come come with 3 keys.
Additional keys are available – we have a key cutting machine on-site
See our cylinder options video here

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.
We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door.
To calculate the clear opening (when the door is open), subtract 135mm from the width dimension. E.G. 895mm-135mm=760mm clear opening
See the video on how to measure here

What is Security Trim?

The security trim kit fits around the perimeter of the door frame. It works very much like architrave.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
For residential applications, you may choose to use pvc trim or alternative architrave to finish the installation.
See the security trim video here

To see all FAQs, click here

Downloads

Fitting Instructions

Download fitting instructions

Operation & Maintenance Manual

Download operation & maintenance manual
