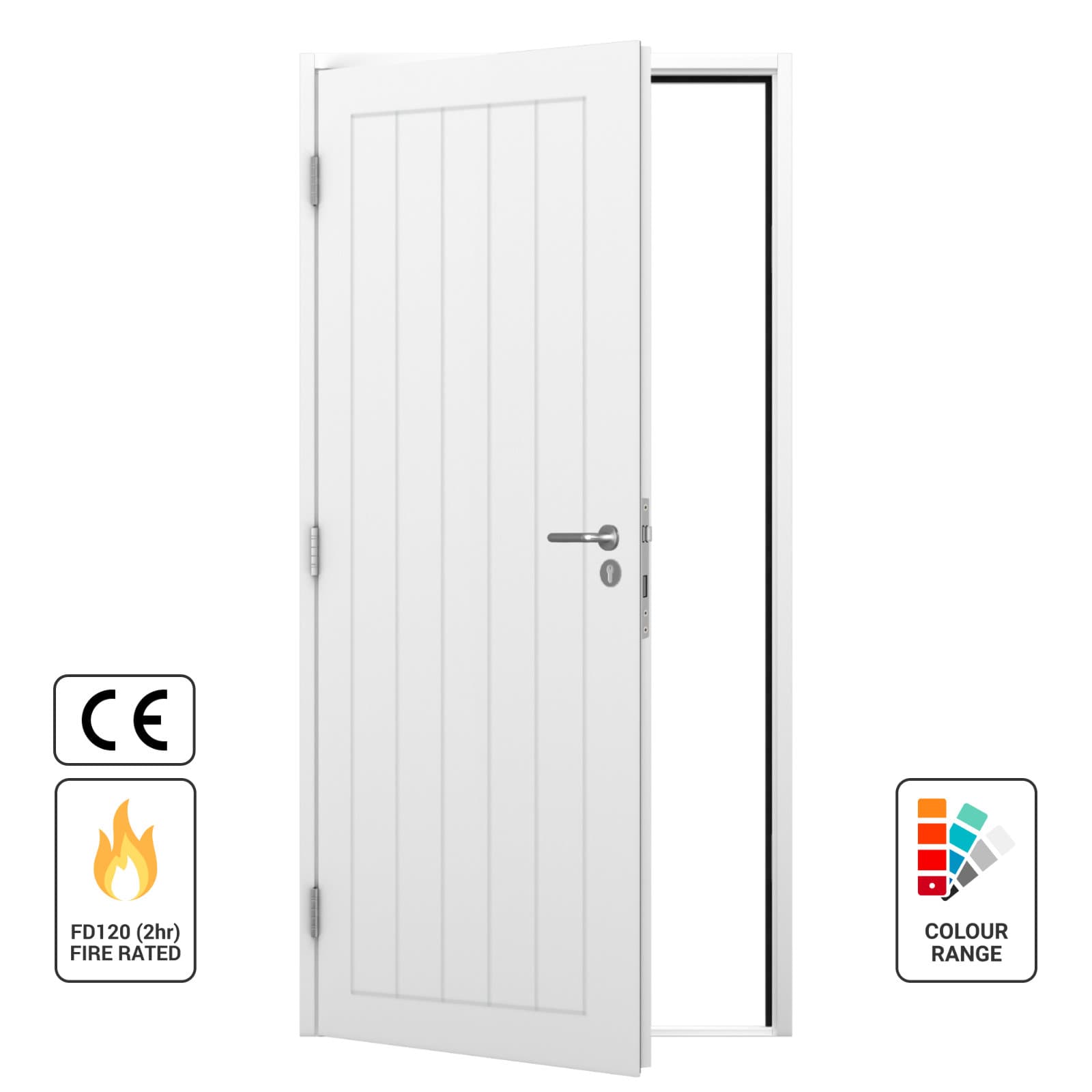

FD120 fire rated cottage style steel door

Fire Rated Cottage Style Door

From £1,434.00 inc. VAT

Our fire rated cottage style doors are certified up to FD120, offering up to 2 hours of fire safety. They are also suitable for applications where an FD30 or FD60 door is required.

Features include:

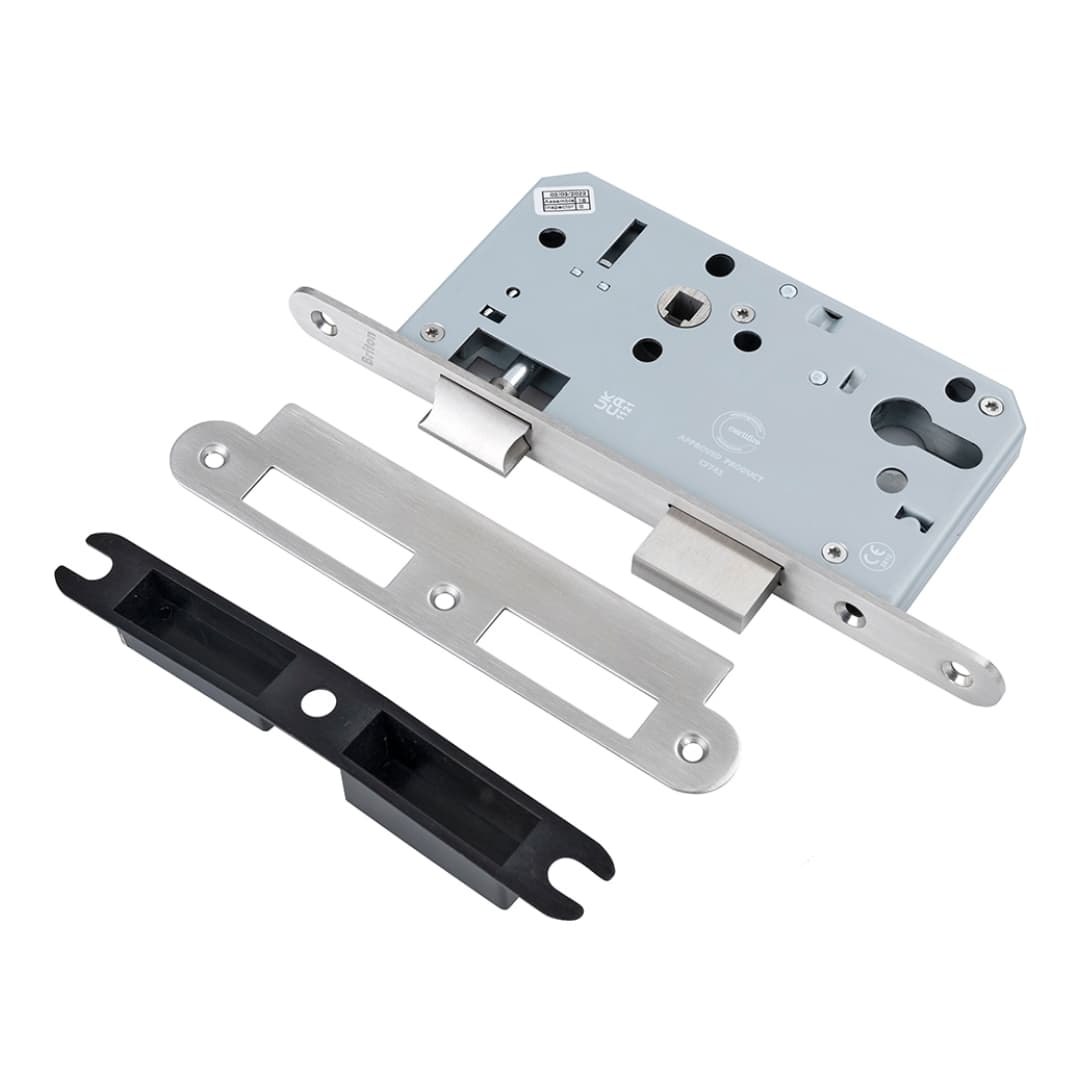

  • Briton sashlock

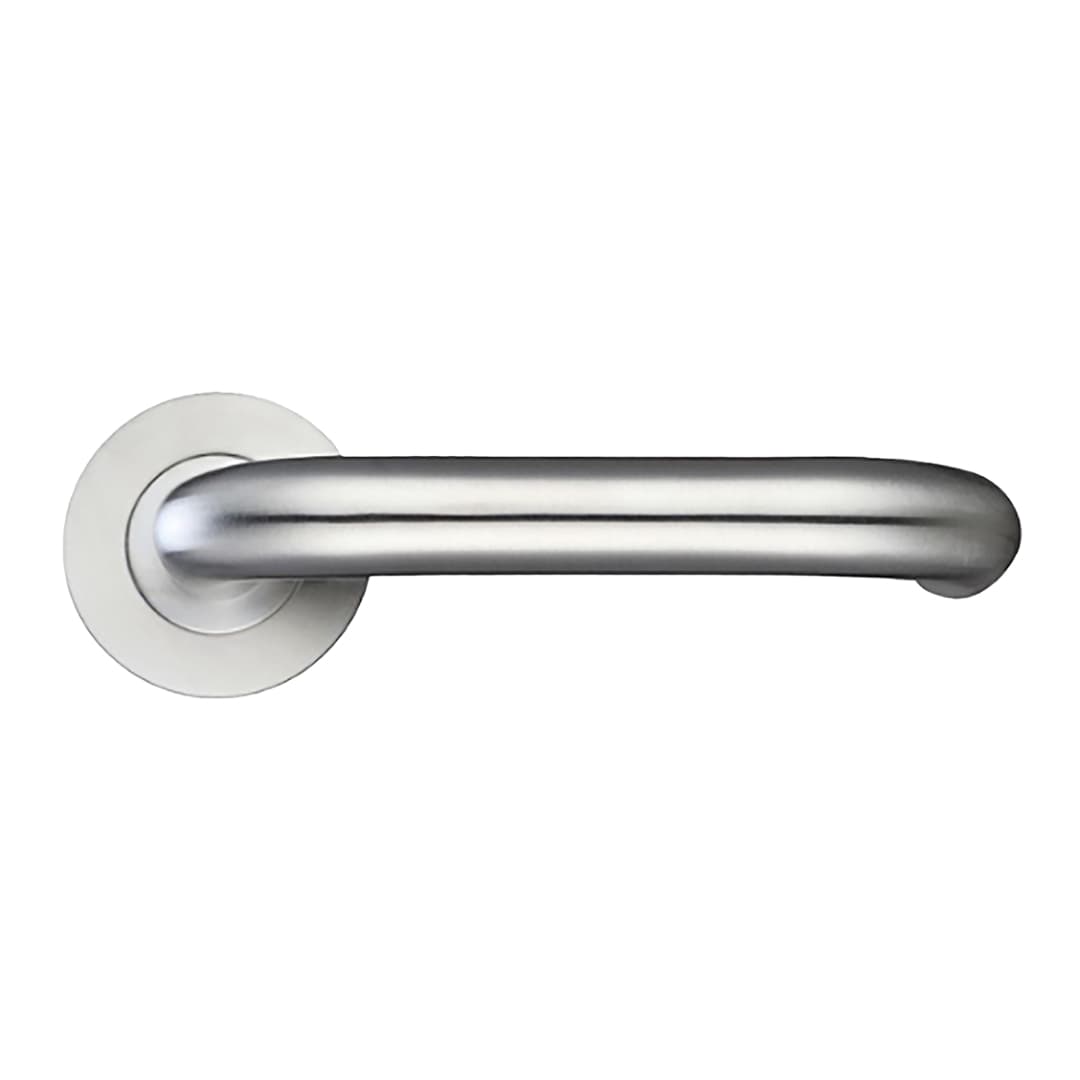

  • Stainless steel lever handle
  • Choice of RAL & BS colours

In accordance with fire protection regulations, these doors are supplied with a door closer fitted to the internal side of the door.

Also available in a flush panel version.

Size, Orientation & Colour

  • more info icon More info

  • more info icon More info

Locking System & Cylinder

  • more info icon More info

  • more info icon More info

Lead Times
Standard lead time is typically 15 days from return of signed-off drawings

SKU: COT-FR-DOOR Category:

Suitable for commercial and industrial settings such as offices, retail units, hospitality & leisure premises, school, nurseries, and doctors surgeries, these doors are also ideal for residential use for internal linking garages.

Our steel fire rated doors offer increased fire protection. They have been tested to FD120 standards which means they are suitable for applications requiring 30 minutes (FD30), 60 minutes (FD60) or 2 hours (FD120) of fire rating.

Fire doors help by helping to slow the spread of fire, and are a legal requirement for commercial properties.

If our stock sizes aren’t suitable to your requirement we have custom made fire rated doors also available.

Door Type

Personnel Door

Sizes (mm)More Info icon More info

745×2020, 795×2020, 845×2020, 895×2020, 910×2065, 995×2020, 1095×2020, 1195×2020, 890×2095, 990×2095

Finish

White powder coat from stock, choice of colours available

Design

Cottage Style Panel

Door Frame Material

1.5mm Zinc Plated steel

Door Frame Depth

90mm

Door Leaf Material

1.2mm Zinc Plated Steel

Door Leaf Depth

45mm

Door Leaf Core

Honeycomb core

Hinges

3 Stainless steel ball bearing hinges

Handles

Thick stainless steel lever handles

Locks or Door Furniture

Single sashlock (double euro cylinder & lever handle)

Cylinder

Heavy Duty Euro Profile Cylinder

Seal

Intumescent Seal

Dog Bolts

4 Dog bolts

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top

Construction

Fully welded construction

Security Type

Standard

Security Certification

None

CE Certification

Yes

Fire Rating Certification

FD30 (30 minutes), FD60 (1 hour), FD120 (2 hours)

Stock Product

No

Made to Measure Product

Yes

External or Internal Use

Suitable for internal & external use

Videos

FAQs

Can you tell the door is made from steel?

Quite simply, no. Unless you hit the door with force, you cannot tell it is made from steel.
A misconception is that steel doors are only for industrial use, but once powder coated and fitted with our highest quality ironmongery, you cannot distinguish the difference between our door and a traditional uPVC or composite door.

How do I choose the hinge side and opening? (Handing)

Hinge side and opening is determined viewed from outside.
Example 1: LH hinge open out: hinges are on the LH side, handle is on the right and you pull the door towards you.
Example 2: RH hinge open in: hinges are on the RH side, handle is on the left and you push the door away from you.
See our handy illustration here

What is the lead time?

Stock Door (white, no modifications) – in stock – 0 days
Stock Door (white, modified e.g. installed accessories, vision panel e.t.c) – 4 working days
Re-Powder Coated Stock Door, with or without accessories installed (not white) – 10 working days
Fast track options are also available.

How many keys come with the door?

Front doors come come with 3 keys.
Additional keys are available – we have a key cutting machine on-site
See our cylinder options video here

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.
We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door.
To calculate the clear opening (when the door is open), subtract 110mm from the width dimension. E.G. 895mm-110mm=760mm clear opening
See the video on how to measure here

What is Security Trim?

The security trim kit fits around the perimeter of the door frame. It works very much like architrave.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
For residential applications, you may choose to use pvc trim or alternative architrave to finish the installation.
See the security trim video here

To see all FAQs, click here

Downloads

Fitting Instructions

Download fitting instructions
