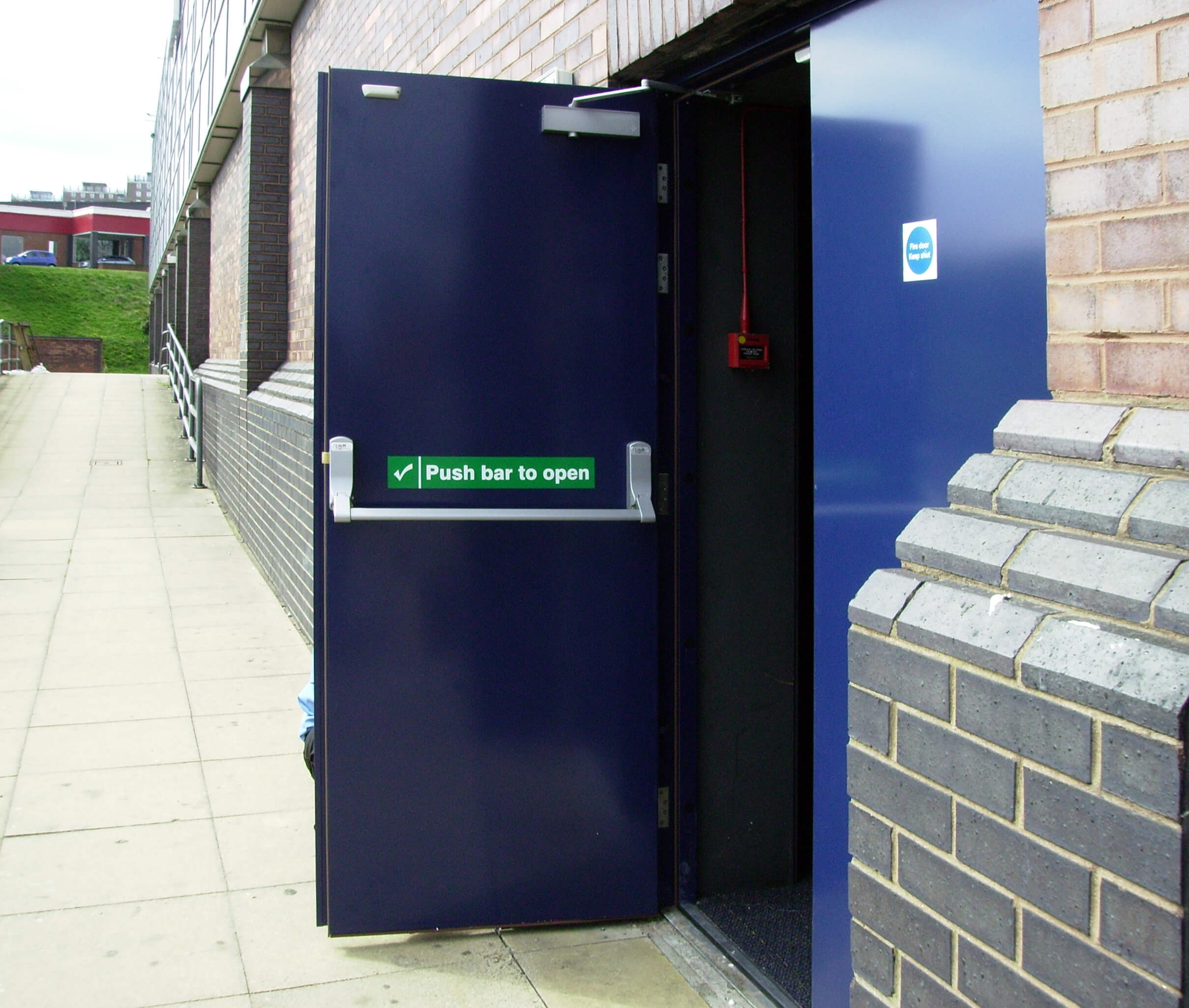

External view of an open blue fire exit door also showing FD30 fire rated logo

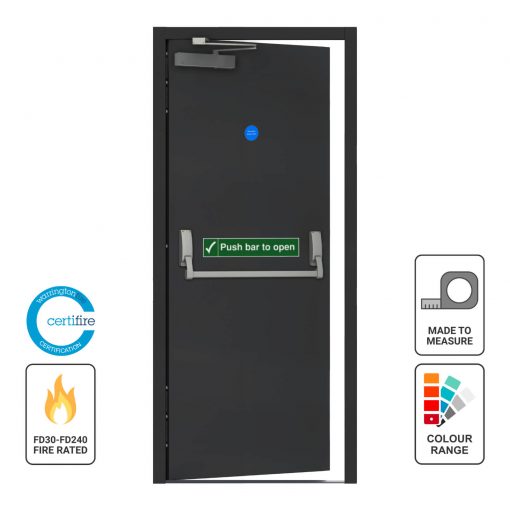

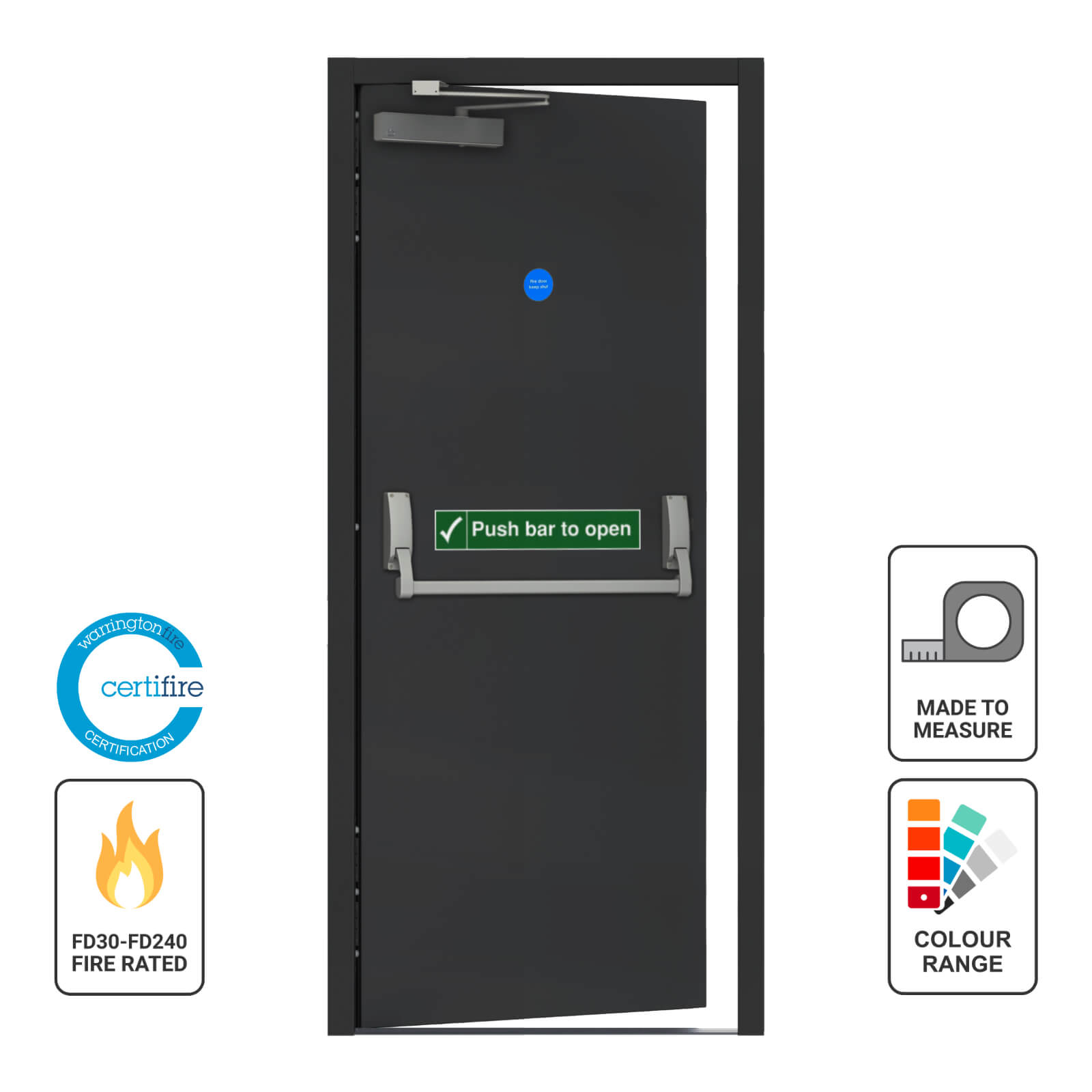

Fire Rated Fire Exit Door

We now manufacture custom made single fire rated doors. Our doors are UK tested to standard BS476 Part 20 & Part 22 (Section 5) and fully certified up to 4 hours.

As with all of our made to measure fire exit doors, panic hardware options are available and other variations including vision panels and louvre panels. They are available primed, or powder coated to any RAL or BS colour.


Single Doors:
• Max Width: 1460mm
• Max Height: 2945mm

• Fire resistant up to 6 hours. (Certificate supplied with doorset).
– FD30: 30 minute fire rated
– FD60: 1 hour fire rated
– FD120: 2 hour fire rated
– FD180: 3 hour fire rated
– FD240: 4 hour fire rated
• Tested to standard BS476 Part 20 & Part 22 (Section 5).
• Door leaf constructed from a minimum of 1.2mm zinc plated steel
• Frame constructed from a minimum of 1.5mm zinc plated steel
• Dufaylite core used for its high impact measures and thermal resistance
• High quality draught and fire seals all around
• Fire door integral anti jemmy bar lip
• DDA compliant fire door threshold

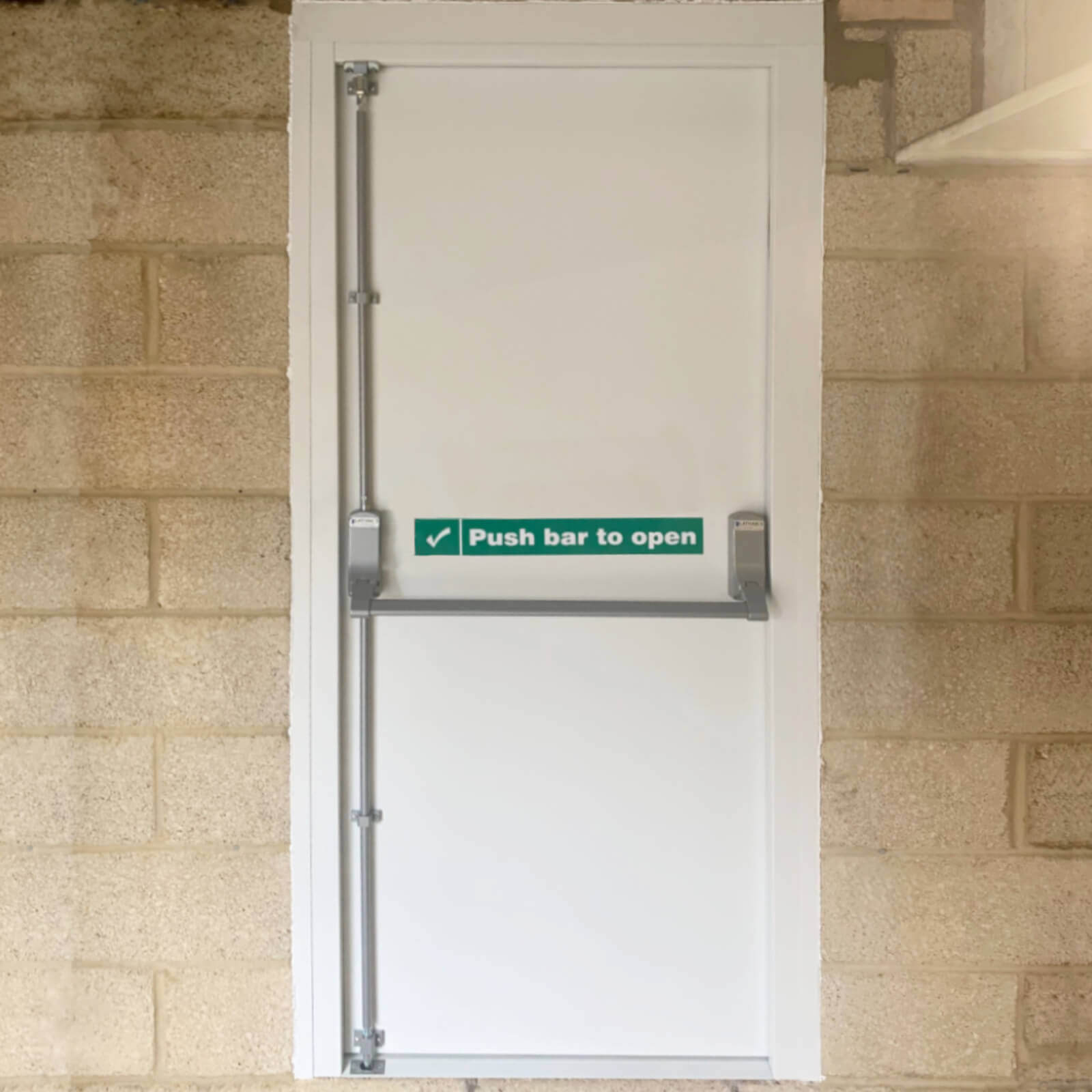

• Single fire exit bar with up/down shoot bolts
• A minimum of 4 stainless steel hinges (BS 1935.2002 Grade 13) – larger doors have 6 hinges

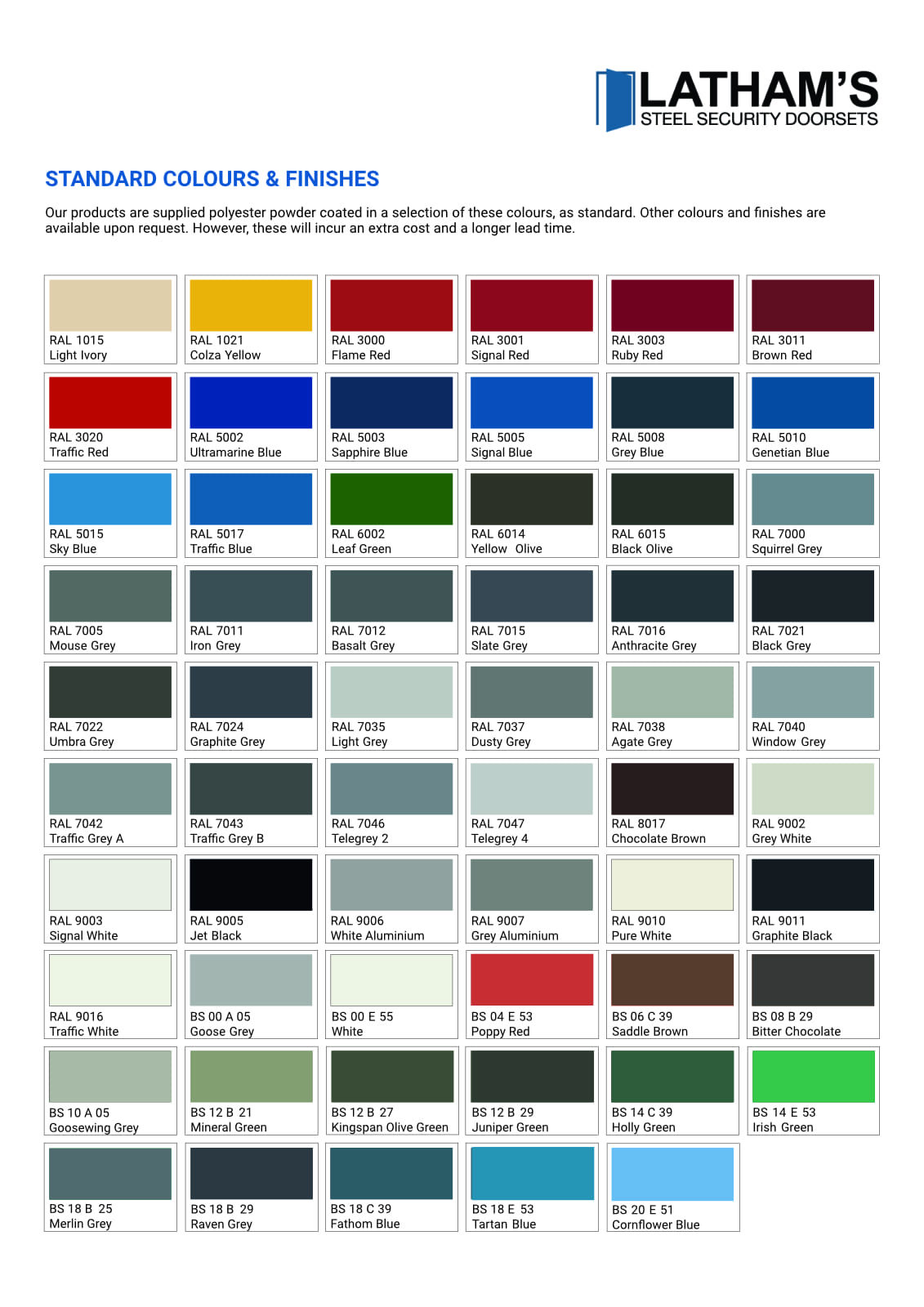

• High quality powder coat finish to standard RAL & BS colour.

Optional Extras:

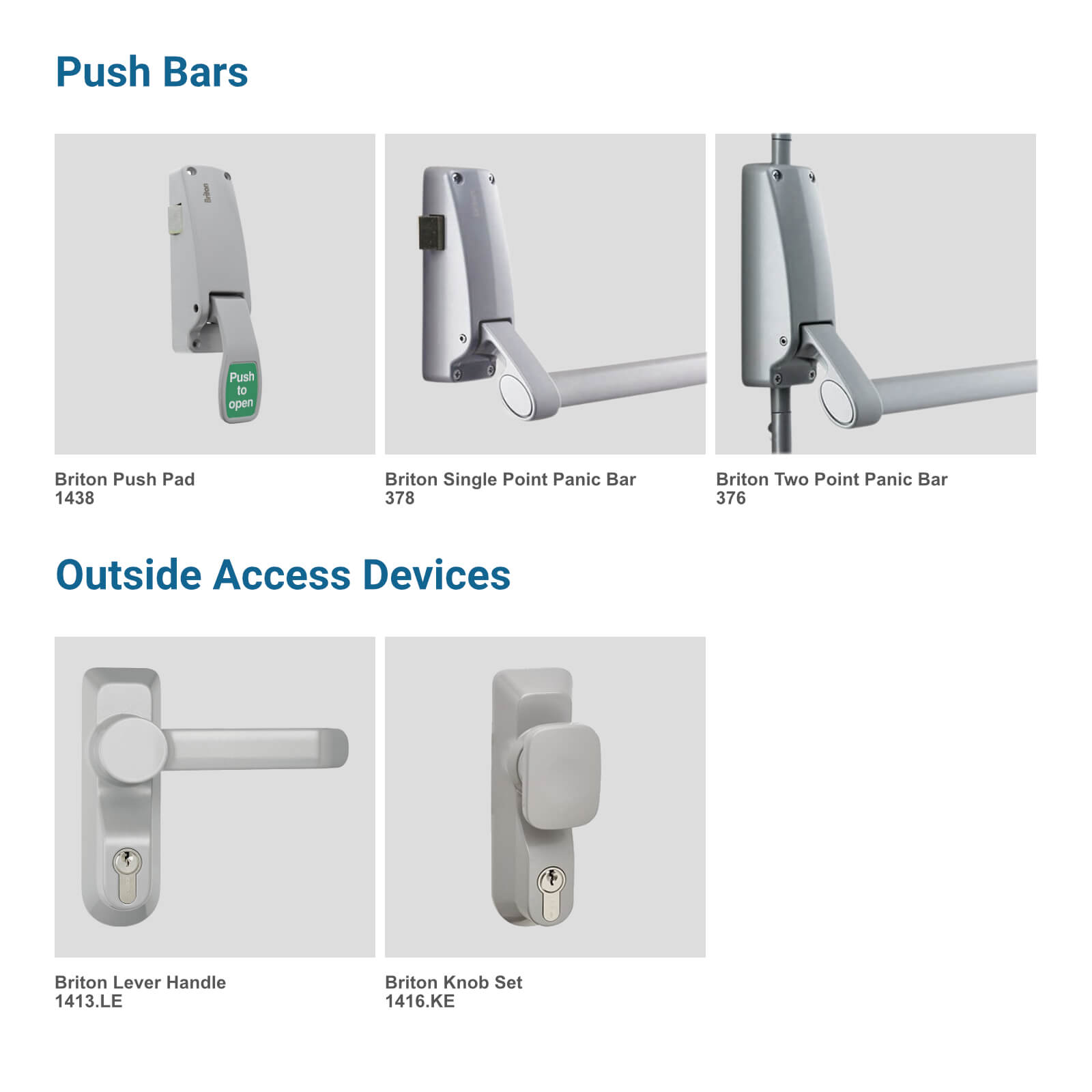

• External locking knobset or handle

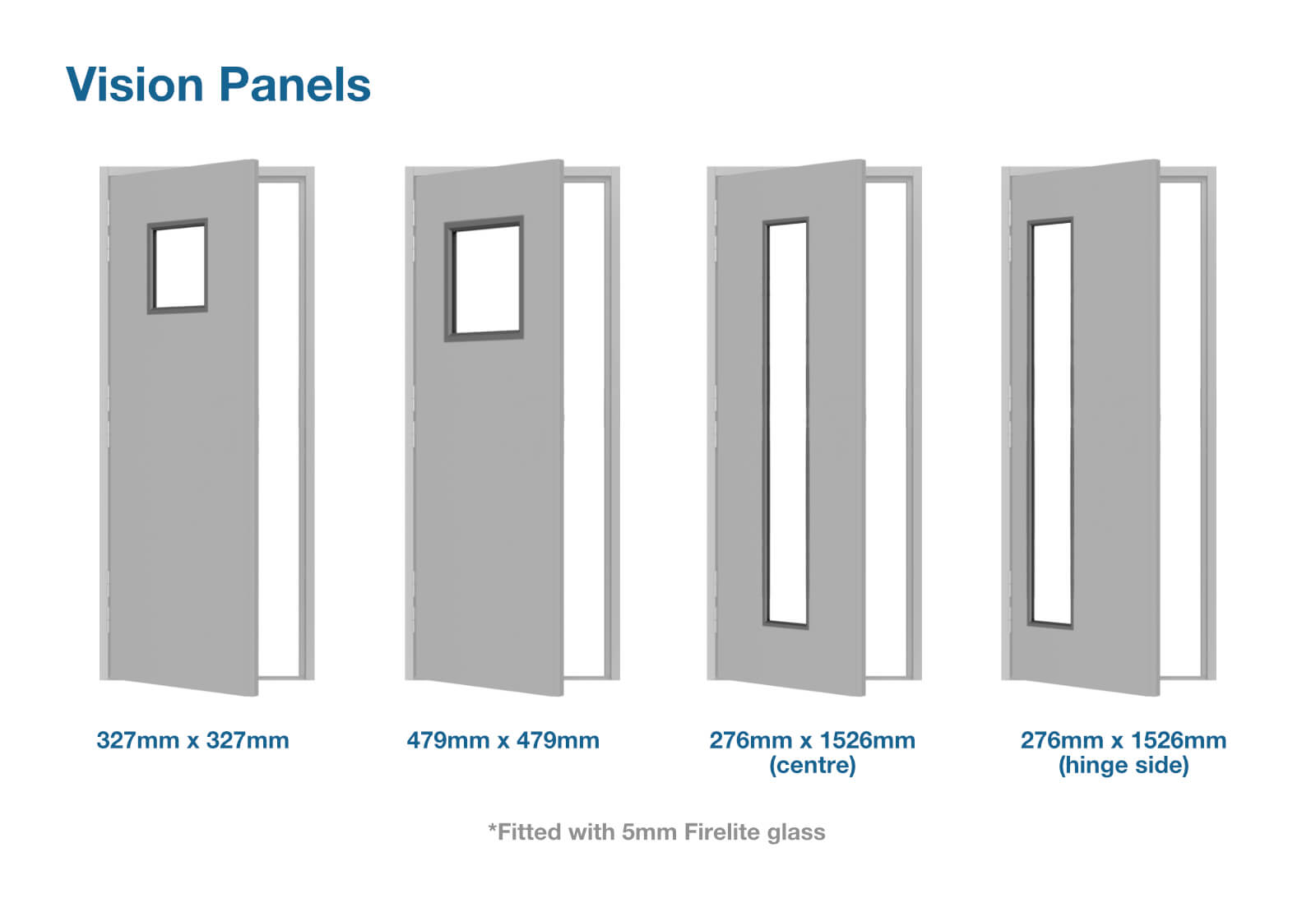

• Vision Panels – can’t exceed >0.465 m2/per leaf
• Louvre Panels – can’t exceed >0.465 m2/per leaf
• Door closers and door stays
• Kick plates and push plates
• None stock RAL & BS colours available on request

Doors are complete with frame.
