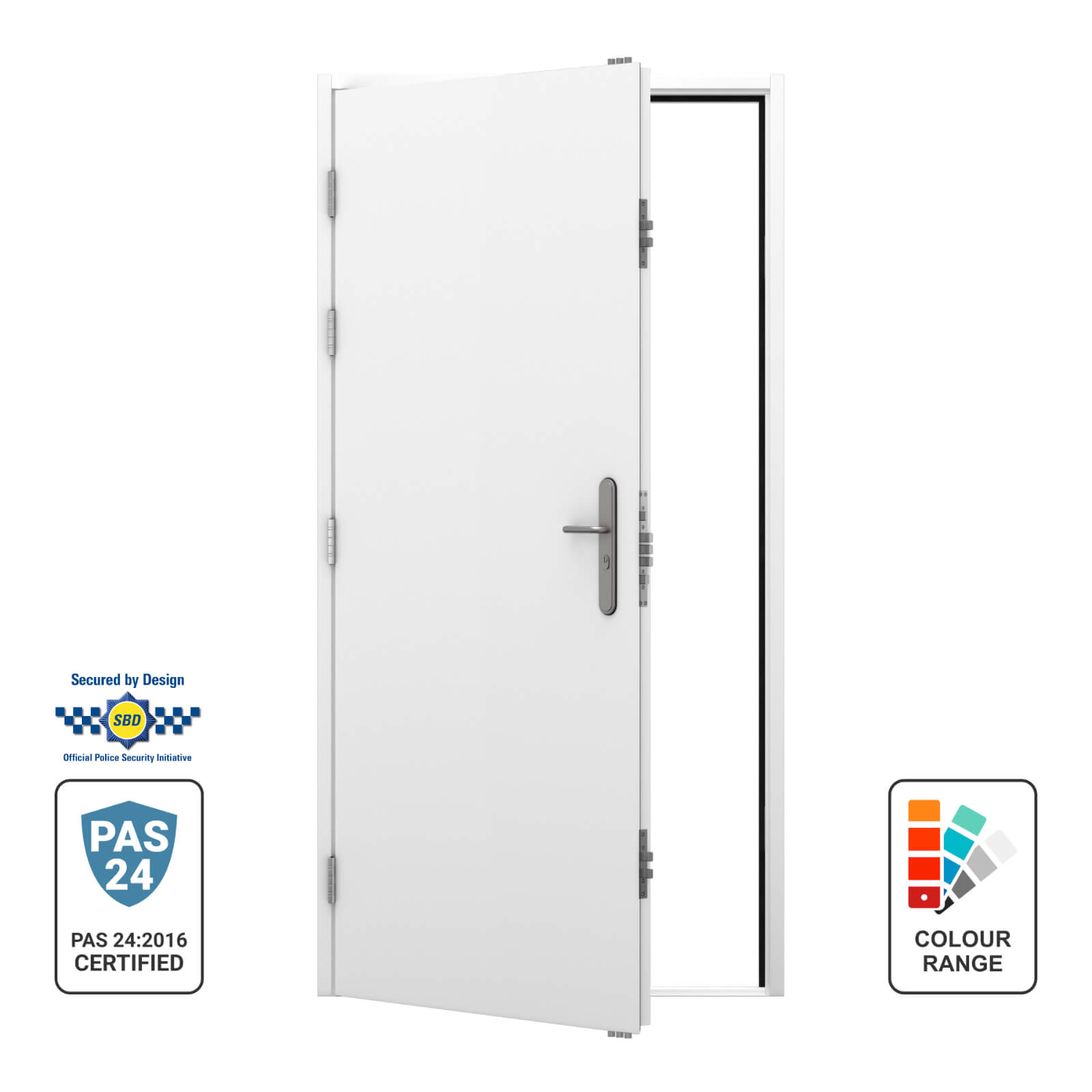

Left hinged opening out steel door

PAS 24 Rated Steel Door

From From £599.99 inc. VAT (£499.99 + VAT)

This PAS 24 door is a flush panel personnel door suitable for a wide variety of applications. Accredited by Secured by Design (SBD), it has enhanced security features to protect your property.

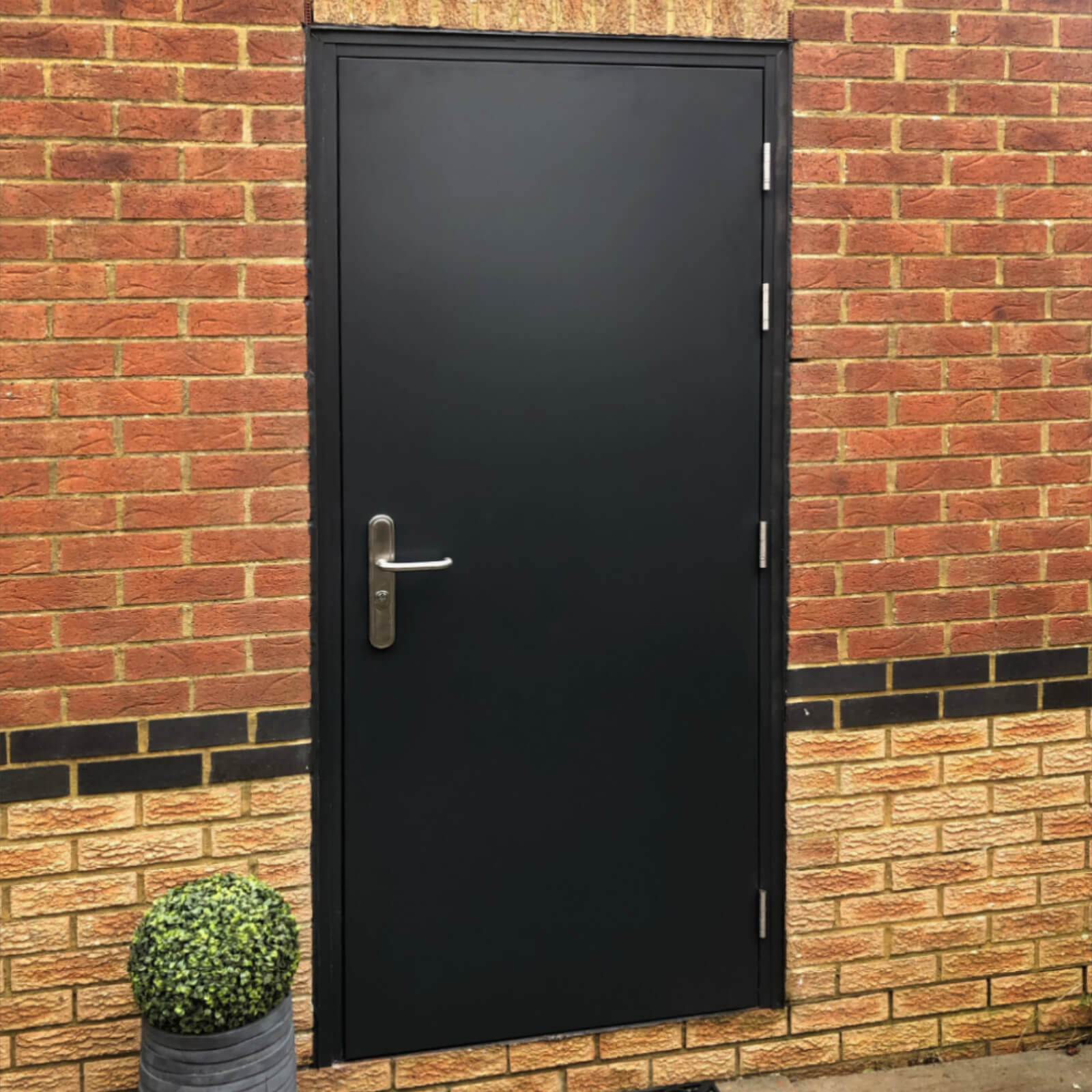

Finished in a white powder coat from stock, with a range of colour options available. This certification is also available on our Personnel Access Door sizes 890 & 990 x 2065, which are finished in RAL 7016 Anthracite Grey from stock.

Additional customisation options are available with this door, all of which are also certified. Options include a TS008 Letter Plate and a TS002 Door Viewer.

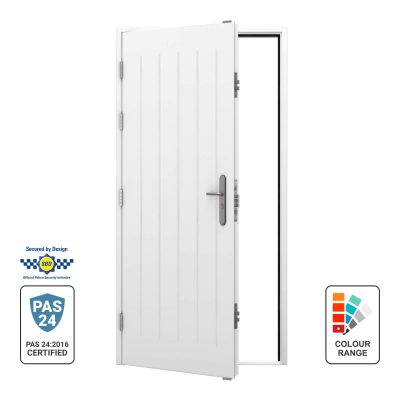

Also available in panelled and cottage style versions.

  • Total

PLEASE NOTE: These doors are manufactured to order for certification.

Lead Times
Standard door: 5 working days + delivery
Powder coated door: 10 working days + delivery
Fast track options: Contact us for availability

SKU: PAS24-HDP-DOOR Category:

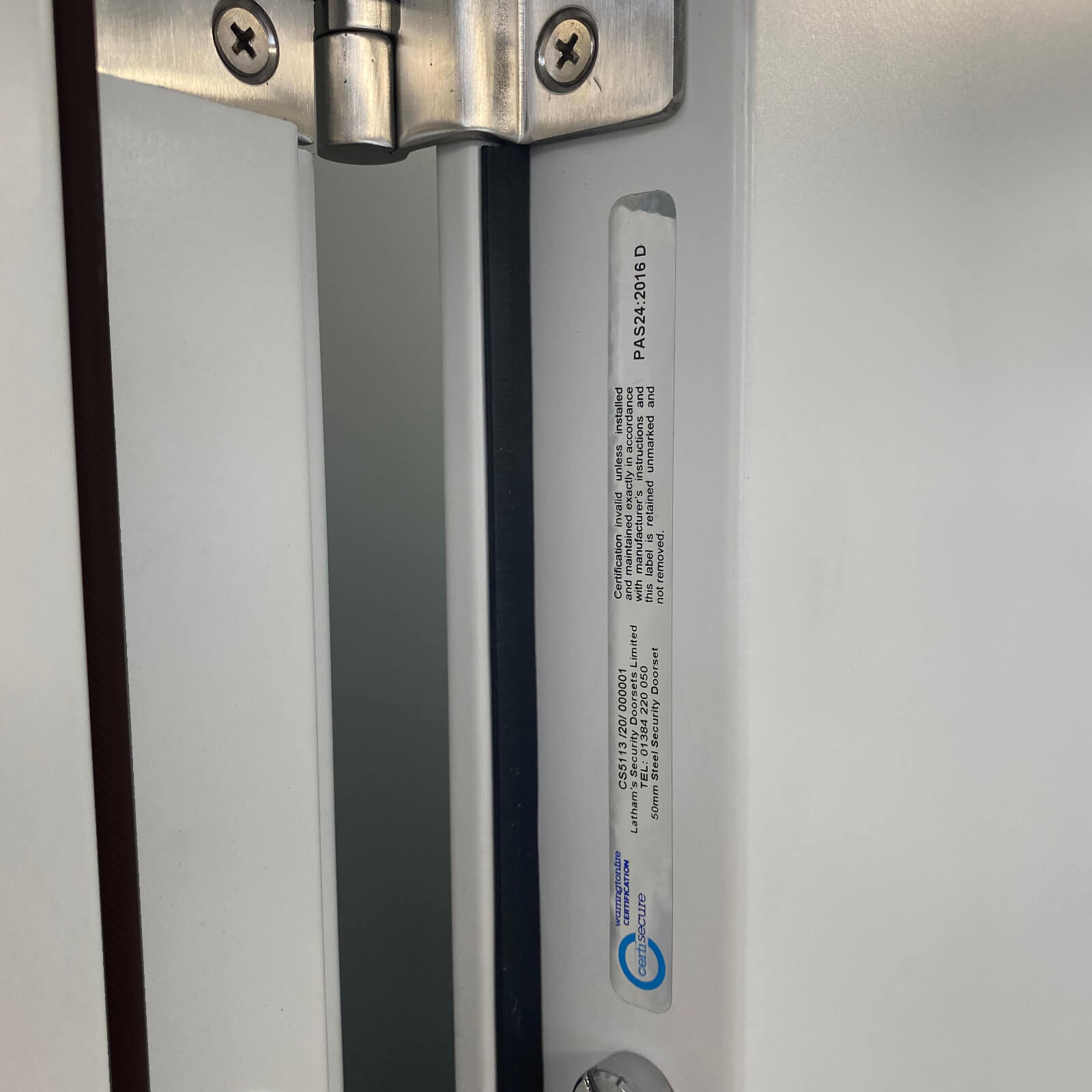

Click here to view our Warrington certifications

Secured By Design Door

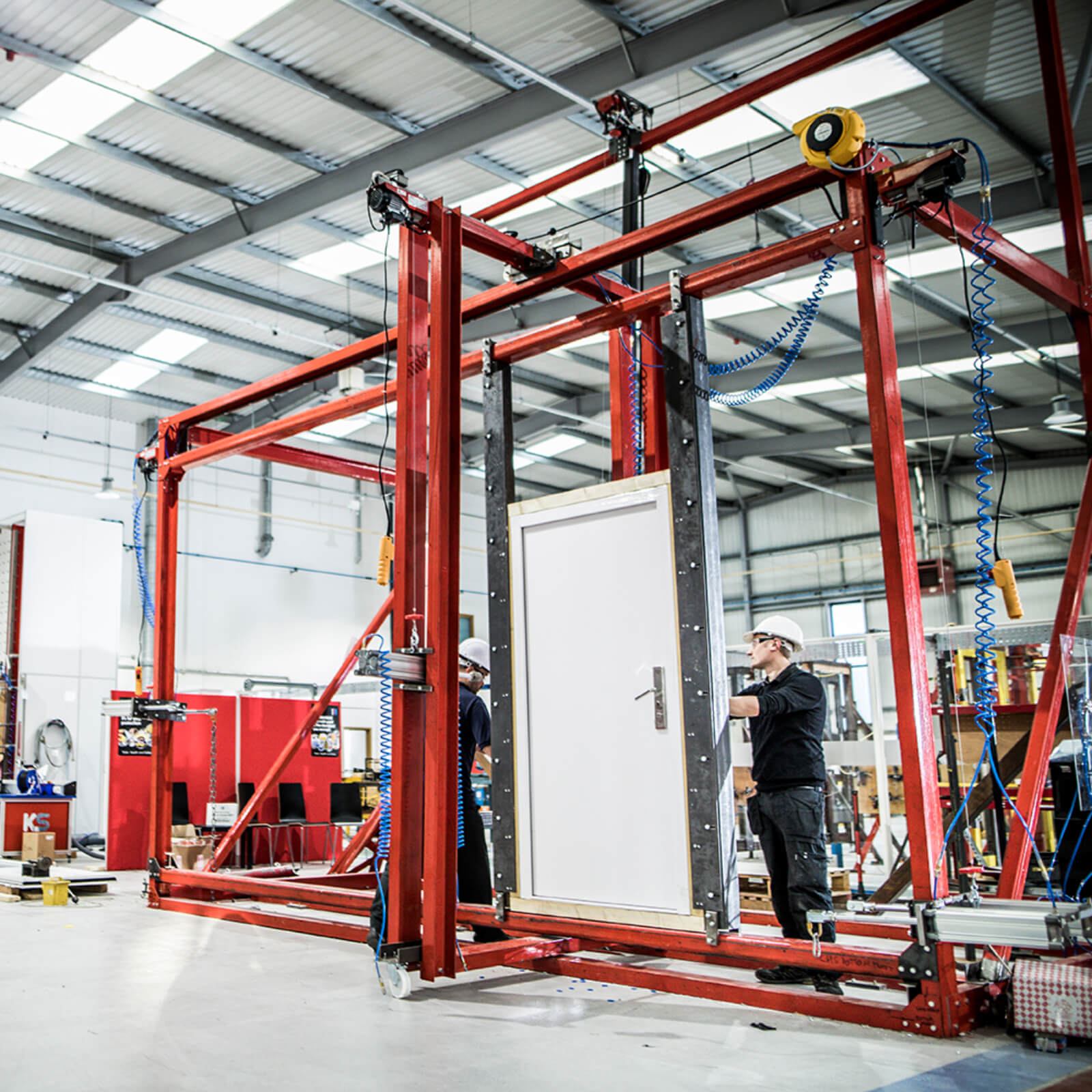

Being PAS 24 rated means you can be assured this door has been taken through a rigorous testing process to gain certification and is backed by the police security initiative, Secured By Design (SBD).

Secure Door Security Features

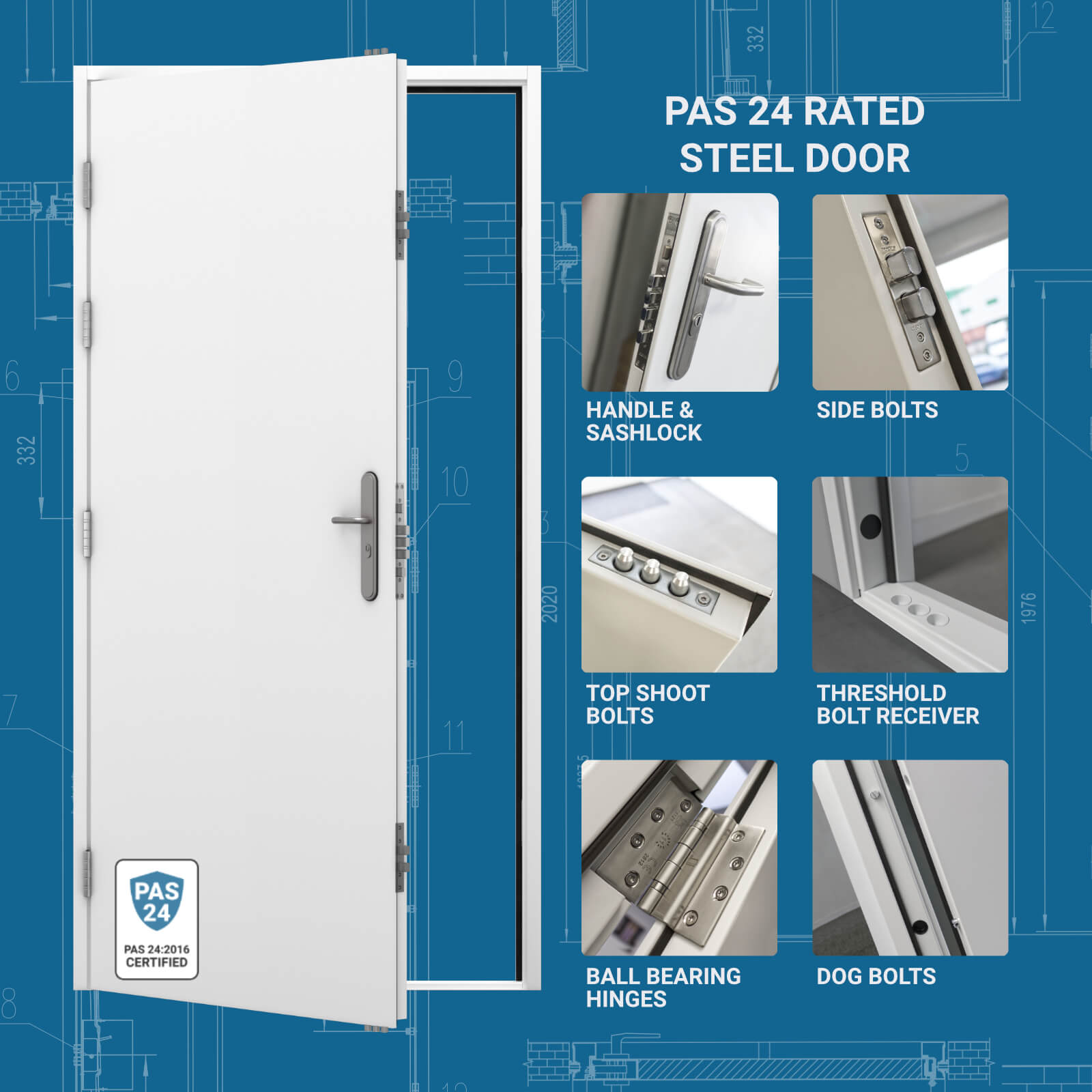

This door features our HOOPLY™ multi-point locking system with 19 locking points with several security-certified optional extras to further enhance your certified door. These include our TS008-rated Letterplate and TS002-rated Door Viewer.

Versatility for your Property

Highly suitable for a wide range of uses, this door is ideally suited in residential, commercial and industrial settings requiring a high-security door which has been certified to meet a minimum security standard of PAS 24:2016.

PLEASE NOTE: Certification is not valid if additional accessories or frame extensions are installed. Only the selected options available with certified doors can be used.

Door Type

Personnel Door

Available Sizes (mm)

695×2020, 795×2020, 845×2020, 895×2020, 910×2065, 995×2020, 495×2020 (Narrow), 595×2020 (Narrow)

Finish

White powder coat from stock, choice of colours available

Design

Plain door with flush panel

Door Frame Material

1.8mm Galvanised Steel

Door Frame Depth

90mm

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

50mm

Door Leaf Core

Mineral wool insulation

Internal Strengthening

2 x horizontal & 1 x vertical reinforced bars

U Value

2.20

Acoustic Value

35dB

Hinges

4 Stainless steel ball bearing hinges

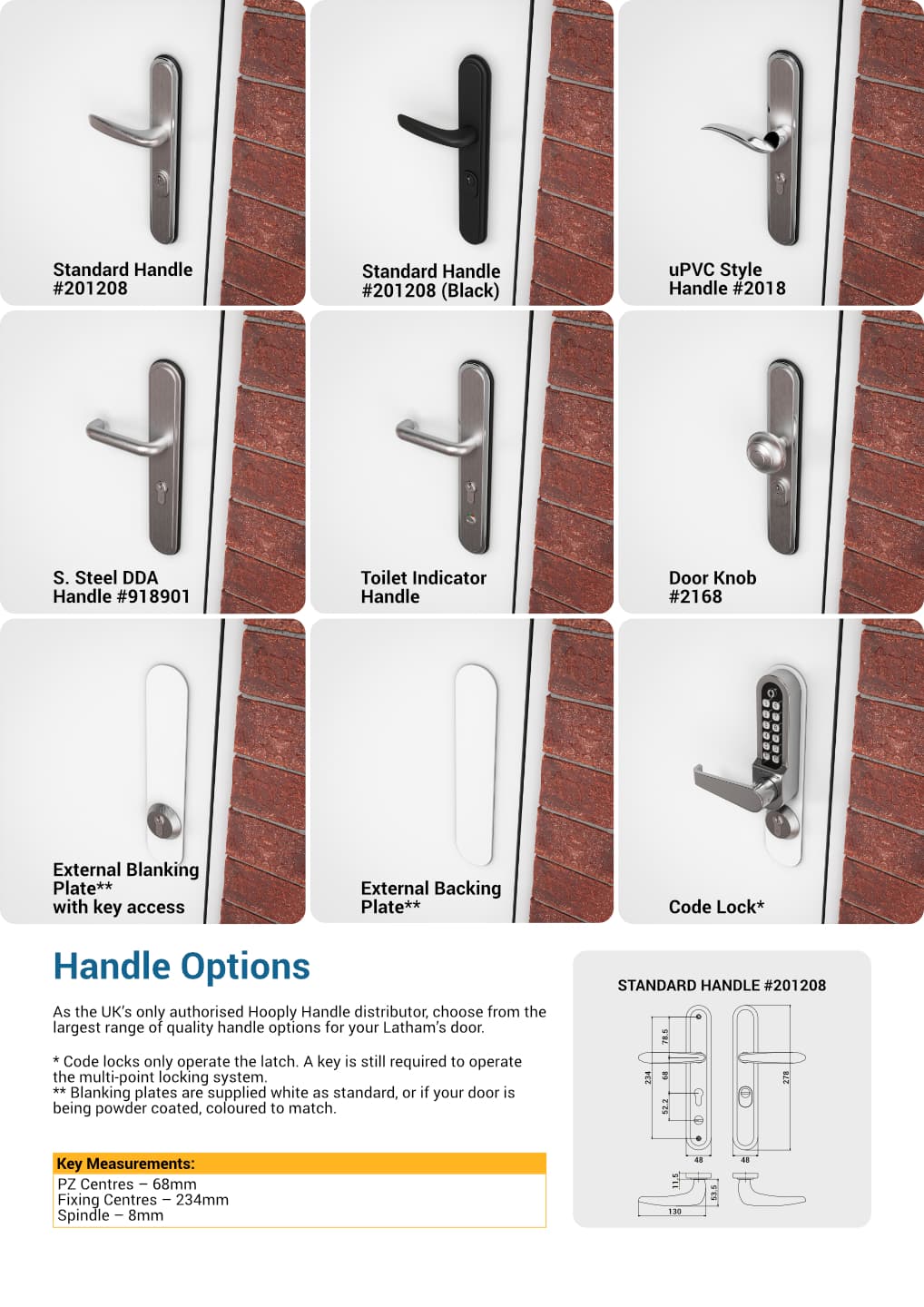

Handles

918902 Stainless Steel Security Handle

Locks or Door Furniture

Latham's trademark 19 point locking system

Cylinder

UAP 3* Kitemark cylinder

Seal

Nylon self adhesive V-seal

Dog Bolts

4 Dog bolts

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top

Construction

Fully welded construction

Security Type

High

CE Certification

Yes

Security Certification

PAS 24:2016 Certified

Fire Rating Certification

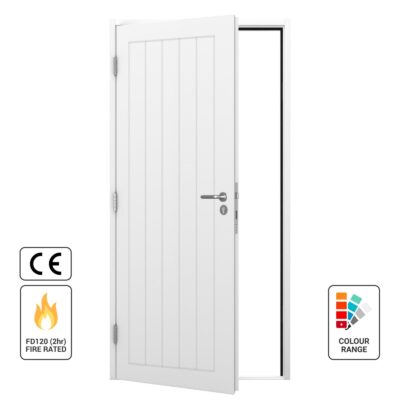

FD120 Rated version available

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external and internal use

Example Door Purposes

Warehouse door, retail/shop door, office security door, security personnel door, site container door, portakabin door

Videos

FAQs

How do I choose the hinge side and opening? (Handing)

Hinge side and opening is determined viewed from outside.
Example 1: LH hinge open out: hinges are on the LH side, handle is on the right and you pull the door towards you.
Example 2: RH hinge open in: hinges are on the RH side, handle is on the left and you push the door away from you.
See our handy illustration here

What is the lead time?

Stock Door (white, no modifications) – in stock – 0 days
Stock Door (white, modified e.g. installed accessories, vision panel e.t.c) – 4 working days
Re-Powder Coated Stock Door, with or without accessories installed (not white) – 10 working days
Fast track options are also available

How many keys come with the door?

Personnel doors come with 3 usable keys
Additional keys are available – we have a key cutting machine on-site
See our cylinder options video here

How much do the steel doors weigh?

Budget doors weigh on average 40kg*
Security doors weigh on average 85kg*
High Security (Ultra) doors weigh on average 100kg*
Double doors weigh on average 110kg*
*size dependant

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.
We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door
To calculate the clear opening (when the door is open), subtract 110mm from the width dimension. E.G. 895mm-110mm=760mm clear opening
See the video on how to measure here

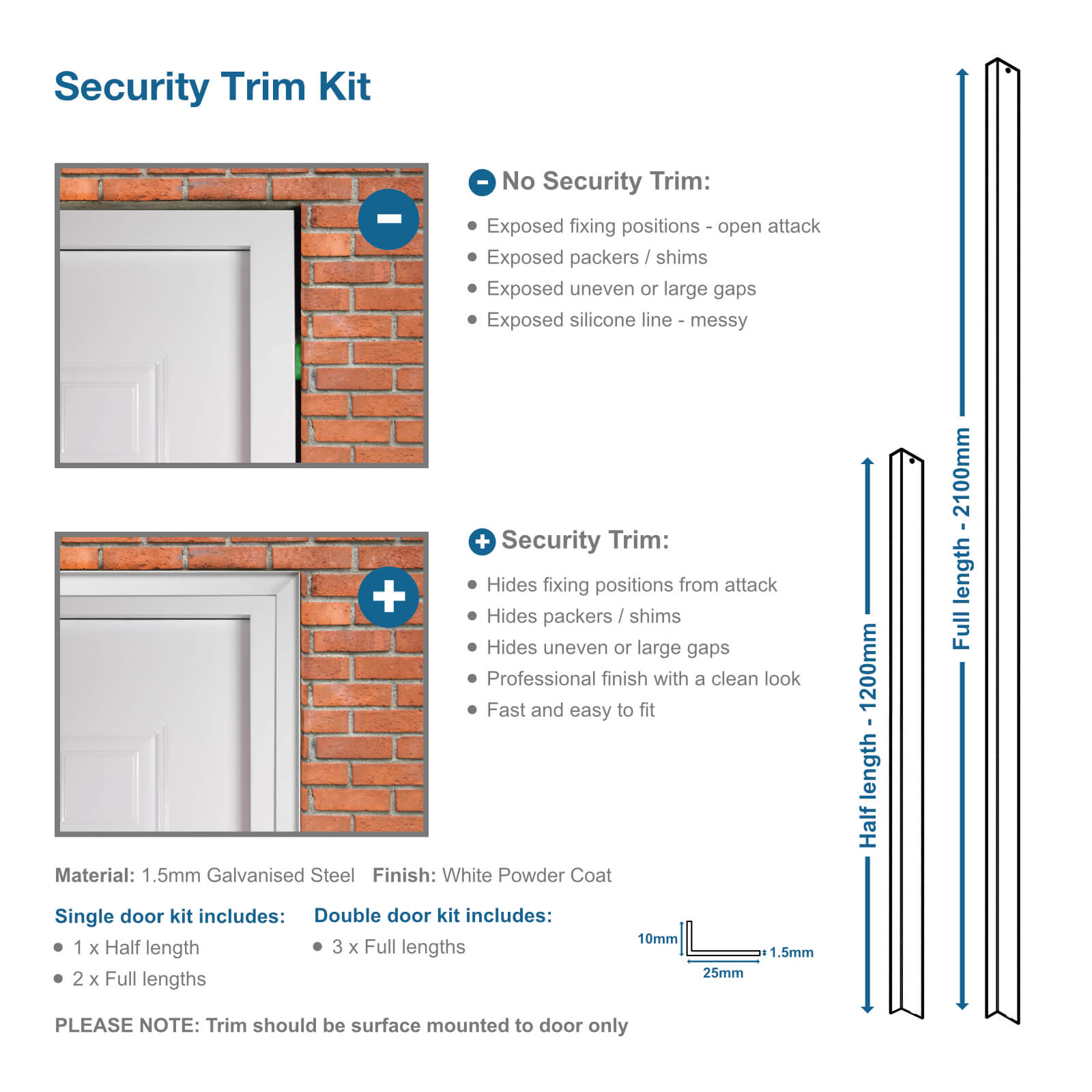

What is Security Trim?

The security trim kit fits around the perimeter of the door frame, preventing any packing from being seen externally and making the door as a whole more secure.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
See the security trim video here

To see all FAQs, click here

Downloads

Operation & Maintenance Manual

Download operation & maintenance manual
