Acoustic double steel door range

Acoustic Steel Double Door

From £647.99 inc. VAT (£539.99 + VAT)

Our acoustic-rated steel double door offers superior acoustic values for your residential, commercial or industrial property with a rating of 35dB. Stock sizes range from 1295mm wide up to 2195mm and all feature our trademark multi-point locking system.

They are ideally suited for use in locations which require a reduced level of sound transference such as:

  • Recording Studios
  • Classrooms
  • Home & commercial offices
  • Schools & nurseries
  • Hospitals

All our acoustic doors are supplied with an additional heavy-duty screw-in door seal and expanding foam, which will further assist in reducing noise. Also available as a single Acoustic Steel Door.

  • Total

Lead Times
Stock white door: Same day despatch available
Modified white door: 5 working days + delivery
Powder coated door: 10 working days + delivery
Fast track options: Contact us for availability

SKU: DDP-ACO-DOOR Category: GTIN: 5060479951284

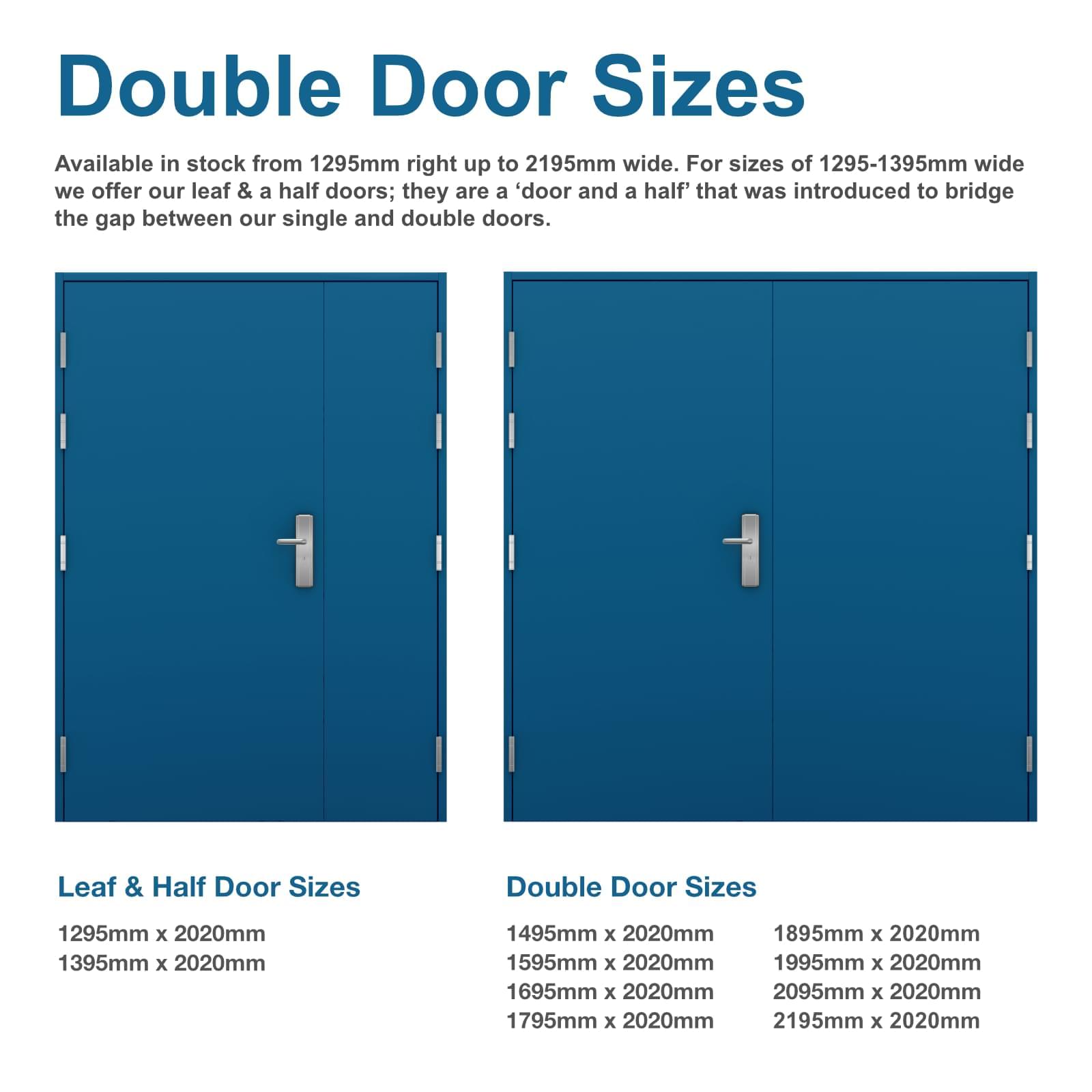

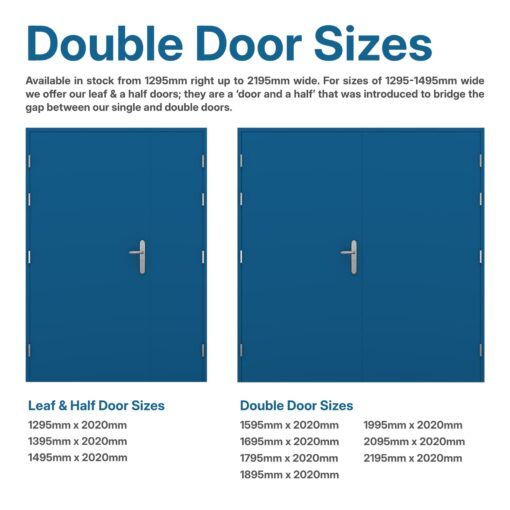

Sizes to Suit

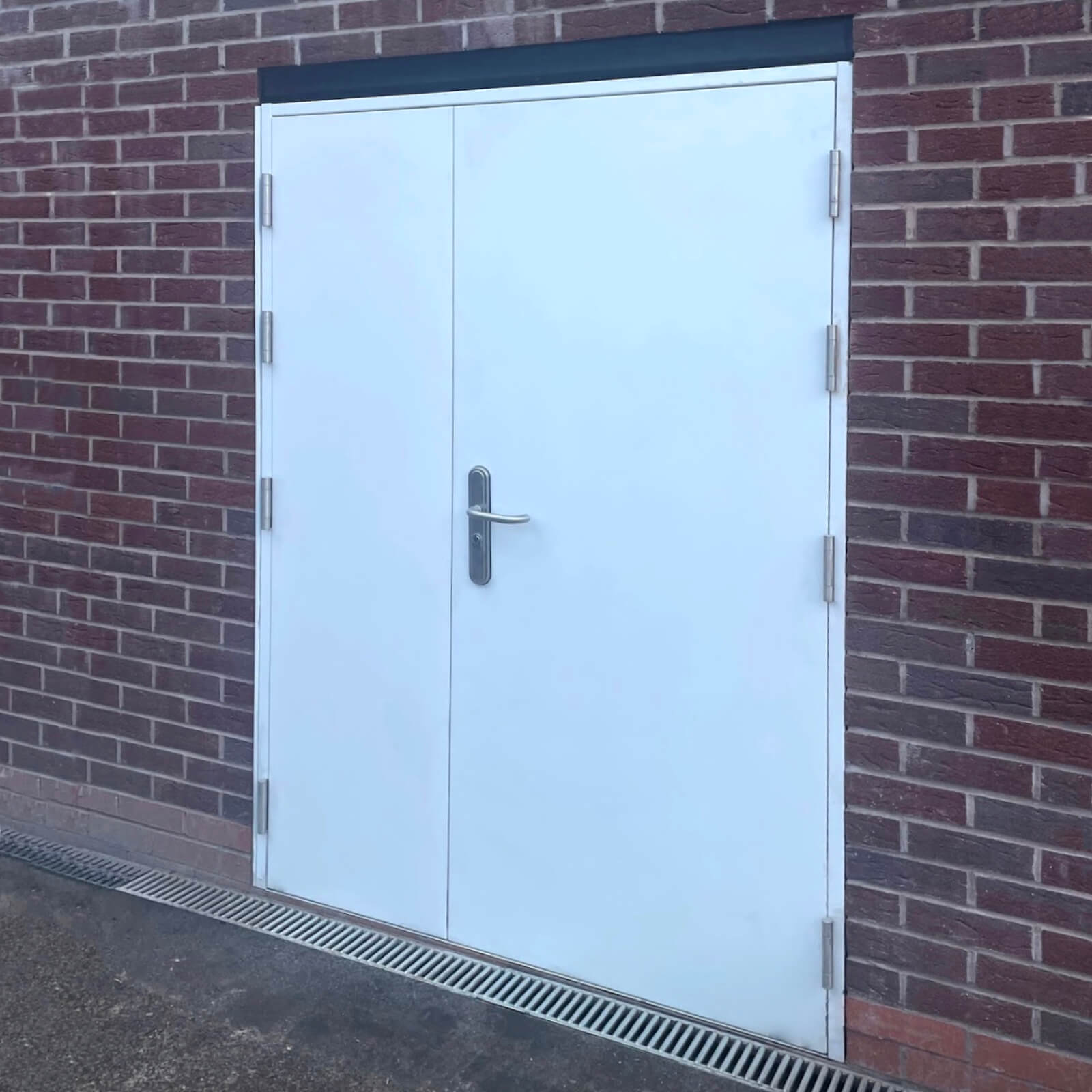

Our Acoustic steel double doors are available in a range of sizes, from our leaf & a half sized 1295mm right up to 2195mm wide. If our stock sizes aren’t quite what you require, we also supply expanding side panels and overhead panels to bridge the gap.

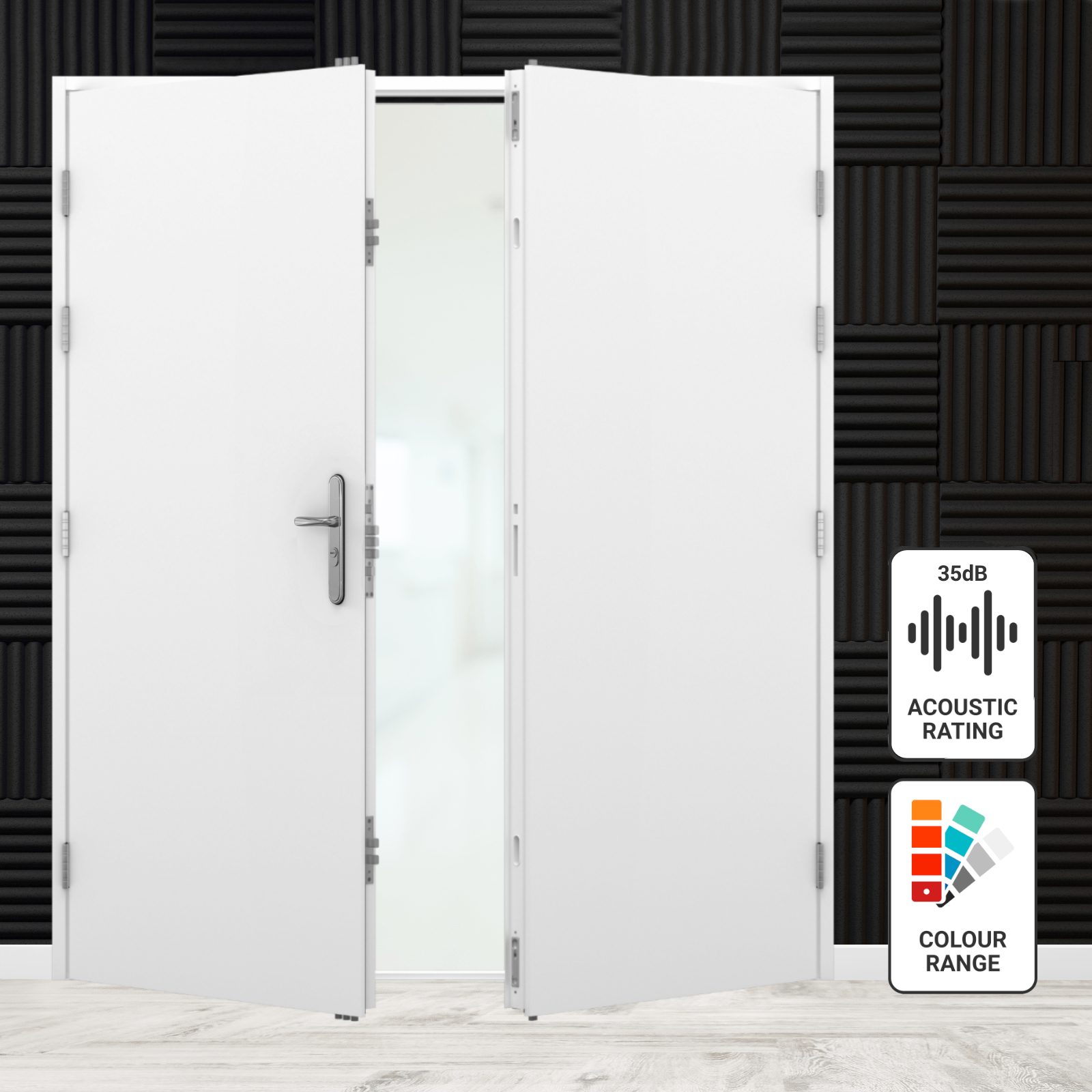

Acoustic Rating for reduced noise

Our acoustic double steel door has an acoustic rating of 35dB which makes it excellent for use in applications such as recording studios and industrial environments where reduced sound transference is essential.

Long lasting strength

All of our steel doors are made from galvanised steel, built to withstand the test of time and you can be assured they will last when exposed to the elements.

Security Upgrades Available

For applications which require an increased security level, there are a range of security upgrades available including 3* cylinder upgrades, and stainless steel handles.

DDA Compliant Doors

As with all of our steel personnel doors, this door is fully compliant with the Disability Discrimination Act.

Disclaimer

The dB rating is the maximum decibel rating achieved in lab conditions, as shown in the graph in the test report available in the downloads section. Real-world conditions may vary.

Acoustic Value

35dB

Available Sizes (mm)

1295×2020, 1395×2020, 1495×2020, 1595×2020, 1695×2020, 1795×2020, 1895×2020, 1995×2020, 2095×2020, 2195×2020

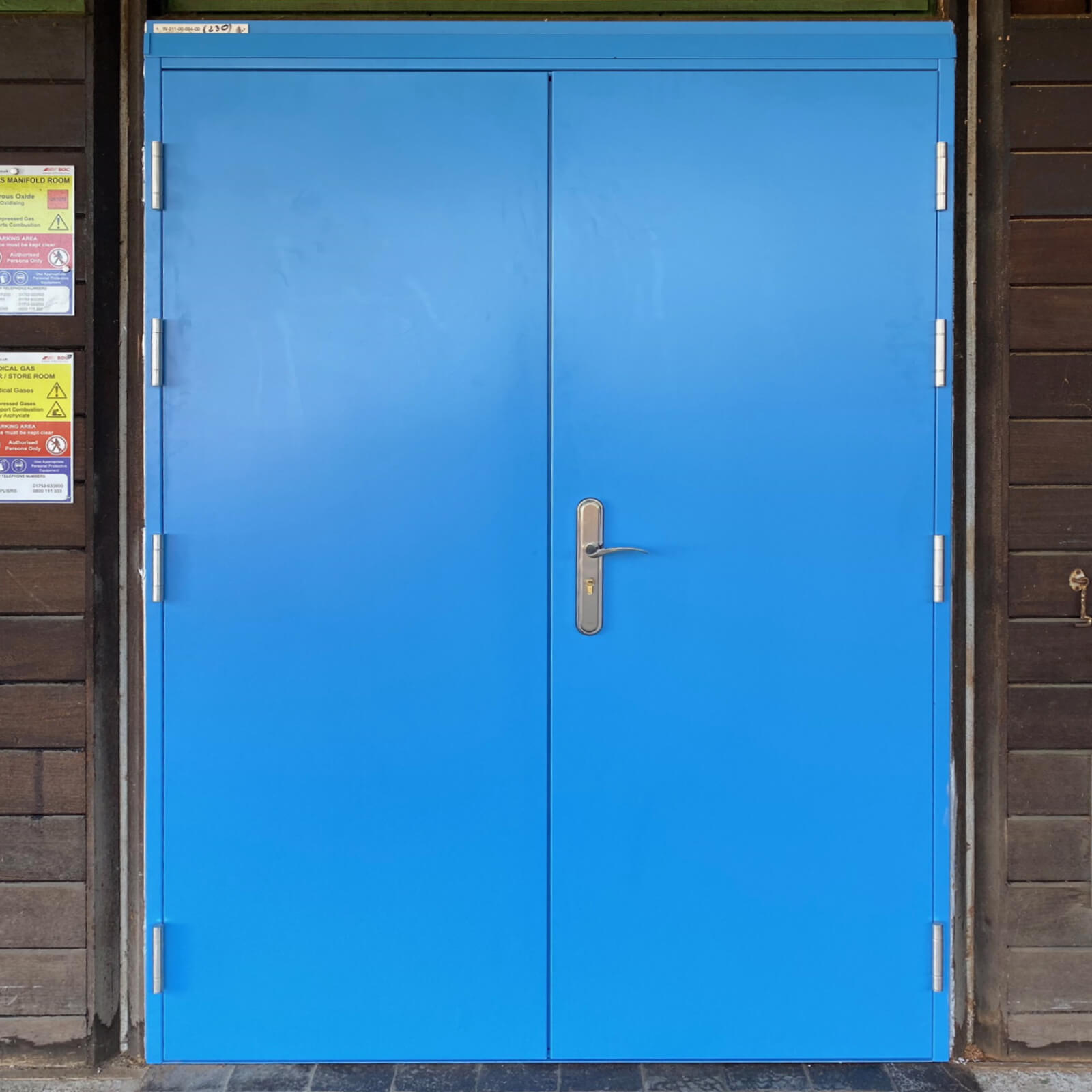

Finish

White powder coat from stock, choice of colours available

Design

Plain door with flush panel

Door Frame Material

1.8mm Galvanised Steel

Door Frame Depth

90mm

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

50mm

Door Leaf Core

Mineral wool insulation

Internal Strengthening

2 x horizontal & 2 x vertical reinforced bars per door

U Value

2.20

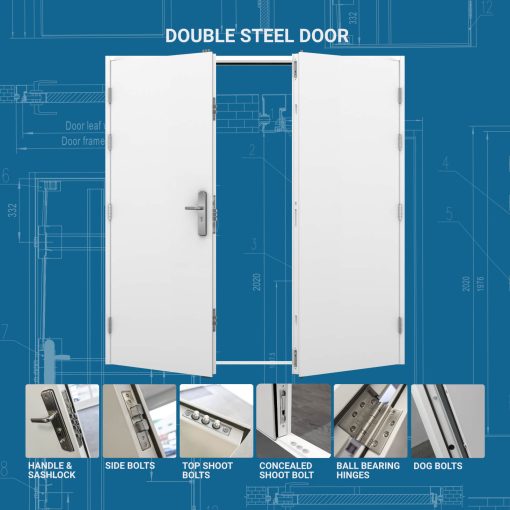

Hinges

8 Large stainless steel ball bearing hinges

Handles

Hooply handles (5586)

Locks or Door Furniture

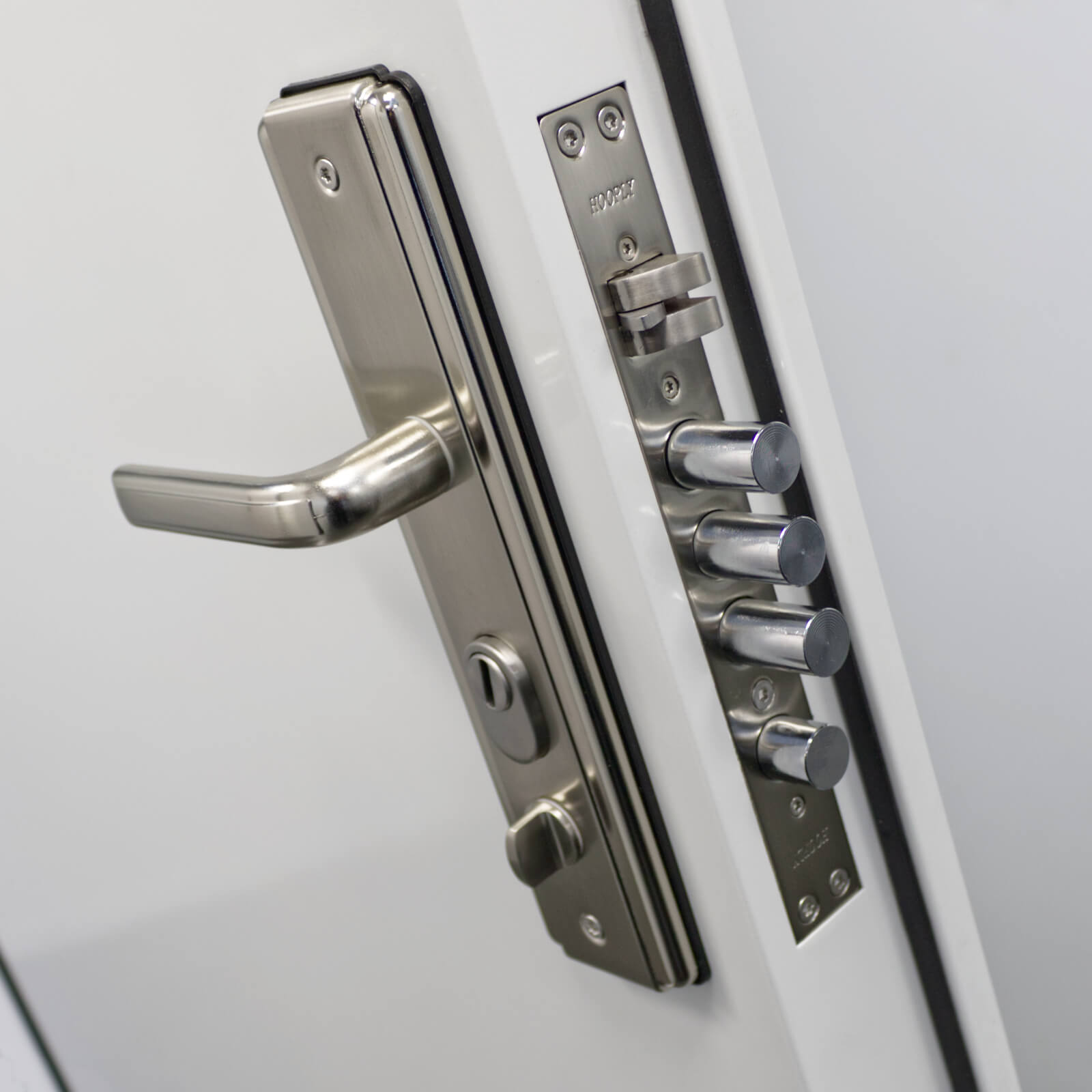

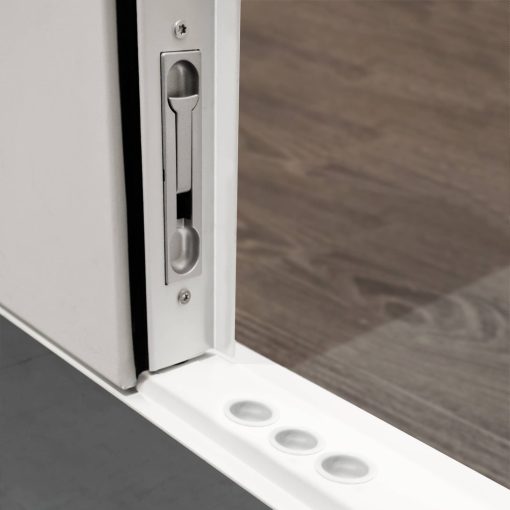

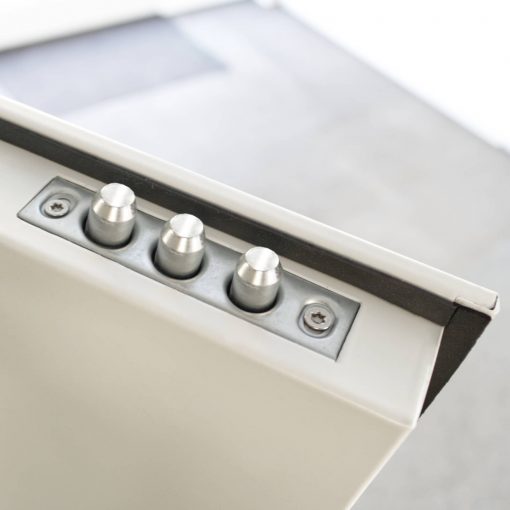

Active leaf: 10 point locking system | Passive leaf: Flush bolts top and bottom

Cylinder

UAP Tradelock Euro Cylinder, security upgrade available

Seal

Nylon self adhesive V-seal

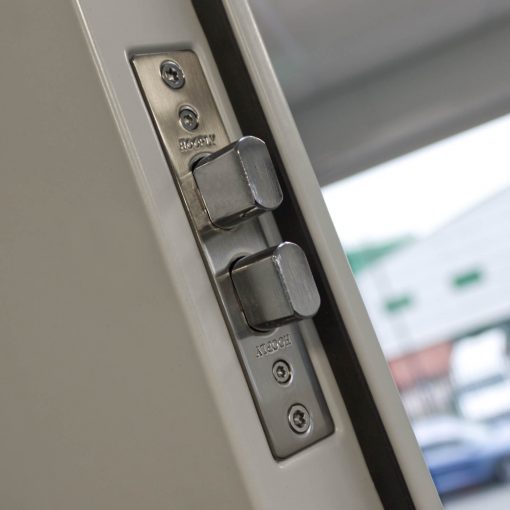

Dog Bolts

4 Dog Bolts on each door (8 in total)

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top + astragal

Construction

Fully welded construction

Security Type

Medium

CE Certification

Yes

Security Certification

None

Fire Rating Certification

None

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external and internal use

Example Door Purposes

Security garage side door, security rear shop door, warehouse security door, office security door, acoustic studio security door

Videos



FAQs

How do I choose the hinge side and opening? (Handing)

Hinge side and opening is always determined viewed from outside. The active leaf (the door which opens first) can be determined as follows:

Example 1: LH active leaf opening out. The handle is on the left door and you would pull the door towards you.
Example 2: RH active leaf opening in: handle is on the door to the right-hand side and you push the door away from you.

See our handy illustration here

How do double doors get delivered?

Your steel double door will be delivered in a minimum of 4 boxes:

2 x door leaves packaged individually
1 x box containing the hinge posts
1 x box containing the head of the frame and the bottom threshold

By delivering your steel double door frame in self-assembly pieces, it reduces the amount of handling of the doors. This in turn reduces associated health and safety risks as the door and frame are delivered in separate, manageable boxes meaning they’re less likely to be dropped causing unnecessary damage to the door.

Please note, delivery is kerbside only. We request that another party is present to help unload.

How do I put together a double door knockdown frame?

For specific advice regarding building the self-assembly knockdown frame for your steel double door, see our blog post

What is the lead time?

Stock Door (white, no modifications) – in stock – 0 days
Stock Door (white, modified e.g. installed accessories, vision panel e.t.c) – 4 working days
Re-Powder Coated Stock Door, with or without accessories installed (not white) – 10 working days
Fast track options are also available

How many keys come with the door?

Personnel doors come with 5 usable keys. Upgraded cylinders come with 3 keys.
Additional keys are available – we have a key cutting machine on-site
See our cylinder options video here

How much do the steel doors weigh?

Double doors weigh on average 110kg*
*size dependant

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.
We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door
To calculate the clear opening (when the door is open), subtract 110mm from the width dimension. E.G. 895mm-110mm=760mm clear opening
See the video on how to measure here

What is Security Trim?

The security trim kit fits around the perimeter of the door frame, preventing any packing from being seen externally and making the door as a whole more secure.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
See the security trim video here

To see all FAQs, click here

Downloads

Operation & Maintenance Manual

Download operation & maintenance manual
