Acoustic steel door range

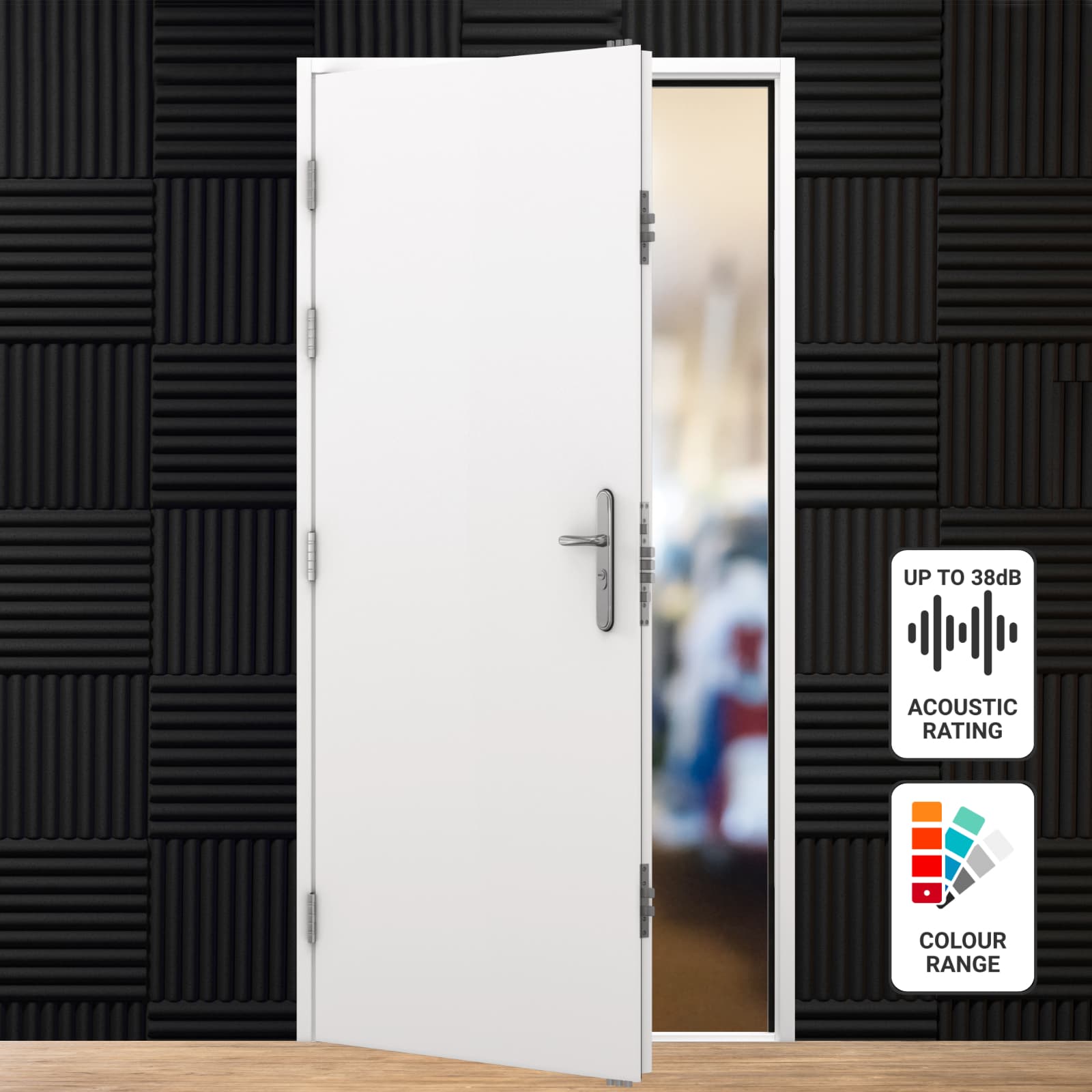

Acoustic Steel Door

From £263.99 inc. VAT (£219.99 + VAT)

Our acoustic steel doors are perfectly suited for applications situated in loud environments that have a need for a reduced level of sound transference. Ideal for areas such as:

  • Recording Studios
  • Classrooms
  • Home & commercial offices
  • Schools & nurseries
  • Hospitals

Our acoustic doors are supplied with an additional heavy-duty screw-in door seal and expanding foam, which will further increase the reduction in sound transference. Also available as an Acoustic Steel Double Door.

Lead Times
Stock white door: Same day despatch available
Modified white door: 5 working days + delivery
Powder coated door: 10 working days + delivery
Fast track options: Contact us for availability


Reduce Sound Transference

Our 30db acoustic-rated steel door is our most cost-effective option. The 35dB door has thicker gauge steel compared to our entry-level acoustic door and features higher sound insulation properties. For our highest stock acoustic-rated door, our 38dB soundproof door is perfect for applications which require both a high level of security and a high acoustic value.

Sound Security

With a multi-point locking system and security HOOPLY handles, our acoustic doors are ideal for protecting studios and rooms with high-value equipment. As they are manufactured from galvanised steel, they are also suitable to be used as external acoustic doors; they are fully weatherproof. For additional protection and peace of mind, a range of security upgrades are also available.

Colour Options

Our doors are supplied in Latham’s White as standard however if this isn’t suited to your requirements, you can also choose to have your soundproof steel door powder coated in a wide variety of RAL and BS colours.

DDA Compliant Doors

As with all of our steel personnel doors, this door is fully compliant with the Disability Discrimination Act.


The dB rating is the maximum decibel rating achieved in lab conditions, as shown in the graph in the test report available in the downloads section. Real-world conditions may vary.

Door Type

Personnel Door

Acoustic Value

30dB, 35dB, 38dB

Available Sizes (mm)

695×2020, 795×2020, 845×2020, 895×2020, 910×2065, 995×2020, 1095×2020, 1195×2020, 890×2095, 990×2095, 495×2020 (Narrow), 595×2020 (Narrow)


White powder coat from stock, choice of colours available


Plain door with flush panel

Door Frame Depth

110mm, 90mm

Door Leaf Material

Double skinned 0.8mm galvanised steel, Double skinned 1.0mm galvanised steel, Double skinned 1.2mm galvanised steel

Door Leaf Depth

45mm, 50mm, 70mm

Door Frame Material

1.4mm Galvanised Steel, 1.8mm Galvanised Steel, 2.0mm Galvanised steel

Door Leaf Core

Honeycomb core, Mineral wool insulation

U Value

1.99, 2.20, 2.88


3 Stainless steel ball bearing hinges, 4 Large stainless steel ball bearing hinges, 4 Stainless steel ball bearing hinges


Hooply handles (5586)

Locks or Door Furniture

Latham's trademark 19 point locking system


Heavy Duty Euro Profile Cylinder


Nylon self adhesive V-seal

Dog Bolts

4 Dog bolts


DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top, At door jam, hinge side & top. Superior ‘barb-like’ design


Fully welded construction

Security Type


CE Certification


Security Certification


Fire Rating Certification


Stock Product


Made to Measure Product


External or Internal Use

Suitable for external and internal use

Example Door Purposes

Recording Studios, Classrooms, Home & commercial offices, Schools & nurseries, Hospitals



How do I choose the hinge side and opening? (Handing)

Hinge side and opening is determined viewed from outside.
Example 1: LH hinge open out: hinges are on the LH side, handle is on the right and you pull the door towards you.
Example 2: RH hinge open in: hinges are on the RH side, handle is on the left and you push the door away from you.
See our handy illustration here

What is the lead time?

Stock Door (white, no modifications) – in stock – 0 days
Stock Door (white, modified e.g. installed accessories, vision panel e.t.c) – 4 working days
Re-Powder Coated Stock Door, with or without accessories installed (not white) – 10 working days
Fast track options are also available

How many keys come with the door?

Personnel doors come with 3 usable keys
Additional keys are available – we have a key cutting machine on-site
See our cylinder options video here

How much do the steel doors weigh?

Budget doors weigh on average 40kg*
Security doors weigh on average 85kg*
High Security (Ultra) doors weigh on average 100kg*
Double doors weigh on average 110kg*
*size dependant

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.
We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door
To calculate the clear opening (when the door is open), subtract 110mm from the width dimension. E.G. 895mm-110mm=760mm clear opening
See the video on how to measure here

What is Security Trim?

The security trim kit fits around the perimeter of the door frame, preventing any packing from being seen externally and making the door as a whole more secure.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
See the security trim video here

To see all FAQs, click here


Operation & Maintenance Manual

Download operation & maintenance manual
