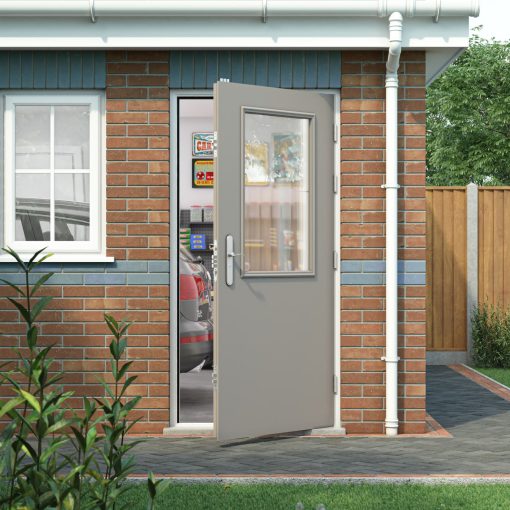

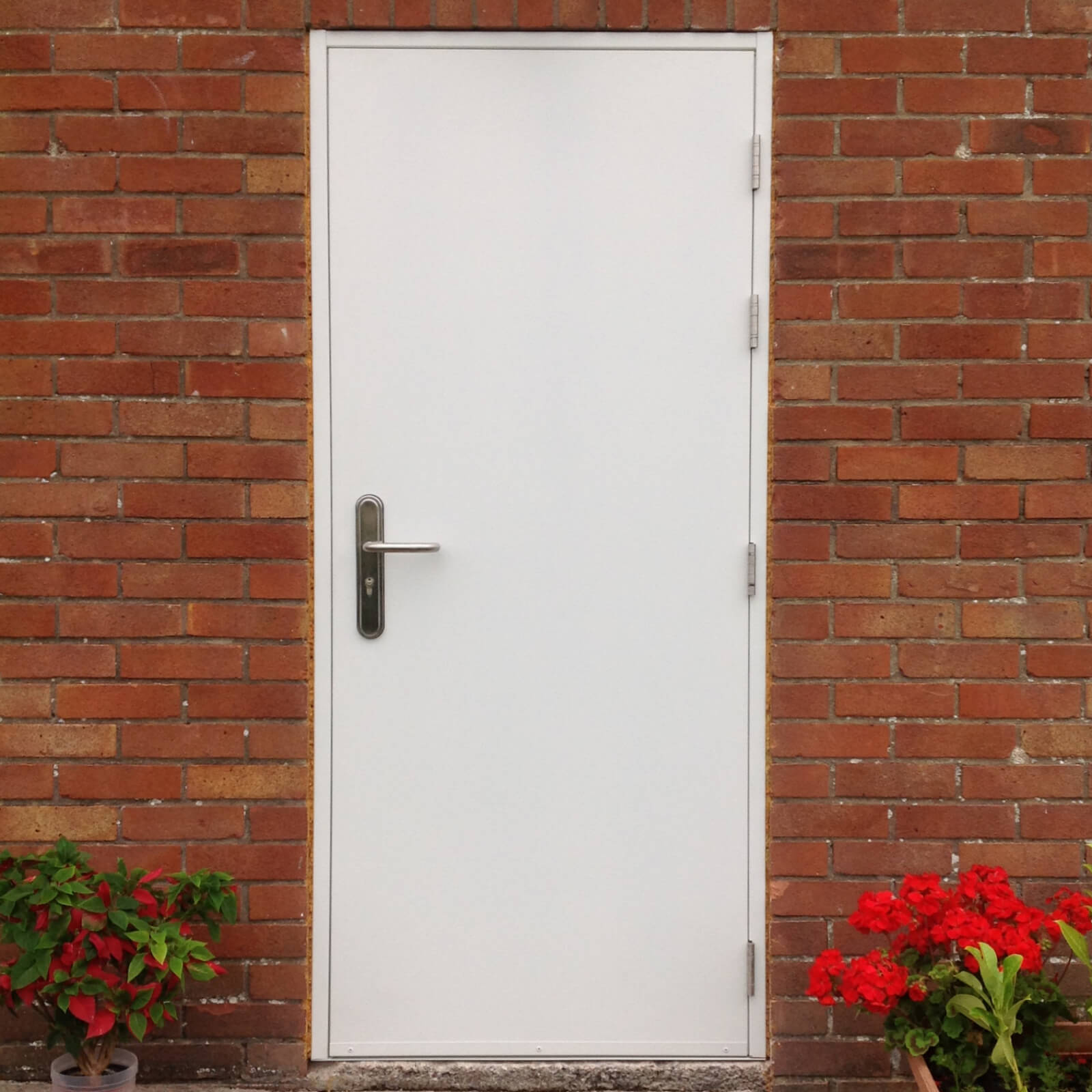

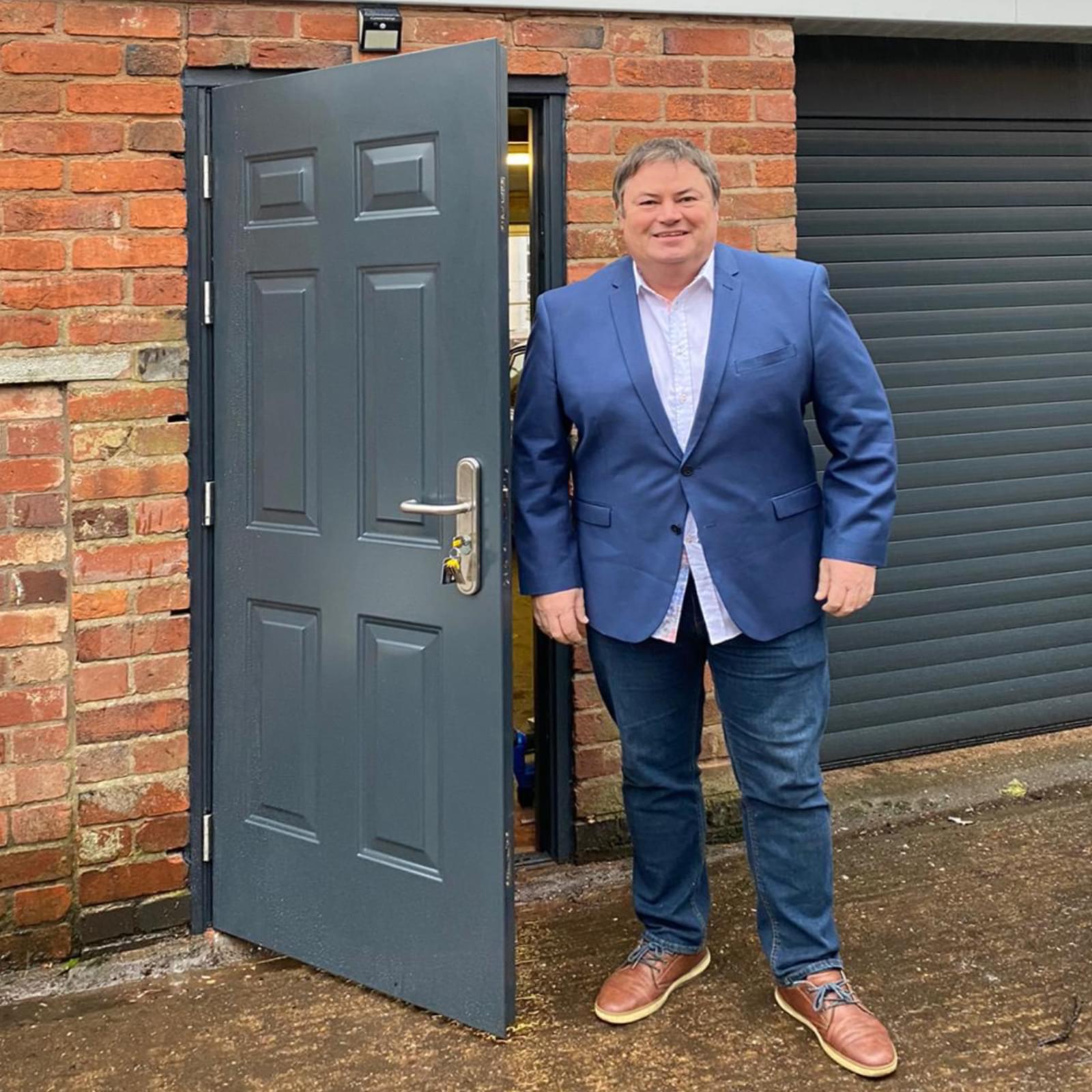

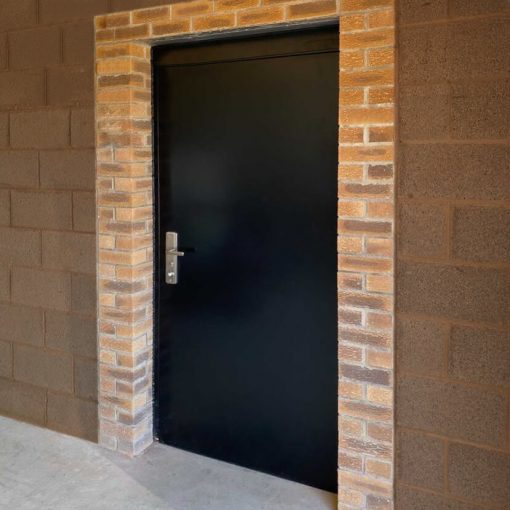

Garage side door in situ

Security Garage Side Door (Personnel)

From £139.99 + VAT (£167.99 inc. VAT)

Our steel security doors are often used as garage personnel doors. Incorporating a multi point locking system as standard, with a choice of styles, colours and ironmongery, choose the secure option and avoid the traditional inferior single skin garage side doors.

Category: GTIN: 5060479950829

Description

Affordable Security

As with all Latham’s steel doors, our Garage Side Doors are made to the highest standard and available at the UK’s most competitive prices.

Customisable to suit your home

Our garage side entry door is supplied in signal white as standard however you can customise your door to suit the surroundings of your home using our on site powder coating facility. You can also adjust the height of the door and add a variety of fixings and finishings.

Improved Security for your Home

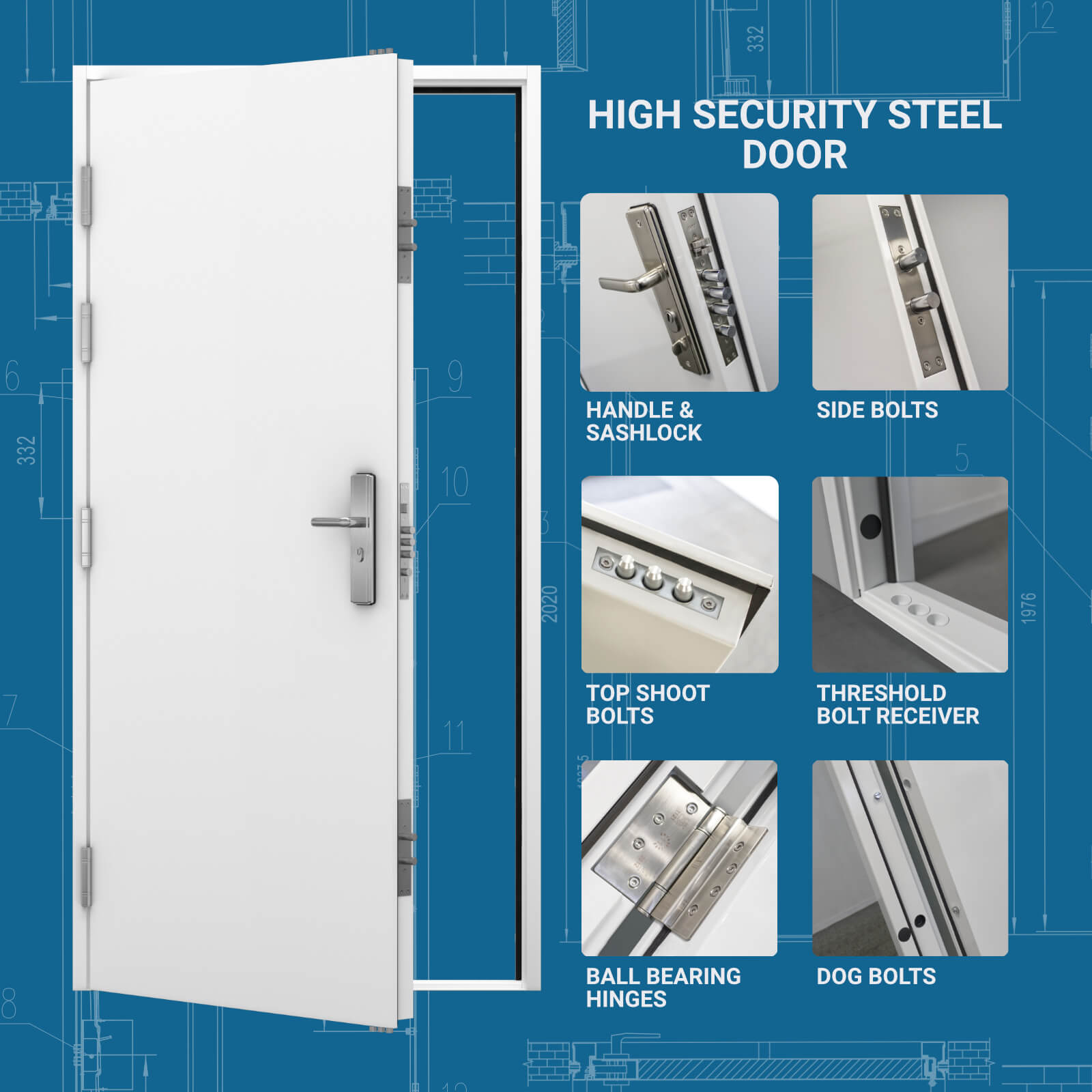

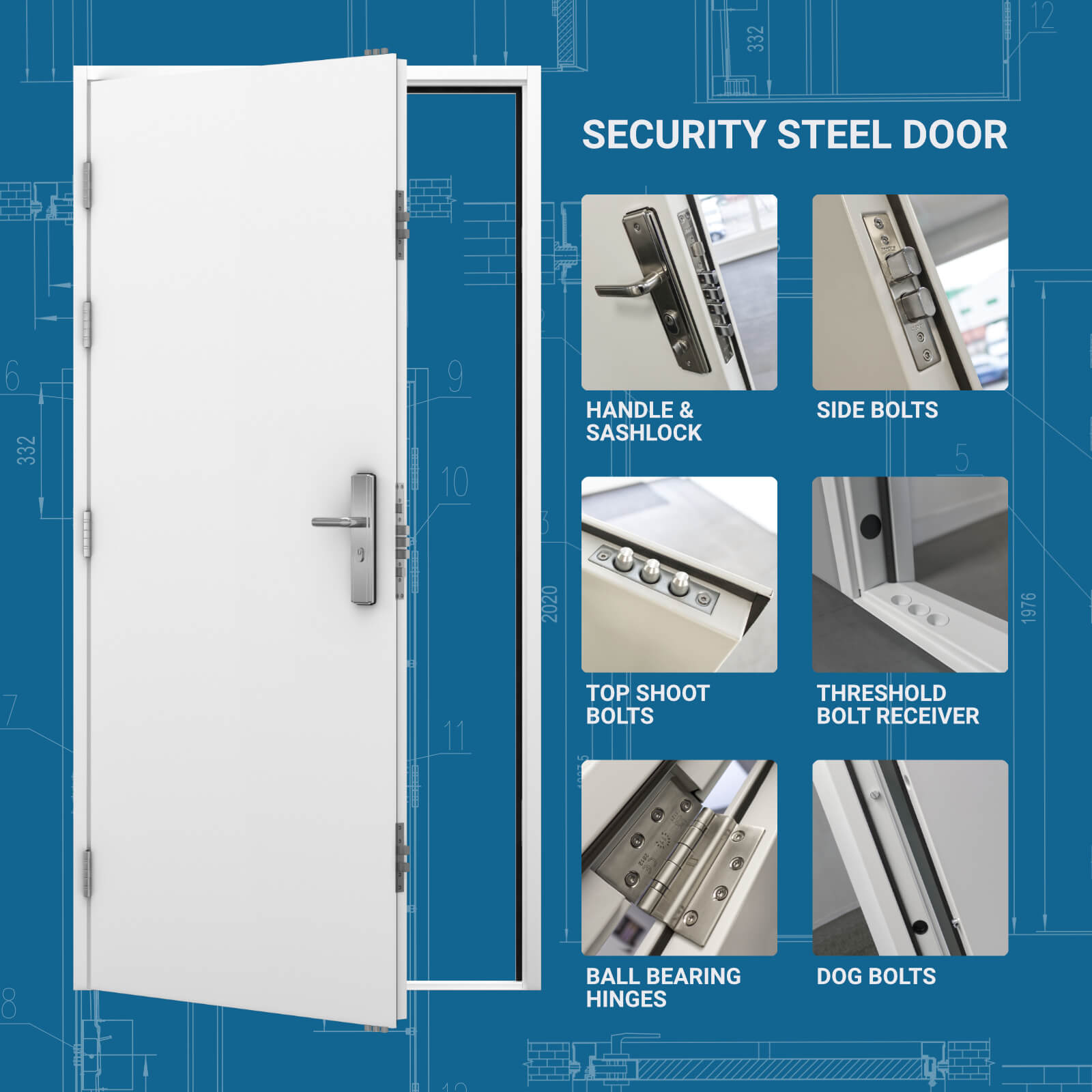

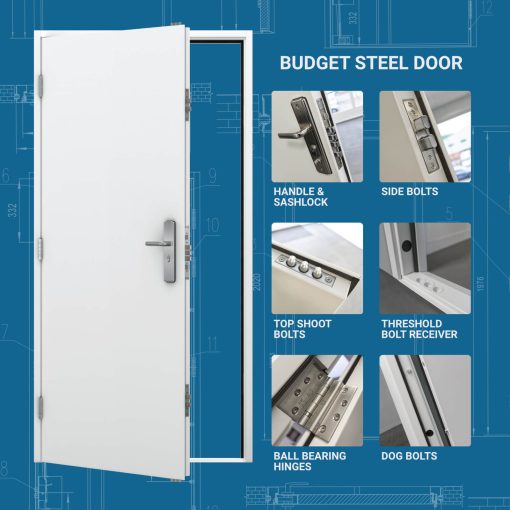

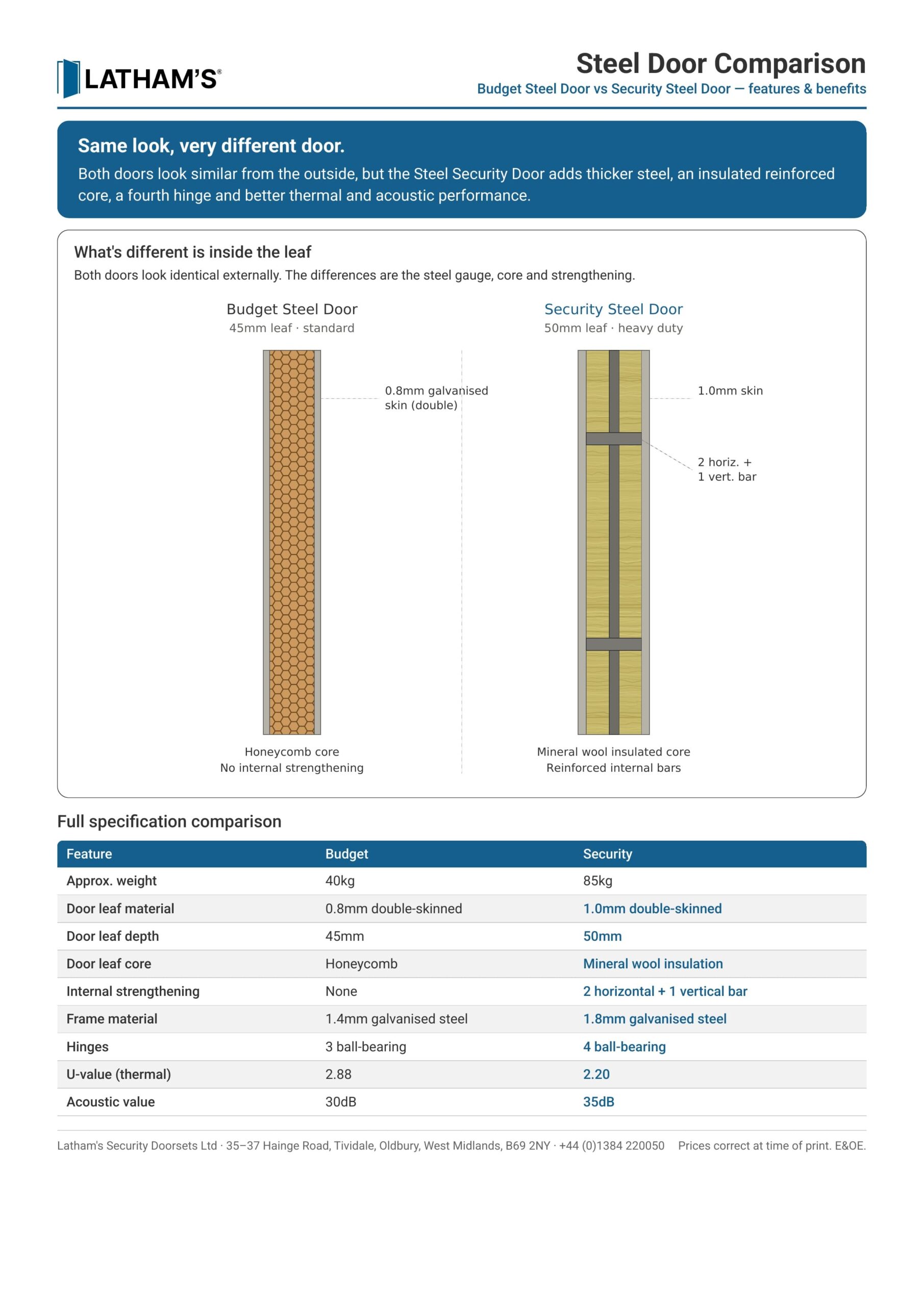

Our garage personnel door is available in Budget, Security and High Security Duty options. Our Budget and Security doors feature the trademark Hooply 19 point locking mechanism. High Security doors feature 5 stainless steel heavy duty lift off hinges, multi point shoot bolt locking mechanism and is a 40% thicker door compared to our garage side entry door.

Varying Designs

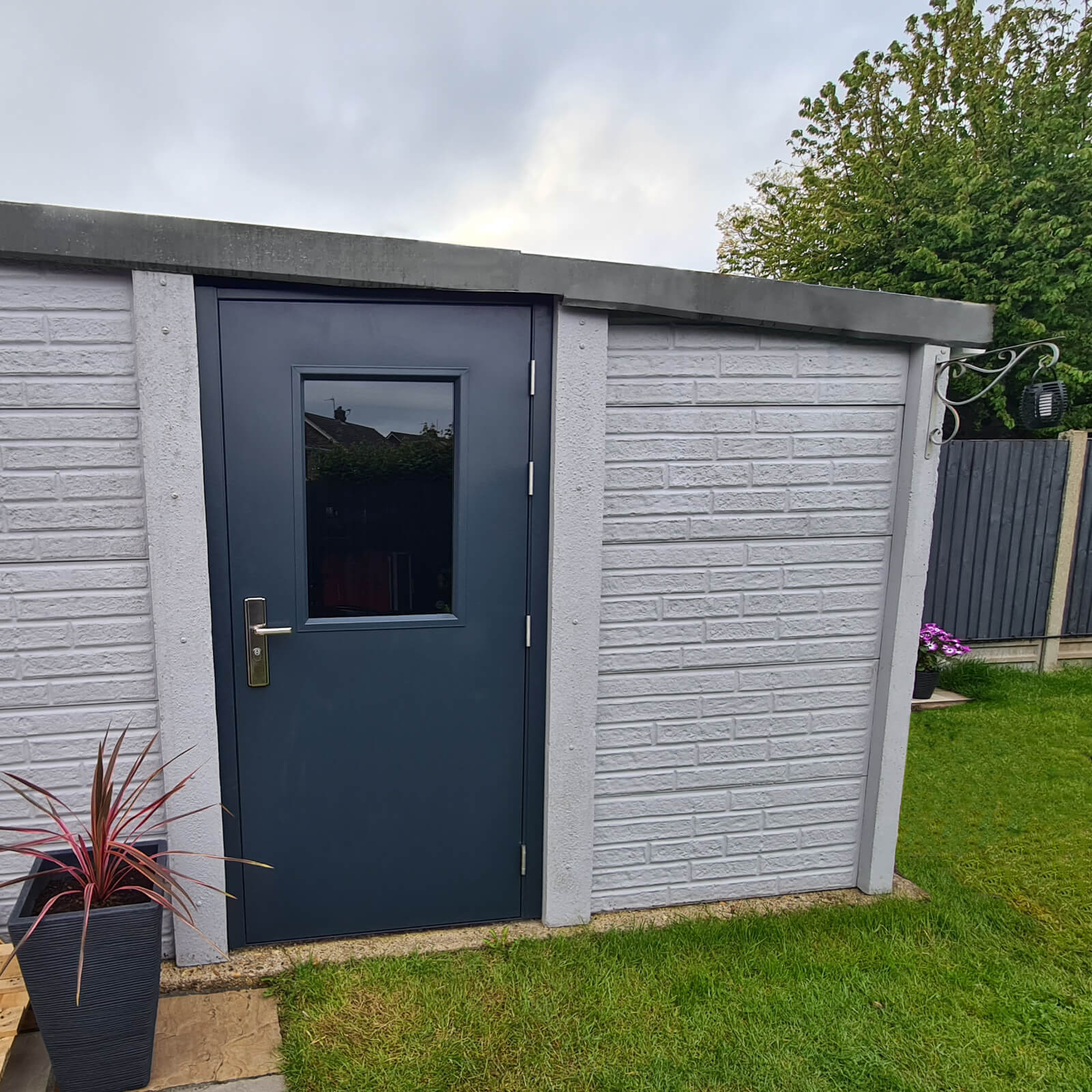

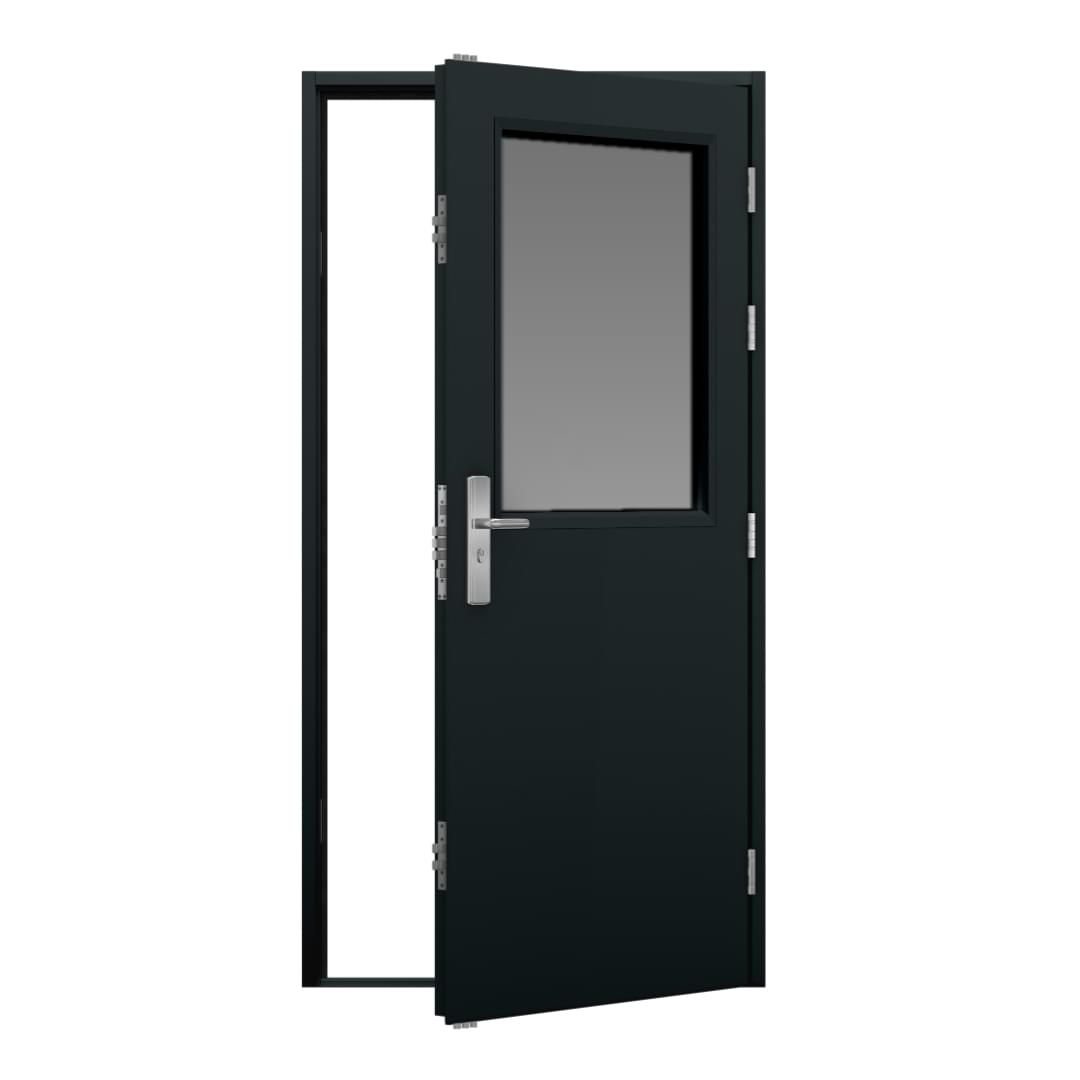

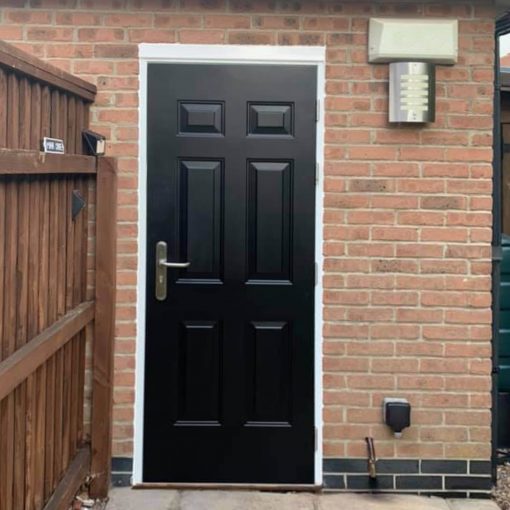

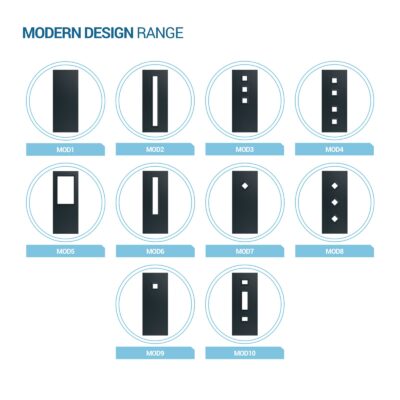

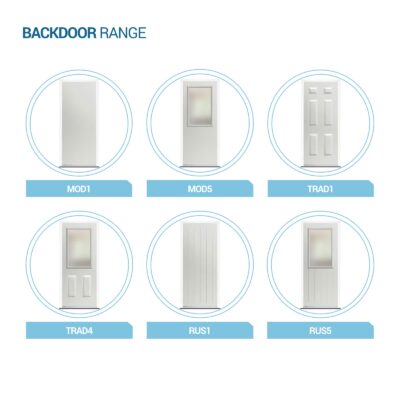

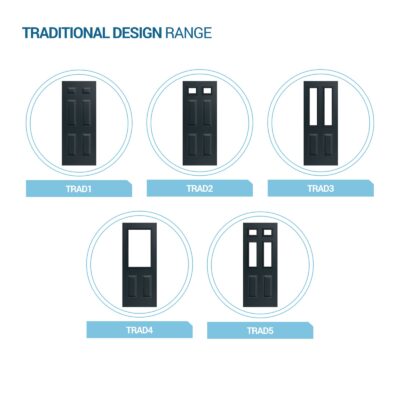

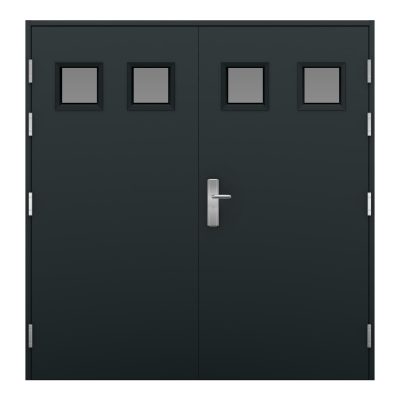

Our garage personnel door is available in both Flush and Panelled design and can be personalised to include glazing panels in various configurations.

Need it in a Hurry?

All of our stock doors are available for next day delivery with a dedicated courier or can be collected from our West Midlands site.

Specification

Door Type

Personnel Door

Available Sizes (mm)

695×2020, 795 x 2020, 845×2020, 895×2020, 995×2020, 1095×2020, 1195×2020

Finish

White powder coat from stock, choice of colours available

Door Frame Material

1.8mm Galvanised Steel

Door Frame Depth

90mm

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

50mm

Door Leaf Core

Rockwool filling

Internal Strengthening

2 x horizontal & 1 x vertical reinforced bar

U Value

2.20

Acoustic Value

35dB

Hinges

4 Stainless steel ball bearing hinges

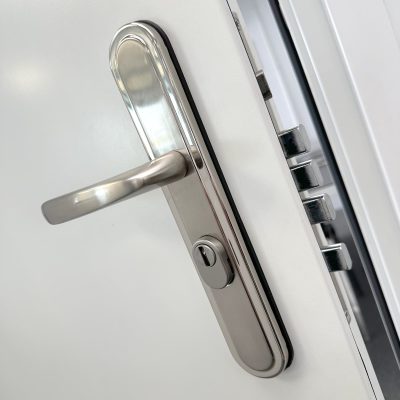

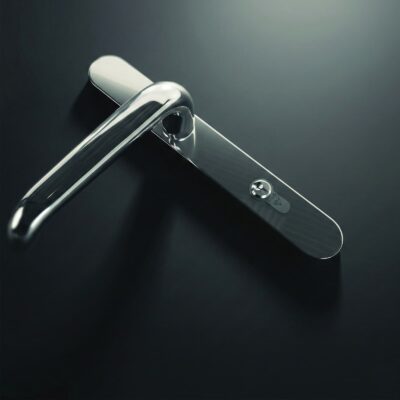

Handles

Hooply handles (5586)

Cylinder

UAP Tradelock Euro Cylinder, security upgrade available

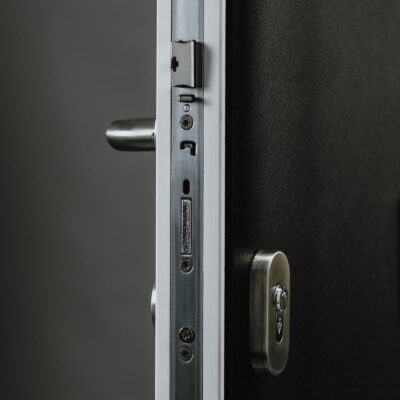

Locks or Door Furniture

Latham's trademark 19 point locking system

Seal

Nylon self adhesive V-seal

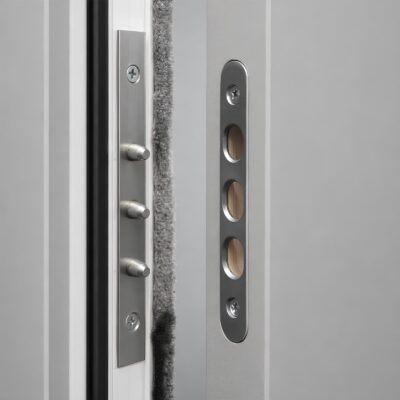

Dog Bolts

4 Dog bolts

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top

Construction

Fully welded construction

Security Type

Standard

CE Certification

Yes

Security Certification

None

Fire Rating Certification

None

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external and internal use

Example Door Purposes

security garage side door, garage side entry door, garage personnel door

Videos

FAQs

How do I choose the hinge side and opening? (Handing)

Hinge side and opening is determined viewed from outside.
Example 1: LH hinge open out: hinges are on the LH side, handle is on the right and you pull the door towards you.
Example 2: RH hinge open in: hinges are on the RH side, handle is on the left and you push the door away from you.
See our handy illustration here

What is the lead time?

Stock Door (white, no modifications) – in stock – 0 days
Stock Door (white, modified e.g. installed accessories, vision panel e.t.c) – 4 working days
Re-Powder Coated Stock Door, with or without accessories installed (not white) – 10 working days
Fast track options are also available

How many keys come with the door?

Personnel doors come with 5 usable keys. Upgraded cylinders come with 3 keys.
Additional keys are available – we have a key cutting machine on-site
See our free issue ABC cylinder explanation video here
See our cylinder options video here

How much do the steel doors weigh?

Budget doors weigh on average 40kg*
Security doors weigh on average 85kg*
High Security (Ultra) doors weigh on average 100kg*
Double doors weigh on average 110kg*
*size dependant

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.
We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door
To calculate the clear opening (when the door is open), subtract 135mm from the width dimension. E.G. 895mm-135mm=760mm clear opening
See the video on how to measure here

What is Security Trim?

The security trim kit fits around the perimeter of the door frame, preventing any packing from being seen externally and making the door as a whole more secure.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
See the security trim video here

To see all FAQs, click here

Downloads

Brochure

Download the brochure for our Garage Side Door - Budget

Brochure

Download the brochure for our Garage Side Door - Security

Brochure

Download the brochure for our Garage Side Door - High Security

Fitting Instruction

Download the fitting instructions for our doors

Operation & Maintenance Manual

Download the operation & maintenance manual for our doors

CAD Drawing (PDF)

Download the CAD drawing for our Garage Side Door (Budget) in PDF

CAD Drawing (PDF)

Download the CAD drawing for our Garage Side Door (Security) in PDF

CAD Drawing (PDF)

Download the CAD drawing for our Garage Side Door (High Security) in PDF

CAD Drawing (DWG)

Download the CAD drawing for our Garage Side Door (Budget) in DWG

CAD Drawing (DWG)

Download the CAD drawing for our Garage Side Door (Security) in DWG

CAD Drawing (DWG)

Download the CAD drawing for our Garage Side Door (High Security) in DWG
