Steel Louvred Wall Panel

From: £350.00 +VAT (£420.00 inc. VAT)

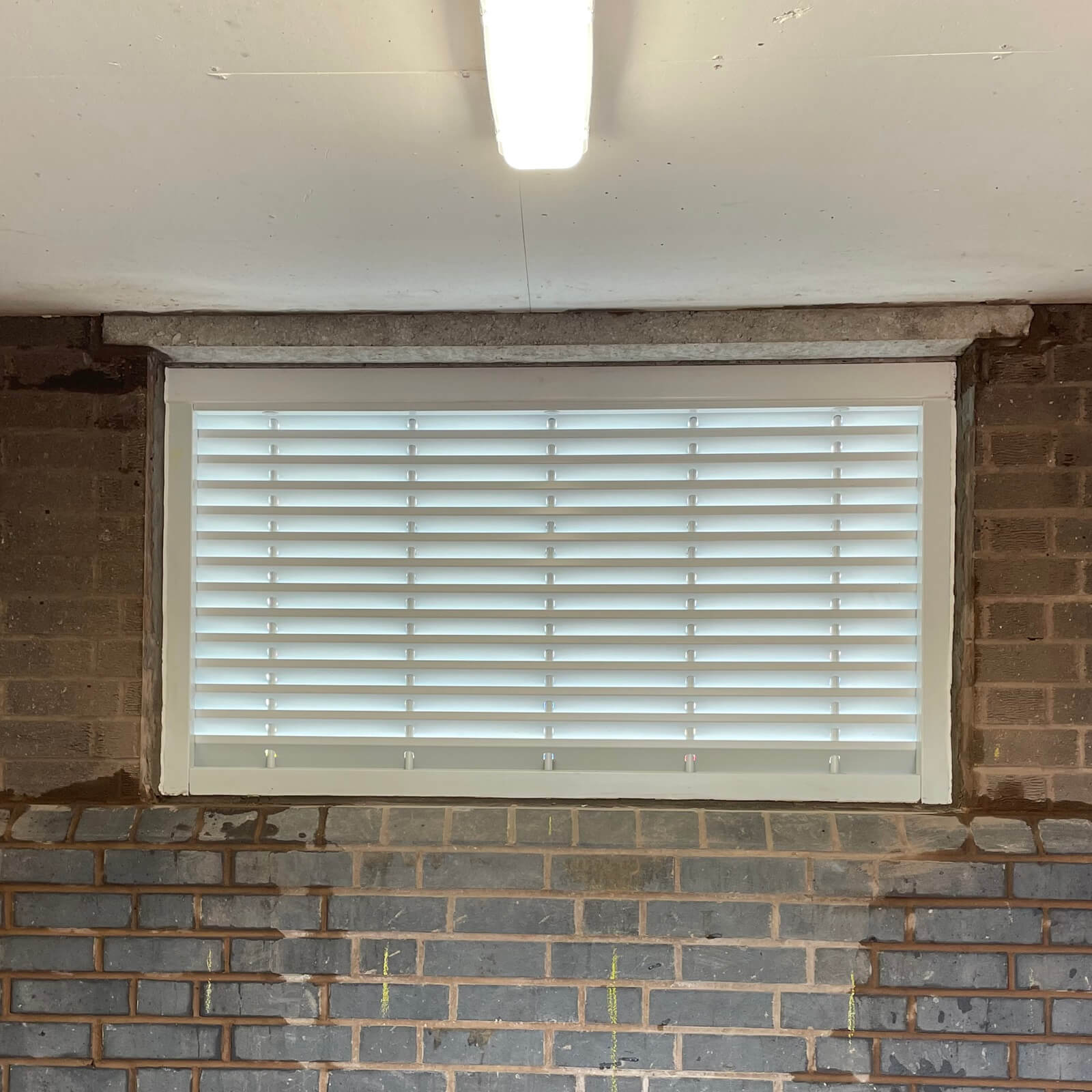

Fully louvred steel wall panels, designed to fix straight into wall openings, to the side or on top of our fully louvred steel doors. Traditionally installed in UKPN substations.

Designed with 16mm solid steel bars running vertically through the louvre blades, they are manufactured with both optimal ventilation and security in mind.

PLEASE NOTE: Louvre blade size, spacing and pitch is larger than our other louvred side and top panel products. It is designed to match the fully louvred door for substations.

Compare Product

Lead Times
Standard: 10 working days + delivery
Fast track options: Contact us for availability

SKU: CONTAINER-LOUVRE-PANEL-1 Category:

Fully Louvred Wall Panel Sizes:

  • Max Width: 2195mm*
  • Max Height: 2195mm*

*Fully Louvred doors also available, compatible in our modular design.

Specification:

  • Louvre blades and subframe constructed from a minimum of 1.5mm galvanised steel
  • 16mm solid steel bars running through the blades for security
  • Frame constructed from a minimum of 1.5mm galvanised steel
  • Powder coat finish to standard RAL & BS colour
  • None stock RAL & BS colours available on request

Louvres are complete with frame.

Height (mm)

Custom

Width (mm)

Custom

Steel Gauge

1.5mm galvanised steel
