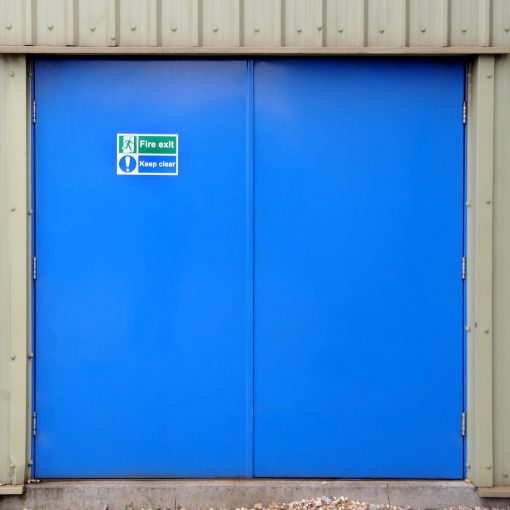

Made to Measure Fire Rated Double Fire Exit Door

From £2,052.00 inc. VAT

Our made to measure fire rated fire exit double doors are fully compliant and offer a maximum of 2 hours of fire safety, covering any FD30, FD60 & FD120 requirements. They are CE marked and suitable for external use.

By default, we supply fire exit doors without external access. You can specify an OAD (outside access device) to use this door as an entrance, as well as a fire escape. Also, in accordance with fire protection regulations, 2 x door closers are pre-installed to the push side of the doors.

This is a fully certified, bespoke door manufactured to order. Please check your requirements; we also have stock fire exit doors available.

If you require a door which isn’t covered by our options we can tailor a quote to your specific requirements.

Size, Orientation & Colour

  • Min: 1300Max: 2279

  • Min: 1780Max: 2500

  • more info icon More info

  • more info icon More info

Door Hardware

  • more info icon More info

  • more info icon More info

Vision & Louvre Panels

PLEASE NOTE: LOUVRES REDUCE THE FIRE RATING TO 2 HOURS (FD120)

  • more info icon More info

  • more info icon More info

  • more info icon More info

  • more info icon More info

Trustpilot

Lead Times
Standard lead time for a made to measure door is typically 15 days from return of signed-off drawings

SKU: M2M-FR-DDFE Categories: ,

Leaf & Half Doors:
• Max Width: 1800mm
• Max Height: 2880mm
Double Doors:
• Max Width: 2455mm
• Max Height: 2880mm

Specification:
• Fire resistant up to 2 hours. (Certificate supplied with doorset).
– FD30: 30 minute fire rated
– FD60: 1 hour fire rated
– FD120: 2 hour fire rated
• Tested to standard BS EN 16034 & BS EN 14351-1
• Door leaf constructed from a minimum of 1.2mm zinc plated steel
• Frame constructed from a minimum of 1.5mm zinc plated steel
• Dufaylite core used for its high impact measures and thermal resistance
• High quality draught and fire seals all around
• Fire door integral anti jemmy bar lip
• DDA compliant fire door threshold
• Single fire exit bar with up/down shoot bolts
• A minimum of 4 stainless steel hinges (BS 1935.2002 Grade 13)
• High quality powder coat finish to standard RAL & BS colour.

Optional Extras:
• External locking knobset or handle
• Vision Panels – can’t exceed >0.465 m2/per leaf
• Louvre Panels – can’t exceed >0.465 m2/per leaf
• Door closers and door stays
• Kick plates and push plates
• None stock RAL & BS colours available on request

Doors are complete with frame.

PLEASE NOTE: Fire rating may vary depending on the selected specification. Standard specifications are typically FD240, but adding certain accessories may reduce the fire rating to 60 minutes. Contact us for more information if required.
