Fire Exit Door

From £199.99 + VAT (£239.99 inc. VAT)

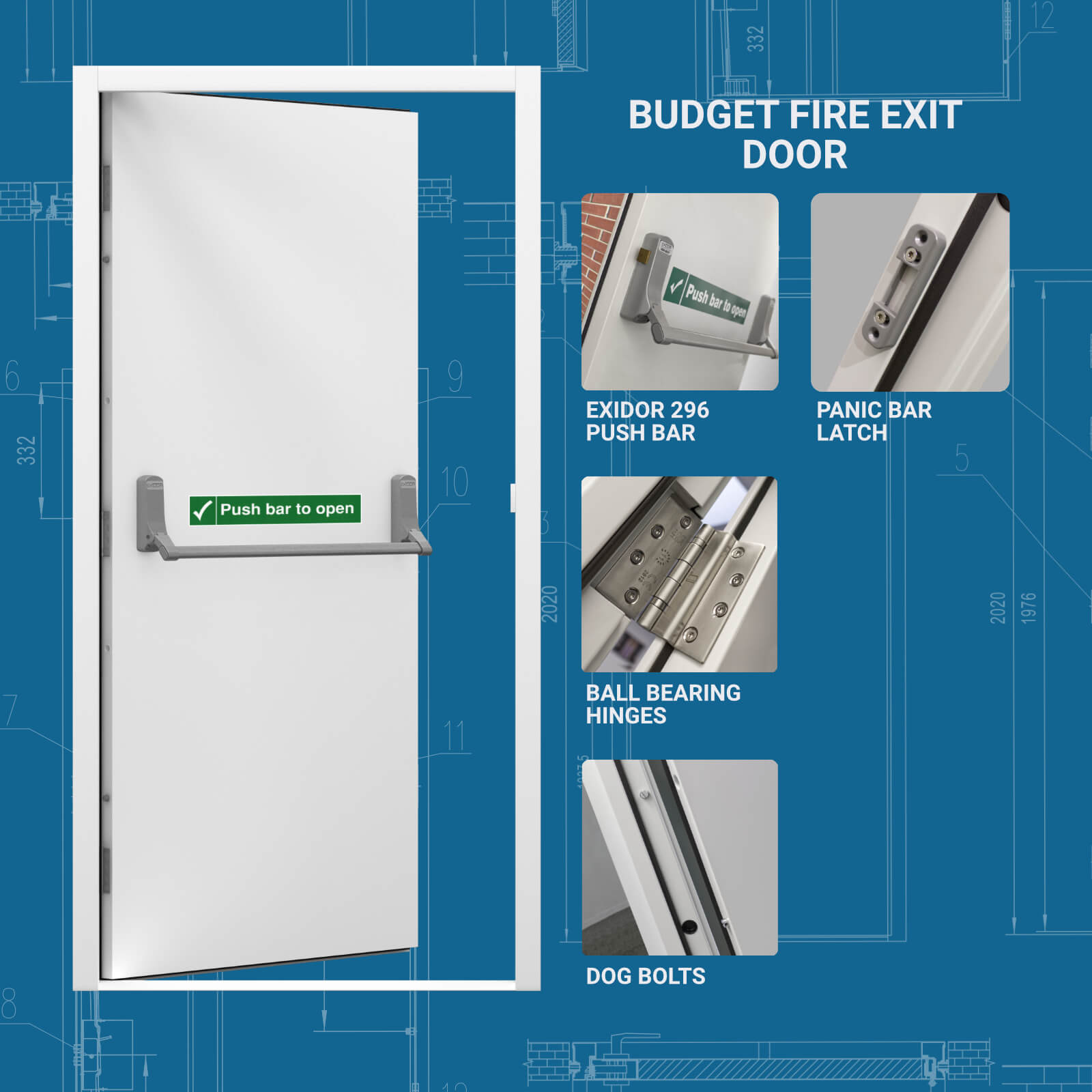

Our Standard Duty Fire Exit Door is a great budget option when looking to satisfy fire regs and building control. It comes fitted with an Exidor 296 single point panic push bar.

For applications also needing a level of security, see our Security Fire Exit Door which comes in a larger range of sizes (from 695-1145mm wide) and a more secure Exidor 294 adjustable 2 point panic security push bar.

DOWNLOAD BROCHURE

Compare Product
Category: Tags: , GTIN: 5060479951024

Description

Heavy duty white textured polyester powder coated finish from stock (RAL 9003)

We also offer a powder coating service to change the colour of your fire exit door and frame.

Fully welded construction for optimum strength

Fire Exit Door Frame: 1.2mm galvanised steel.

Fire Exit Door Leaf: Double skinned 0.6mm galvanised steel, 50mm in depth.

Door Leaf Core: Honeycomb core, used for its high impact properties.

3 Stainless steel heavy duty lift-off hinges BS EN 1935:2002

4 Dog bolts (fixed locking points) on hinge side of steel door leaf.

Exidor Panic Hardware

Exidor 296 single point push bar

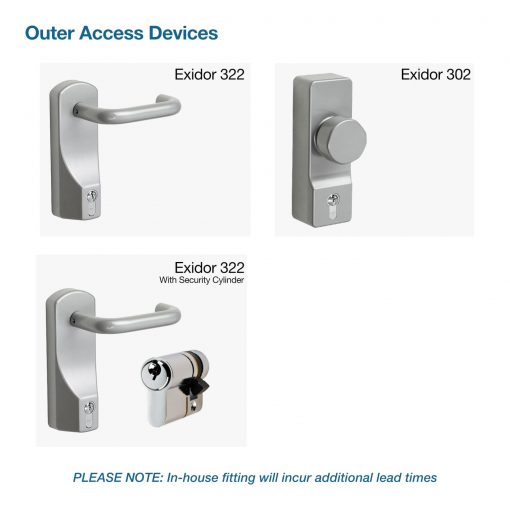

Exidor OADs (outer access devices) available from stock for external access

Weather & draught proof seals fitted as standard

Our fire exit doors are fully weather proof and can be used externally.

DDA compliant threshold

Disability Discrimination Act specifies a level threshold with a maximum upstand of 15mm with chamfered edges.

Anti jemmy bar lip integrated into the door & frame, including the hinge side

Additional information

Door Type

Fire Exit

Available Sizes (mm)

845×2020, 895×2020, 995×2020

Finish

White powder coat from stock, choice of colours available

Design

Plain door with flush panel

Door Frame Material

1.2mm Galvanised steel

Door Frame Depth

93mm

Door Leaf Material

Double skinned 0.6mm galvanised steel

Door Leaf Depth

50mm

Door Leaf Core

Honeycomb core

U Value

3.46

Acoustic Value

26dB

Hinges

3 Stainless steel lift-off hinges

Handles

Exidor OAD (outer access devices) available

Locks or Door Furniture

Exidor 296 single point push bar

Seal

Weather / draught proof seals

Dog Bolts

4 Dog bolts

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top

Construction

Fully welded construction

Security Type

Standard

CE Certification

Yes

Security Certification

None

Fire Rating Certification

None

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external use

Example Door Purposes

Emergency exit, factory panic escape door, interior fire exit door, low security fire exit door, commercial exit door, warehouse, public area fire escape, retail panic escape

Videos

Brochure

Download

Download the brochure for our Standard Duty Fire Exit door

Fitting Instructions

Download

Download the fitting instructions for our doors

CAD Drawing (PDF)

Download

Download the CAD drawing for our Standard Duty Door in PDF

CAD Drawing (DWG)

Download

Download the CAD drawing for our Standard Duty Door in DWG
