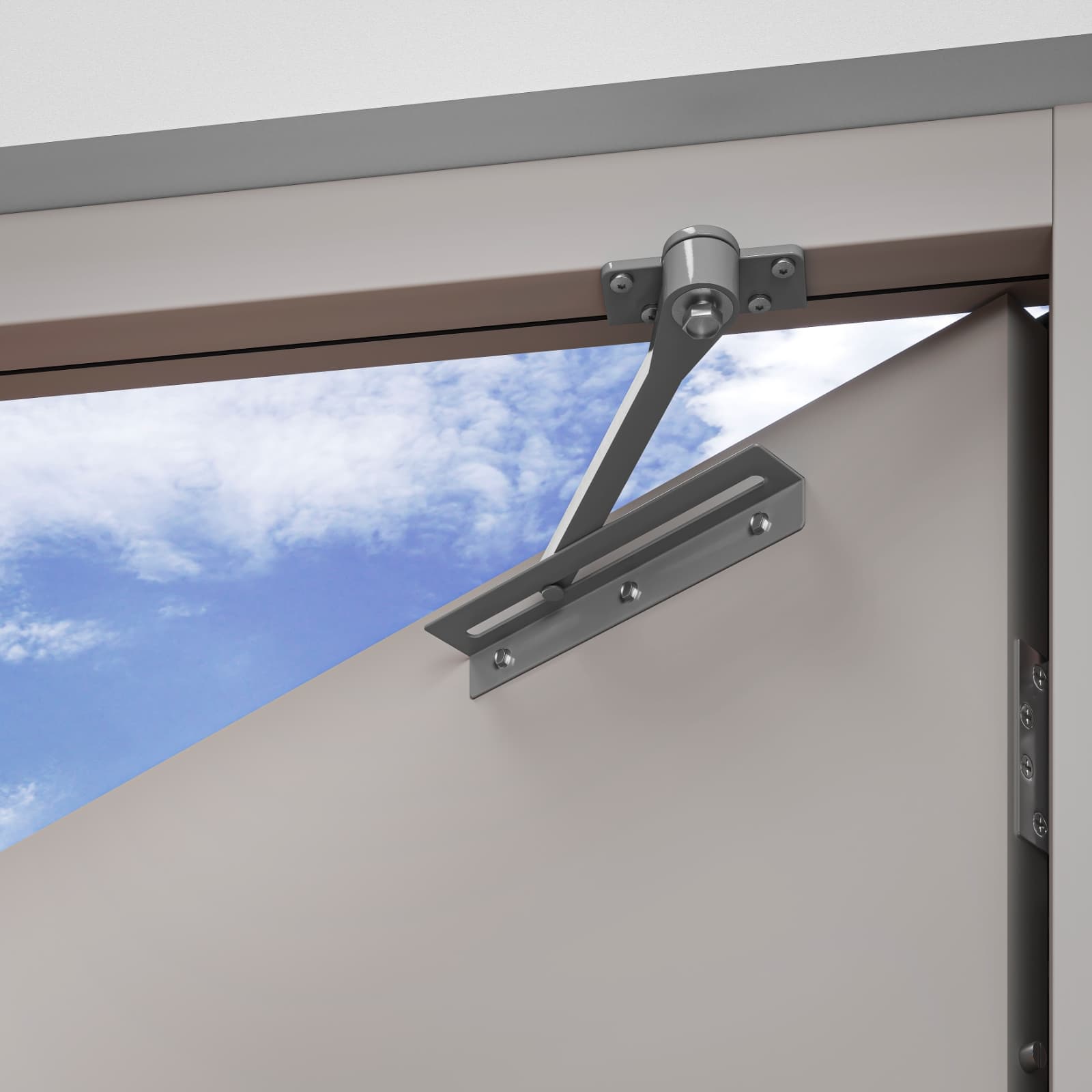

Friction Stay Accessory Part fitted

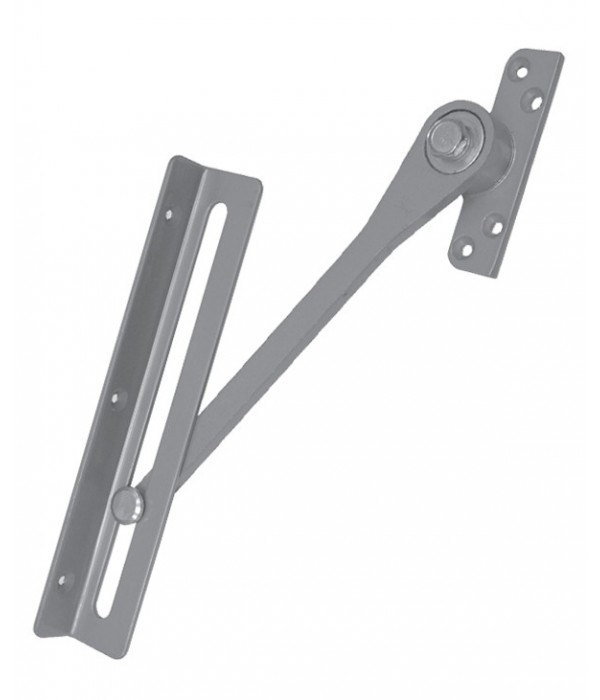

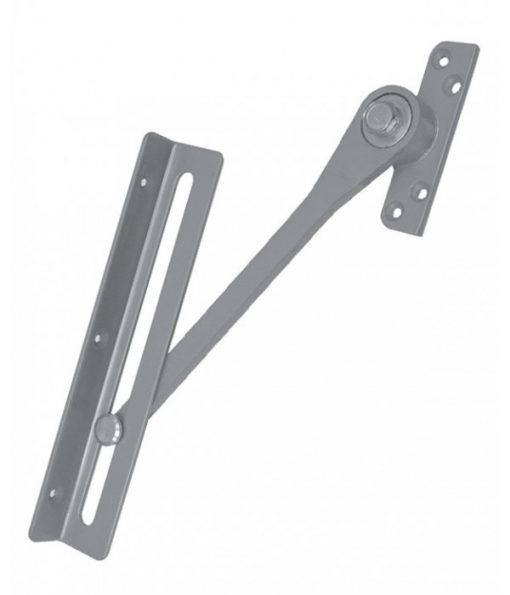

Friction Stay

From £36.00 inc. VAT (£30.00 + VAT)

• Manufactured from Iron Castings with steel angle plate Silver Powder Coated.

• Suitable Steel Outward Opening Doors.

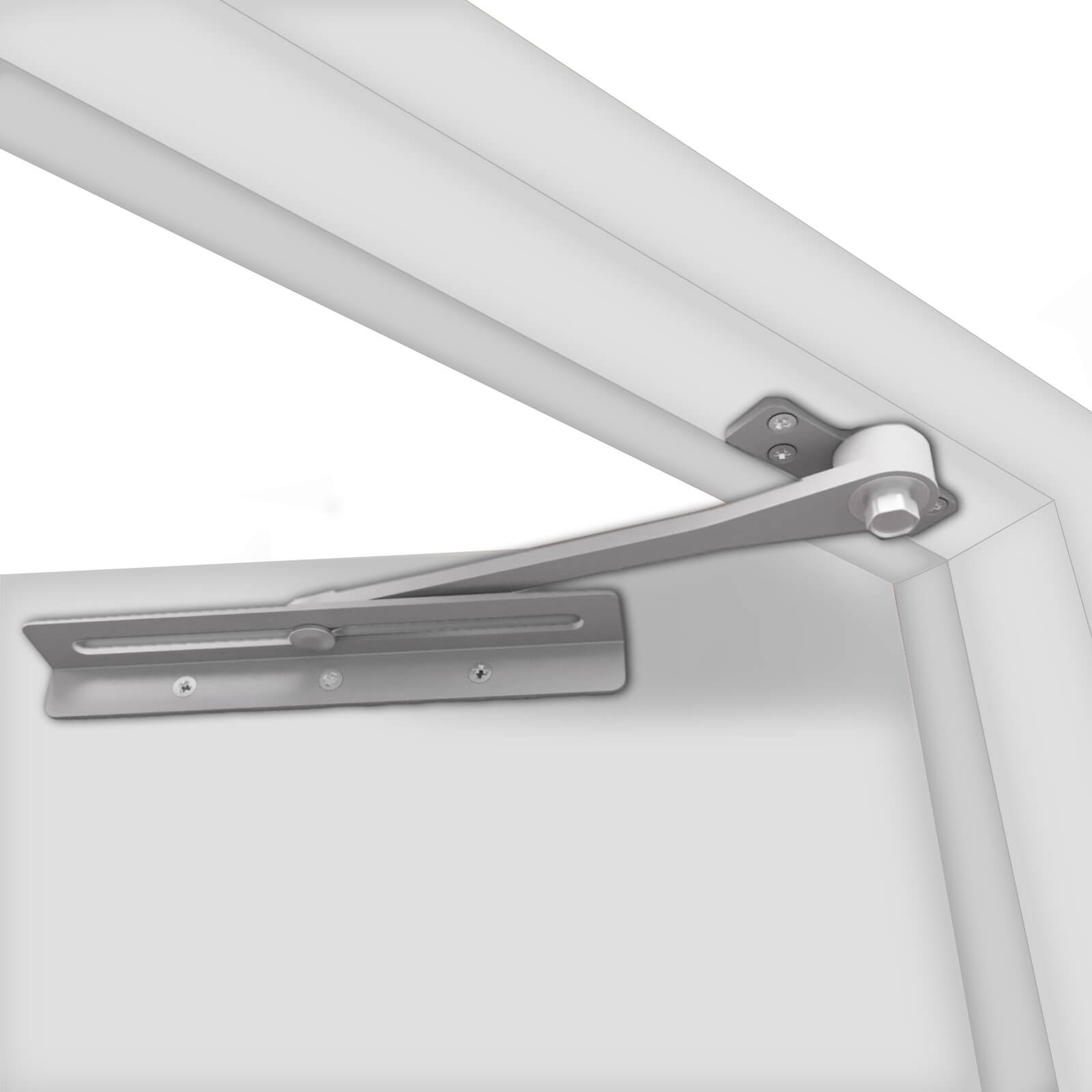

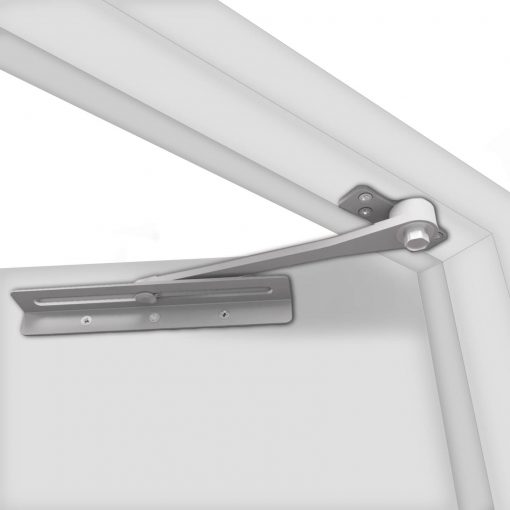

• Face Mounted Stay allows Door Opening to be Limited to around 90 degrees.

• Variable Friction Mechanism can be Adjusted by Rotating Hexagonal Bolt.

• Maximum door leaf weight: 100kg

• See video below for demonstration and installation.



SKU: STAY-FR Category:
Weight 2.5 kg
Materials

Mild Steel

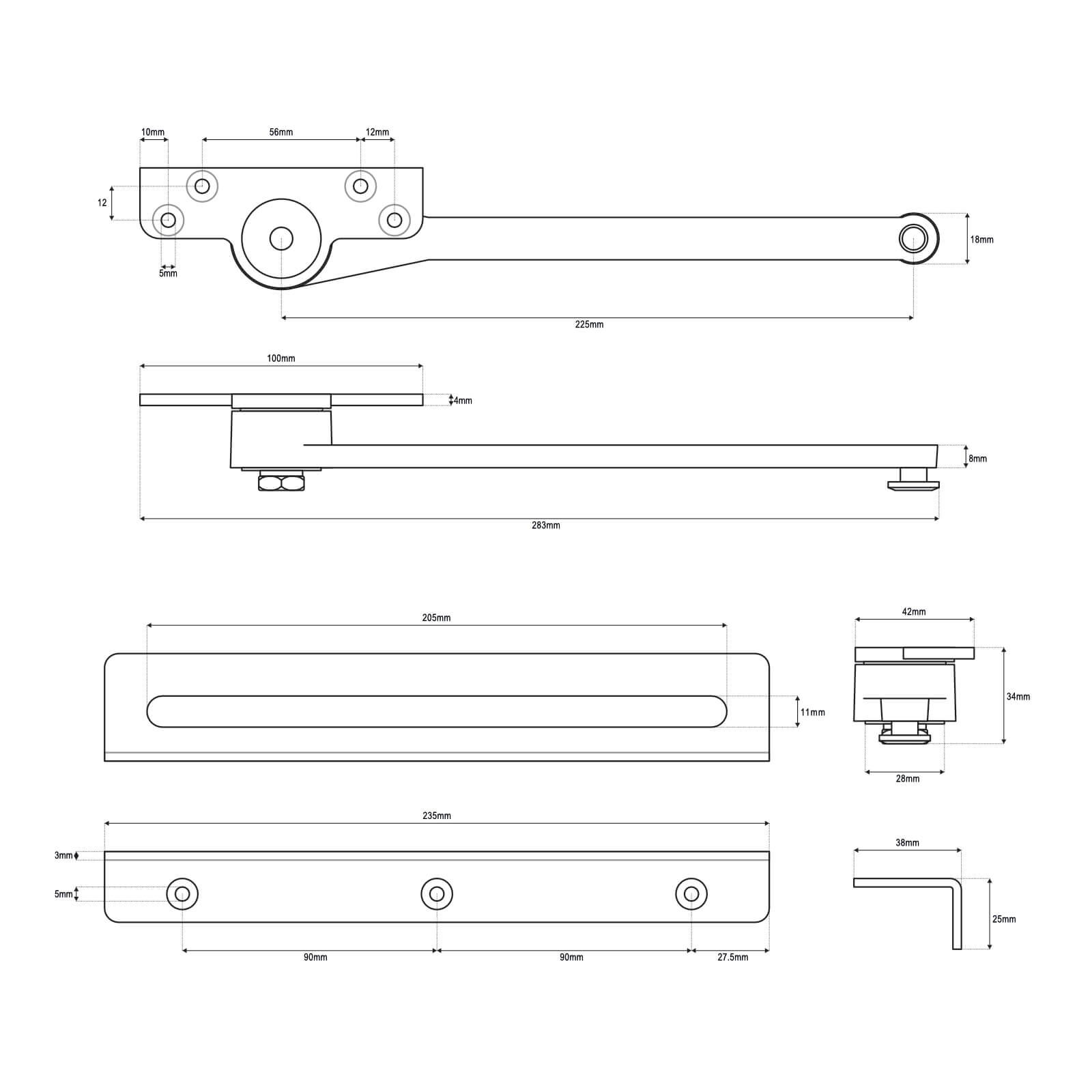

Dimensions

229mm from the centre of the arm

Opening

approximately 90 degrees

Finish

Silver

Testing

BS EN 1670:2007 Building hardware – Corrosion resistance
