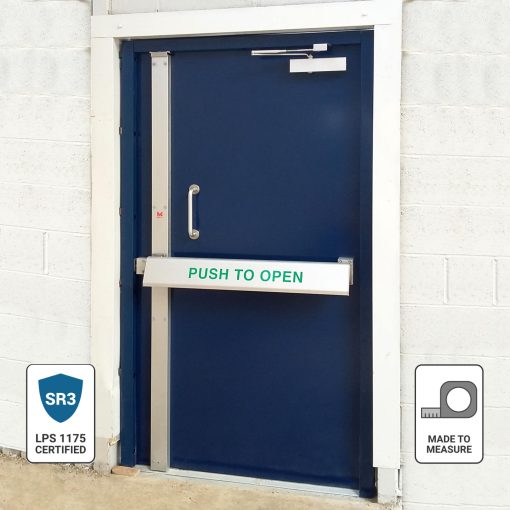

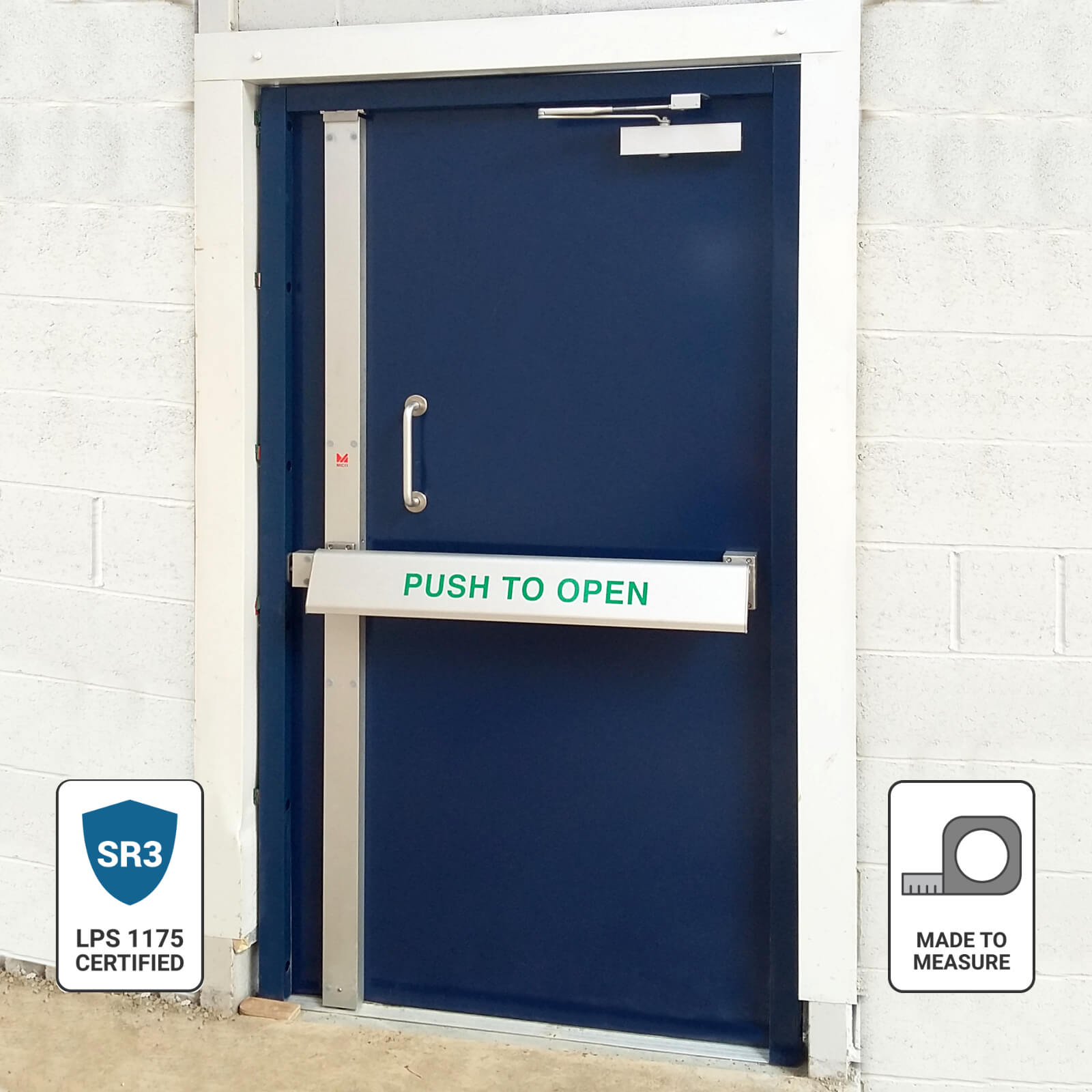

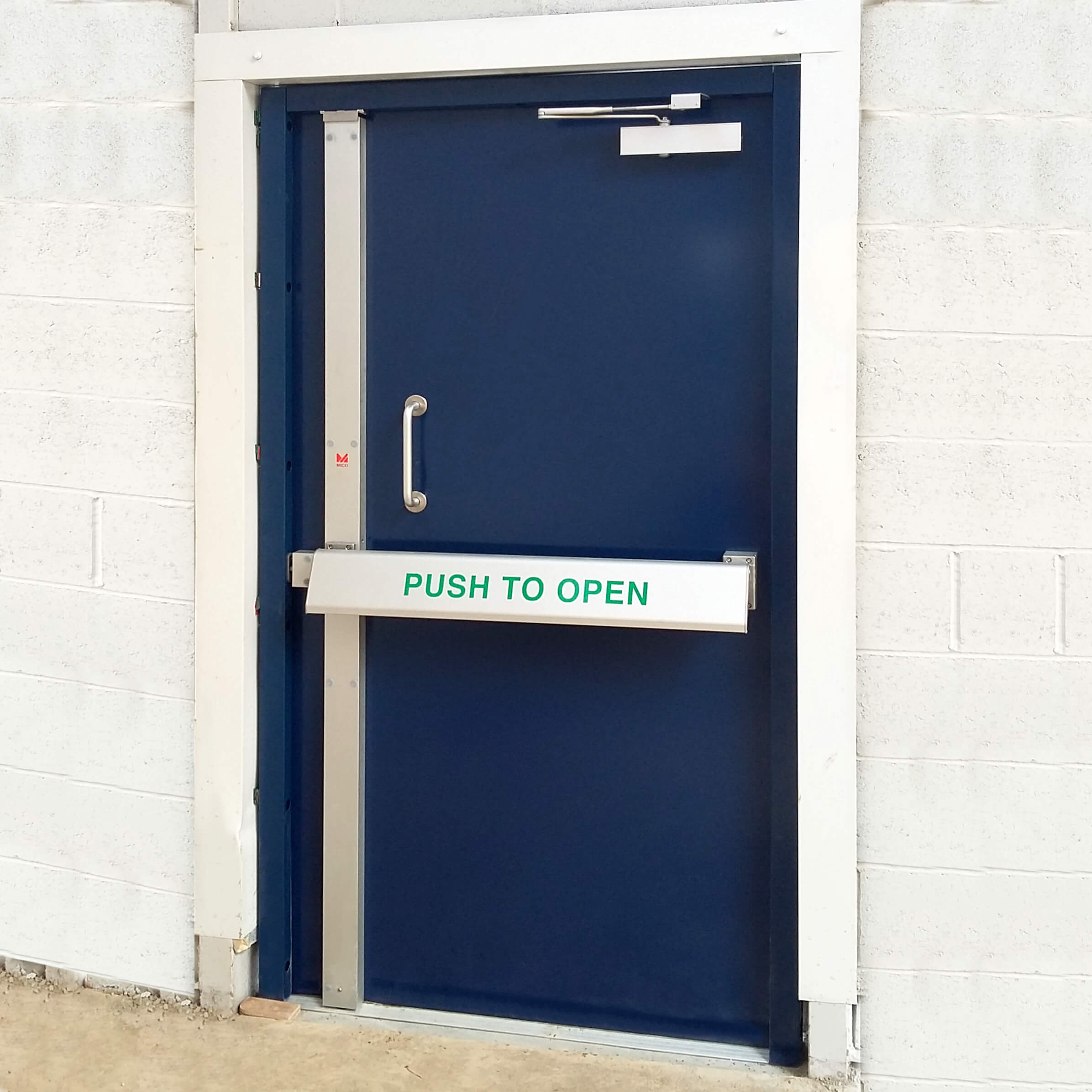

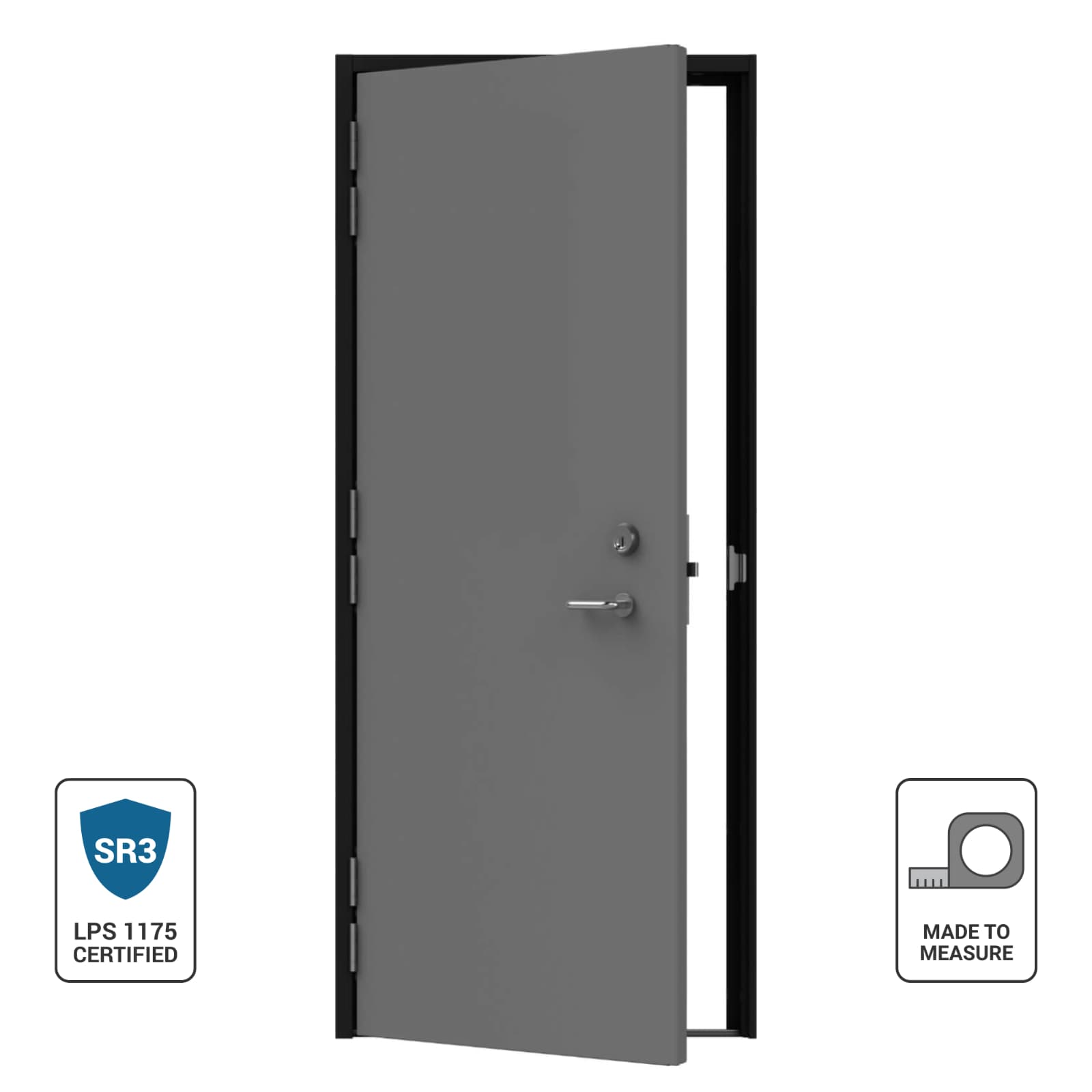

Certified to LPS 1175: Issue 7 Security Rating 3, these doorsets provide defence against opportunist attacks. Equivalent to EN1627 RC4-5 (no glass). To achieve SR3 accreditation, doors testing replicates a deliberate forced entry using a wide selection of attack options, including a gas torch, scissor jack, and a pad saw.

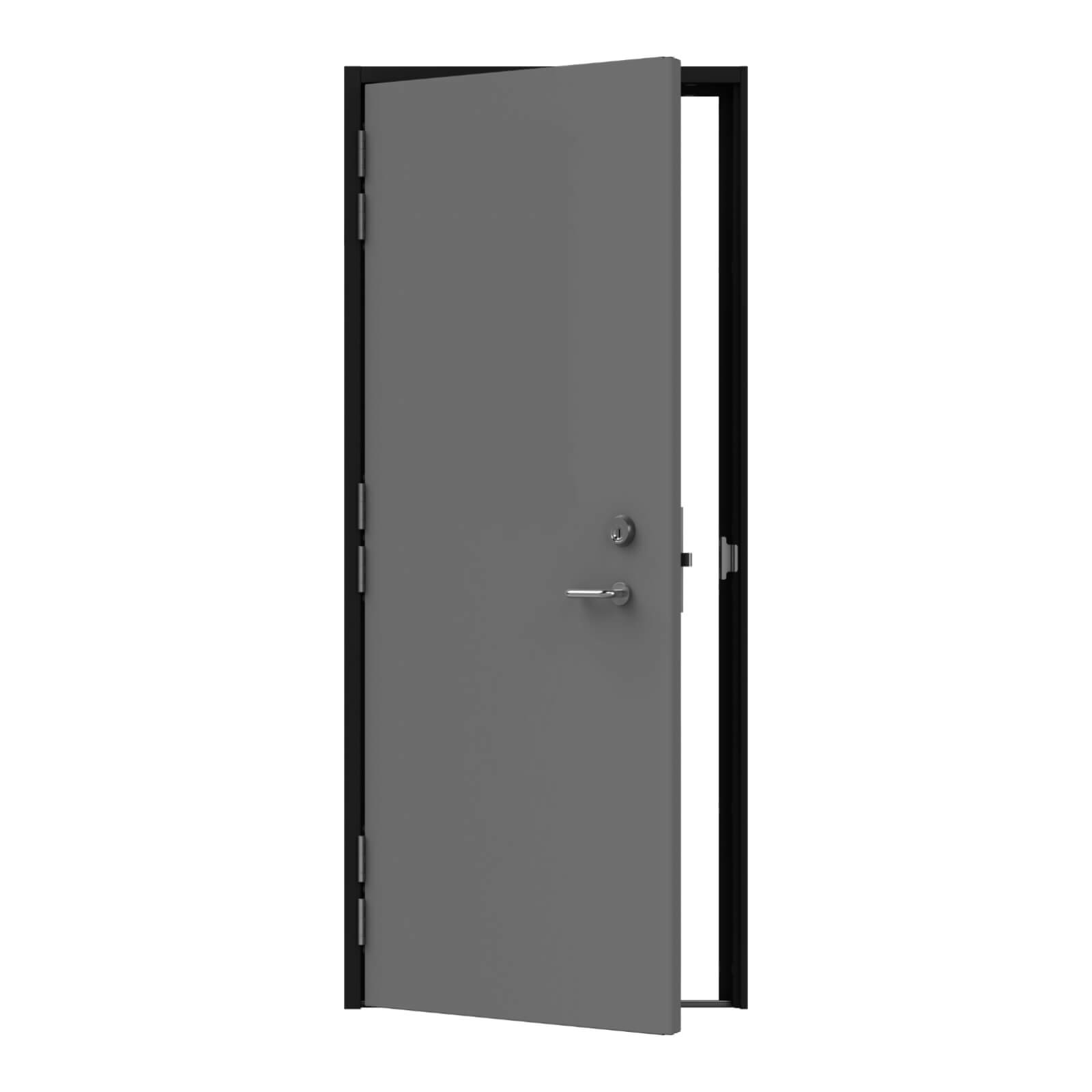

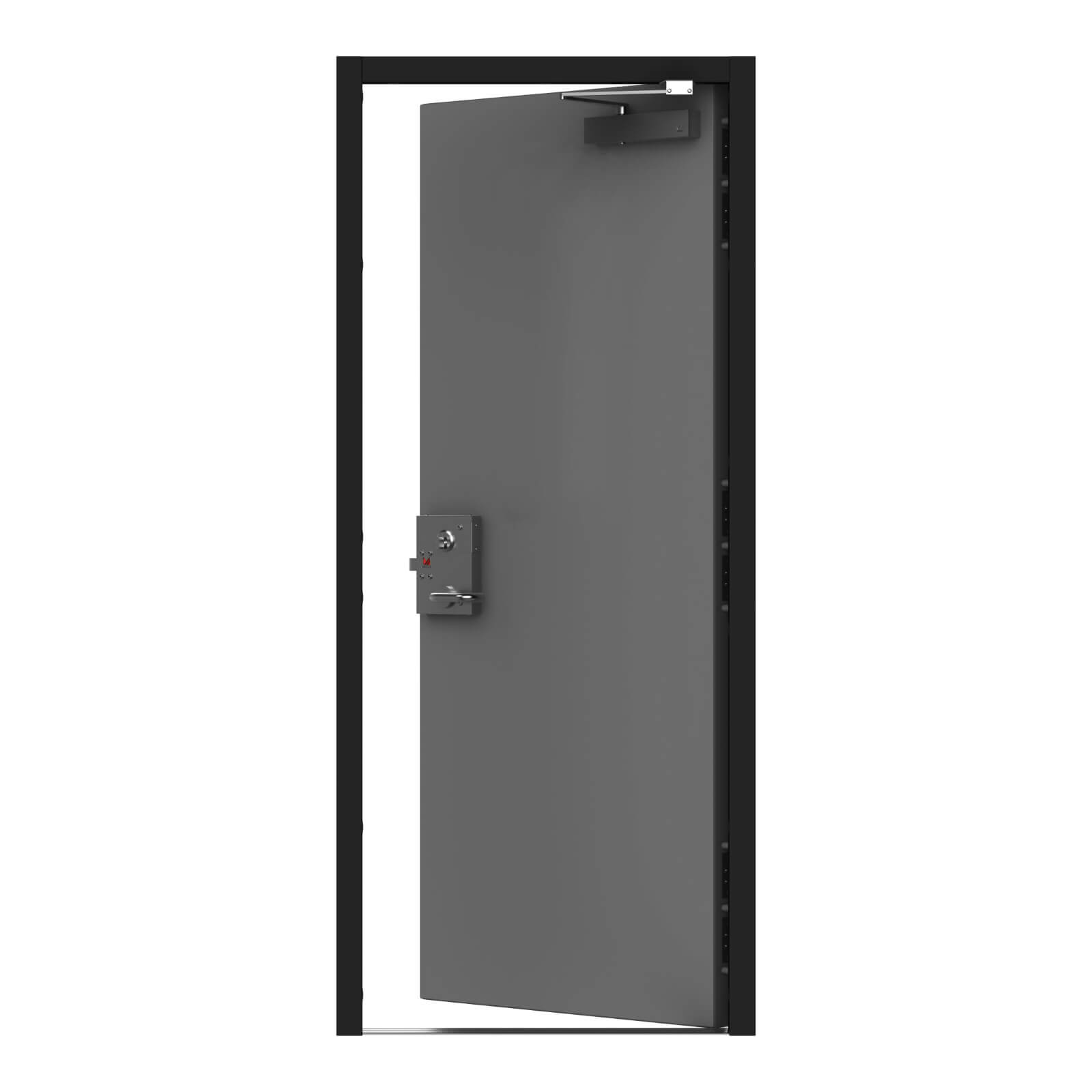

Single Doors:
- Max Width: 1420mm
- Max Height: 2930mm

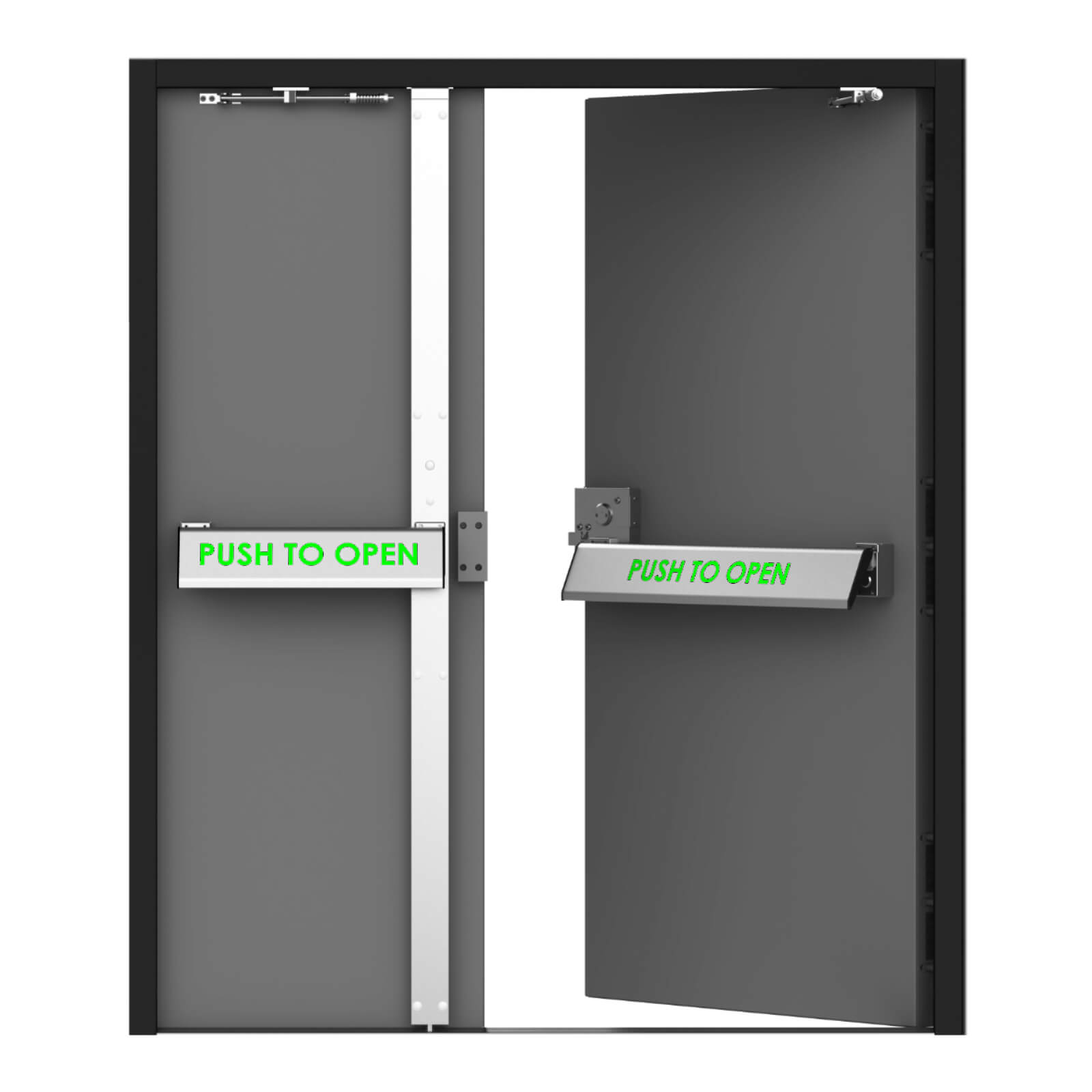

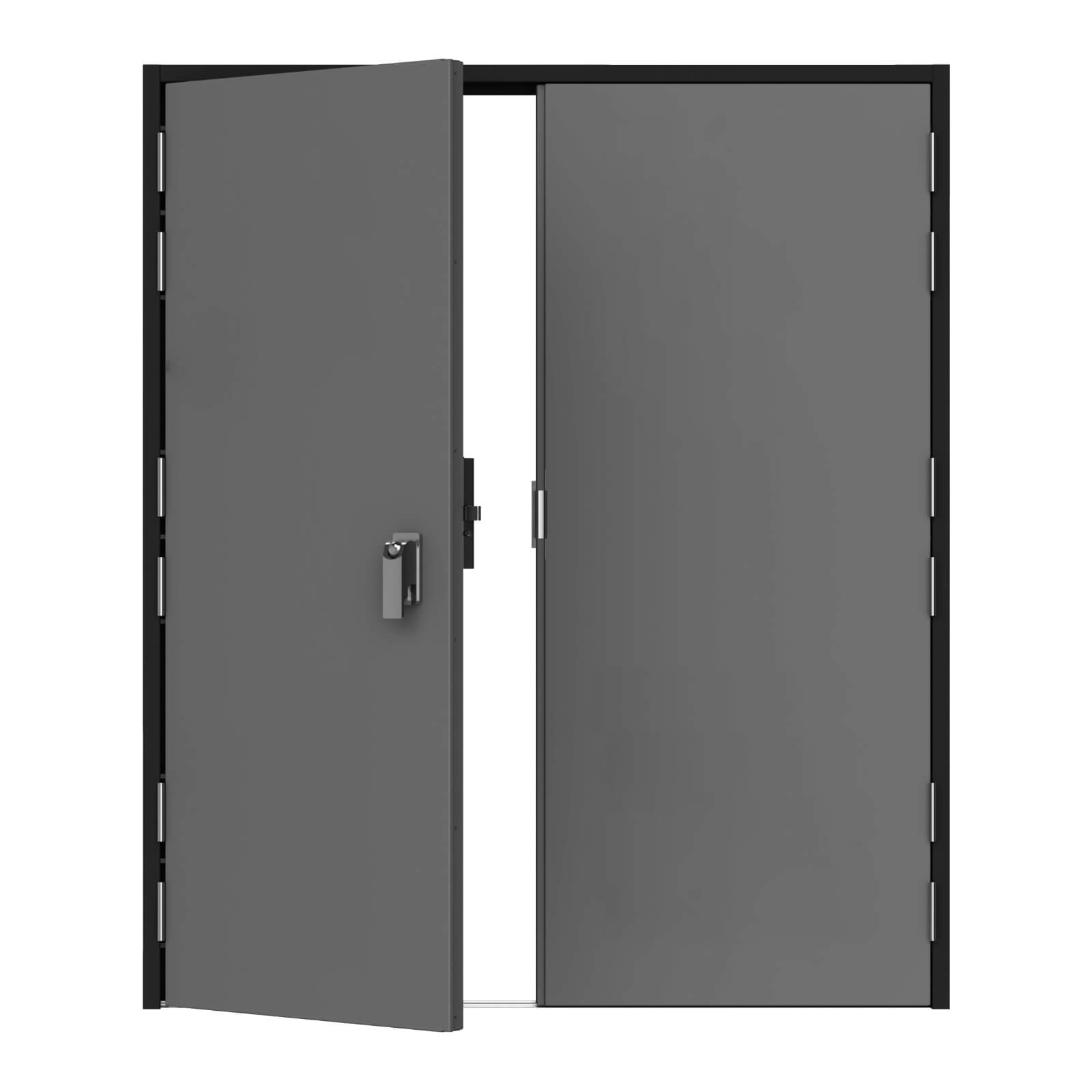

Double Doors:
- Max Width: 2600mm
- Max Height: 2930mm
Specification:
- Frame Profile – 110mm Deep (outward opening) 150mm deep (inward opening)
- Frame material – 2.0mm zintec, rustec or galvanised steel
- Threshold – Steel or aluminium options available.
- Leaf material – Outer skins zintec, rustec or galvanised steel
- Astragal – 10mm steel Astragal
- Reinforcing – Internal plating to suit locking requirement
- Hinges – 6 x hinges per leaf – Choice of 101mm lift off hinges or grade 13 butt hinges
- Dog Bolts – 9 x Dog bolts per leaf
- Honeycomb or mineral wool core
- High-quality draught seals
- Integral anti-jemmy bar lip to prevent against attack with a crowbar
- DDA compliant threshold
- High-quality powder coat finish to standard RAL & BS colour.
Hardware:
- Manual, Automatic and Electromechanical deadlocking options
- Panic escape hardware
- Access control system
- Heavy Duty Tower bolts on the passive leaf (double doors)
- Keys and cylinders can be registered to eliminate the chance of key copying
Customisation:
- Vision Panels (standard sizes 230 x 356, 203 x 762 or 457 x 457)

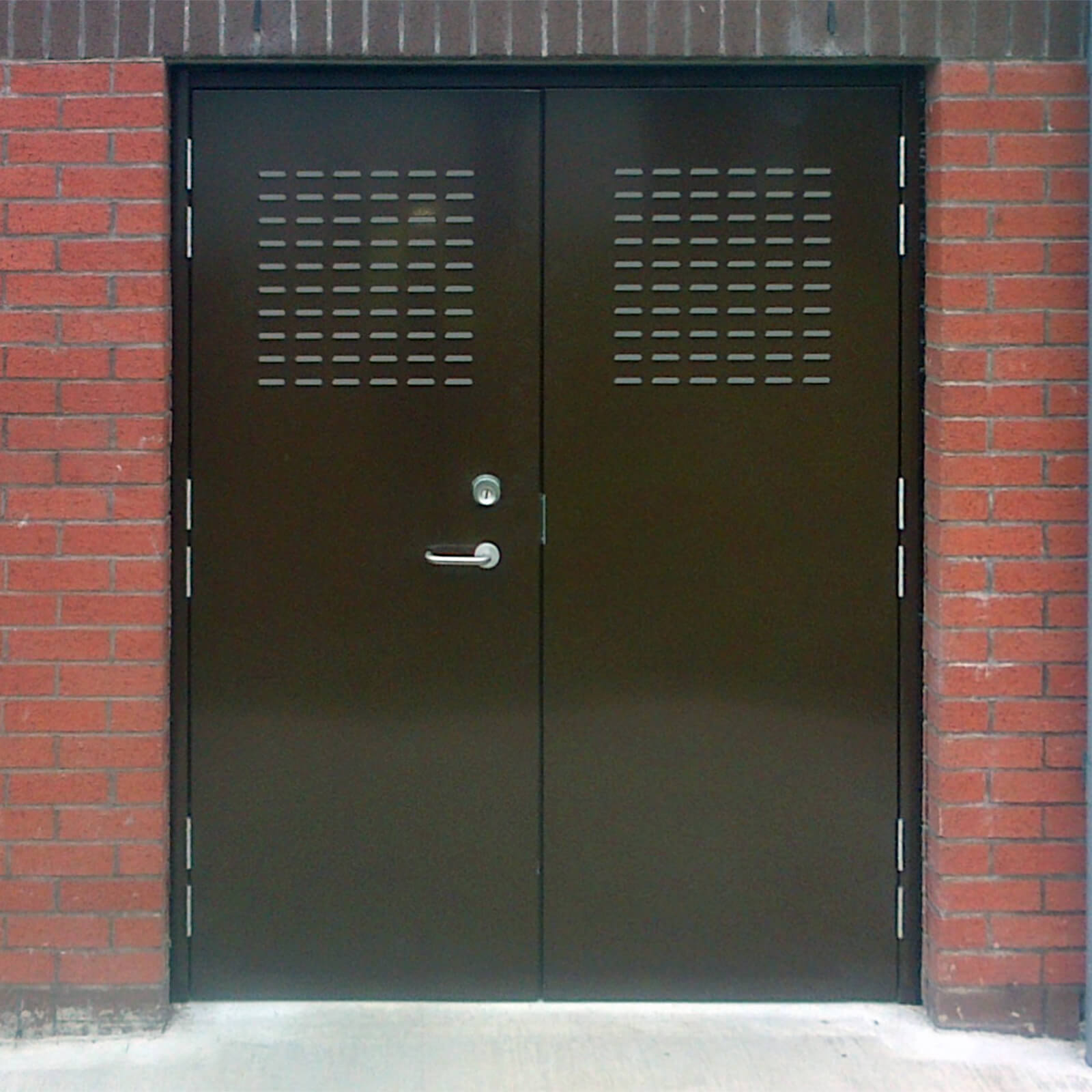

- Punched Louvres/ Bladed Louvre Cartridges
- Range of Stays and Closers. M100 and TS83 as standard.
- Fixed side and removable panels
- None stock RAL & BS colours available on request
Doors are complete with frame.
