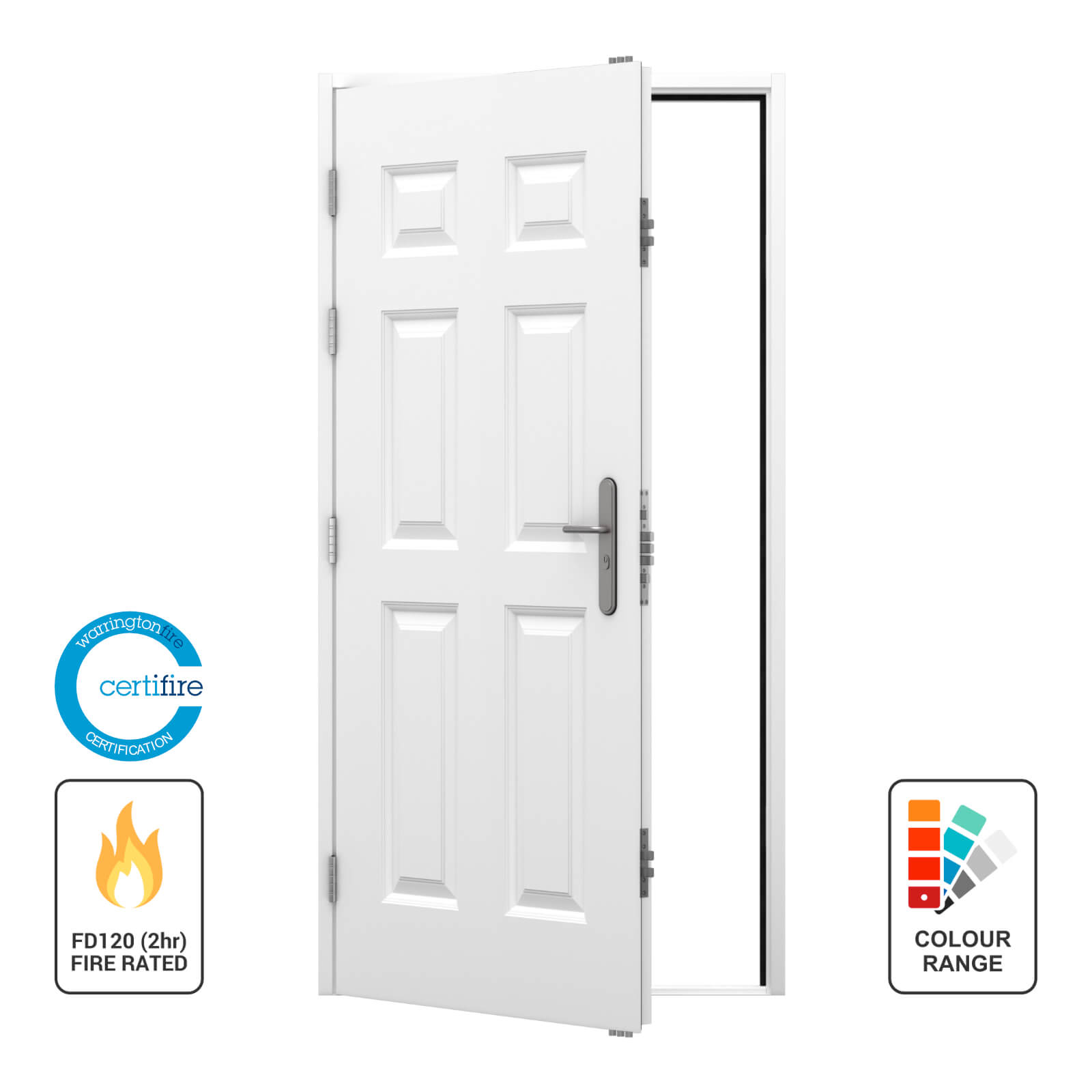

Left hinged opening out fire rated door

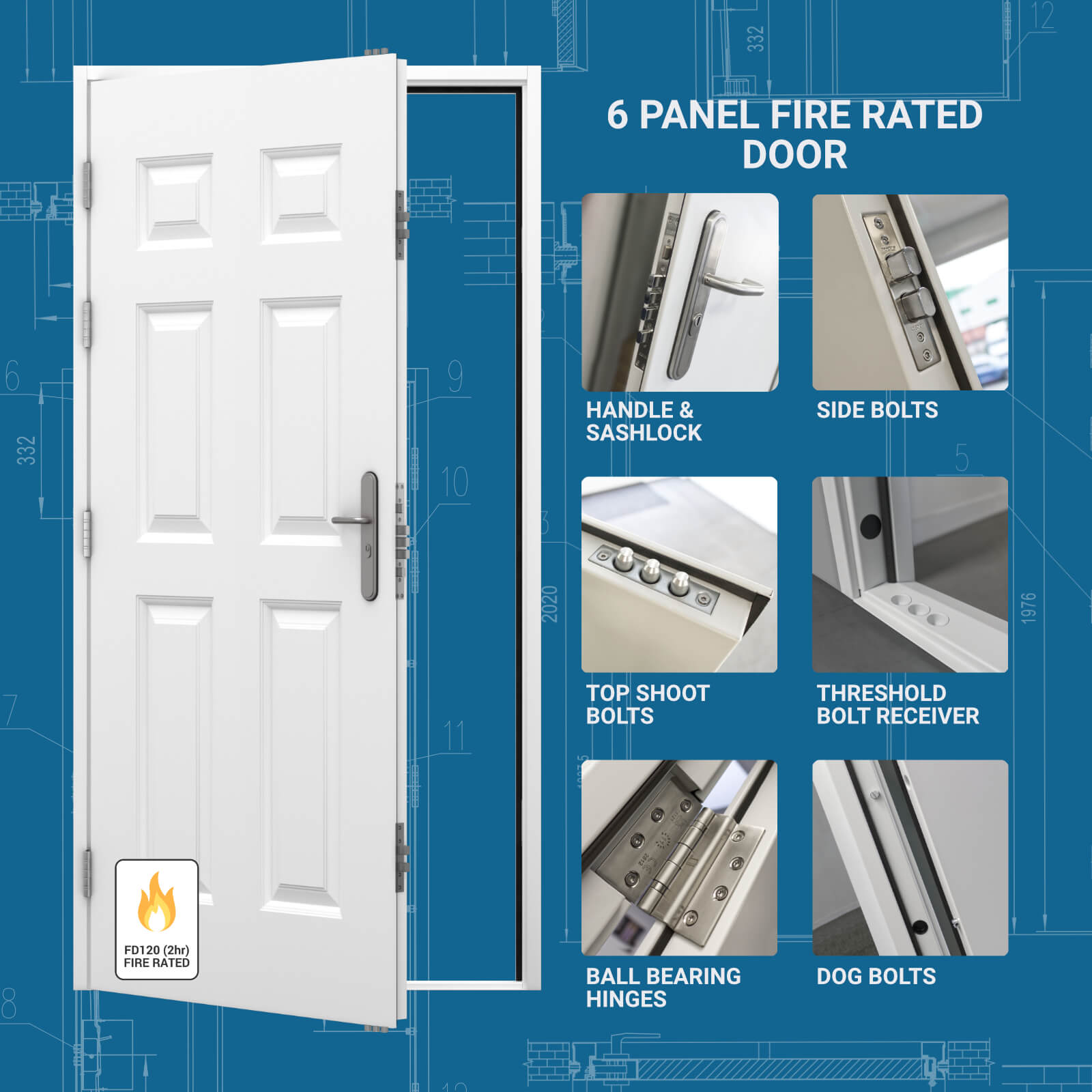

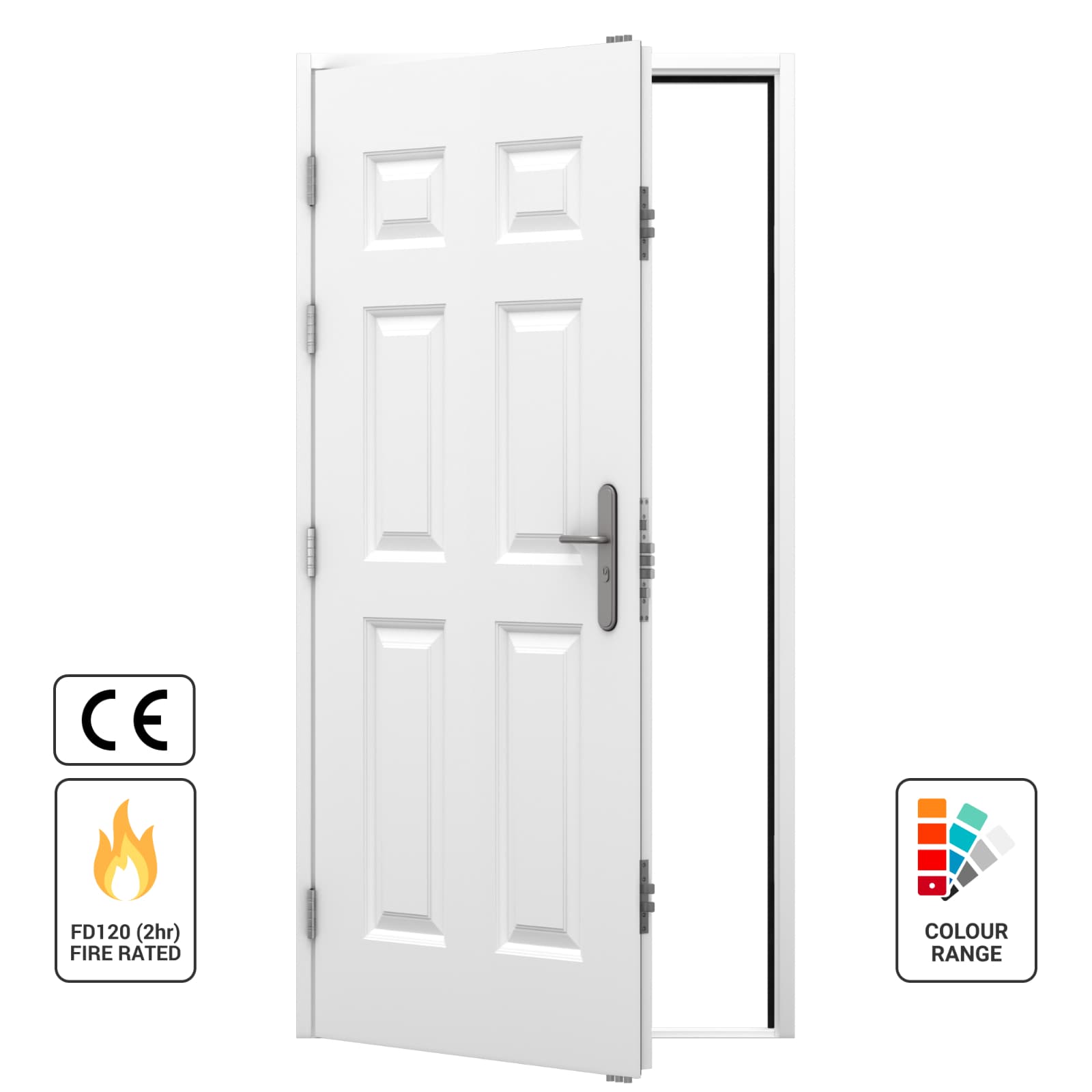

6 Panel Fire Rated Door

From £619.99 +VAT (£743.99 inc. VAT)

Certified up to FD120, our 6 Panel Fire Rated Door gives you up to 2 hours of fire protection for your property. These steel doors are also FD30 and FD60 rated should you require certification to this level.

These steel fire doors also feature a multi point locking system so you can both protect and secure your property. As per fire protection regulations, these doors come supplied with a door closer pre-fitted on either the push or pull side. (please select when purchasing)

Also available in flush and cottage styles.

Clear

Lead Times
Stock White door: 5 working days + delivery
Powder coated door: 10 working days + delivery
Fast track options: Contact us for availability

SKU: N/A Category: GTIN: 5060479950164

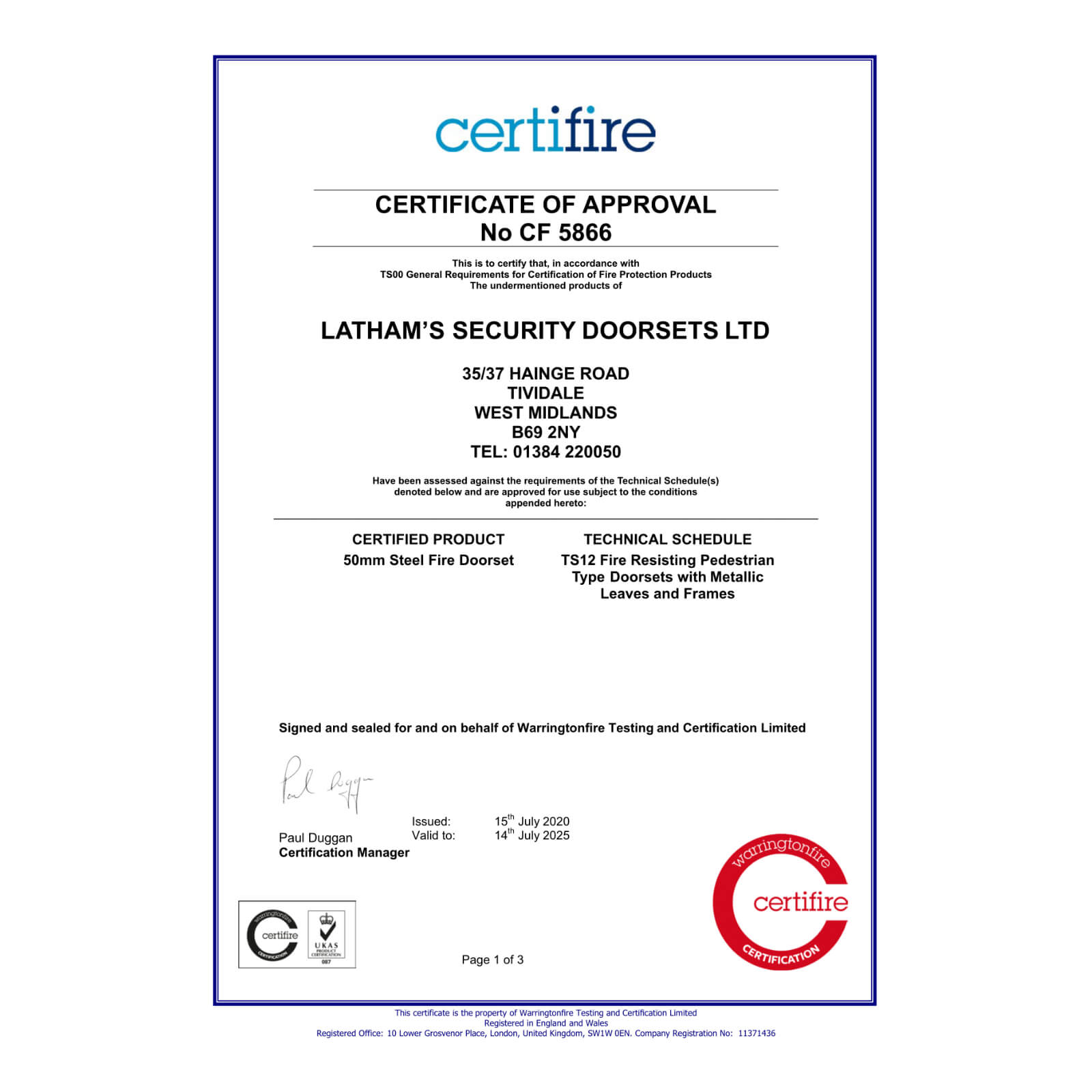

Click here to view our Warrington certifications

Our steel fire rated doors offer an increased level of fire protection being FD30, FD60 and FD120 fire rated. These steel fire doors offer 30,60 and 120 minutes of fire protection slowing the spread of fire.

With a 6-panel design these doors are particularly well suited to residential applications such as internal garage doors. They are also well suited for commercial properties such as office buildings and retail units.

Supplied in Latham’s stock white as standard you can also choose from a wide range of colours to personalise your door. Also featuring our 19-point locking system, our steel fire rated doors also offer a high level of security for your property. With a 3* kitemark cylinder as standard and our stainless steel 918902 handle.

PLEASE NOTE: Certification is not valid if additional accessories or frame extensions are installed. Only the selected options available with certified doors can be used.

Door Type

Personnel

Available Sizes (mm)

845×2020, 895×2020, 995×2020

Finish

White powder coat from stock, choice of colours available

Design

Georgian 6 Panel

Door Frame Material

1.8mm Galvanised Steel

Door Frame Depth

90mm

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

50mm

Door Leaf Core

Mineral wool insulation

Internal Strengthening

2 x horizontal & 1 x vertical reinforced bar

U Value

2.20

Acoustic Value

35dB

Hinges

4 Stainless steel ball bearing hinges

Handles

918902 Stainless Steel Security Handle

Locks or Door Furniture

Latham's trademark 19 point locking system

Cylinder

UAP 3* Kitemark cylinder

Seal

Intumescent Seal

Dog Bolts

4 Dog bolts

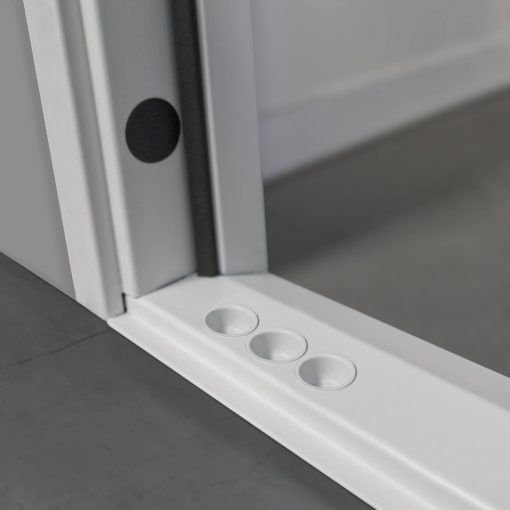

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top

Construction

Fully welded construction

Security Type

High

Security Certification

PAS 24:2016 Certified (optional upgrade)

CE Certification

No

Fire Rating Certification

FD30, FD60, FD120

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for internal use only

Example Door Purposes

Security garage side door, high security office door, high security interior door, safe room door, external 6 panel security door

Videos


FAQs

Can you tell the door is made from steel?

Quite simply, no. Unless you hit the door with force, you cannot tell it is made from steel.
A misconception is that steel doors are only for industrial use, but once powder coated and fitted with our highest quality ironmongery, you cannot distinguish the difference between our door and a traditional uPVC or composite door.

How do I choose the hinge side and opening? (Handing)

Hinge side and opening is determined viewed from outside.
Example 1: LH hinge open out: hinges are on the LH side, handle is on the right and you pull the door towards you.
Example 2: RH hinge open in: hinges are on the RH side, handle is on the left and you push the door away from you.
See our handy illustration here

What is the lead time?

Stock Door (white, no modifications) – in stock – 0 days
Stock Door (white, modified e.g. installed accessories, vision panel e.t.c) – 4 working days
Re-Powder Coated Stock Door, with or without accessories installed (not white) – 10 working days
Fast track options are also available.

How many keys come with the door?

Front doors come come with 3 keys.
Additional keys are available – we have a key cutting machine on-site
See our cylinder options video here

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.
We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door.
To calculate the clear opening (when the door is open), subtract 135mm from the width dimension. E.G. 895mm-135mm=760mm clear opening
See the video on how to measure here

What is Security Trim?

The security trim kit fits around the perimeter of the door frame. It works very much like architrave.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
For residential applications, you may choose to use pvc trim or alternative architrave to finish the installation.
See the security trim video here

To see all FAQs, click here

Downloads

Fitting Instructions

Download fitting instructions

Operation & Maintenance Manual

Download operation & maintenance manual
